Garso signalo lygio keitiklis KICX HL 370, 4x RCA

Trumpai apie prekę

Prekė: Garso signalo lygio keitiklis KICX HL 370, 4x RCA. Kategorija: Kondensatoriai, filtrai.

• Gamintojas: Kicx
• Modelis: HL 370

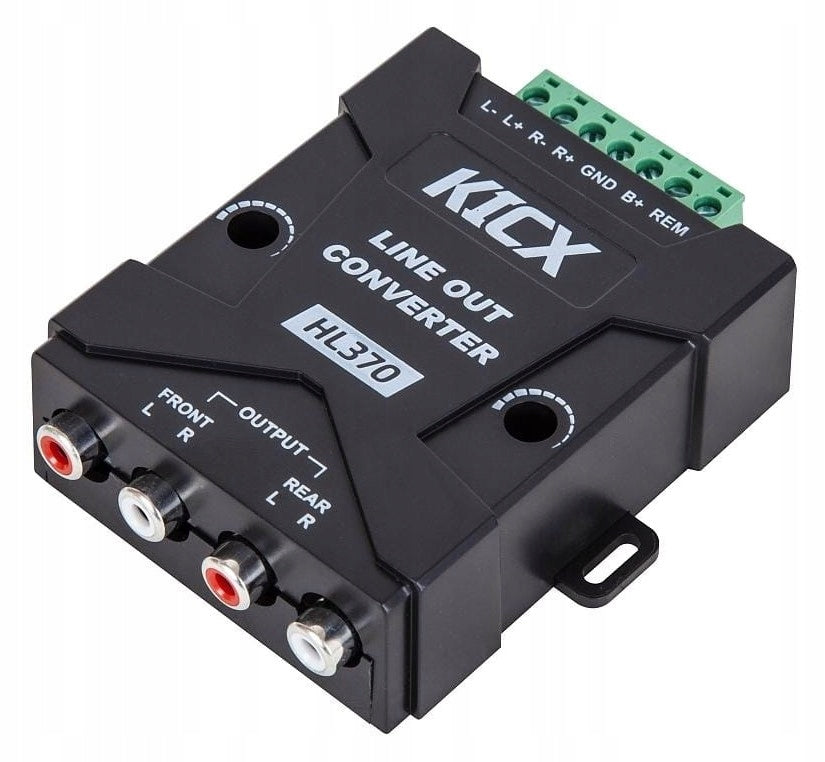

KICX HL 370 - High/Low signal converter with REMOTE

Speaker signal to RCA level converter - input 2x30W / output 4xRCA, smooth signal level adjustment, Remote output

High-quality 2-channel converter that lowers the loudspeaker signal from the headunit to the level of RCA inputs for an external amplifier. Allows you to connect a headunit that does not have RCA (CINCH) outputs to an external power amplifier. The converter has 4 RCA outputs, a smooth adjustment of the output signal level, a Remote output for the amplifier and a noise filter with DC separation.

• REMOTE TURN ON/OFF output - a system for switching on and off the external power amplifier
• intended for radios with a maximum output power of up to 2x30W
• smooth regulation of the output signal, separately for the left and right channel
• 4 RCA outputs (left/right channels for front/rear outputs)
• Adjustable output voltage range - 0.2V-6V
• Total harmonic distortion - < 0.01%
• Frequency range - 20-20000 Hz
• Number of output channels - 4
• Number of input channels - 2
• Supply voltage - 12
• Noise suppression - yes
• "Remote" output - yes
• RFI filter - No
• Size, mm - 92x66x26

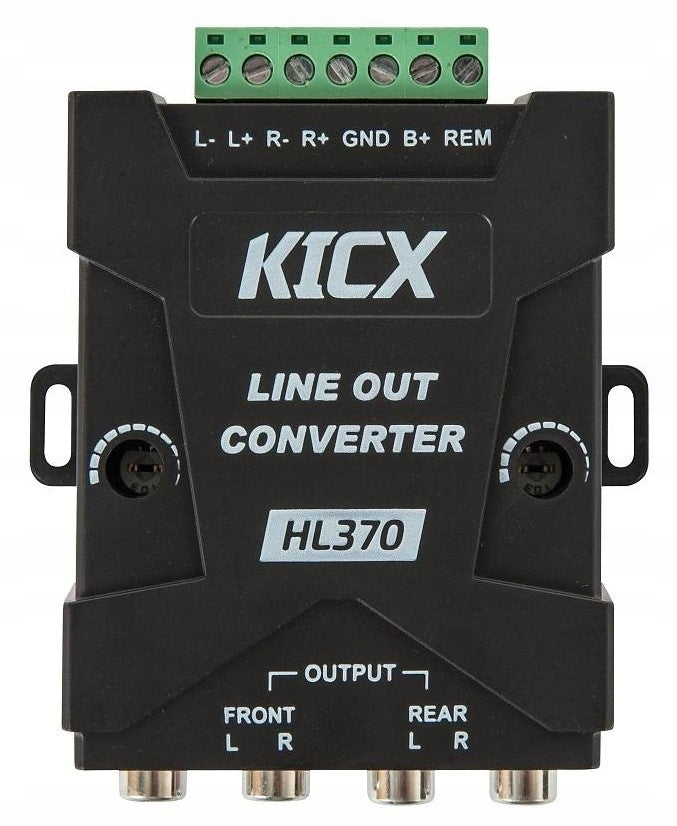

DESCRIPTION OF CONNECTIONS according to the markings on the converter housing :

"OUTPUT" section:

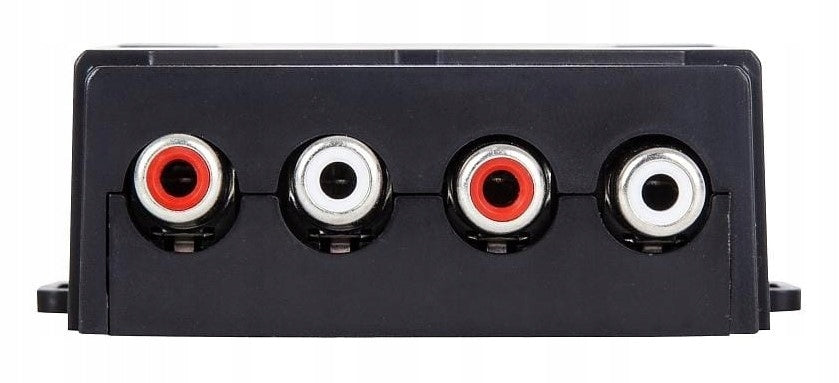

• 4 RCA level signal outputs (Front/Rear) for the left (L) and right (R) channels connected to the RCA inputs of the power amplifier

Wire Connector:

• (GND) - power ground - connect to the power ground of the radio, amplifier or vehicle body
• (B+) - +12V power supply - connect to +12V voltage, e.g. to the power cord of the radio or power amplifier
• (REM) – Remote output (+12V) for switching the amplifier on/off - connect to the Remote input in the amplifier
• (L+) – connect to the loudspeaker output from the radio for the left channel with positive polarity (+)
• (L-) – connect to the loudspeaker output from the radio for the left channel with negative polarity (-)
• (R+) - connect to the speaker output from the radio for the right channel with positive polarity (+)
• (R-) – connect to the loudspeaker output from the radio for the right channel with negative polarity (-)

The converter can be mounted near the radio, speakers or directly next to the amplifier, as long as there are no other devices or installations in these places that are a source of strong electrical interference.
