Gazuoto vandens aparatas Prime Elegance UV

Trumpai apie prekę

Prekė: Gazuoto vandens aparatas Prime Elegance UV. Kategorija: Vandens dozatoriai.

• Gamintojas: Aquaphor
• Modelis: Small UV Soda
• Svoris: 20 kg

Elegant and modern sparkling water dispenser for office and home. It provides filtered drinking water in three types: chilled still, chilled carbonated and hot.

A unique model on the market, equipped with a UV-C lamp to ensure the highest quality and bacteriological purity of the water fed. It ensures the removal of 99,99% of pathogens, including bacteria and viruses. UV lamp with attached filtration system allows for comprehensive filtration of tap water.

Modern, slim design combined with the latest technology in the form of fully tactile operation. The smallest carbonated water dispenser on the market (express) with UV lamp - only 23 cm wide.

PERFECT, PRESTIGIOUS CYLINDER-FREE WATER SYSTEM FOR OFFICE AND HOME

Prime Elegance Soda is a series of new generation of CO2 water dispensers that are the perfect addition to any modern office or kitchen. Prime Elegance water dispensers are of the highest quality and elegant design that provides a spectacular look to your office.

The administration of filtered sparkling water is an undoubted advantage of this cylinderless water distribution system.

We are a direct importer and representative of Prime brand distributors.

Types of water produced:

1. Filtered, chilled still water (5-10°C),

2. Filtered, chilled sparkling water (5-10°C),

3. Filtered hot water (5-10°C)

Complete, ready-to-use distributor with built-in UV lamp and external filtration system Aquaphor Crystal Solo.

What distinguishes the Prime Elegance UV model:

✓ Unique design - slim design (only 23 cm wide) and small size ensure the highest aesthetics of installation.

✓ Sophisticated design - modern design and aesthetic design.

✓ Comfortable operation - touch panel with LED backlight makes it easy to use the distributor. Separate buttons on the panel, for each of the three types of water produced (cold, carbonated, hot). One tap of water outflow (not three, as is found in other models).

✓ Efficient carbonization system for sparkling water - real sparkling water fed continuously. The distributor administers sparkling water under constant pressure, with an even efficient outflow at a rate of about 3 liters per minute. It has the ability to set the level of carbon dioxide saturation of water.

CARBONATED WATER

The device provides chilled sparkling water. The administered sparkling water is cooled in the range of 5-10 degrees Celsius. The distributor has a system of direct cooling of water during the flow.

The sparkling water dispenser is administered continuously as long as the button is held on the battery. Thanks to the precarbonization system (no starting of the pump increasing pressure during water intake), sparkling water flows out evenly and silently.

The distributor produces medium-saturated CO2 water (about 4 g CO2 / liter of water).

Thanks to the use of a large carbonated water tank (capacity 2,5 liters), it allows you to maintain a large capacity and a single, uninterrupted intake of up to 2,5 liters of sparkling water.

High capacity - up to 1000 litres of sparkling water from one CO2 cylinder

The device can be equipped with a 5-liter CO2 cylinder with a capacity of 1000 liters (available separately).

The water saturation level can be adjusted with a knob on the reducer.

UV lamp - in addition to the external water filtration system, this model, as one of the few devices on the market, has a built-in UV lamp. UV-C ultraviolet radiation with a wavelength of 250-240 nm, is the most effective way to provide water free from bacteria, viruses and other pathogens.

The bactericidal mechanism consists in absorbing by nucleic acids and proteins the energy of UV-C radiation, which induces chemical reactions in the nuclei kills microorganisms.

The lamp activates automatically when the water intake is turned on and is installed at the last stage of water outflow from the device.

Lamp life: 8000 hours (estimated up to 10 years of operation of the device).

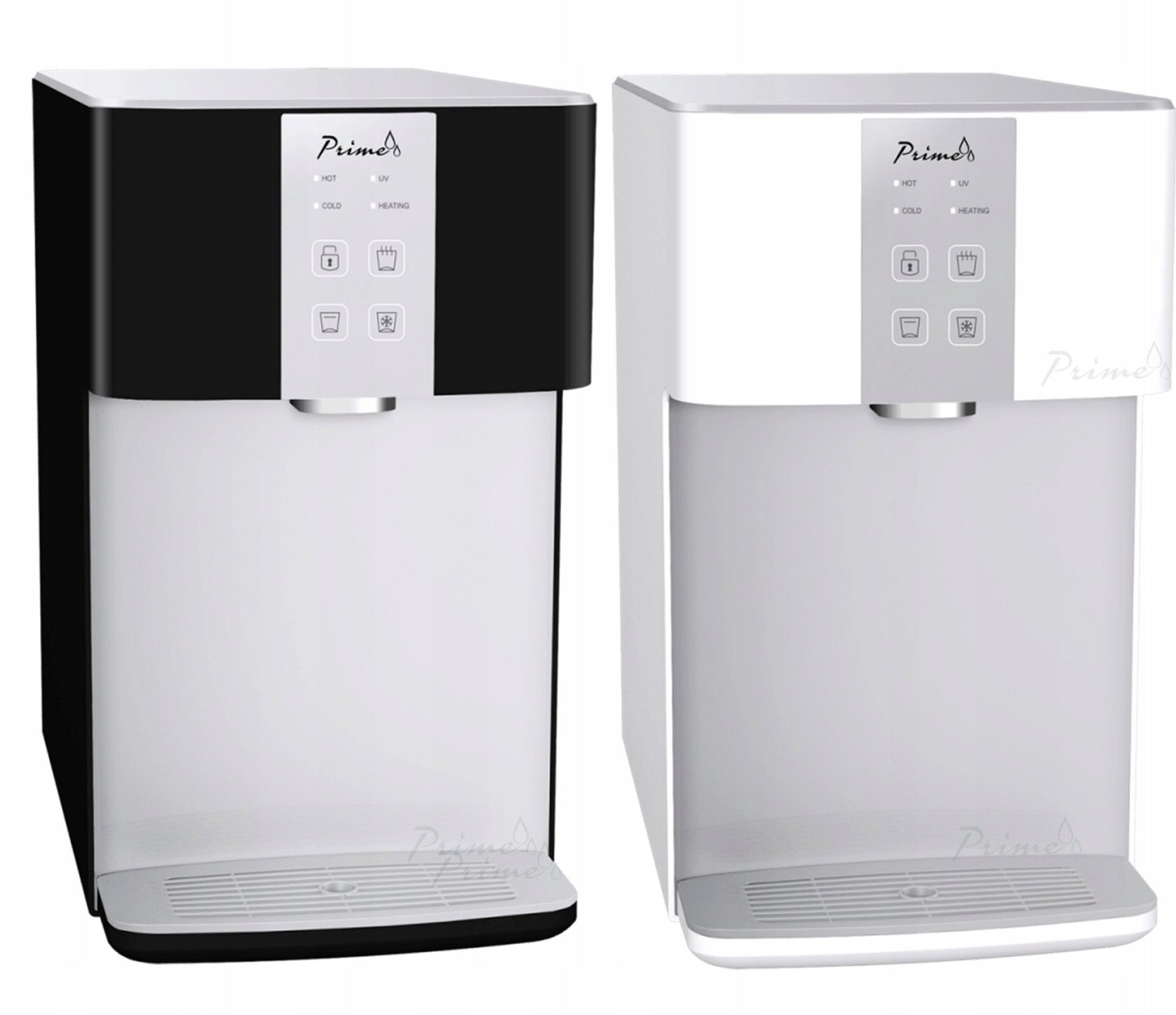

Model available in two color versions, i.e. white and black.

FILTRATION SYSTEM - AQUAPHOR CRYSTAL:

AQUAPHOR CRYSTAL

The component of the system is an external, 2-stage ultrafiltration system (filtration accuracy up to 0,8 microns). The filter has a high capacity of up to 4000 liters.

Stages of filtration

Grade 1: filter 0,8 microns - preliminary purification of water from mechanical sludge, tarnish, silt and solid sludge.

Grade 2: carbon cartridge (K1-07). Elimination of up to 99% of toxic compounds and elements (lead, manganese, mercury, etc.) thanks to the Aqualen deposit, elimination of bacteria, cysts up to 0,8 microns in size. The Aqualen deposit used in the filter contains silver particles, which guarantees the purity and bacteriological stabilization of the filter.

Efficiency of pollution removal

Chlorine: 100%, Heavy metals (lead, cadmium, manganese): 90%, Phenol: 98%, Petroleum products: 99%, Pesticides: 97%

Low operating cost - high-efficiency cartridge (up to 4000 liters) extends the period from replacement to 6 months. Possibility of using other types of cartridges from the manufacturer Aquaphor.

Attests - the filter is certified by the German TUV and Polish hygienic certificate PZH.

SIMPLE CARTRIDGE REPLACEMENT - HEAD SYSTEM

The cartridge is designed for simple, self-replacement by the user on the principle of "screw - screw", without the need for tools.

Recommended cartridge replacement period - every 6 months or 4000 liters.

Filter:

• Type: Manufacturer Aquaphor. Multistage filtration with Aqualen activated carbon and mechanical filtration 0,8 micron
• Performance - filter (litres): 4000 L
• Filter phases: 2
• Filter head: Yes, uniform, 1 cartridges in a simple "twist off" replacement system

Distributor:

• Power supply/power consumption: 220V / 100W (during cooling); 500W (during heating)
• Weight: 20 kg
• CE mark - cooling unit: yes
• Certificates: CE, RoHS, PZH
• Cooling agent: R134A (fan-assisted cooling). Fan operating volume - 33 dB (periodically, during cooling).

• Dimensions - cooling unit: 23 (width. ) x 40 (H) ) x 42 (depth) cm
• Indicator for water type: 3 types: carbonated, still, hot. Hot water with the option to turn off and obtain after turning off the water heating at temp. environment.
• Cold water temperature control: yes - in the range of 5-12 degrees Celsius.
• Capacity of tanks: hot water: 0,9 litres; sparkling water: 2,5 litres
• Performance of cooling/heating system (litres/hour): Cooling - 7 l/h (cooled, carbonated water), Heating: 7 l/h (hot water).
• Water supply temperature: sparkling water: 2-2,5 litres/min; cold water: 1,5 litres/min; hot water 1,5-2 litres/min.

COMPLETION

Included:

- Prime Elegance Soda UV Distributor

- Filtration system Aquaphor Crystal Solo (head + filter cartridge K07) - installed outside the distributor.

- Connection / tee to power the device with cold water (thread size 1/2")

- Flexible connection hose for water and CO2 - length 5 meters (diameter of hose 1/4" ~6,4 mm)

- Polish manual.

The device is designed for simple, self-assembly, ready to work, when connected to water and CO2 cylinders (CO2 cylinder available separately).

A bottleless water filtration dispenser offers a more than 5 times lower cost of use compared to renting a dispenser with replaceable bottles. The average annual cost of purchase and servicing over a 3-year period is approximately 600 zł per year, compared to over 3500 zł annual cost of maintaining a similar system under a rental agreement (water deliveries in bottles).

The purchase of a filtering dispenser pays for itself in the fifth month of use, and the cost of producing 1 liter of water from the water dispenser is approximately 0,13 zł, compared to 1,6 zł per liter of water delivered in 18.9L bottles.

Over 3 years of use, you can save over 10 000 zł.

Assumptions: monthly dispenser rental fee – 40 zł net; water consumption – 10l per day (11 bottles per month), cost of purchasing a filtering dispenser – 1500 zł gross (price of the HC66L model with Power Care energy saving system), cost of replacing Aquaphor filter cartridges – 120 zł per year (replacement twice a year).

An additional advantage of purchasing versus renting is tax savings. In the case of a purchase, you achieve a one-time write-off of the entire cost, which is a more favorable situation compared to monthly costs and invoicing when renting.

Specifications
