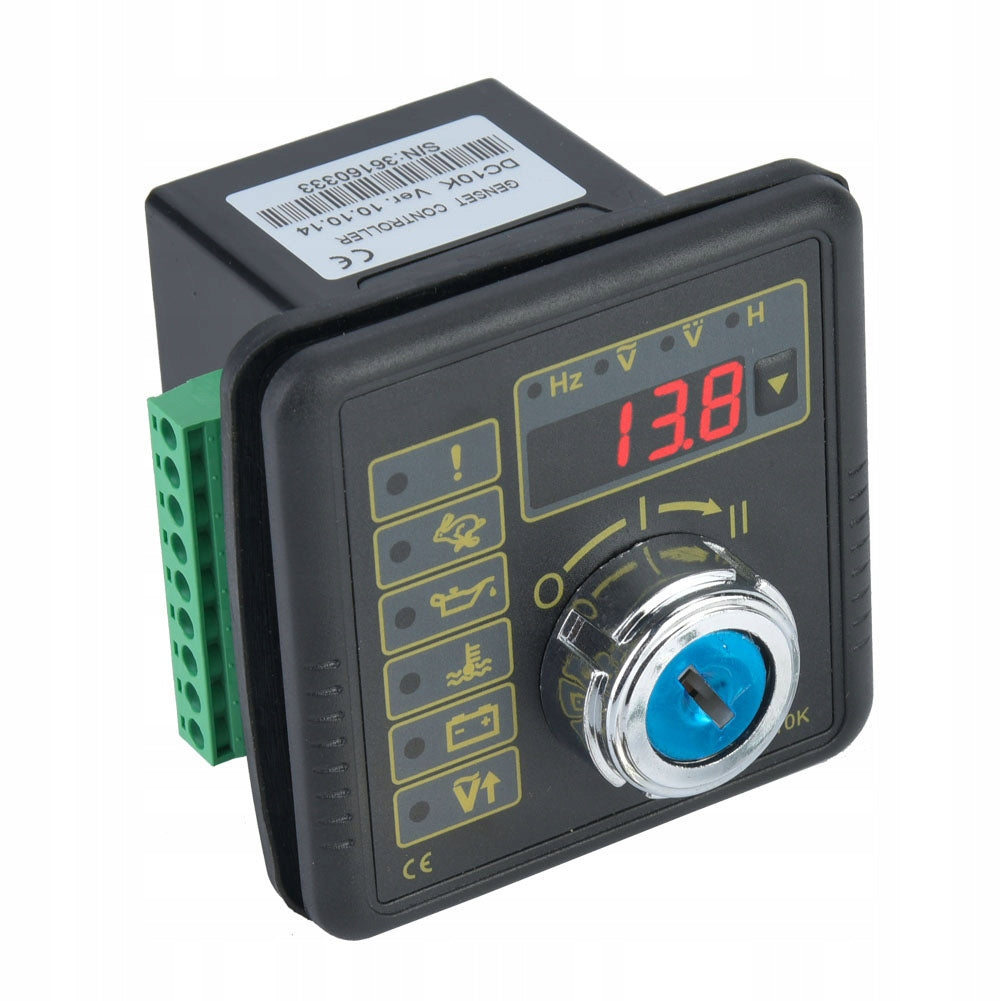

Generatoriaus valdymo skydelis DC 8–33V 2W

Trumpai apie prekę

Prekė: Generatoriaus valdymo skydelis DC 8–33V 2W. Kategorija: Oro valytuvai.

• Gamintojas: no brand
• Modelis: GS15856
• Galia: 1 W

⚙ DC10K GENERATOR CONTROLLER – MANUAL START OF THE ENGINE

📟 4-digit LED display | Programming by PC | Alarm protection

✅ Ideal for monitoring and controlling power generators

📝 PRODUCT DESCRIPTION

The DC10K controller is designed as one of the manual motor start controllers.

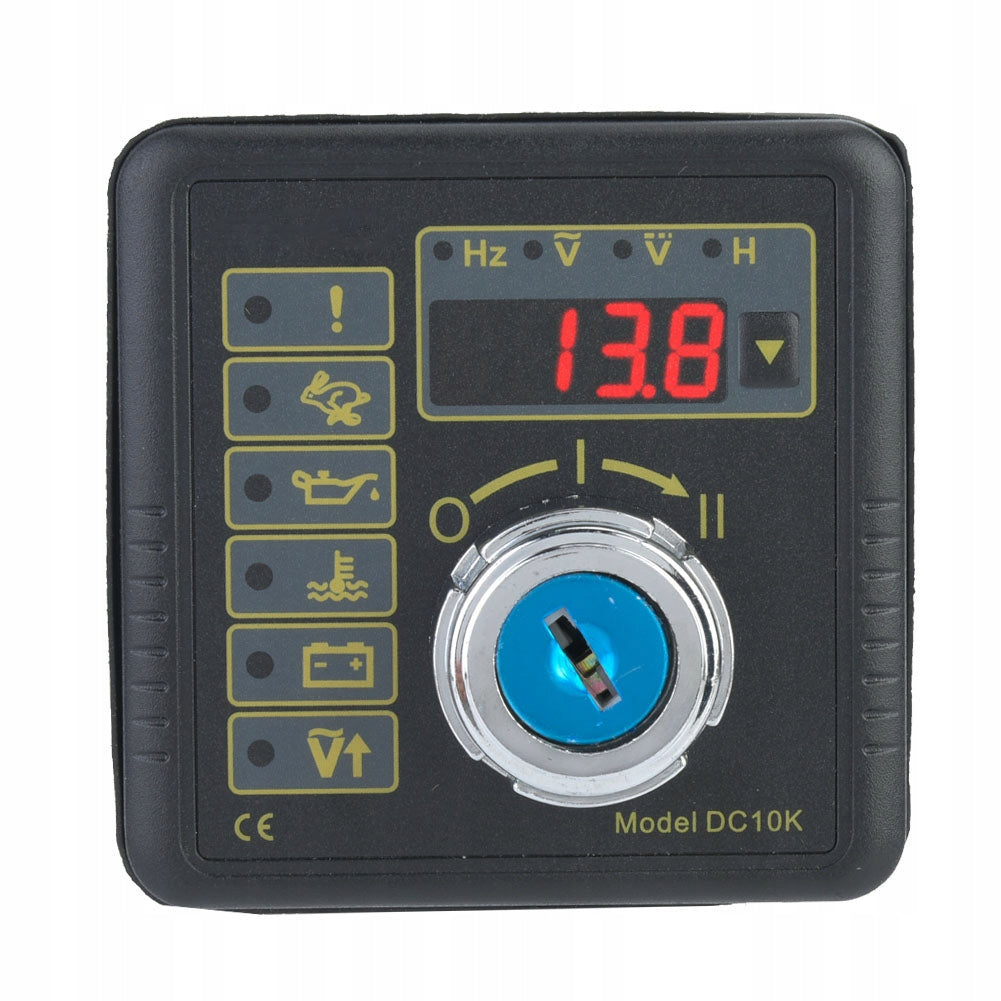

On the front LED panel you can display: frequency (Hz), voltage (V), battery voltage and operating time (accumulation).

The controller also has various stop and alarm indicators to monitor the state of the unit.

✅ In addition, it can be connected to a computer (PC) – so that the parameters can be set by the computer to adapt it to different aggregates.

🌟 THE MOST IMPORTANT FEATURES

🧠 32-bit imported chip

A 32-bit imported high-performance microchip was used – precise control.

📟 4-digit display

4-digit digital display – can be switched automatically or manually.

🔑 Durable starter key

Durable vehicle starter key – solid construction.

⚙ Parameter setting function

Possibility to set parameters by connecting to a computer – adapt to different aggregates.

🚨 Various alarm functions

With various alarm functions – stable performance, protection of the unit.

💧 Standard waterproof ring

Standard sealing ring – the back panel has a waterproof function.

🔌 Easy installation

All connections are made by European terminal blocks – very easy and convenient installation, connection, repair and replacement of the device.

📊 DISPLAYED PARAMETERS

• Generator voltage: Displayed in V
• Generator frequency: Displayed in Hz
• Engine battery voltage: Battery status
• Cumulative working time: Aggregate operating hours

🚨 ALARM AND PROTECTION

• Maximum speed: Excessive rotational speed
• Speed limit exceeded: Overclocking
• Low oil pressure: Low oil pressure
• High water temperature: High water temperature
• External instant parking alarm: External instant parking alarm
• Power generation overvoltage: Power generation overvoltage
• Charging failure warning: Charging failure warning

📋 TECHNICAL SPECIFICATION

• Condition: 100% new
• Product type: Generator controller (DC10K)
• Power supply: 8 – 33 VDC
• Power consumption: MAX 2 W
• Alternative voltage input: 15 – 300 VAC, 50/60 Hz
• Speed Input: Freq 300 Hz – 10 kHz
• Fuel output: MAX 16
• Engine output: MAX 10
• Excitation output: MAX 80 mA
• Alarm output: MAX 16
• Working temperature: -30°C to 75°C
• Storage temperature: -40°C to 85°C
• Dimensions: approx. 78 x 78 x 72 mm (3,1 x 3,1 x 2,8 inches)
• Mounting hole size: approx. 67 x 67 mm (2,6 x 2,6 inches)

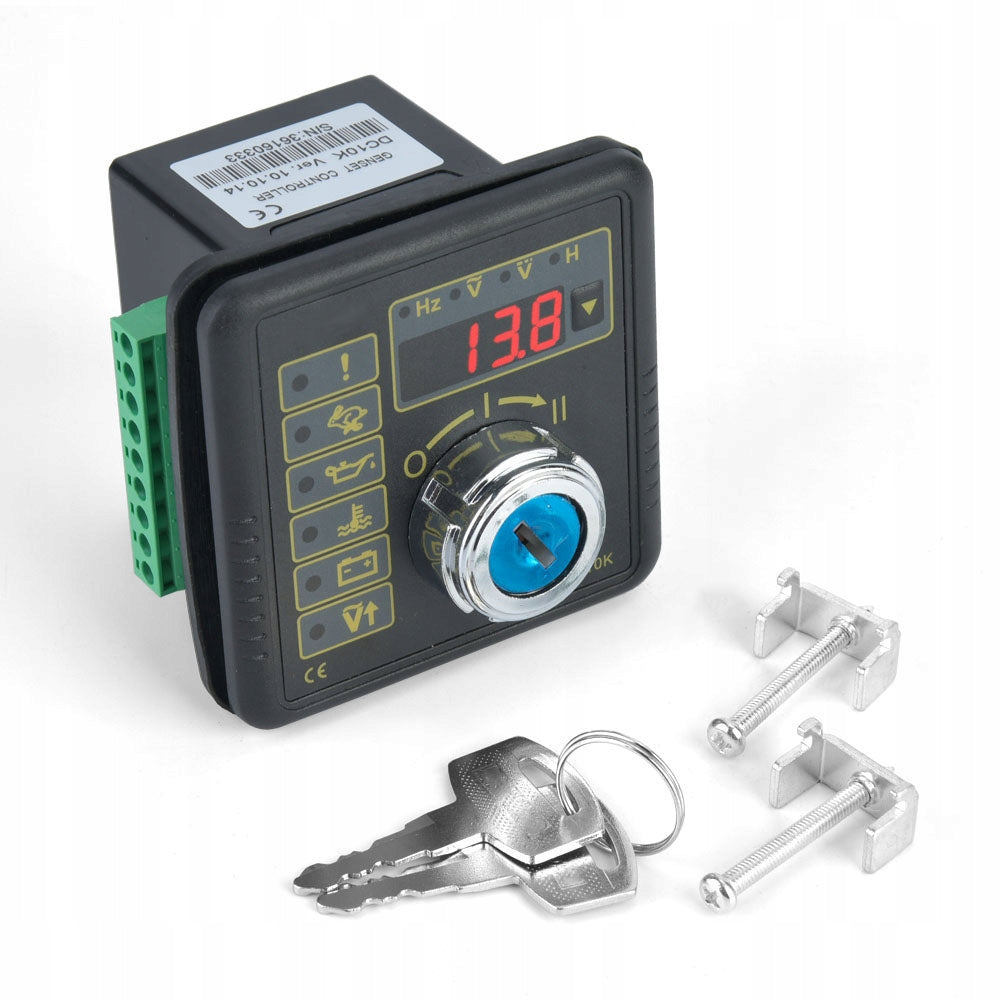

📦 CONTENTS OF THE SET

• Controller (DC10K): 1 x
• Key (starter key): 1 x
• Interface wiring: 1 x

⚠ IMPORTANT INFORMATION

🧠 Advanced control

• 32-bit imported chip – fast and stable performance.
• 4-digit display – readable in all conditions (automatic/manual parameter switching).
• Programming via PC – flexibility for different types of aggregates.

🔌 Ease of installation and service

• European terminal blocks – quick installation, replacement, diagnostics.
• Standard sealing ring – protection of the rear panel against moisture (IP).

🚨 Advanced alarms

Full protection of the unit against:

• maximum speed
• low oil pressure
• high water temperature
• overvoltage
• charging failure
• and external emergency stop.

🌡 Wide temperature range

• Working: from -30°C to 75°C – suitable for cold winters and hot summers.
• Storage: -40°C to 85°C.

🔋 Power supply

• Wide range of 8-33 VDC – works with 12V and 24V batteries.
• Low power consumption (MAX 2W) – does not burden the installation.

📊 Monitored parameters

• Generator Voltage (V)
• Generator frequency (Hz)
• Motor battery voltage
• Cumulative working time of the unit (useful for service)

✅ Ideal for:

• Generator sets (manual start).
• Industrial, agricultural and construction applications.
• Remote locations (monitoring without supervision).
• Emergency power systems.

⚠ Comments

• Please take into account the small tolerance of manual measurement (dimensions).
• The colors displayed in the photos may differ slightly from the real ones (different monitor settings).
• Before installation, check compliance with the parameters of your unit.
