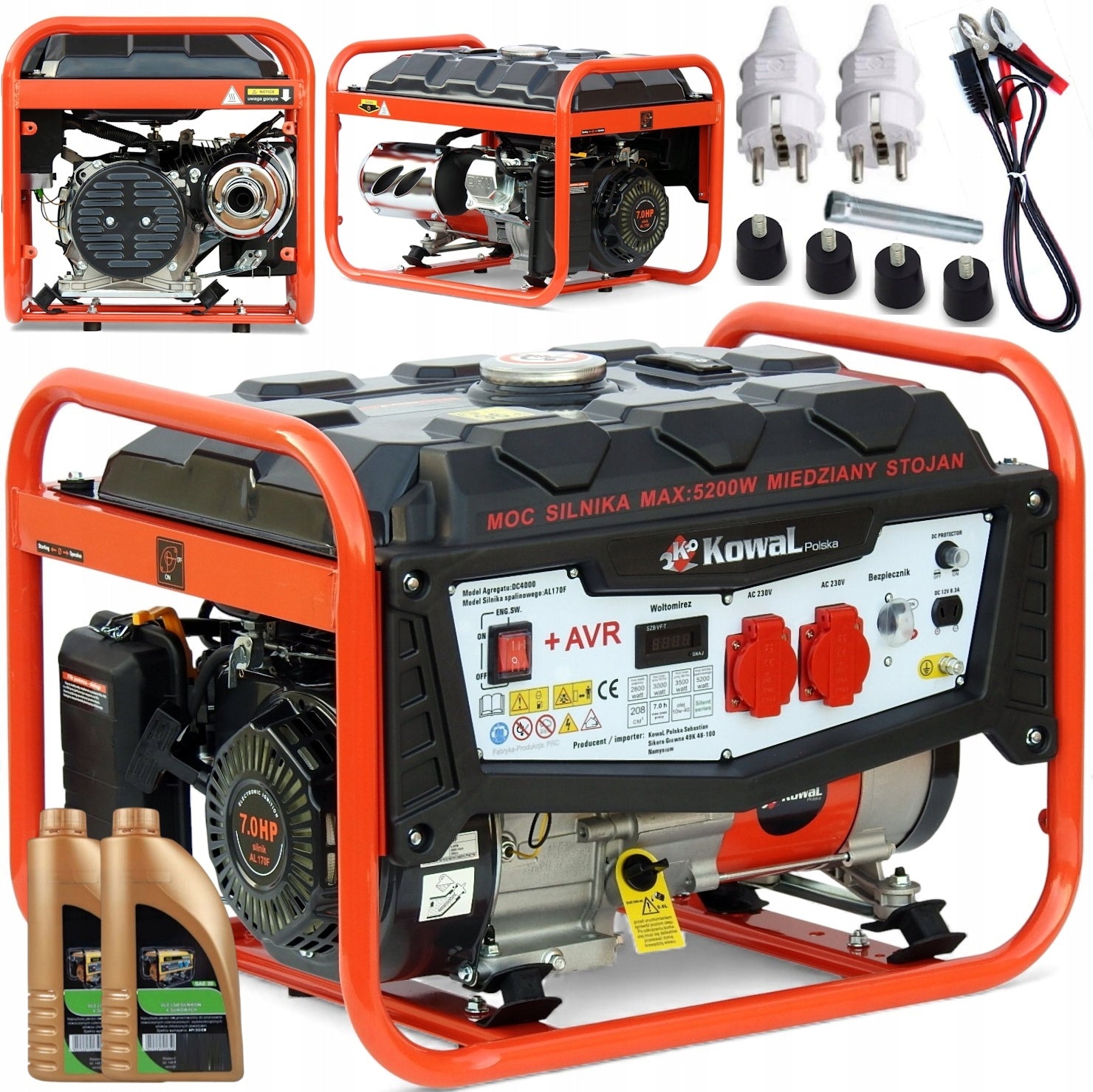

Generatorius 5,2 kW su variniu statoriumi, AVR ir valandų skaitikliu

Trumpai apie prekę

Prekė: Generatorius 5,2 kW su variniu statoriumi, AVR ir valandų skaitikliu. Kategorija: Elektros generatoriai.

• Gamintojas: Kowal Polska
• Modelis: A1 PRO
• Įtampa: 230 V

✅NEW model with extended generator

✅COPPER stator winding

✅Engine power of 7HP!

✅MOTOR HOUR COUNTER

✅Obtained increased true power max. generator up to 3,5kW

✅EQUIPPED WITH AVR voltage stabilizer

✅12V CHARGING!

✅MUTED silencer chamber

✅NEW MODEL A1 equipped with an intelligent throttle system that automatically responds to load changes.

KowaL Polska aggregates are characterized by reliability, uninflated parameters and are equipped with many systems that guarantee the best possible power parameters and current quality while maintaining the lowest possible combustion. The intelligent throttle operating automatically is responsible for this, which maintains rotations at the level of about 3 thousand rpm regardless of load and AVR guaranteeing very good current quality. Model A1 has one strong phase very well suited for powering large construction tools or household appliances (AVR system), which require high power, e.g. kettle, microwave, oven.

⭐

Thanks to the use of these and many other solutions described later in the auction, they make blacksmith aggregates in a short time become one of the most popular aggregates in the country.

⭐

They are successfully used both on construction sites, plots or as an emergency power supply in home conditions. We have a wide selection thanks to which everyone will find a generator for their needs.

model A1 professional version!

• new original appearance
• motor-hour counter
• new generation silencer, quieter engine operation. Tolerates much better long intensive work
• Thicker frame
• harder valves, are not prone to burnout and do not require adjustment for a longer time than is the case with other similar devices
• thickened castings of the internal combustion engine body and stator base
• Third generation voltage regulator
• new type of generator, more wire wound

The stator and rotor account for nearly half of the value of the unit. Many companies use only a “copper” stator winding with a width of 70 to 100 mm.

All blacksmith units with a 5,2 kW engine use a stator with a length of up to 120 mm. The stator is wound fully with copper wire.

The copper generator cooperates with a very popular engine with the symbol AL170, which was produced on behalf of the KowaL Polska brand from the highest quality spare parts and main components, i.e. shaft, piston, connecting rod and valves. Details later in the auction.

The latest model uses an extended current. The power of the unit increases in proportion to the length of the stator core, thanks to which the A1 model reached a maximum power of 3,5 kW.

When connecting the same devices (compared to weaker models), the unit is much less loaded. This translates into longer life of the device and lower fuel consumption, making the generator more economical.

• motor power / max generator power at 60Hz: 5,2 kw / 3,5 kw
• Constant power at 50Hz: 2800 watt
• full power from one socket!
• fuel: PURE PETROL 95 OR 98
• fuel tank capacity about 15 L
• startup: manual
• nominal voltage: 230V
• nominal frequency at 3000rpm: 50Hz
• built-in AVR - voltage regulator
• weight with packaging approx. 43 kg

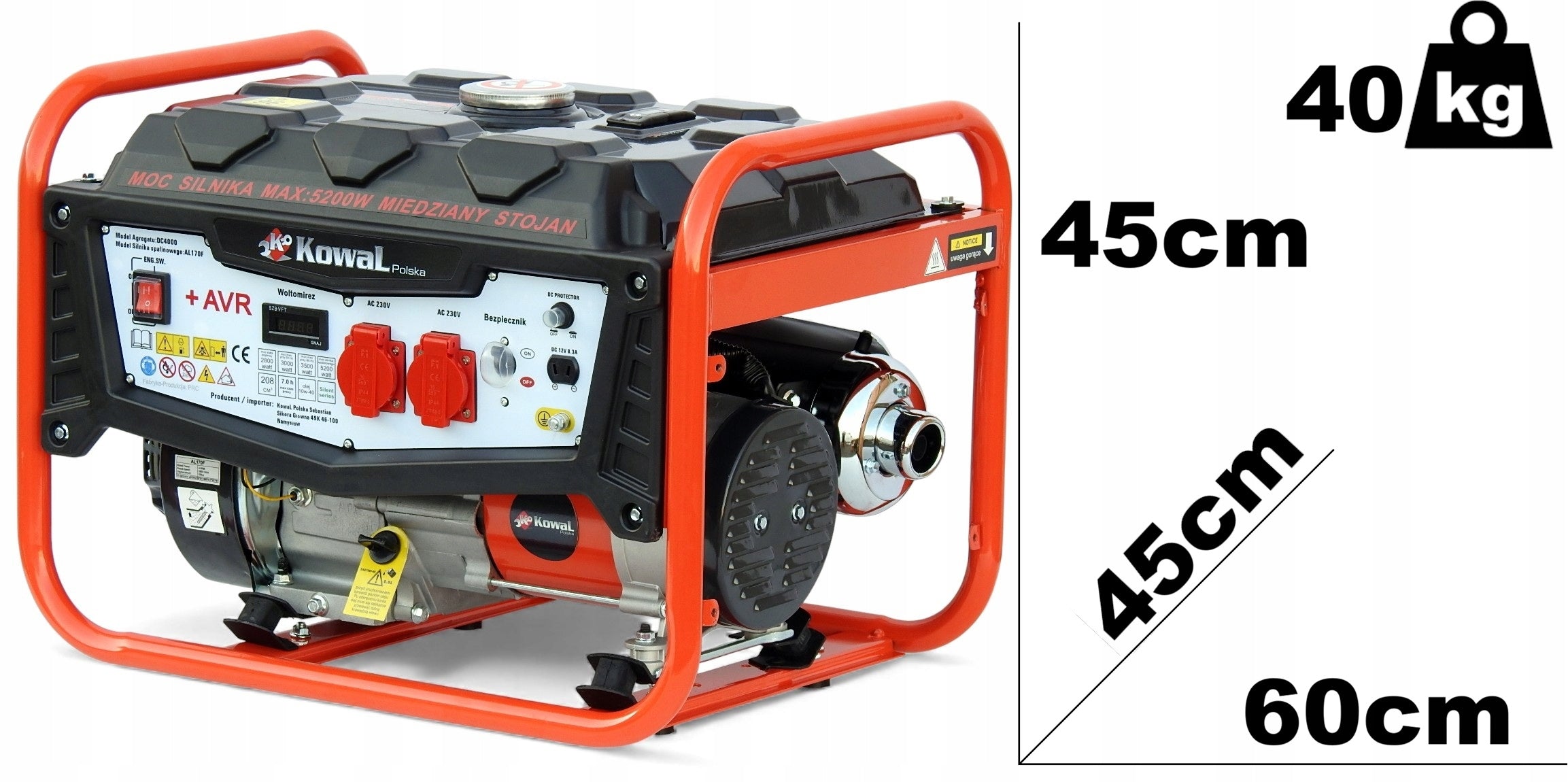

• dimensions: 45cmx60cmx44cm
• built-in rectifier output 12 volt
• engine displacement approx. 200cc
• used oil 10w-40 or SAE30
• oil pan capacity approx. 0,6 L
• oil condition equal to the lower edge of the infusion
• 1 replacement after 5 hours, then every 50.
• automatic regulation of rotation and voltage
• voltmeter
• Quiet engine operation
• Relaxer for easy start-up
• embedded on cushioning cushions
• high engine power
• high quality of workmanship
• engine speed approx. 3.000 r/min
• low combustion: from 0,7 - 1,1 L/h
• Please refer to the instruction manual before using!

Intelligent Throttle Technology

The NEW BLACKSMITH A1 model is equipped with an intelligent throttle system that automatically adjusts the engine operation to the current load of the generator. The system helps to maintain the working turnover at the level of approx. 3000 rpm /min, which is important for stable operation of the unit and proper power supply of many typical household and utility receivers.

With less power consumption, the system can reduce fuel dose, supporting cost-effective operation and lower fuel consumption. The whole process takes place automatically, without the need for constant user intervention.

✅2x plug 230v

✅12v cables

*

*

The latest model of the A1 PRO generator uses a built-in on-board computer. The computer displays information such as:

⭐voltage of electricity produced

⭐Frequency of electricity produced

⭐working time since last inclusion

⭐overall mileage of the device expressed in hours

To operate the computer, one button is enough, with which the user has the ability to exchange the displayed information.

✅2x socket 230v

✅fuel filter

✅cables 12v

✅candle wrench

✅0,6l oil FREE (in two bottles of 0,3l or one 0,6l)

✅nuts and mounting screws

✅instruction PL

✅warranty card

✅Manufacturer's declaration of conformity

Specifications
