Generatorius Agripower EY-30TCE-AVR, traktorinis, 30 kVA

Trumpai apie prekę

Prekė: Generatorius Agripower EY-30TCE-AVR, traktorinis, 30 kVA. Kategorija: Elektros generatoriai.

• Gamintojas: Energy
• Modelis: EY-30TCE-AVR
• Įtampa: 400 V

The 1500 rpm cardan shaft generator sets are ideal for continuous use in agriculture or by tractor owners. Powered by a tractor cardan shaft, these generators can be easily transported and used in rural areas or fields where electricity is not available, providing a consistent and reliable de power supply.

Specifications:

• Model: EY-30TCS-AVR
• Rated Power: 30kVA/24kW
• Maximum Power: 33kVA/26.4kW
• Tractor Power Required: 60HP
• PTO Shaft: 1'3/8 Z6
• Voltage: 400/230V
• Alternator: Linz PRO18S C/4
• Frequency: 50 Hz
• Max Alternator Current: 40A
• Voltage Regulation: AVR
• Speed: 1500 rpm
• Dimensions (H/W/L): 102.7x96x114.8cm
• Weight: 265kg

WE OFFER A WIDE SELECTION OF Agripower GENERATORS FROM 10kVA TO 160kVA - tailored to every user's needs.

Net Price: 22,300 PLN

Gross Price: 27,429 PLN

Financing options are available for our products through leasing or bank credit.

WHY CHOOSE A GENERATOR WITH AN ARTICULATED-TELESCOPIC SHAFT 1500 RPM FROM THE OFFER OF ENERGY AGRIPOWER?

CARDBOARD GEARS AT 1500 RPM: THE IDEAL SOLUTION FOR CONTINUOUS USE

Ideal for long-term use in agriculture or for those who have tractor, generator sets with a rotational speed of 1500 rpm. /min mounted on the Cardan shaft connects directly to the tractor power take-off shaft, providing a constant power supply. Thanks to their portability, they are also ideal for use in rural areas where electricity is not available.

.

CARACTERISTICS OF THE RANGE

The drive generators of the Agripower series are equipped with an alternator, a speed multiplier, a power multiplier, a power multiplier, a power multiplier, a power multiplier and a power multiplier. /strong>, protective housing for power take-off shaft, electric panel and 3-point suspension system.

Technical characteristics

Energy provides optimal value for money of these generators, which are distinguished by reliability, reliability and low de-operation costs. Find out how our solutions can meet your energy needs safely and sustainably.

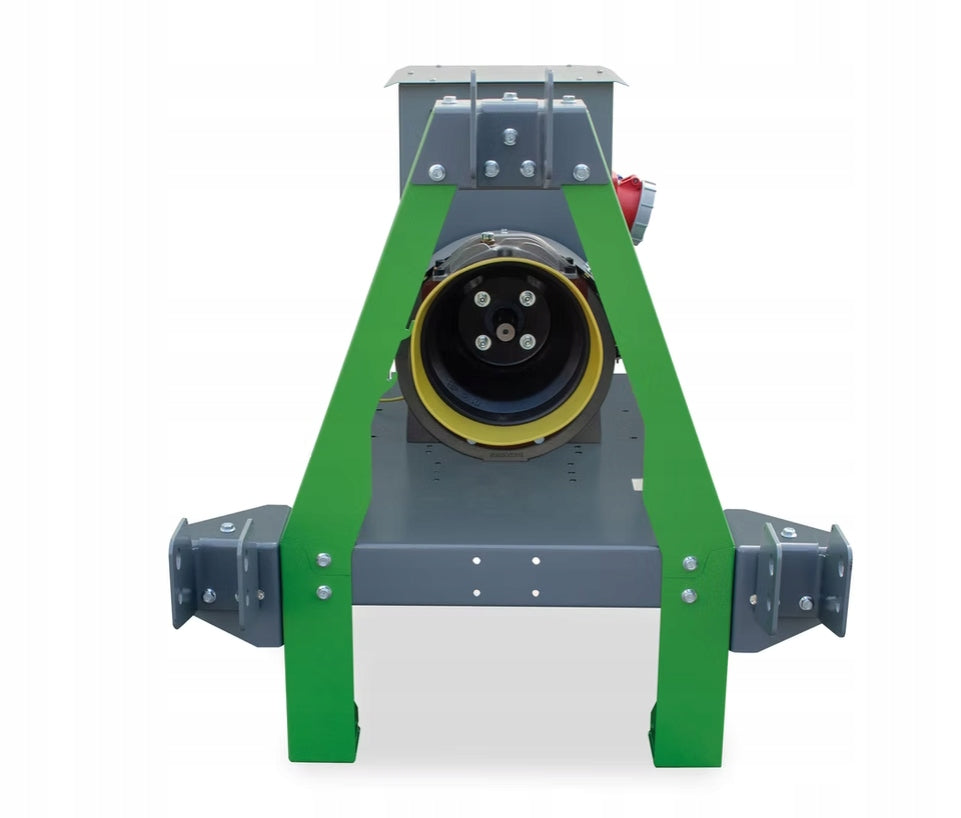

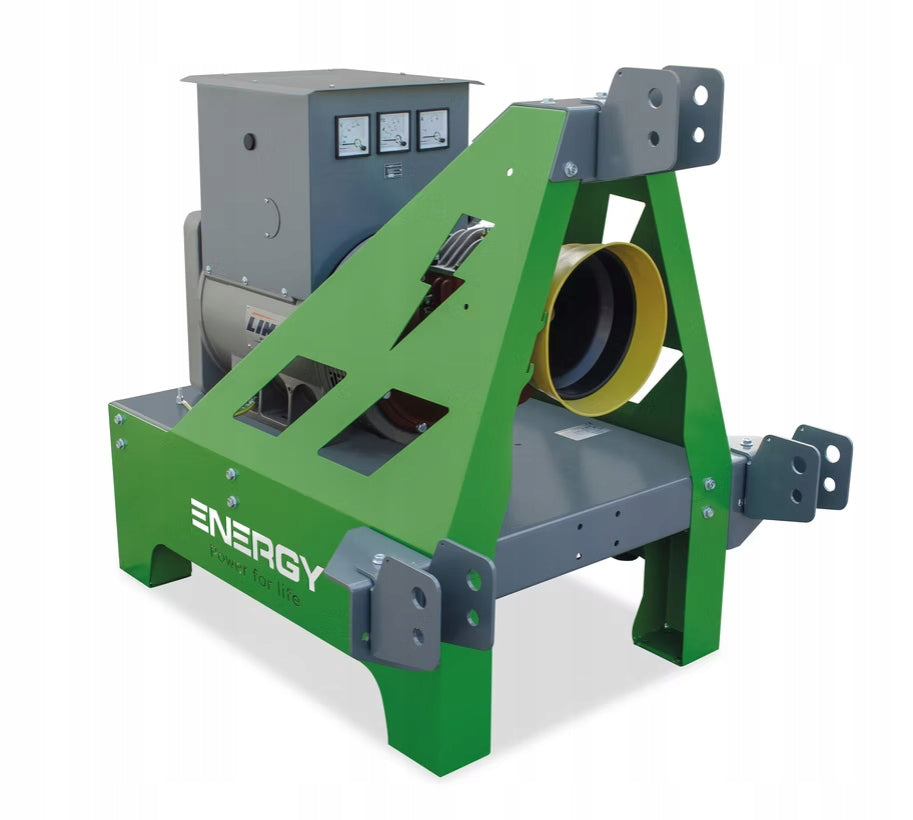

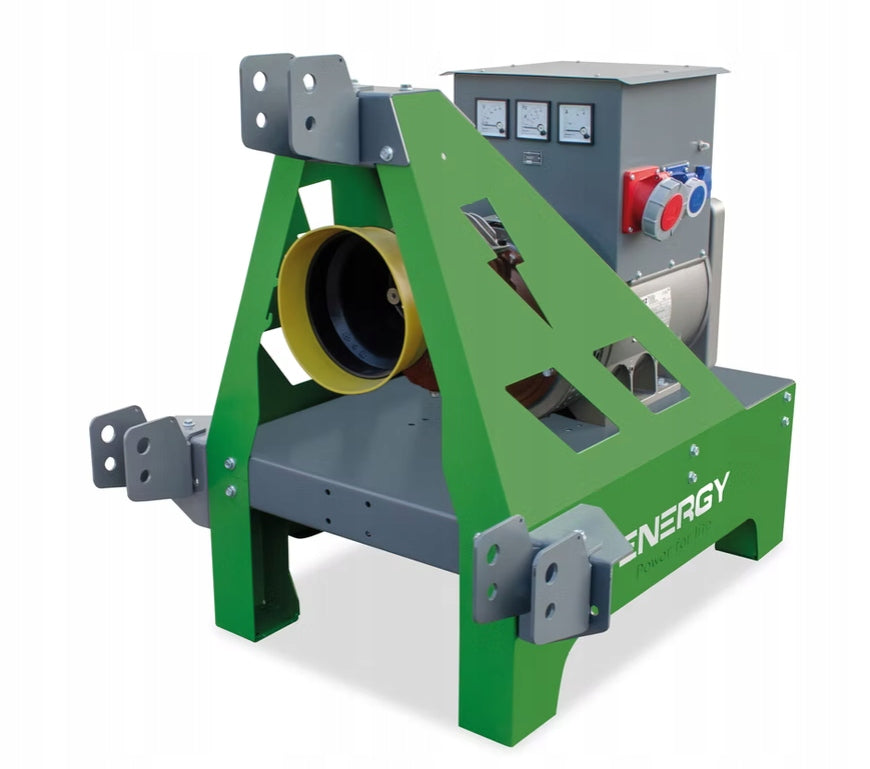

The tractor-mounted unit comes with a sturdy base frame made of 4mm thick steel sheet, which ensures reliability and strength. In order to facilitate installation on category 1-2-3 tractors, it is equipped with three reinforced 6 mm thick hooks that ensure a secure and stable installation. The base and hooks are powder coated with RAL7012 grey epoxy paint for durability and weather protection.

The side panels of the generator are made of 2 mm thick steel sheet, also powder coated with RAL6017 green epoxy paint, giving the device an aesthetic yet functional appearance. Its compact size and easy transport make it a particularly suitable solution for farms and anyone with a tractor, offering a reliable and easy-to-carry power source.

ELECTRIC PANEL

​

The IP44 disinfection switchgear is equipped with a number of useful devices and sockets to monitor the system and ensure safety. It is equipped with (1. )voltmeter, (2. )frequency meter and (3. )ammeter for checking electrical parameters, as well as (4. )hour counter to monitor usage time. Contains (5. )5-pole socket CEE 400V 63A 6hr, secured (9. )residual current switch 40A class "C" and (10. ) 40A class A 30mA residual current switch. In addition, it is available (6. )3-pole CEE 230V 16A socket, also protected (11. )16A circuit breaker "C". There is a nest at the end (7. )230V Schuko, de facto protected by switch (8. )16A.

Specifications
