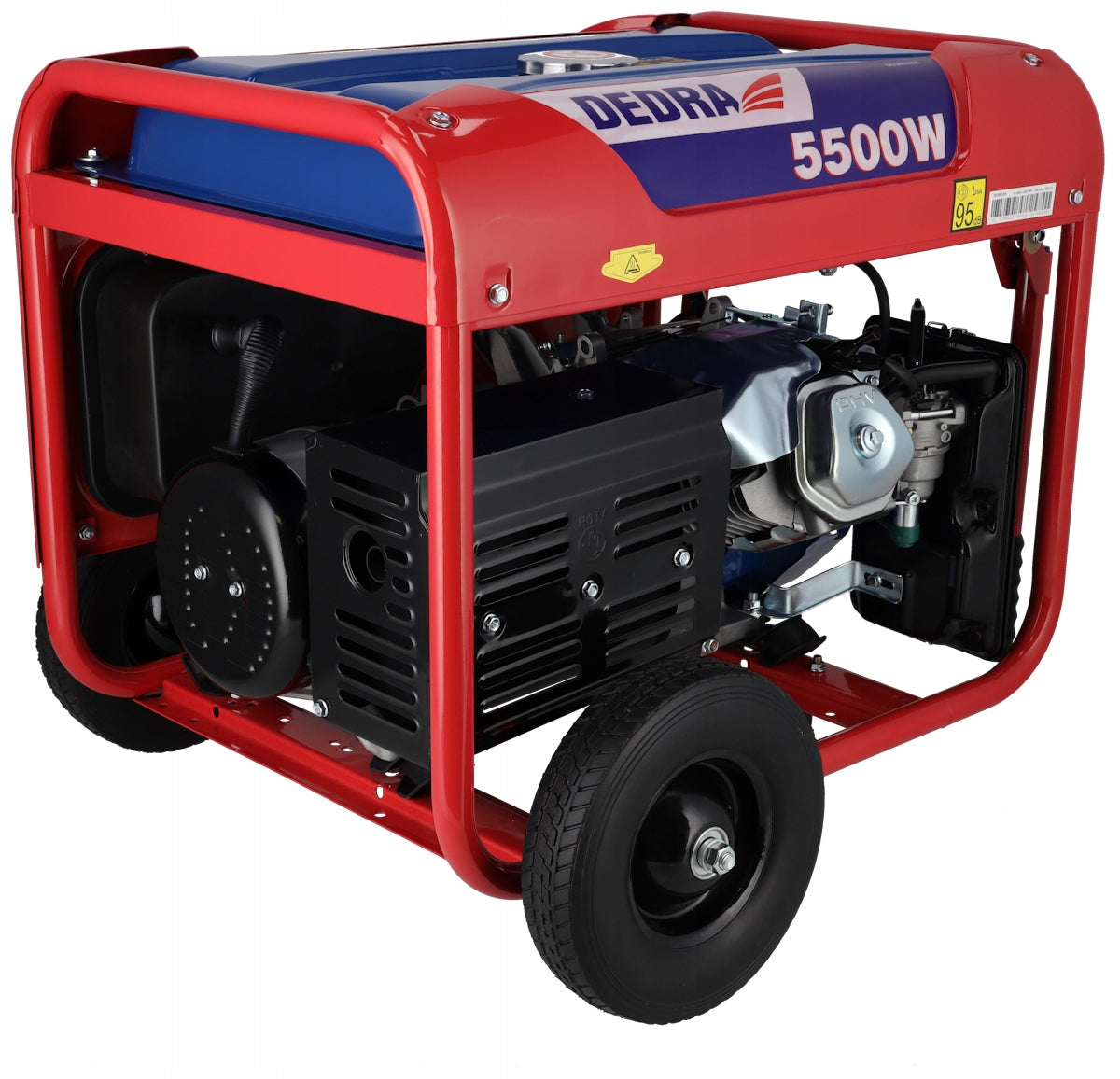

Generatorius DEDRA 5,5kW 5kVA 389 cm³ AVR, 2x230V, 12V

Trumpai apie prekę

Prekė: Generatorius DEDRA 5,5kW 5kVA 389 cm³ AVR, 2x230V, 12V. Kategorija: Elektros generatoriai.

• Gamintojas: Dedra
• Modelis: DEGB6500K
• Įtampa: 230 V

DEGB6500K

Features and technical parameters of the DEDRA DEGB6500K generator set:

• engine: combustion engine, single cylinder, 4-stroke, OHV
• Engine capacity: 389 cm³
• maximum rotational speed: 3000 rpm
• Internal combustion engine power: 8,2 kW
• Rated power: 5 kW
• maximum output power: 5,5 kW
• Rated power in kVA: 5
• copper motor winding
• AVR - automatic voltage stabilization
• voltage and frequency of generated current: 230V / 50Hz
• fuel type: lead-free petrol Pb95 (E10)
• Fuel tank capacity: 25 litres
• fuel level indicator in the tank
• recommended oil: oil type: SAE10W30
• number of sockets 230V: 2
• rated current: 21,7 A
• number of sockets 12V/5A: 1
• rated power factor: 1
• class of operating requirements: G2
• power compatibility class: A
• working time on a full tank at nominal power: 9,6 hours
• overload protection
• protection against low oil levels
• transport wheels
• startup: manual
• Weight: 76 kg

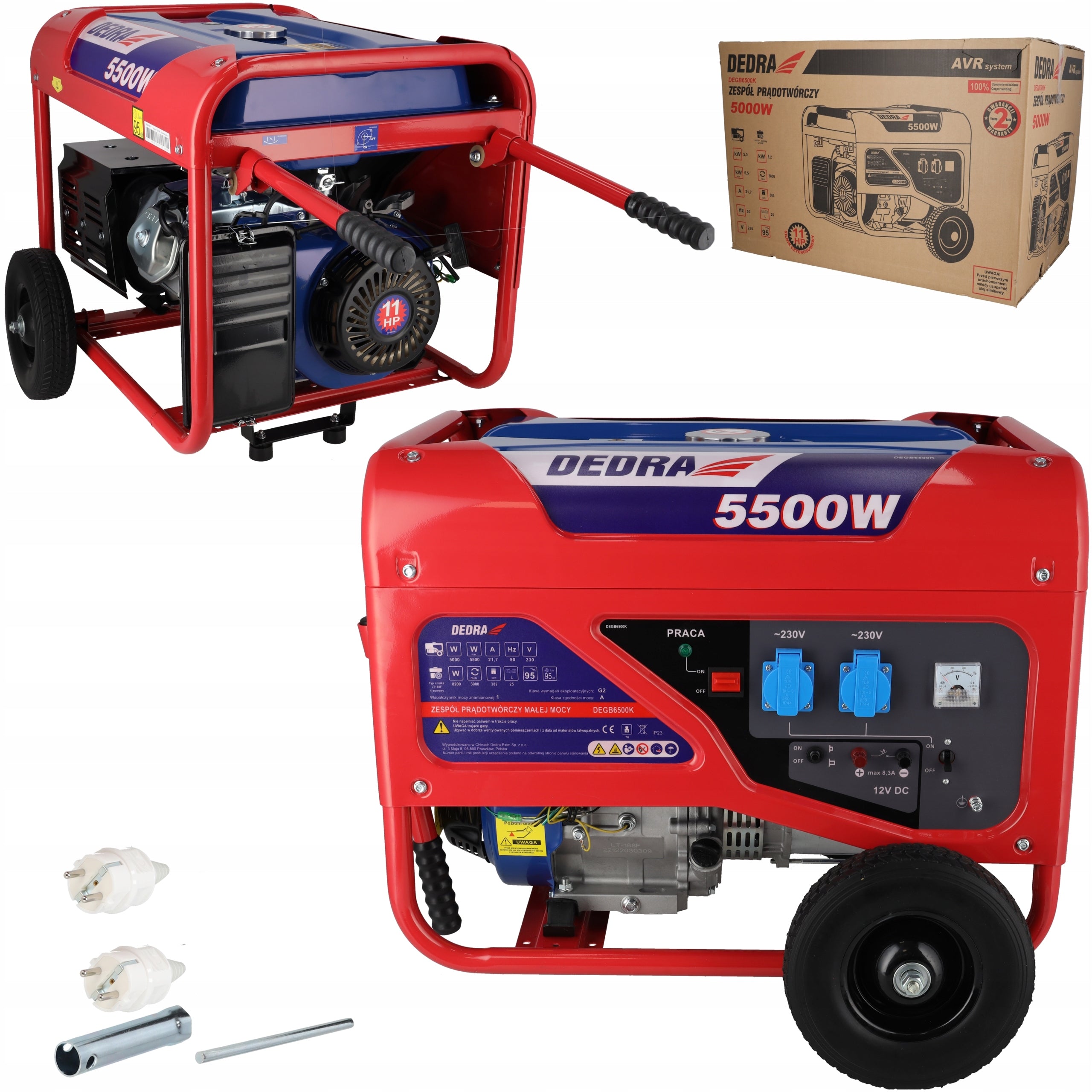

Included with the unit are:

• spark plug wrench
• European plug (1 pc. )
• 12V DC cable
• transport handle
• transport wheels
• instruction manual in Polish
• warranty card – 2 years of service protection

Package dimensions:

• height: 83 cm
• width: 55 cm
• depth: 56 cm

The DEDRA power generators are also designed to work with new fuels such as E10 petrol, which are confirmed by appropriate certificates.

The DEDRA DEGB6500K generator set is an electrical power device that is an independent power source. Portable single-phase power generator with a maximum output power of 5500W can be used to generate alternating current, power electrical receivers with a voltage of 230V, as well as for emergency power supply in households, on plots and on construction sites.

The DEDRA current generator has 2 sockets with a voltage of 230V and 1 socket 12V (DC12V). Access to the sockets and the control panel is very easy.

The DEDRA DEGB6500K generator set has an AVR system - a system that allows you to maintain the correct output voltage of the generator set. The AVR system enables power supply to receivers sensitive to the quality of power supply, e.g. LCD TVs, laptops, amplifiers.

The device has a copper motor winding, which increases the life of the entire device and affects stable operation.

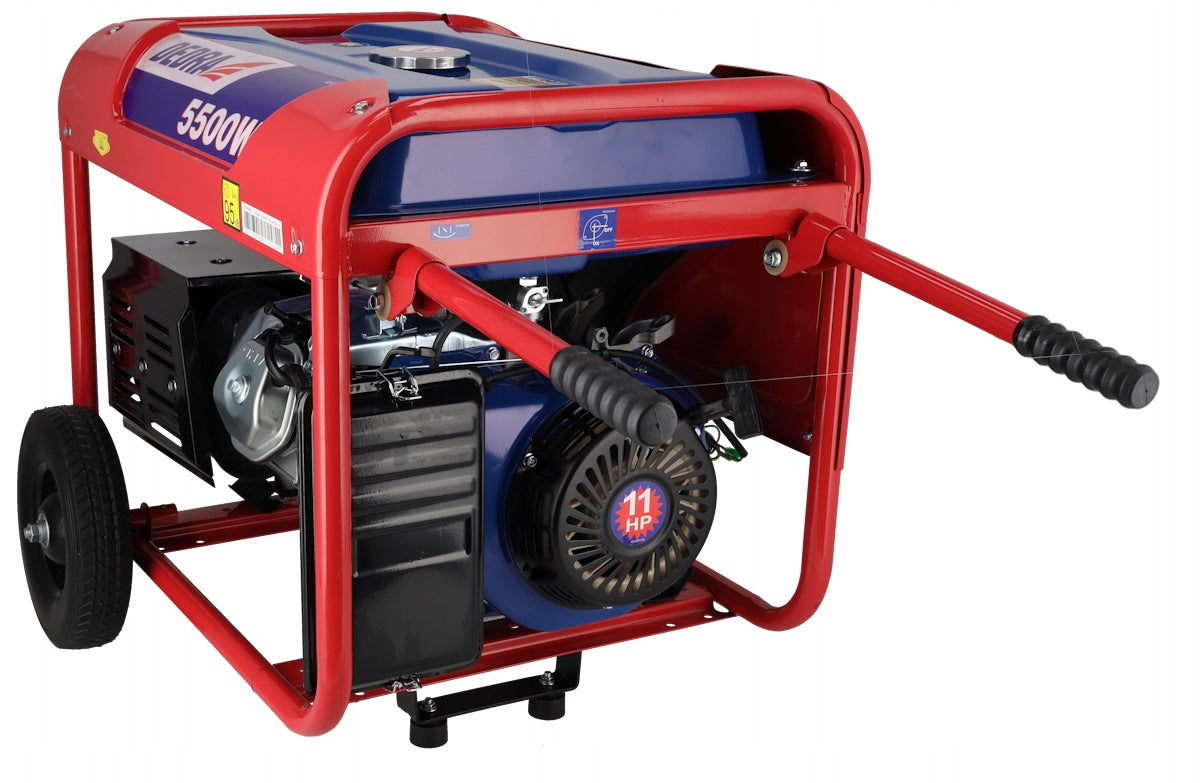

The DEDRA power generator is very easy and convenient to transport. It has transport handles and wheels ensure easy movement of the unit.Additionally, rubber feet stabilize the device during operation

The fuel tank has a capacity of 25 liters. Easy access to the fuel filler and fuel level indicator make it easy to refill and control the condition of the gasoline.

The maximum working time on a full tank at nominal power is 9,5 hours.

The generator and its engine are mounted on a solid frame, which has shock absorbers installed to minimize the vibration of the device.

The DEDRA DEGB6500K generator set has the following protections:

• Overload protection - protection against exceeding the maximum power turns off the voltage, and the internal combustion engine works without stopping
• Protection against low oil levels - when the oil level falls below the required level, the engine will turn off automatically or not start. Need to replenish oil or when we do not have the same, change oil.
• Output status indicator – the indicator light illuminates when the engine is running – this is an optical signaling of operation.
