Generatorius inverterinis, 4 kW, su ratais, ULT-4500

Trumpai apie prekę

Prekė: Generatorius inverterinis, 4 kW, su ratais, ULT-4500. Kategorija: Elektros generatoriai.

• Gamintojas: no brand
• Modelis: ULT-4500
• Įtampa: 230 V

Index: ULT-4500

TECHNICAL DATA

⭐ Working power: 4000W

⭐ Maximum power: 4500W

⭐ Engine capacity: 192 cm³ (1-cylinder, 4-stroke, OHV)

⭐ Voltage: 230V / 50 Hz

⭐ Rated current: 17,3A

⭐ Voltage and frequency control: Yes, electronic

⭐ AVR: Yes

⭐ Fuel: Gasoline

⭐ Fuel tank: 8L

⭐ Oil tank: 0,5L

⭐ Working time: Up to 5 hours (at 50% load)

⭐ Fuel consumption at 25% load: 0,8 l/h

⭐ Noise: 62 db (at 25% load, at a distance of 7m)

⭐ Start: Manual via cable, electric via button and remote control

⭐ Digital display: Yes (indicates voltage, frequency, power, load percentage and fuel level)

⭐ ECO mode: Yes

⭐ Aggregate dimensions: 59,5 cm x 53,5 cm x 35 cm

⭐ Weight: 35 kg

⭐ Number of pieces per pack: 1

✅ The Ultimatron France ULT-4500 generator set is a modern, portable inverter generator designed to power devices that require stable and safe voltage.

✅ The device offers 4000W of working power and 4500W of maximum power, which allows for comfortable work with both household appliances, stoves, consumer electronics and power tools.

✅ The applied inverter technology and AVR (Automatic Voltage Regulation) provides a pure sine wave with low distortion (THD approx. 3%), thanks to which the unit generates electricity very similar to that from a home outlet and is safe for delicate devices (laptops, mobile phones, tablets, etc. )

✅ Special ECO mode (manually switched on with the ON/OFF button), which makes the unit work quieter, cheaper and longer.

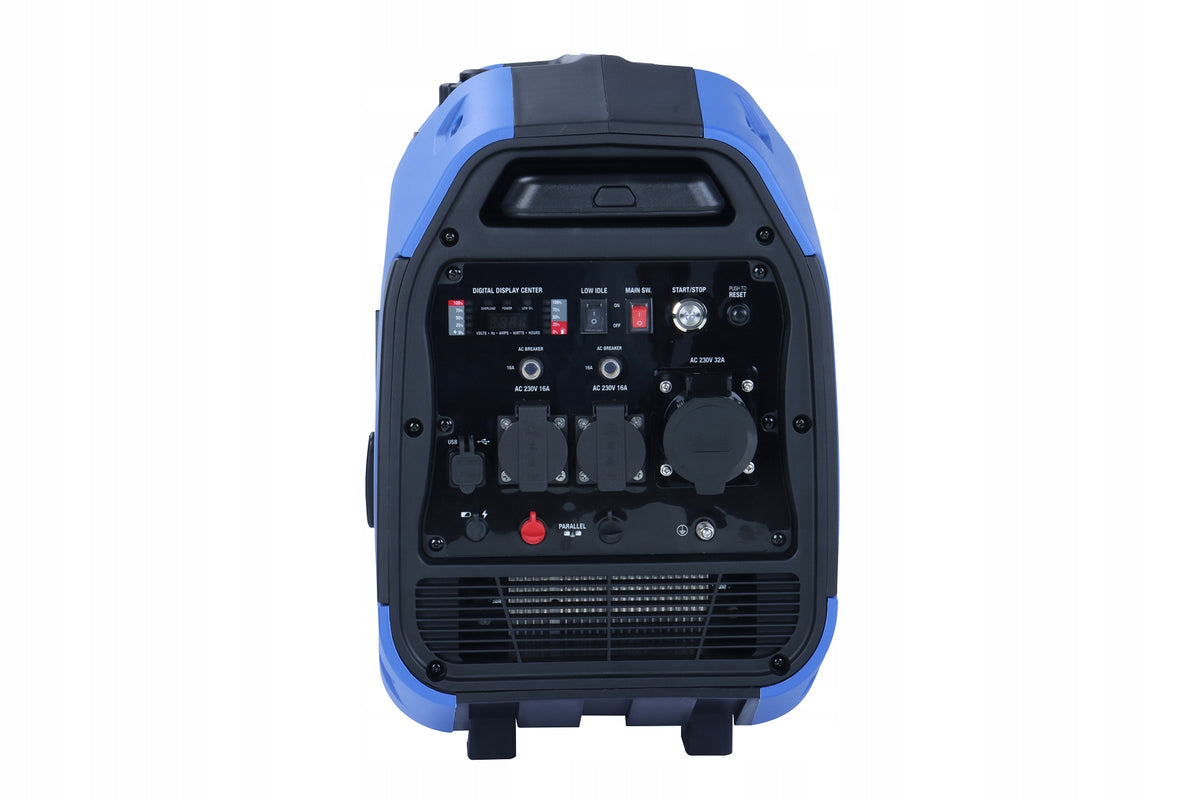

✅ Rich set of sockets: two AC 230V 16A, one AC 230V 32A, two USB A make the unit have a whole lot of applications.

✅ The generator has extensive overload protection (16A), protecting the unit and connected devices.

✅ 100% copper winding. Compared with aluminum, it guarantees better current conductivity (less energy loss), lower winding heating, greater overload resistance, longer service life and more stable voltage.

✅ Robust 4-stroke OHV engine with a capacity of 192 cm³ guarantees stable operation, good working culture and long service life.

✅ Small dimensions, weight 35 kg, two transport wheels and a pull handle make the unit easy to transport and store. The built-in digital display allows you to control the operating parameters and status of the device on an ongoing basis.

✅ The product has a rich certification which consists of:

- CE/TUV certified

- ISO 9001:2015 certification

- Compliance with EURO V standard

- IP23M rating (suitable for outdoor use, resistant to light rain (not waterproof))

✴ The inverter unit differs from the classic generator in the way of generating electricity. In ordinary generators, electricity is created and goes straight to the sockets - without further processing. If the load or engine speed changes, the voltage and frequency can jump a little. This can be risky for modern, sensitive electronics.

✴ In an inverter aggregate it is different. In the first stage, the current is generated by the motor, and then the electronics of the inverter stabilize the voltage and frequency.

In practice, this means:

✔ constant voltage 230 V and frequency 50 Hz,

✔ no voltage spikes when changing the load,

✔ safe power supply for sensitive electronics (laptops, routers, TVs, CO controllers),

✔ quieter and more economical engine operation.

✴ In short: the inverter unit gives the same current as in the outlet at home.

After turning on ECO MODE aggregate:

✔ reduces rotation at low load,

✔ uses less fuel, works even quieter,

✔ extends the working time on one tank.

Ideal for home, motorhome, night work or camping.

⭐ OFF - the ignition circuit is off, the fuel valve is closed, the engine is not running.

⭐ RUN - the ignition circuit is on, the fuel valve is open, the throttle is open, and the engine is running normally.

⭐ START (CHOKE) (cold start only): ignition on, fuel supply open, throttle closed.

The unit is designed so that you do not have to combine with splitters:

✅ Three standard AC 230 V sockets (two 16 A, one 32A) - for connecting a stove, refrigerator, router, washing machine, stove, oven, microwave, coffee maker, TV and other devices requiring a voltage of 230V.

✅ USB-A (5V) ports - for charging smartphones, tablets, drones or powerbanks.

✅ PARALLEL socket – the possibility of connecting two identical aggregates and doubling the power (cable set included).

⚠ Condition: the sum of the power of connected devices must not exceed the rated power.

✴ The unit is designed for emergency power supply and field operation, where no access to the power grid or an independent power source is required.

✴ Works well in both home and professional applications.

The Ultimatron France ULT-4500 generator is recommended for the following industries:

• Construction and renovation,
• Installation and electrical,
• HVAC (heating, ventilation, air conditioning),
• Service and assembly,
• Agriculture and gardening,
• Event and outdoor use,
• Field photo/video.

Example uses:

• Emergency home power (refrigerator, furnace, router, lighting),
• Power tools on construction sites and in mobile workshops,
• Camping, RVs, trailers, boats,
• Outdoor events, sound systems, lighting,
• Field office work (laptops, printers, routers).

⭐ Pure sine wave, thanks to AVR system – safe for electronics

⭐ High working power 4000W and 4500W power supply

⭐ Low noise - only 72 dB (at 25% engine load at a distance of 7 meters)

⭐ ECO mode to reduce combustion and noise

⭐ Possibility of parallel operation of two aggregates

⭐ Easy-to-read digital display with full diagnostics

⭐ Rich set of sockets: three AC 230V, two USB A

⭐ Compact dimensions and pullability, thanks to wheels and retractable handle

⭐ Automatic protection against lack of oil. If the oil level falls below the safe minimum, the engine will automatically stop

⭐ Overload protection

⭐ AC correct voltage indicator light

⭐ PUSH TO RESET button used to restore power after overloading the unit. It acts as a fuse.

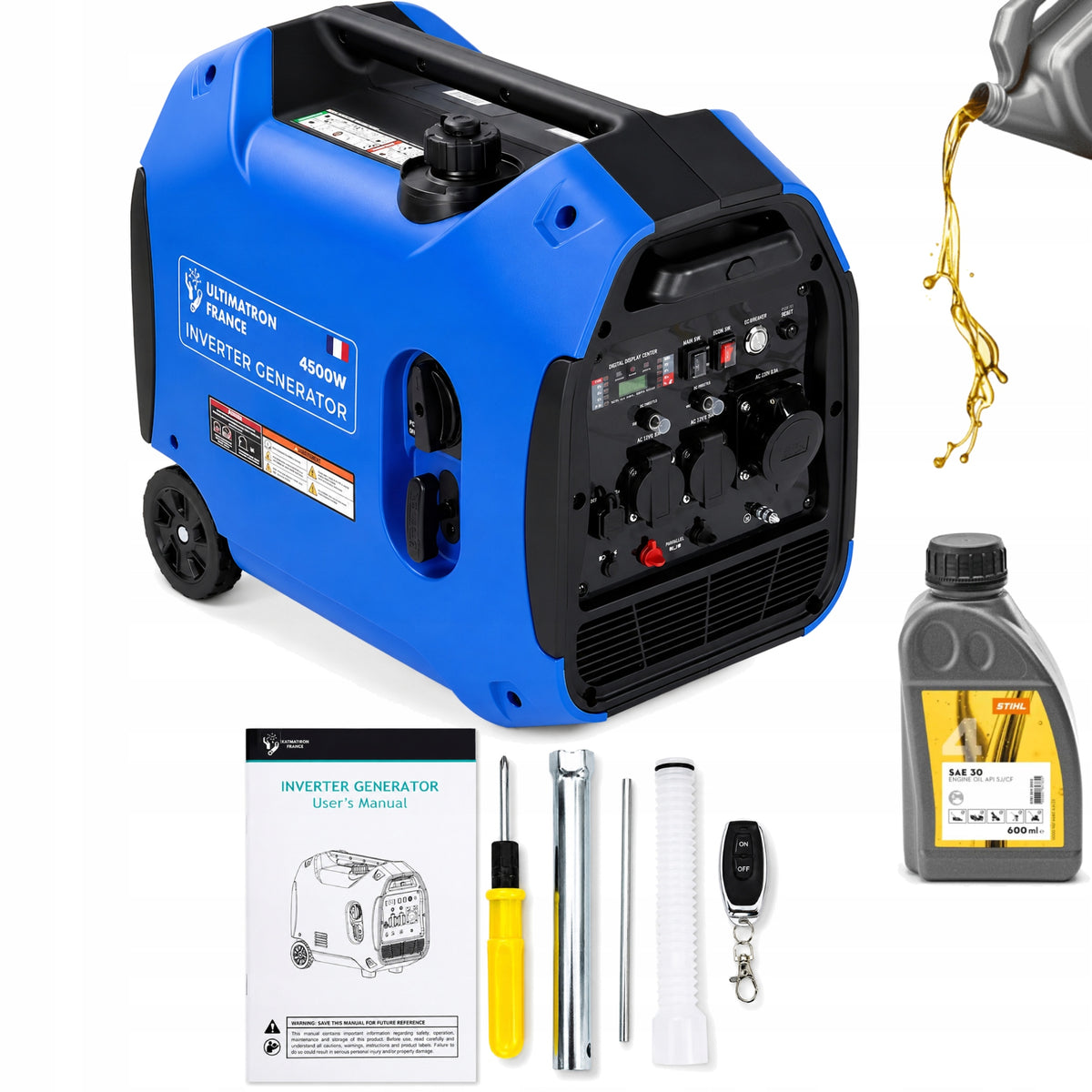

☀ Ultimatron France ULT4500 EU inverter generator set

☀ The key to the candle,

☀ Funnel for oil,

☀ Screwdriver,

☀ Pilot

☀ User manual,

☀ + FREE Motor oil 10W30 0,6L STIHL 07813091000

⚠ The unit is supplied without oil - SAE 10W-30 oil must be replenished before the first start.

⚠ Do not start the engine without oil – it threatens permanent damage.

⚠ Use only unleaded petrol. (Pb95)

⚠ Do not exceed the rated power of the unit.

⚠ Ensure a stable, even ground during operation.

⚠ Perform maintenance activities regularly according to the instructions.

⚠ The unit has been factory tested and may contain small amounts of residual oil.

⚠ Engine oil: (SAE 10W-30)

• first replacement after 20 hours of operation or after 1 month,
• consecutive every 50 hours of work or after 3 months

⚠ Air filter:

• cleaning every 50 man-hours.

⚠ Spark Plug:

• control every 100 man-hours (type A5RTC, gap 0,7 mm)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	no brand
Parametry	Model	ULT-4500
Parametry	Kind	portable
Parametry	Generator type	single-phase
Parametry	Engine	4-stroke
Parametry	Maximum power	4500 W
Parametry	Nominal power of the alternator	4000 W
Parametry	Gasoline tank capacity	8 l
Parametry	Device weight	35 kg
Parametry	Fuel type	petrol
Parametry	Frequency	50 Hz
Parametry	Operating time on the tank	5 h
Parametry	Product height	53.5 cm
Parametry	Product width	33 cm
Parametry	Product depth	59 cm
Parametry	Average combustion	0.8 l/h
Parametry	Additional information	voltage regulation (AVR)
Parametry	Number of 1-phase outlets	3
Parametry	Number of 3-phase outlets	none
Parametry	European emissions standard	EURO 5
Parametry	Supply voltage	230 V
Parametry	Manufacturer code	ULT-4500-EU
Parametry	Product weight with unit packaging	38 kg
Parametry	Packaging status	original
Parametry	Startup	electric,manual
