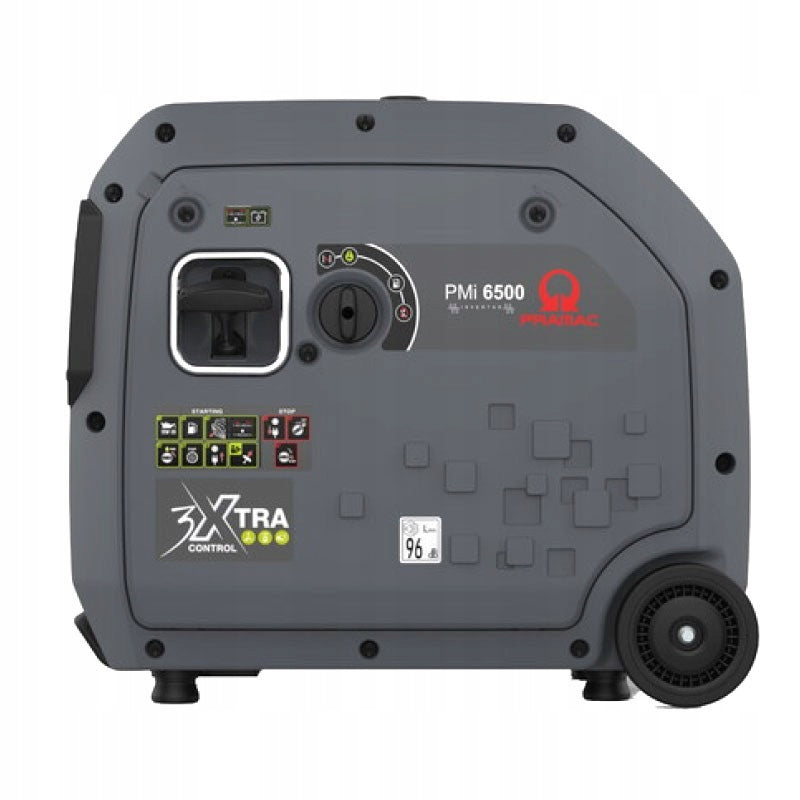

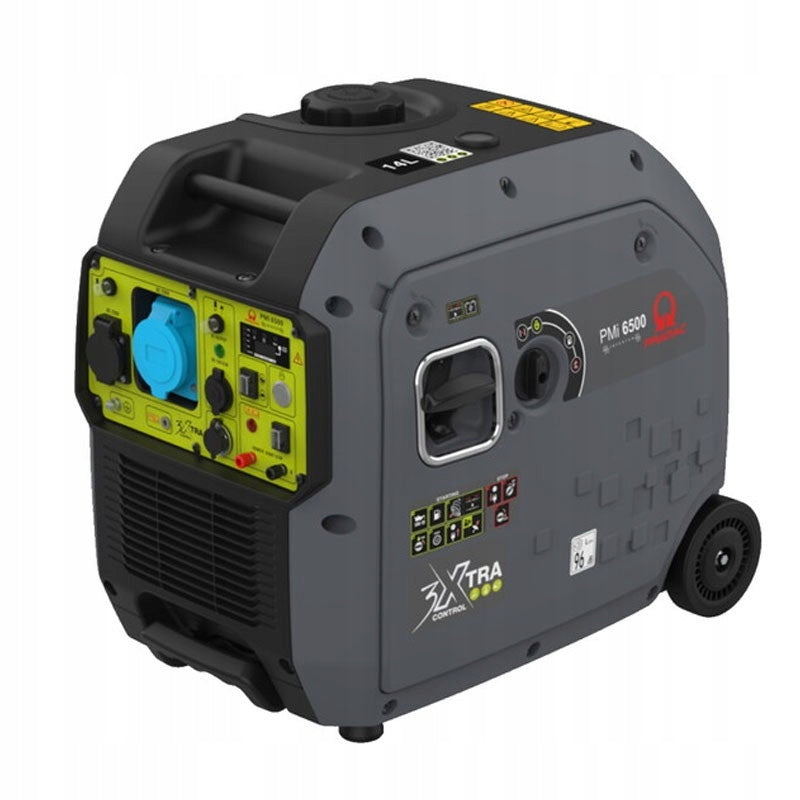

Generatorius Pramac PMI6500, 6 kW, 230 V, tylus inverteris

Trumpai apie prekę

Prekė: Generatorius Pramac PMI6500, 6 kW, 230 V, tylus inverteris. Kategorija: Elektros generatoriai.

• Gamintojas: Pramac
• Modelis: PMi 6500

Looking for an efficient and safe emergency power source? Pramac PMi 6500 is a modern, single-phase generator set made in advanced inverter technology.

Unlike traditional generators, an inverter generator produces electricity with a perfectly pure sine wave. This means that you can connect the most sensitive electronics to it with confidence: computers, TVs, modern CO furnaces, gate controllers or household appliances. It is an ideal choice both for protecting your home during power outages and for working on a construction site or in a workshop.

The unit has been designed for maximum usability and trouble-free operation for many years.

• Enormous power: The maximum power of up to 6,5 kW (6500 W) allows for simultaneous power supply to many demanding devices.
• Double start: Forget about the cumbersome tugging on the cable – convenient electric start allows you to start the device in one move. In case of battery discharge, a classic manual start is also available.
• Eco mode: The intelligent system automatically adjusts the engine speed to the current load. The effect? Lower fuel consumption (only 1.2 l/h at 50% load) and much quieter operation.
• Full safety: Built-in low oil sensor will automatically turn off the engine if needed, protecting it from blurring. In addition, the unit has advanced overload and thermal protection.

Advantages:

• Inverter technology: stable power for safe operation of sensitive electronic devices.
• The OHV motor provides stable power in many applications.
• Automatic engine shutdown at low oil level protects it from damage.
• Economy mode automatically adjusts engine speed to the optimal level, resulting in excellent fuel efficiency and noise reduction
• ATS Connector
• Remote control (possibility of remote firing from the key)
• 2-wire start
• Lightweight and compact.
• Integrated caster set for easy transport
• Fuel level indicator allows the user to track the level of gasoline
• Intelligent throttle: Economy mode automatically adjusts the engine speed to the optimal level, providing excellent fuel efficiency and noise reduction.
• ATS Connector / 2-wire Startup / Remote Control

Technical data:

• Brand: Pramac
• Type: OHV
• Optimized emissions: Stage V
• Rated rotation rpm: Variable
• Fuel: Gasoline
• Starting system: Electric (+Manual)
• Lubrication system capacity: 0.85 l
• Oil-free sensor √
• Frequency: 50 Hz
• Voltage: 230 V
• Number of phases: 1
• Maximum watt power: 6,5 KW
• Continuous watt power: 6,0 KW

Working time:

• Fuel tank capacity: 14 l
• Fuel consumption @ 50%: 2.1 l/h
• Working time at 50% (Eco Mode): 6.6 h

Noise level:

• Noise level guaranteed (LWA): 96 dBA
• Sound pressure level with 7 m: 68 dBA

Dimensional data:

• Length (L): 625 mm
• Width (W): 448 mm
• Height (H): 560 mm
• Weight (dry): 50.5 kg
• Carton dimensions LxWxH: 680x500x610 mm

Features of PMI 6500:

• Electric starter button
• Intelligent throttle: Economy mode automatically adjusts engine speed to optimal level, providing excellent fuel efficiency and noise reduction
• ATS Connector / 2-Wire Start / Remote Control

TOOLING:

• Voltage (V), Frequency (Hz), Duration (h)
• Oil level alarm / output power / fuel level indicator on the tank
• 12 V Battery Support Holder

PROTECTION:

• Overcurrent / Overspeed / High Temperature / AC Thermal Circuit Breaker / DC Circuit Breaker

Why PMI6500i?

Choose the Pramac brand – a leader in energy generation technology, belonging to the global Generac group. By purchasing this model, you can be sure of a stable power supply, full service support and access to original spare parts.

DICTIONARY:

• CONN: The connector is available only in PRAMAC products, allowing you to connect RSS or SZR accessories.
• RSS: Remote start system (max. range 90 m) supplied with transmitter and remote control.
• AMF: Control panel with automatic reserve switching function, which in case of failure or failure of mains (main) power supply automatically starts the generator set and switches the power supply of the object.
• ATS: Power switch whose main task is to physically switch loads (e.g. home or business) between two power sources: the electricity grid and the power unit.
• ESP: Maximum power. It is defined as the maximum power that a generator is able to deliver in the event of a power failure under certain operating conditions for a maximum of 200 hours per year and while maintaining the service periods recommended by the manufacturer. The permissible average output power within 24 hours of operation does not exceed 70% ESP.
• COP: Continuous power. It is defined as the maximum power that a generator set is able to deliver continuously for an unlimited number of hours, with maintenance interruptions and procedures carried out in accordance with the manufacturer’s recommendations
• DPP: Differential protection: a device used to protect the installation against indirect shock (incompatible with IPP).
• IPP: Isometric protection.
• MTS: Manual power switch for single-phase solutions. It allows you to securely switch electrical systems in your home or business between two different power sources.
• AVR: Automatic voltage regulation (+/- 2%).
• INVERTER: Technology enabling extremely precise automatic voltage regulation (+/- < 0,5%).
• STAGE V: The Stage V programme is an environmental initiative aimed at reducing engine emissions. Generator sets are equipped with advanced engine technologies, thanks to which they meet the latest European emission standards (EU Regulation 2016/1628), and are characterized by solid construction and ease of maintenance.
• POWER MAX. OR ESP POWER: Jest is the maximum power available under variable load, under specific operating conditions, that the generator set is able to deliver in the event of a power grid failure or under test conditions for a maximum of 200 hours of operation per year, while maintaining the frequency and maintenance procedures in accordance with the manufacturer’s recommendations. Permissible average output power within 24 hours of operation must not exceed 70% of the ESP value
• PTO: Power Reception Shaft. This means that such an unit does not have its own internal combustion engine (petrol or diesel). To generate electricity, it must be connected by means of a special cardan shaft (articulated-telescopic) to an agricultural tractor that serves as a source of propulsion.
