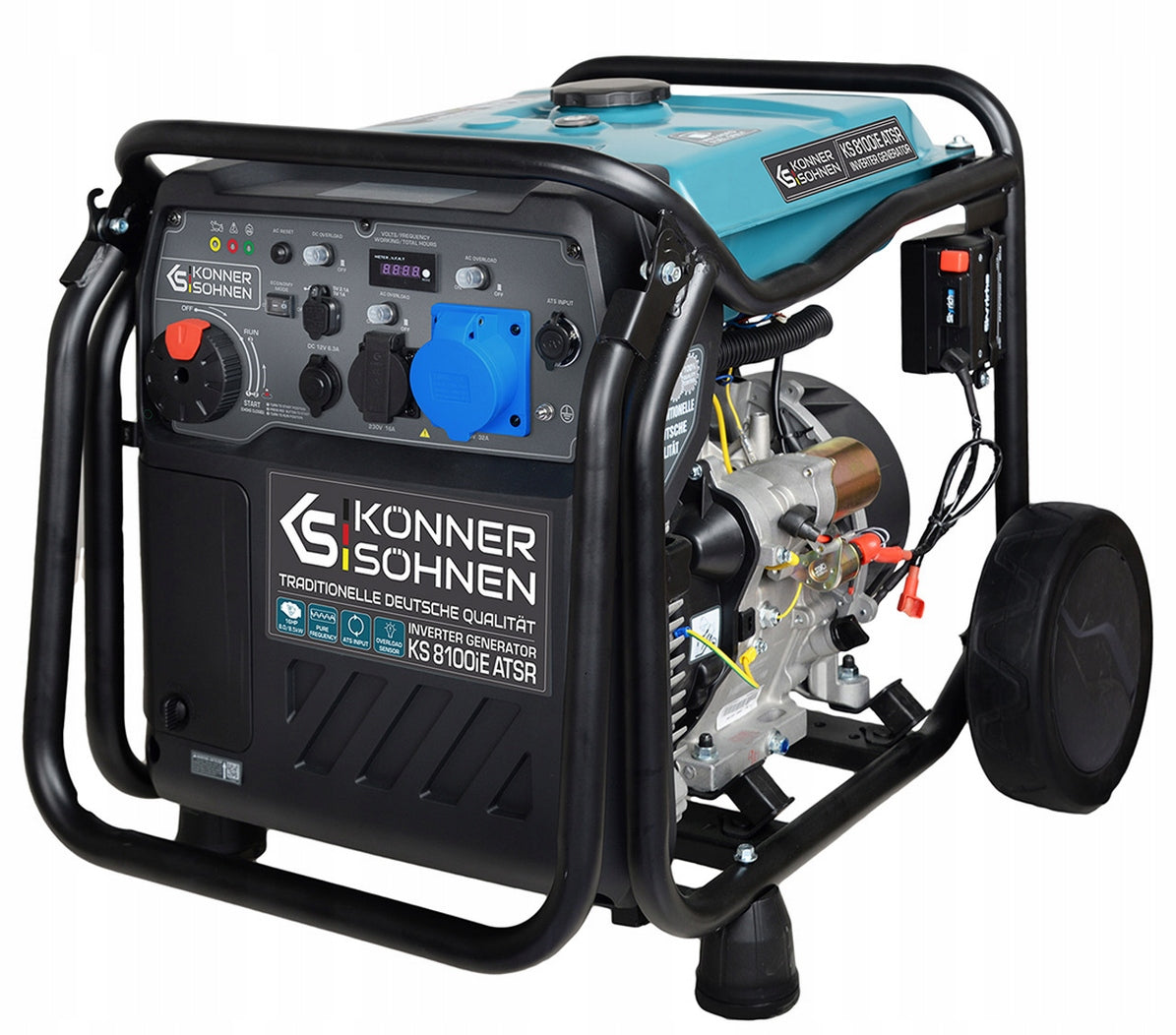

Generatorius UPKS 8100iE ATSR, 8000W, elektrinis starteris, inverterinis

Trumpai apie prekę

Prekė: Generatorius UPKS 8100iE ATSR, 8000W, elektrinis starteris, inverterinis. Kategorija: Elektros generatoriai.

• Gamintojas: Könner & Söhnen
• Modelis: KS 8100iE ATSR
• Įtampa: 230 V

Könner & Söhnen KS 8100iEG

ELECTRIC START-UP

Inverter generators of the German brand Könner & Söhnen are a convenient, portable source of electricity.

Dual conversion of electricity ensures maximum stable frequency 50 Hz and voltage 230 V, which is ideal for reliable operation of sensitive and precise electronics, computers, electronic measuring instruments, medical equipment, boilers.

The generator has the ability to connect an external ATS system. Convenient ergonomic control panel with generator emergency stop button and multifunctional LED display allows accurate measurement of several parameters – voltage, frequency, number of hours worked and oil level.

The generator is equipped with sockets protected by fuses, which allow you to use the maximum power provided by the device.

TECHNICAL DATA:

• Voltage, V: 230
• Maximum power, kW: 8.5*
• Nominal power, kW: 8.0*
• Frequency, Hz: 50
• Current max, A: 34.8
• Sockets: 1 x Schuko 230 V, 1 x CEE 230 V 32 A
• Startup: Electric
• Capacity of fuel tank, l: 20
• LED display: Voltage, frequency, hour counter
• Noise level Lpa (7m)/Lion, dB: 70/95
• Output 12V, A:12V/8.3A
• USB-socket: 5V/1A, 5V/2.1A
• Engine model: KS 480i
• Engine capacity, cm3: 458
• Engine type: petrol 1-cylinder, 4-stroke, air-cooled
• Output power, KM: 16
• Possibility of parallel connection of generators: –
• Capacity of oil tank, l: 1.1
• Power factor, cos φ: 1
• Dimensions (LxWxH), mm: 765*505*555
• Lithium-ion battery, Ah: 1.6
• Net weight, kg: 68
• Gross weight, kg: 71
• Protection rating: IP23M

PURE SINE WAVE

Dual conversion of electricity provides a pure sine wave, which allows the use of generators for reliable operation of electronics, computers, electronic measuring devices, medical equipment, boilers, etc.

RELIABLE ENGINES

The reliable Könner & Söhnen engine meets all European quality standards, including the modern EURO V environmental standard. The reliable K&S engine has an individual serial number that allows us to control the quality of production and service. The high-quality copper coil alternator and powerful drive motor ensure trouble-free and long-lasting use. It is recommended to use devices sensitive to energy consumption (boilers, medical equipment, audio equipment, etc. ).

ECONOMICAL ECONOMY MODE

The engines of the "Könner & Söhnen" series of inverter generators can be used in economy mode. This mode allows you to use the inverter generator at low speed and reduce fuel consumption by up to 50%. The throttle control system adjusts the engine speed depending on the load.

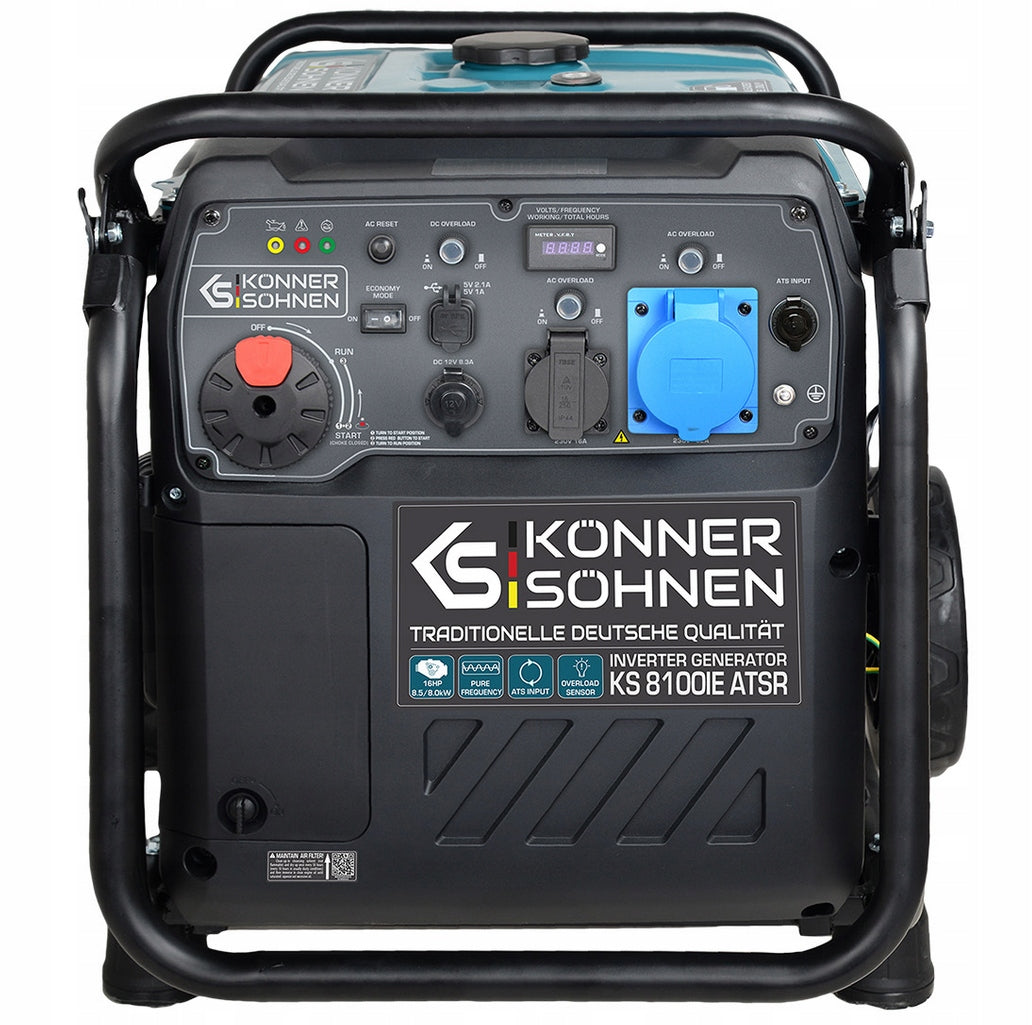

ERGONOMIC CONTROL PANEL

Convenient location of all functions: multifunctional LED display (operating hours counter,voltage, frequency), indicators of monitoring the state of the generator set show the current state of operation,automatic shutdown of the fuse in case of overload or short circuit,low oil level, Reset button to restart the control system and resume power supply,connector for parallel connection of generators, two USB outputs (5V/1A,5V / 2.1 A), 230V sockets and ground terminal.

POSSIBILITY OF CONNECTING ATS

The generator has the ability to connect the ATS system (automatic reserve switching). The entrance to the ATS has an 8-pin socket, which does not limit the choice of the reserve switching system.

(PHOTO REVIEW)

TRANSPORT SET

The Könner & Söhnen inverter generators are equipped with a transport system for easy movement. Two wheels and a raised handle when moving the generator ensure convenient transport and mobility of the device.

ADDITIONAL ACCESSORIES

Comes with screwdriver, spark plug wrench, accessory cover.
