Giluminis siurblys 3,5" 3/13 vandens šuliniui, atsparus smėliui, 20 m kabelis, našumas iki 105 l/min

Trumpai apie prekę

Prekė: Giluminis siurblys 3,5" 3/13 vandens šuliniui, atsparus smėliui, 20 m kabelis, našumas iki 105 l/min. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: BG-INVEST
• Modelis: BG-00027

+ 20-METER CABLE INCLUDED

On our other auctions you will find elements for the correct installation of pumps.

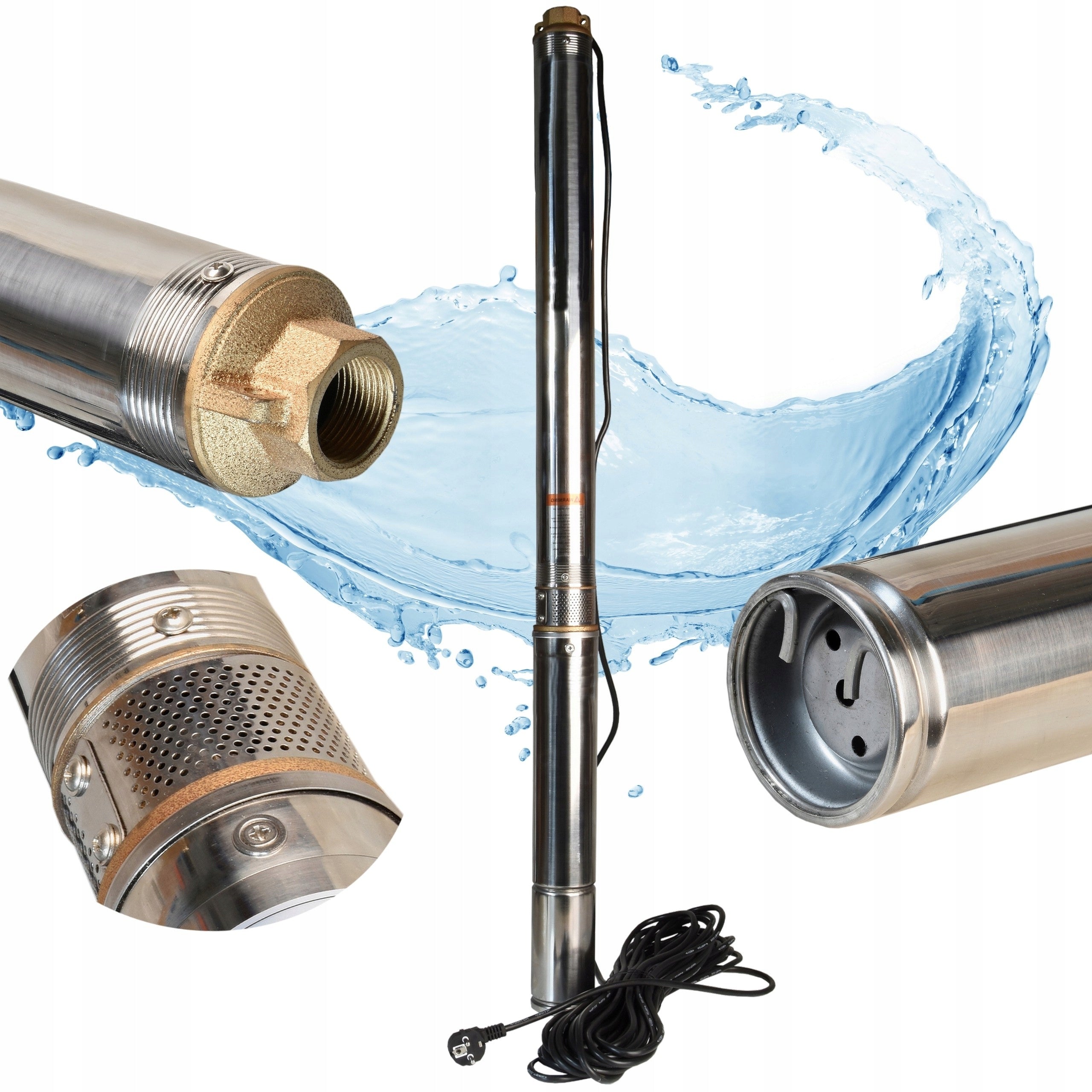

SUBMERSIBLE PUMP 3,5-INCH MODEL 3/13

INCREASED SAND RESISTANCE

Multistage submersible pumps 3,5 inch diameter 90 mm with increased sand resistance, designed for wells with a minimum internal diameter of 100 mm.

The effect of increased resistance to sand was achieved thanks to the use of "floating rotors" and the selection of materials resistant to wear: brass, AISI 304 stainless steel and high quality of plastic.

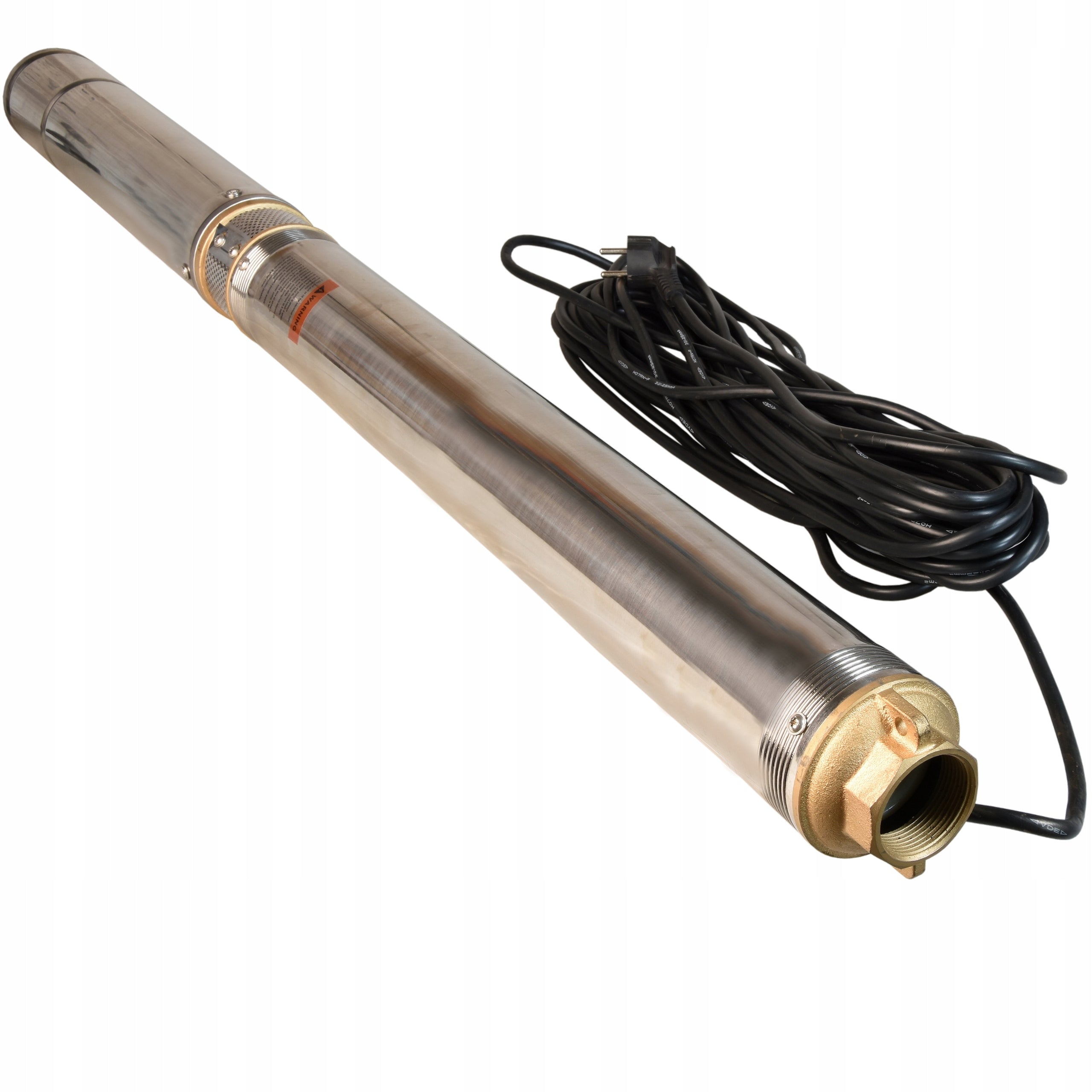

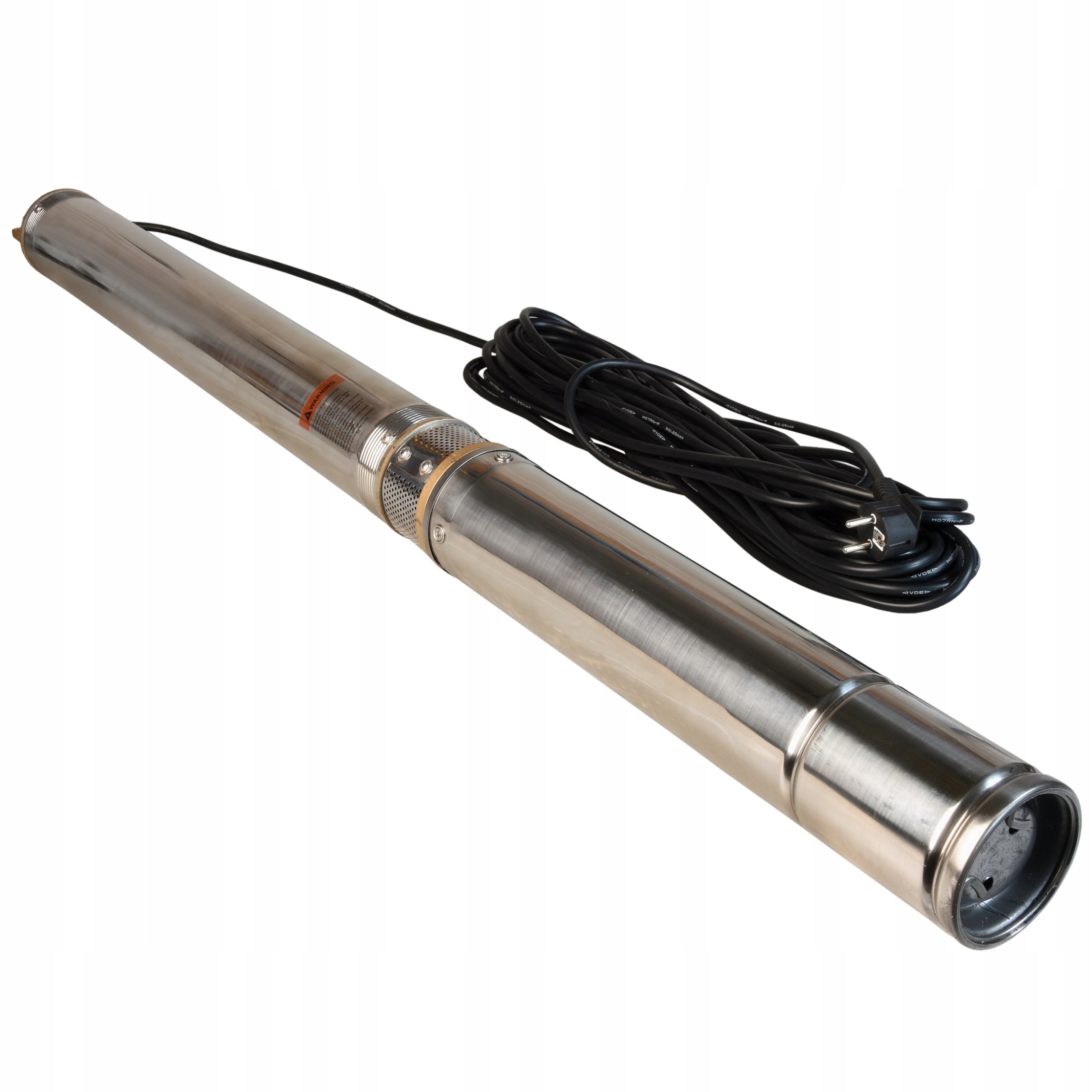

The pump capacitor has been installed in the engine, making the electrical installation much simpler than in the case of pumps with a starting can. Pumps available with a 20 meter factory power cord terminated with a plug. The pumps are equipped with thermal protection installed in the motor winding.

3,5-inch submersible pumps with the model 3/13 thanks to their trouble-free operation and high parameters have gained the title of one of the most frequently installed 3,5-inch in Poland. Additionally, it operates quietly, is energy-efficient and easy to install.

Application:

The 3,5 inch submersible pump model 3/13 is designed for pumping clean, cold water from deep water intakes.

The pump will work as a power supply for small irrigation systems, for traditional watering with a hose or for supplying water to small water supply systems in single-family houses or workshops.

Working conditions:

• Maximum liquid temperature 35°C
• Maximum ambient temperature 35°C
• Lifting height: 66 m
• Insulation class B
• Operating mode – continuous
• Security – IP68

The 3,5 inch pump model 3/13 has a very solid construction made of proven materials.

Materials:

• Housing: AISI 304 stainless steel
• Sito: AISI 304 stainless steel
• Shaft and rotor: Stainless steel AISI 304
• Rotor: PPO
• Diffuser: PC
• Mechanical angina: ceramic/graphite/SS304
• Engine: oil-cooled

Technical parameters:

• Performance: 105 l/min
• Performance: 6300 l/h
• Lifting height: 66 m
• Maximum pressure: 6,6 bar
• Power: 750 W
• Power supply: 230 V
• Power consumption: 6.2 A
• Connection: 1,5"
• Pump diameter: 90 mm
• Dimensions: 101x11x15
• Cable length (factory): 20 m
• Weight: 15 kg

MAIN OIL LUBRICATED BEARING

The whole chamber and main bearing is cooled and lubricated with oil.

The oil used to lubricate the bearing is safe and non-toxic. This is a very important feature, because the use of such oil allows the use of a pump in wells from which water is drawn for food purposes.

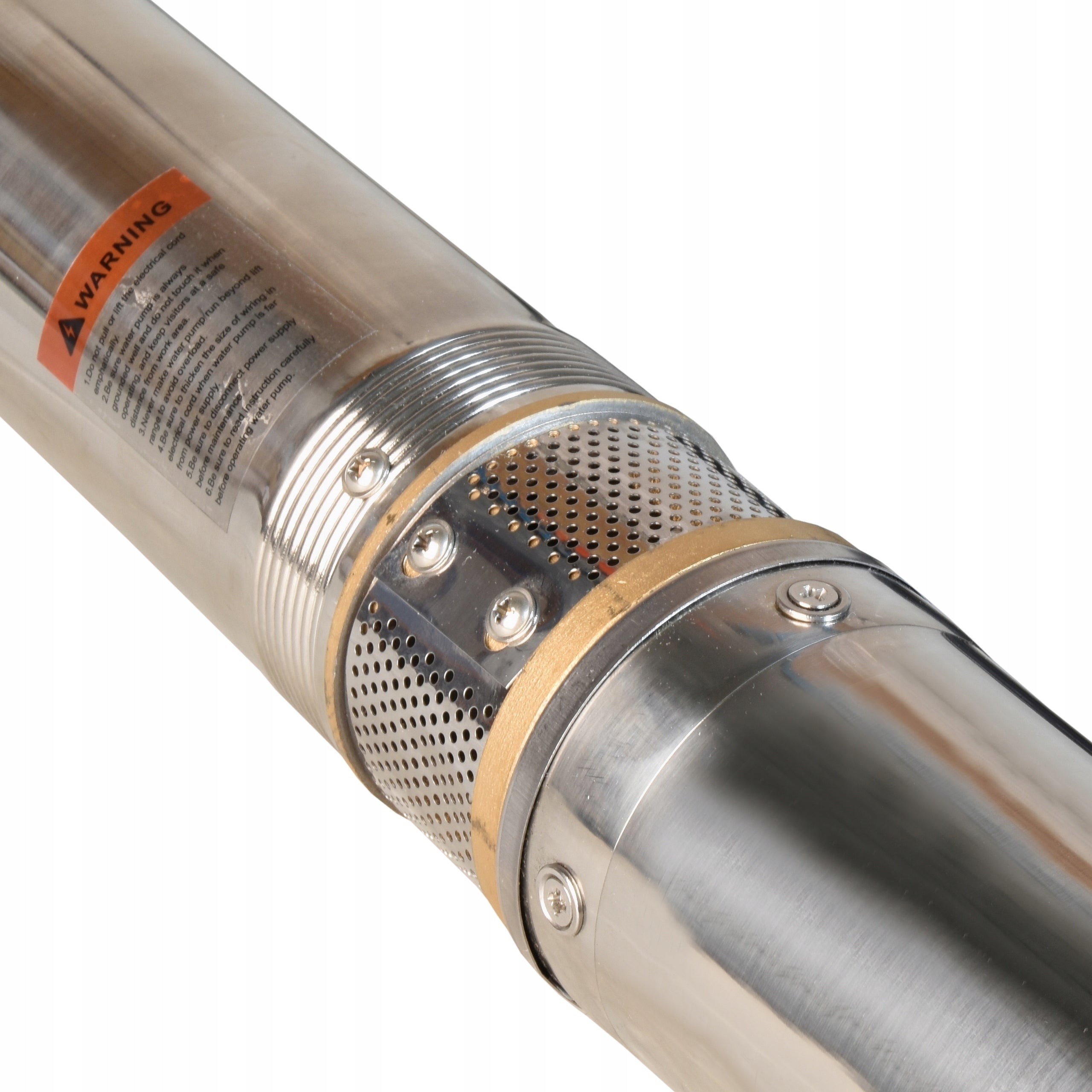

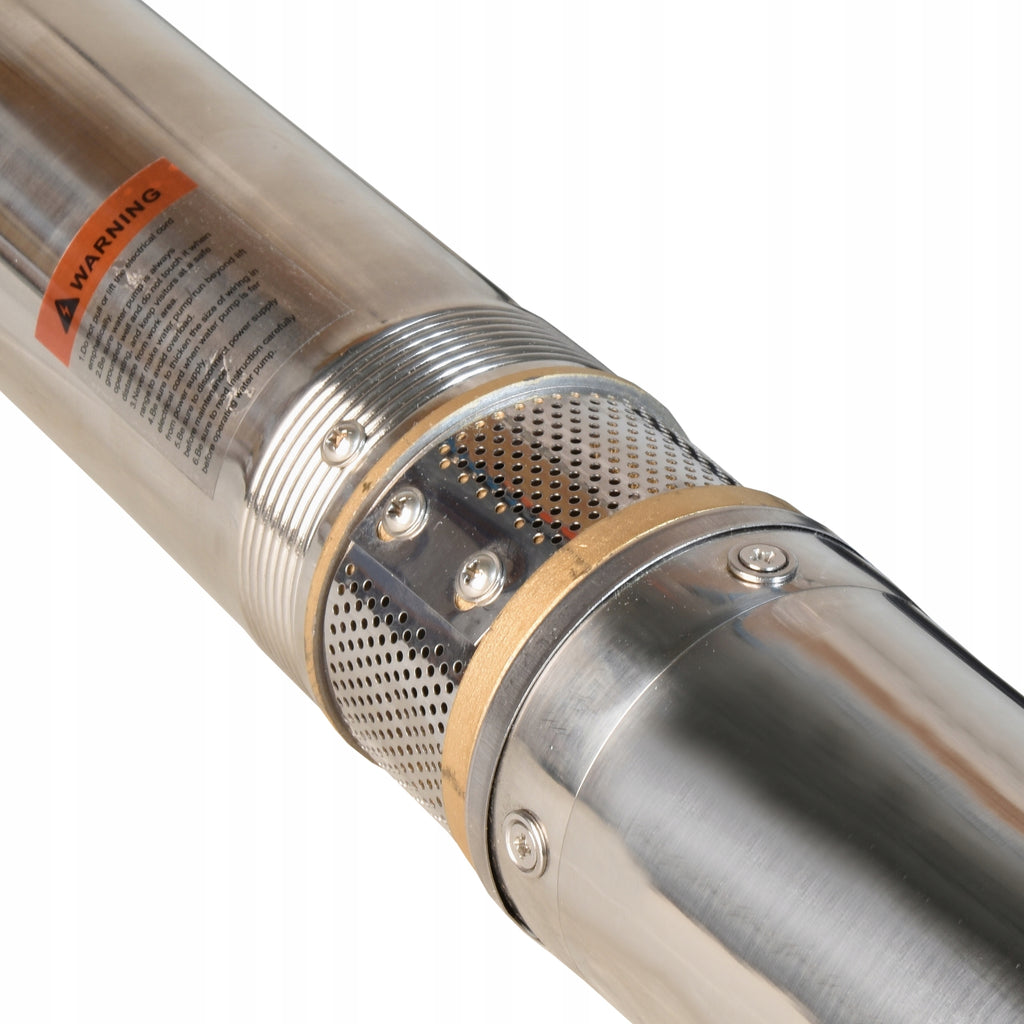

STAINLESS STEEL MESH

The mesh made of stainless steel is ideal for filtering contaminants.

THERMAL PROTECTION - SAFETY!

The pump is equipped with thermal protection, which is installed in the engine winding.

Thanks to thermal protection, the pump is provided with protection against short circuit and overload. In a situation where the temperature rises on the motor windings, the thermal trigger will protect the motor from significant overheating.

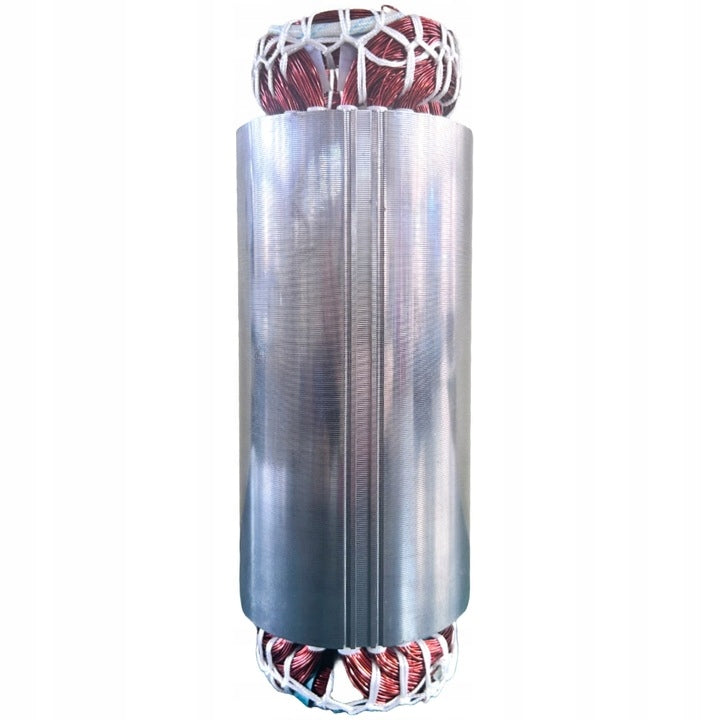

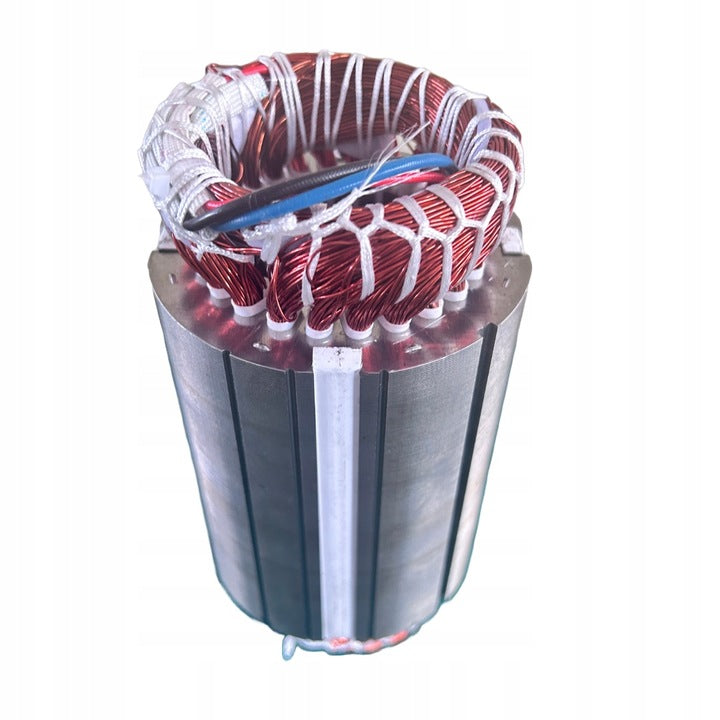

COPPER WINDING

The pump is one of the few that has a copper motor winding, which makes it more durable.

In most equipment, the winding is made of aluminum, which negatively affects the strength of the pumps.

.

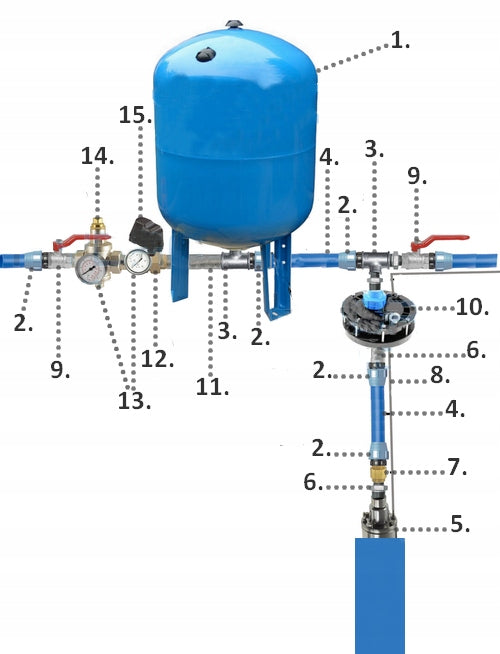

Example of a hydrophore kit connection scheme

1. Hydrophore Tank

2. PE coupling

3. Galvanized Tee

4. PE pipe

5. Submersible pump

6. Nipple

7. Check Valve

8. Electrical Cable

9. Ball Valve

10. Head

11. Galvanized Pipe

12. Five-Way Piston Output

13. Pressure gauge

14. Pressure Reducer

15. Pressure switch
