Giluminis siurblys OMNIGENA 3,5SC5-20, 1,5 kW, 230V

Trumpai apie prekę

Prekė: Giluminis siurblys OMNIGENA 3,5SC5-20, 1,5 kW, 230V. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: Omnigena
• Modelis: 3,5sc5/20

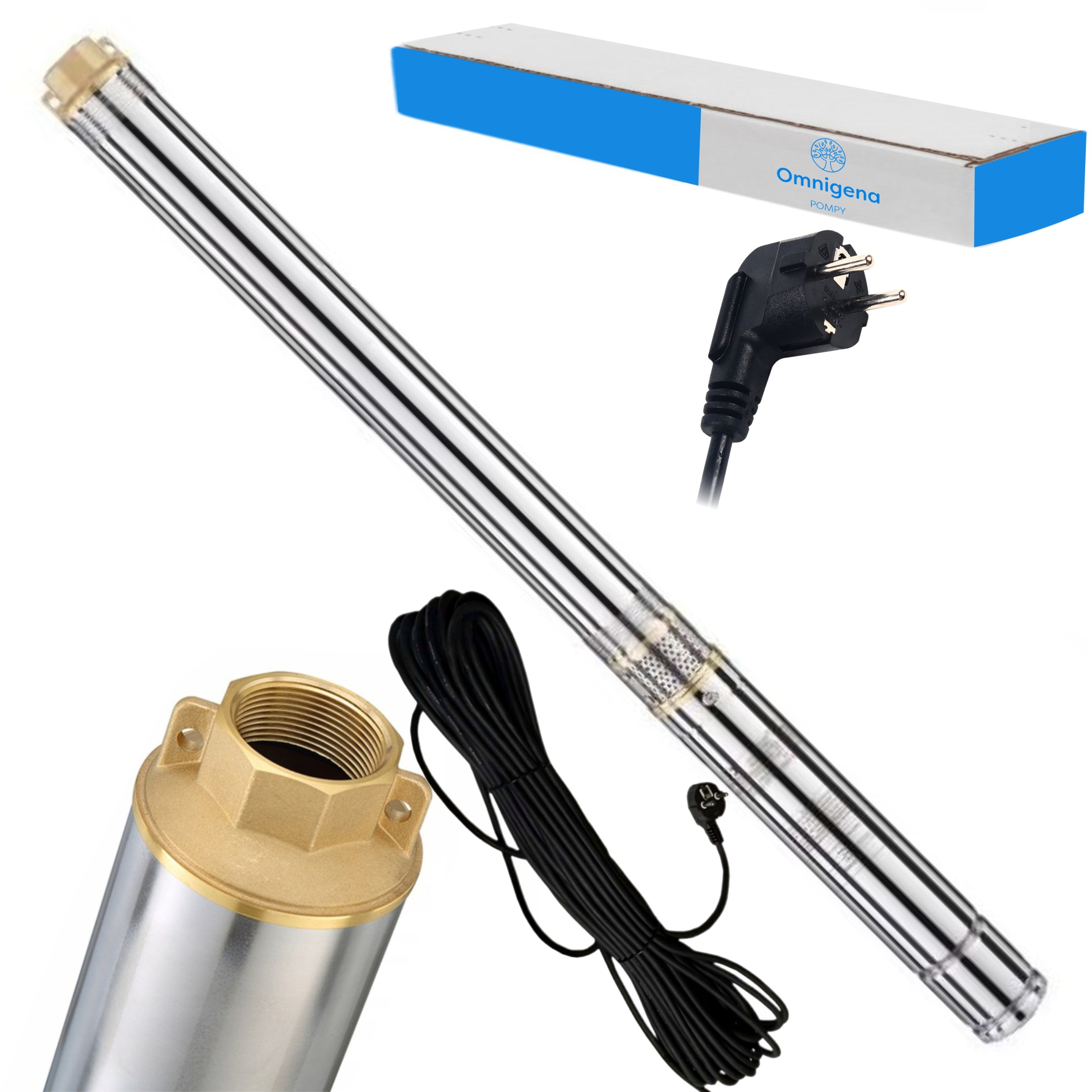

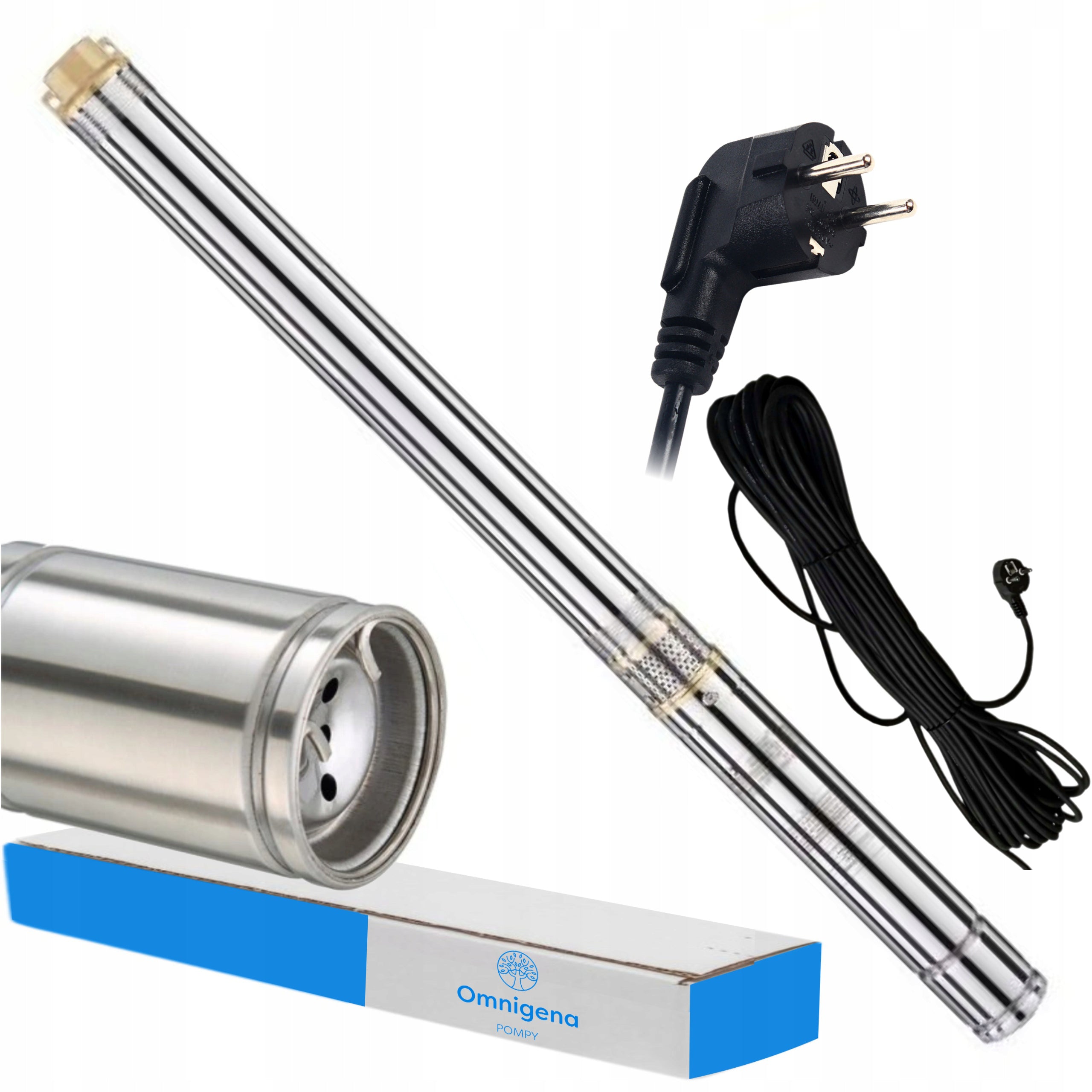

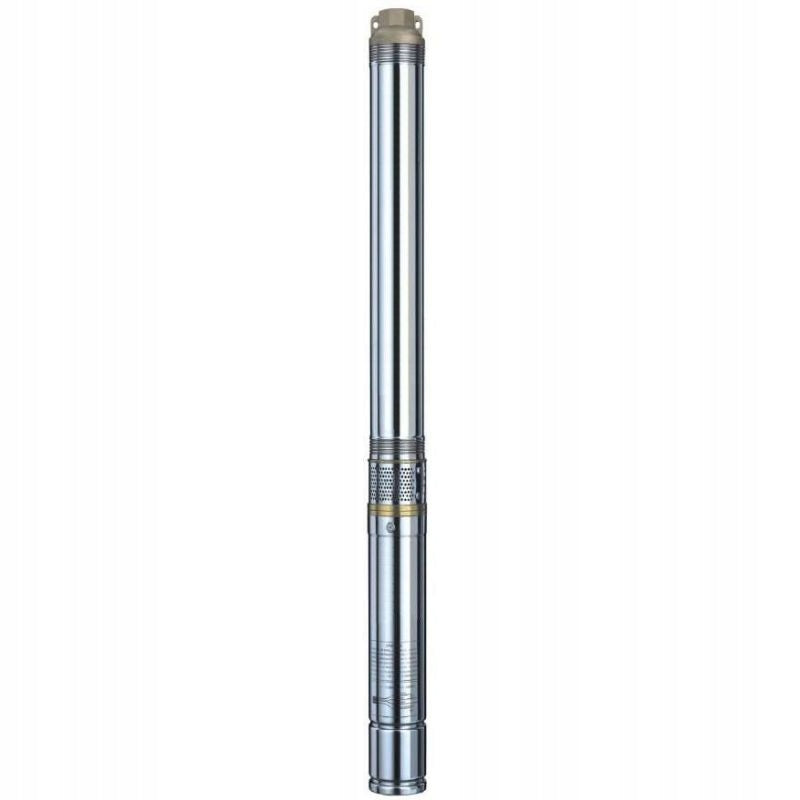

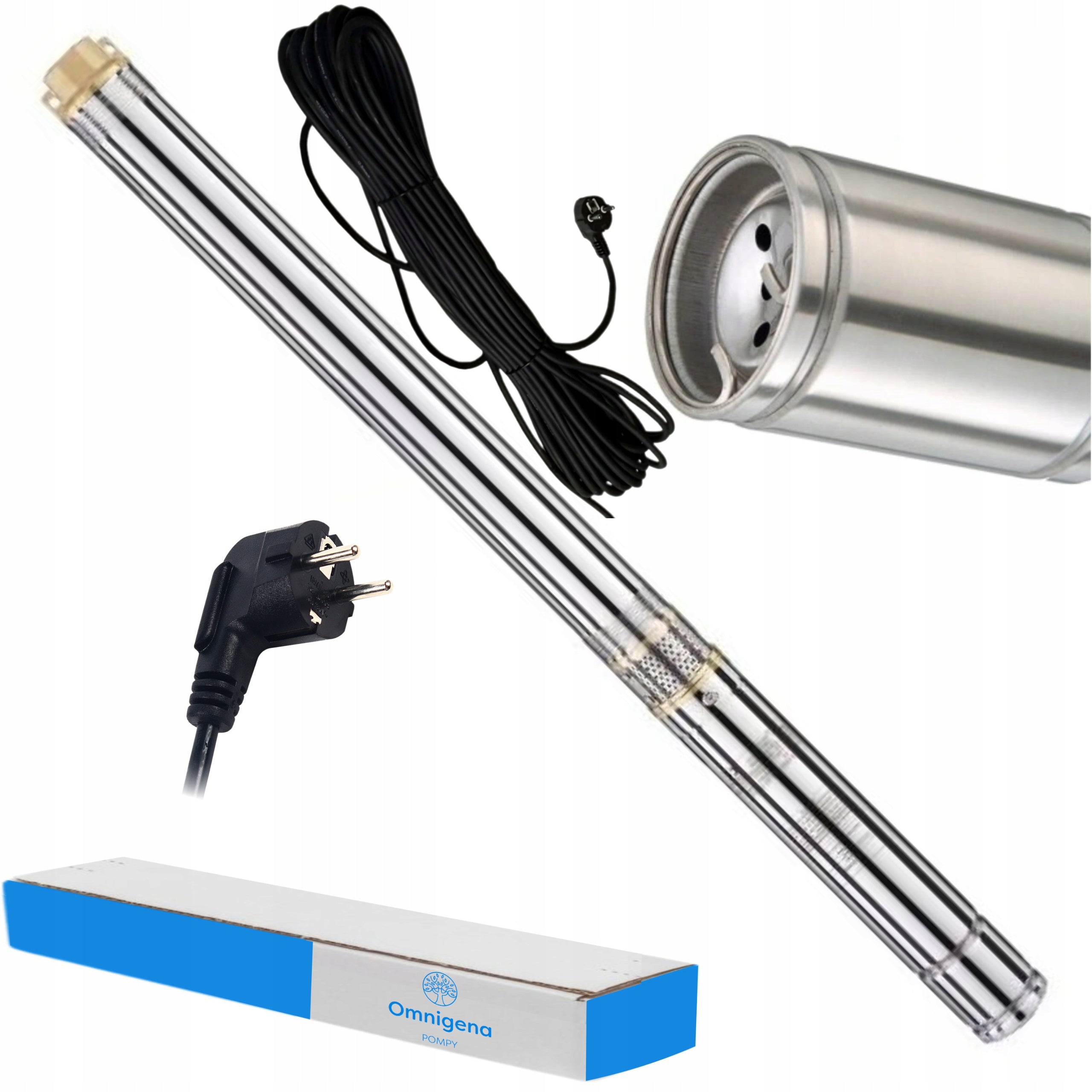

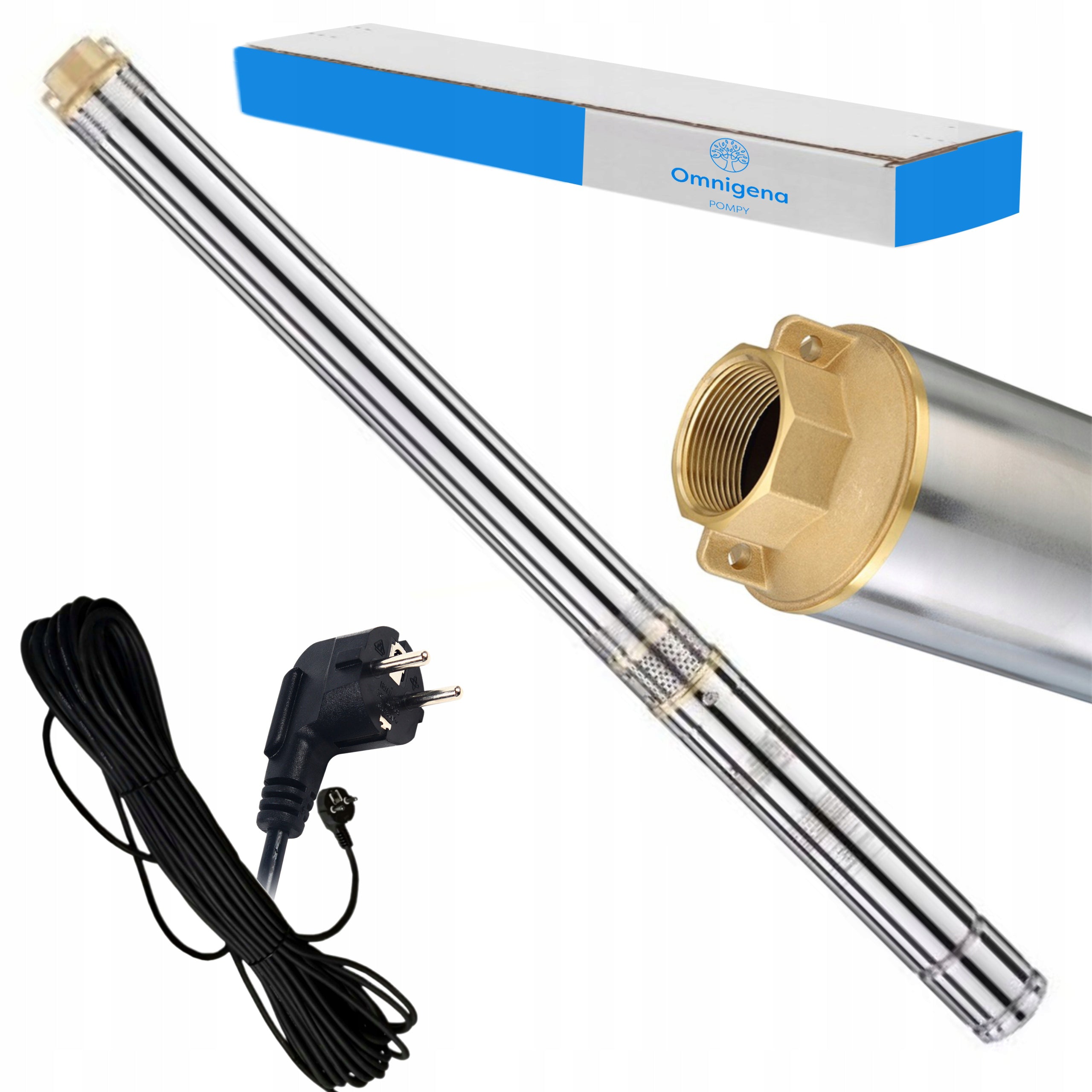

3,5SC5-20 (1,5KW) OMNIGENA SUBMERSIBLE PUMP 230V BUILT-IN CAPACITOR 18 M CABLE

Submersible pump 3,5SC with centrifugal construction of the hydraulic part, is designed for pumping clean, cold, fresh water from deep wells and other tanks.

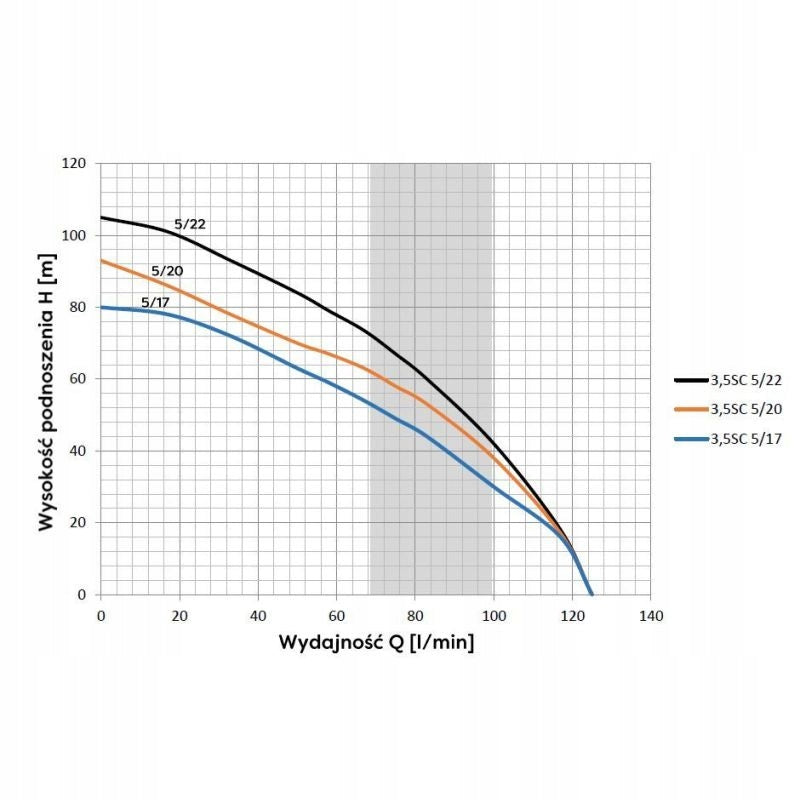

• Maximum capacity [l/min] 125
• Maximum lifting height [m] 93
• Engine power [kW] 1,5
• Voltage [V] 230
• Piston connector 1½"
• Length of power cable [m] 18

⚙ Technical data:

• Maximum water temperature: 35°C
• Protection rating: IP 68
• Isolation class of winding: B
• Number of starts maximum [x/hour]: 20
• Minimum engine cooling flow [m/s]: 0,08
• Depth of immersion maximum [meters]: 50
• Working position: vertical
• Start-up method of the motor built-in capacitor

⭐Features

• Increased sand resistance contained in pumped water
• Possibility of installation in a well pipe with an internal diameter from 100 mm, which reduces investment costs
• In the version with 230V power supply, a capacitor is built into the motor, which results in easy electrical connection (WK version)
• All pump components in contact with water are made of stainless materials
• Thermal protection built into the winding, which protects the motor from overheating (WK version)
• Three-core power cable for 230V version

➡ APPLICATION:

Submersible pumps 3,5” Omnigena are devices designed for installation in wells with a diameter of 100mm. They are designed for pressing clean, cold water without solid grinding or long-fiber elements.

Material execution:

• Pump housing: stainless steel
• Cable cover: stainless steel
• Pump shaft: stainless steel
• Rotors and diffusers: Noryl
• Inlet sieve: stainless steel
• Pressure body: brass
• Suction body: brass
