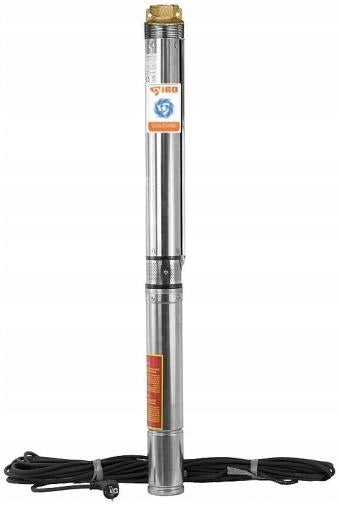

Giluminis siurblys šuliniui 3,5 SDM 1,1 kW

Trumpai apie prekę

Prekė: Giluminis siurblys šuliniui 3,5 SDM 1,1 kW. Kategorija: Siurbliai.

• Gamintojas: IBO
• Modelis: 3,5 SDM 3-15 z przewodem
• Galia: 1100 W

• The IBO 3,5 SDM 3-15 is a multistage centrifugal pump.
• The distinguishing feature of the pump is increased resistance to sand found in water.
• This was achieved through the use of floating rotors and the use of special construction materials of the IBO 3,5 SDM 3-15 pump.
• The pump has a brass suction body and a brass discharge body.

• The best and most economical solution for single-family houses and farms.
• Thanks to the small diameter and factory connection of the cable with a length of 20 m (capacitor built into the engine of the device), the pump is easy to install. B
• The very high efficiency in relation to the diameter of the pump allows wider use of pumps. Max. pump diameter 90 mm.

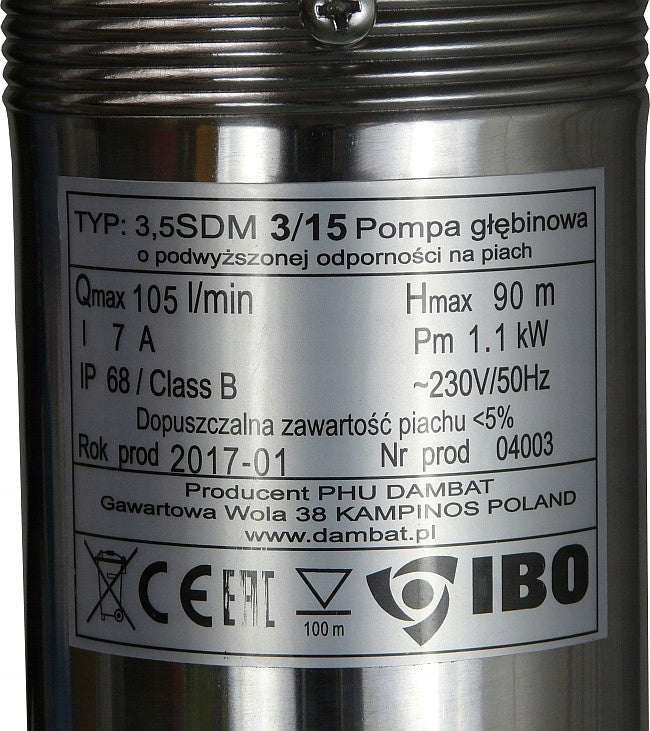

• LIFTING: 100 m
• PERFORMANCE: 105 l/min
• ENGINE POWER: 1100 W
• PRESSED CONNECTOR: 1 1/2''
• DIMENSIONS: 9/126 cm
• POWER: 230V
• POWER CONSUMPTION: 7,5 A
• WEIGHT: 17 kg

• Our submersible pump is ideal for supplying fresh water to country houses, farms. Irrigation of gardens.
• Drawing water from vertebral wells, deep wells, lakes and rivers. Usable water supply.

• Maximum liquid temperature of 35°C

• Maximum ambient temperature of 35°C

• Insulation class B

• Operating mode – continuous

• Security – IP68

• Suction/piston nozzle: brass

• Housing: AISI 304 stainless steel

• Shaft and rotor: AISI 304 stainless steel

• Impeller: noryl

• Diffuser: noryl

• Mechanical angina: Ceramic/Sic/NBR

• Engine: oil-cooled

• Engine speed: 2850RMP

• The whole chamber and main bearing is cooled and lubricated with oil.
• What’s more, the pump uses a non-toxic, safe oil that allows the use of the m.in pump in wells from which water is intended for food purposes.

• Our pumps are one of the few that has a copper motor winding, in similar Chinese products such winding is made of aluminum - thanks to this our pumps are more durable.

• The pump is equipped with thermal protection mounted in the motor winding.
• Thanks to thermal protection, the pump is provided with protection against short circuit and overload.
• In a situation where the temperature rises on the motor windings, the thermal trigger will protect the motor from significant overheating.

The pump has quality and safety certificates confirmed by a declaration of conformity, which you will receive together with detailed instructions for use. It is a proof of a high-quality product that stands out from the rest, quality and safety of use.

It is also a proof of honesty and commitment to the work of the manufacturer.
