Aprašymas
Trumpai apie prekę
Prekė: GPS modulis DEEPED NEO-6M. Kategorija: Įrenginiai.
- Gamintojas: DEEPED
- Modelis: NEO-6M

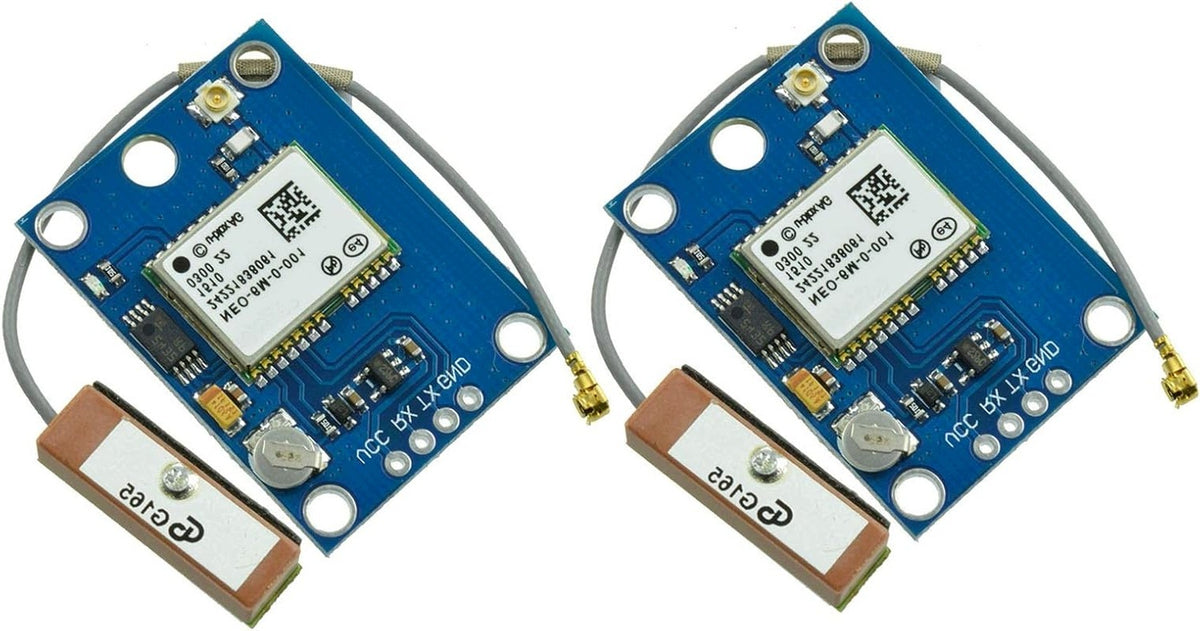

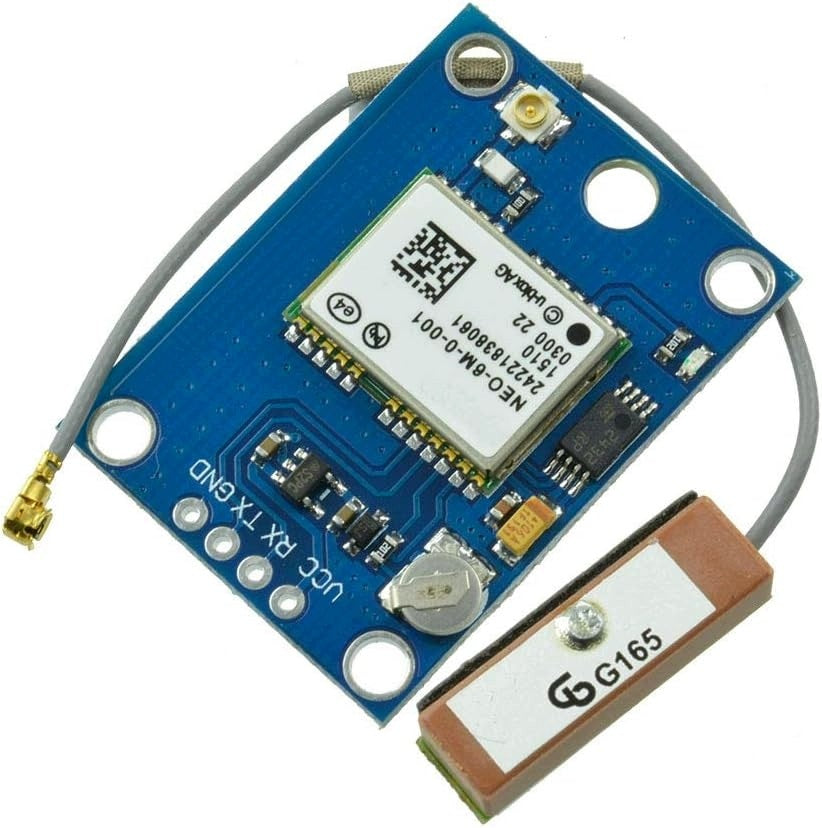

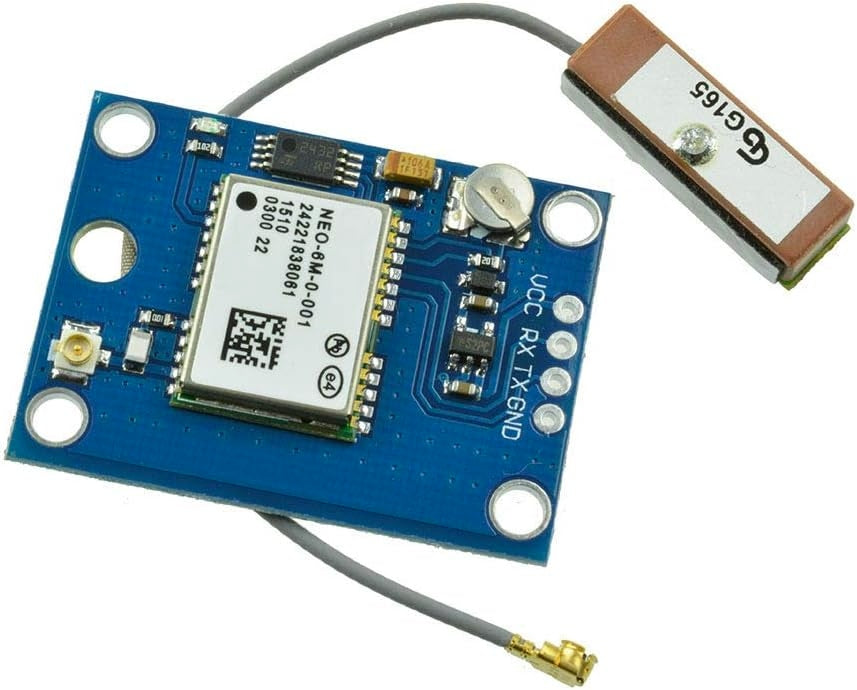

NEO-6M GY-GPS6MV2 GPS Module with Antenna
GPS module with EEPROM and built-in active antenna is a solution for navigation projects, including drones and systems with IMU. Compatible with APM2.0 and APM2.5 flight controllers and other microcontrollers.
Key features:
- Built-in active antenna provides strong signal
- External ceramic antenna with tracking accuracy up to 2,50 m; 45 mm antenna cable; MS621FE battery model, requires welding
- GPS module dimensions: 36 mm x 26 mm x 4 mm; antenna: 27 mm x 27 mm x 6,5 mm
- GPS module with EEPROM and RS232 TTL interface; 3-5 V power supply; transmission speed 9600 b/s
- Included Parts: 2 x GPS Module with Flight Controller and Antenna for MWC IMU APM2
- Compatible Devices: APM2.0 and APM2.5 Flight Controller
- Function: GPS module to receive position data
General description: The NEO-6M module is easy to integrate – just connect the VCC, RX, TX and GND to the chip to get up-to-date position data through the serial interface. Thanks to this, the module meets the requirements of projects related to navigation in drones and autonomous systems.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | DEEPED |
| Parametry | EAN (GTIN) | 5908040739810 |
| Parametry | Model | NEO-6M |
| Parametry | Kind | accessory |
| Parametry | Screen diagonal | 0" |
| Parametry | Batteries included | no |
