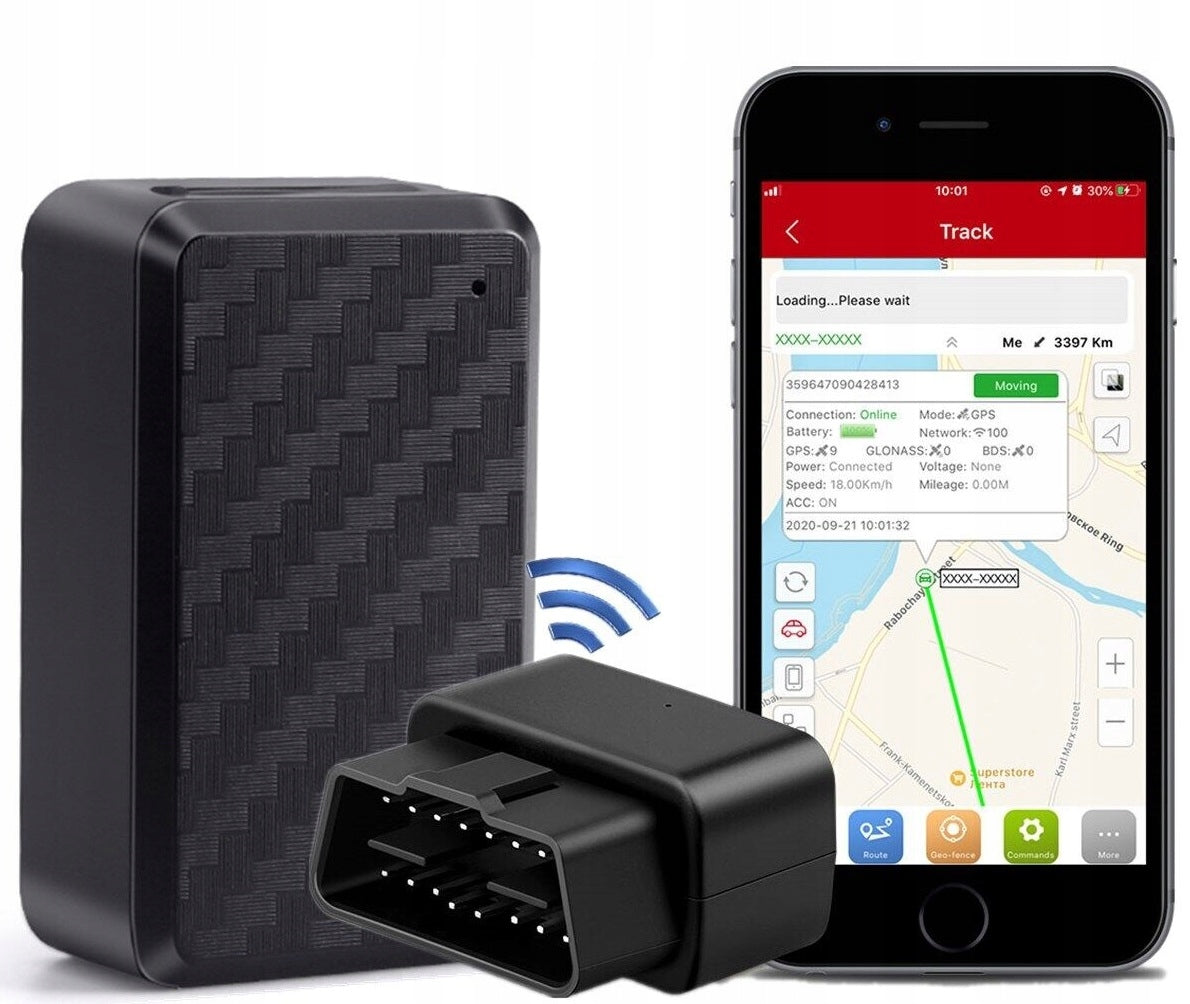

GPS transporto sekimo įrenginys su OBD2, 4G, GSM

Trumpai apie prekę

Prekė: GPS transporto sekimo įrenginys su OBD2, 4G, GSM. Kategorija: GPS sekimo įrenginiai.

• Gamintojas: Salind
• Modelis: 4G OBD 08 Tracker

GPS TRACKER

CAR – UNDER SOCKET 16 PIN OBD / OBD2 / OBDII

EAVESDROPPING, TRACKING

SUPPORT FOR 4G NETWORKS

Polish LANGUAGE - PHONE APP + WEBSITE

LIFETIME FREE SUBSCRIPTION ON THE WEBSITE

LIFETIME FREE SUBSCRIPTION ON MOBILE APP ANDROID OR IOS

NO CONTRACTS OR SUBSCRIPTIONS

POSSIBILITY TO CONNECT SEVERAL DEVICES TO ONE ACCOUNT

BATTERY SUPPORTING POWER SUPPLY 180mAh

GPS LOCATOR IS USED FOR:

• protection of vehicles against theft, enables quick location of lost items or vehicles
• vehicle tracking – built-in strong magnet will allow for express installation
• eavesdropping in or near the car - thanks to the built-in microphone, after sending an SMS, the locator will call us back, thanks to which we will get a listening experience of the environment
• fleet management - on the website you can enter several locators and assign them their own names

The locator is equipped with two modules: a GPS module for precise location of the device and a GSM module for communication with the user. When we want to find out what is the current location of the locator on the SIM card number placed in the device, we send an SMS with the appropriate command. After a while, we receive a return message with the current position or a link to the Google map where this item has already been selected.

We can also follow everything on the free application for Android or IOS phone.

The locator also allows tracking of the route traveled by the device. GPS at predetermined intervals gives the current location. These points on the map create the path that the device has traveled.

Locator is a new way to monitor vehicles. It is a modern GPS and GSM terminal, which allows to obtain up-to-date data on the location of our vehicle. The user receives precise data with location and constant monitoring of the facility - both trucks, cars, construction machinery, boats or motorcycles. Through this solution, the user can remotely control various types of vehicles.

The locator is a device designed for any type of vehicle, even the most specialized such as construction or agricultural machinery. It is used for vehicle position control - a practical solution after theft, so you can locate the current location of the stolen vehicle. Also used for control of company cars.

location information is transmitted using the GSM module, which enables data management. It is also possible to contact the tracker via SMS. Compact GPS allows you to easily track the location of the tracked object - by sending data to a predefined phone number or to a defined server using GPRS - which allows you to track online on any computer with Internet access.

The locator is very intuitive and does not require specialist knowledge from the user, to use it efficiently. On-demand tracking function by making a call to the number of the SIM card in the device - after 1 or 2 signals the connection is interrupted and then after a few seconds an SMS is sent to the phone number from which the call was made with a link to Google Maps or information about the location (length and latitude), which will allow you to quickly determine your location on the map. SMS sent by the locator also informs about the speed at which the targeted object moves.

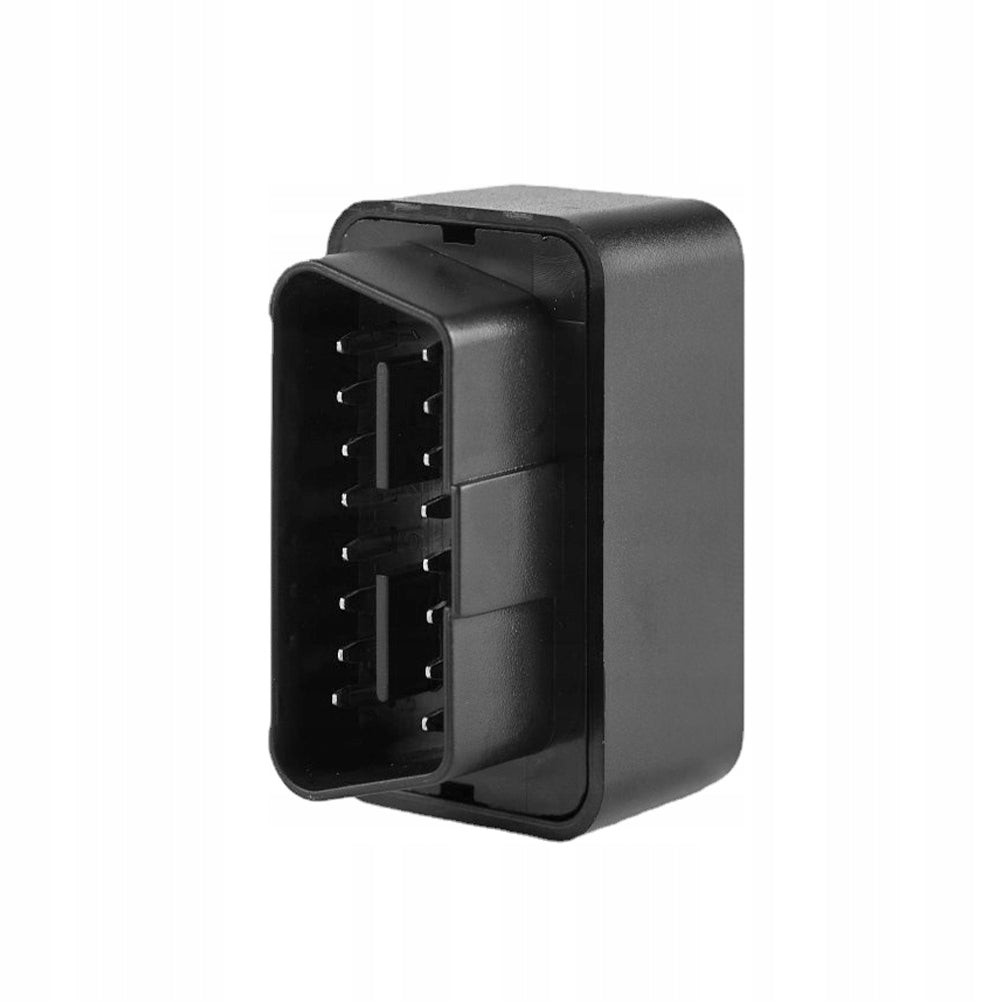

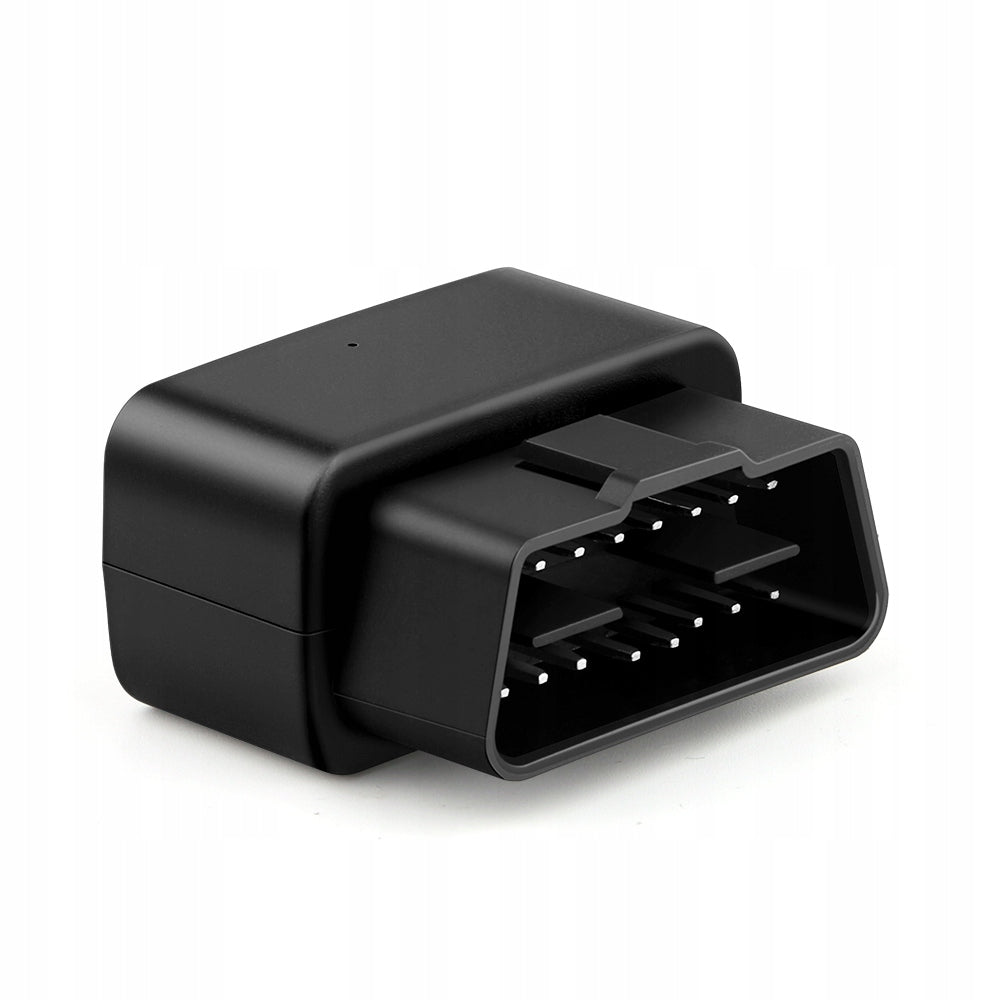

Simple installation – just plug the locator into the OBD or OBD2 socket in the car - without any converters, etc.

In addition, the device is equipped with 3,7v 180mAh batteries, thanks to which we can also locate the car after disconnecting the power supply. The power loss will be informed by an alarm which is a function of the locator.

FUNCTIONS:

• Eavesdropping - just send an SMS to the locator the device will call us back
• Online path tracking in real time
• Ability to automatically report locations and errors and save reports on the Internet
• Privacy protection, password-protected access to settings
• Management on the website or by phone via apps for Android or IOS
• Access to the server is possible from any computer, tablet through a web browser
• Possibility to recreate the route
• Calculatable fuel consumption
• Control of stops of vehicles with the device installed
• Locator calculates the kilometers traveled by the vehicle
• GPS or GSM signal loss message
• Location history on the web server
• Geo-fence function - is a function of a virtual fence on any area on the map. The user uses the map to program a safe area - when a given area is crossed, he will receive an SMS message with a message about crossing a given safe zone along with a link with the current location of the vehicle with the ST TK905 locator. It is up to the owner what the geo-fence area will look like, he has full control over the designation of a safe area.
• Power loss notification
• Surveillance of the speed of the moving vehicle. If the vehicle exceeds the permitted speed, the device will send a message with the information
• Checking the speed of the device at each point - report on the website
• Shock sensor - if it is activated and vibration is detected, the device will send an SMS alarming about the event. The shock sensor can also wake the device from sleep mode. In this mode, the device uses less electricity.

PARAMETERS:

• Location accuracy: 5m
• Cold start: 35-80 seconds
• Hot start: 1 seconds
• Small dimensions: 49x33,4x38,6mm
• Battery: 3,7V 180mAh
• Two ways to locate based on MBS and GPS
• Supports input voltage 9-35V
• Location provided via SMS or GPRS (TCP/IP).
• GPS sensitivity: -159 dBm
• Working temperature: from -20°C to +55°C
• GPS works with any operator's SIM card supporting the GSM frequencies displayed below. The card cannot have a PIN code – it must be turned off.
• Four-band GSM system with built-in antenna
• GSM frequency: 850/900/1800/1900Mhz
• Full support for web, SMS and Google Link Map.
• Precisely locate even when signal is weak
• Displaying the current position of the device on the map in real time (refreshing the position every 10 seconds)
• Low power consumption so that the locator does not burden the battery
