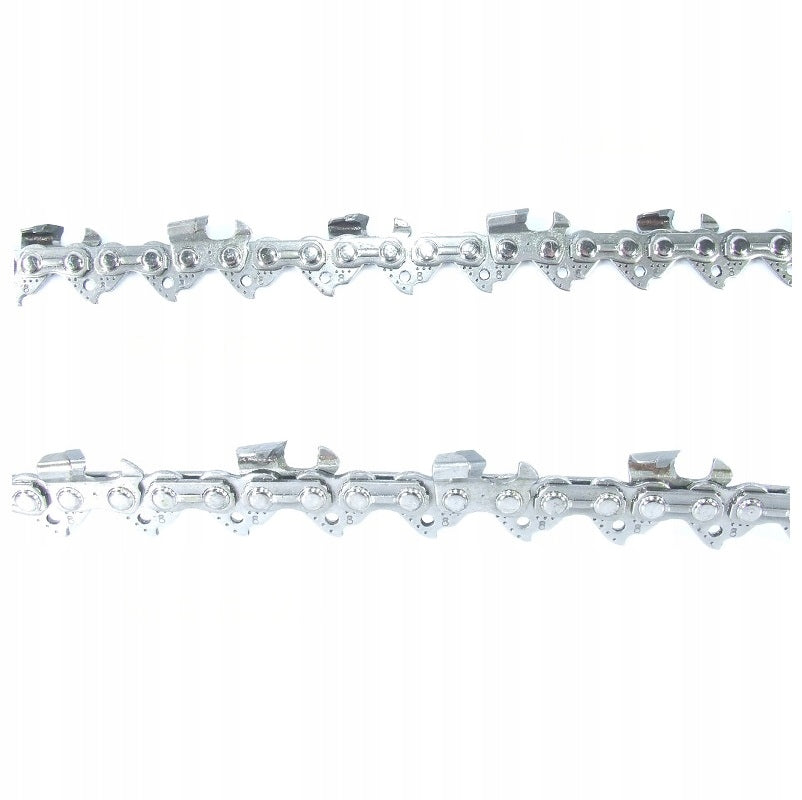

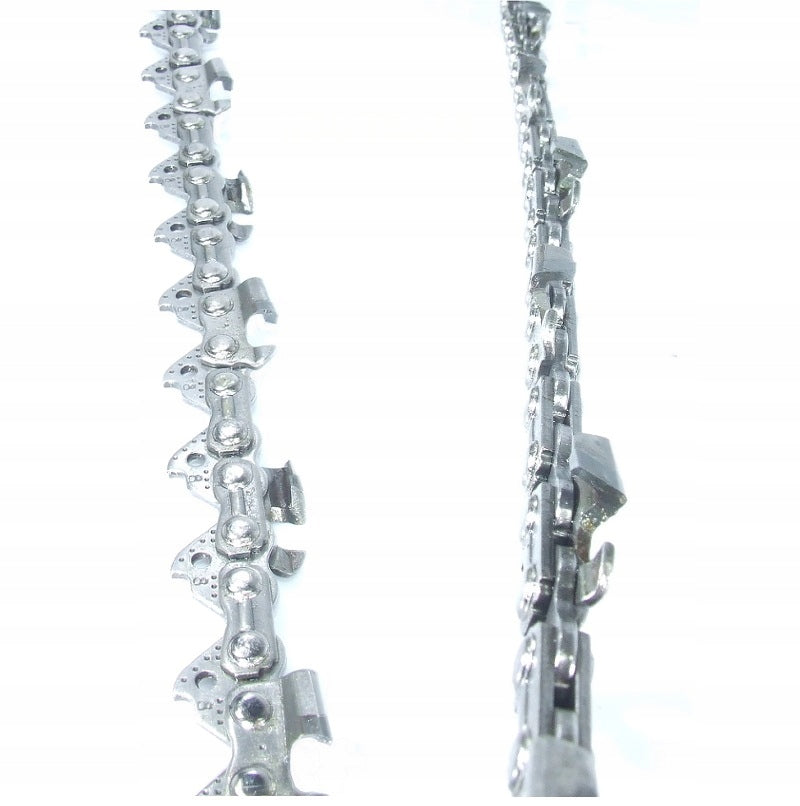

Grandininis pjūklas, 56 grandys, .325", 1,3 mm, tinka STIHL, Husqvarna

Trumpai apie prekę

Prekė: Grandininis pjūklas, 56 grandys, .325", 1,3 mm, tinka STIHL, Husqvarna. Kategorija: Pjūklai.

• Gamintojas: Maya
• Modelis: 56DL-325-13RDM

VIDEO CHAIN, Chainsaw

FOR COMBUSTION CHAINSAWS

AND ELECTRIC

Chain with teeth with sintered carbide

It is characterized by incomparably greater resistance to blunting

It is ideal for wood contaminated with sand, cement or earth

The spectral chain is up to ten times longer sharp than traditional chains (no need for additional sharpening)

CHAIN PARAMETERS:

LOW PROFILE

Division: .325"

Cell thickness (mm): 1,3 mm (.050'')

Number of chain guide links offered: 56

NO. ORIGINAL PART:

B1-CR

CHECK WHETHER THE PARAMETERS GIVEN ON THE WEBSITE MATCH THE PARAMETERS OF THE OLD CHAIN t.j.

1. CHAIN PITCH

Chain pitch is the distance between the axes of the first and third rivets (anywhere in the chain).

Expressed in inches (mm) e.g.

- 1/4'' (13 mm),

- 325" (16,5 mm).

- 3/8" LP (Low Profile) (19 mm) - LP chains are available in electric and combustion saws with a power of up to 2 kM,

- 3/8" (19 mm),

- 404" (20 mm).

In the case of used cutting chains, this distance may increase due to the wear of the chain and its tensile properties.

ATTENTION! The pitch in the entire cutting system (chain, guide, clutch drum) must be the same.

2. GUIDE LINK WIDTH – (the guide link of the cutting chain is the link that enters and moves in the guide groove), expressed in mm e.g.

- 1,1 mm

- 1,3 mm

- 1,5 mm

- 1,6 mm

or in inches:

- 043'' (1,1 mm)

- 050'' (1,3 mm)

- 058'' (1,5 mm)

- 063'' (1,6 mm)

3. NUMBER OF CHAIN LINKS – BE SURE to count the number of guide links (the guide link of the cutting chain is the link that enters and moves in the guide groove)

or look for special markings on the guide - the number of cells is usually marked with a number next to the letters "DL" (English). drive links)

(please make sure that the chain has not been shortened before, e.g. as a result of stretching)

$$$

[Product code: /BWUdTOx97 KrQ6cBvCpG bg==]
