Grandininis pjūklas Oleo-Mac GSH 560, benzininis

Trumpai apie prekę

Prekė: Grandininis pjūklas Oleo-Mac GSH 560, benzininis. Kategorija: Pjūklai.

• Gamintojas: Oleo-Mac
• Modelis: 50329051E2A

OLEO-MAC GSH 560 .325" 46cm - 18" + STARTER KIT!

Engine power - 3,8 hp (2,8 kW)

Useful power of the device - 3,5 hp (2,6 kW)

THE MOST POWERFUL COMBUSTION SAW OLEO-MAC FROM THE "GSH" SERIES, IDEAL FOR OBTAINING AND PREPARING FIREWOOD

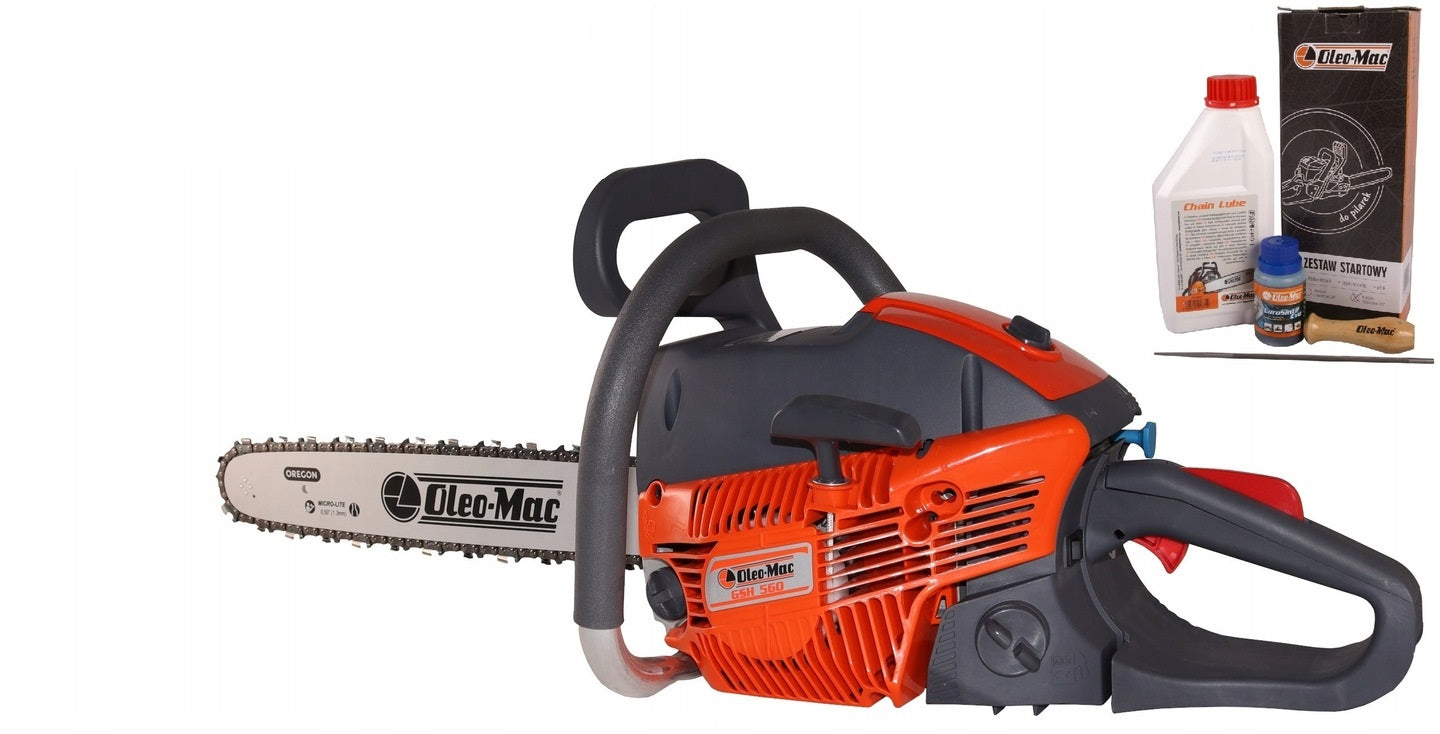

We add to the chainsaw for free:

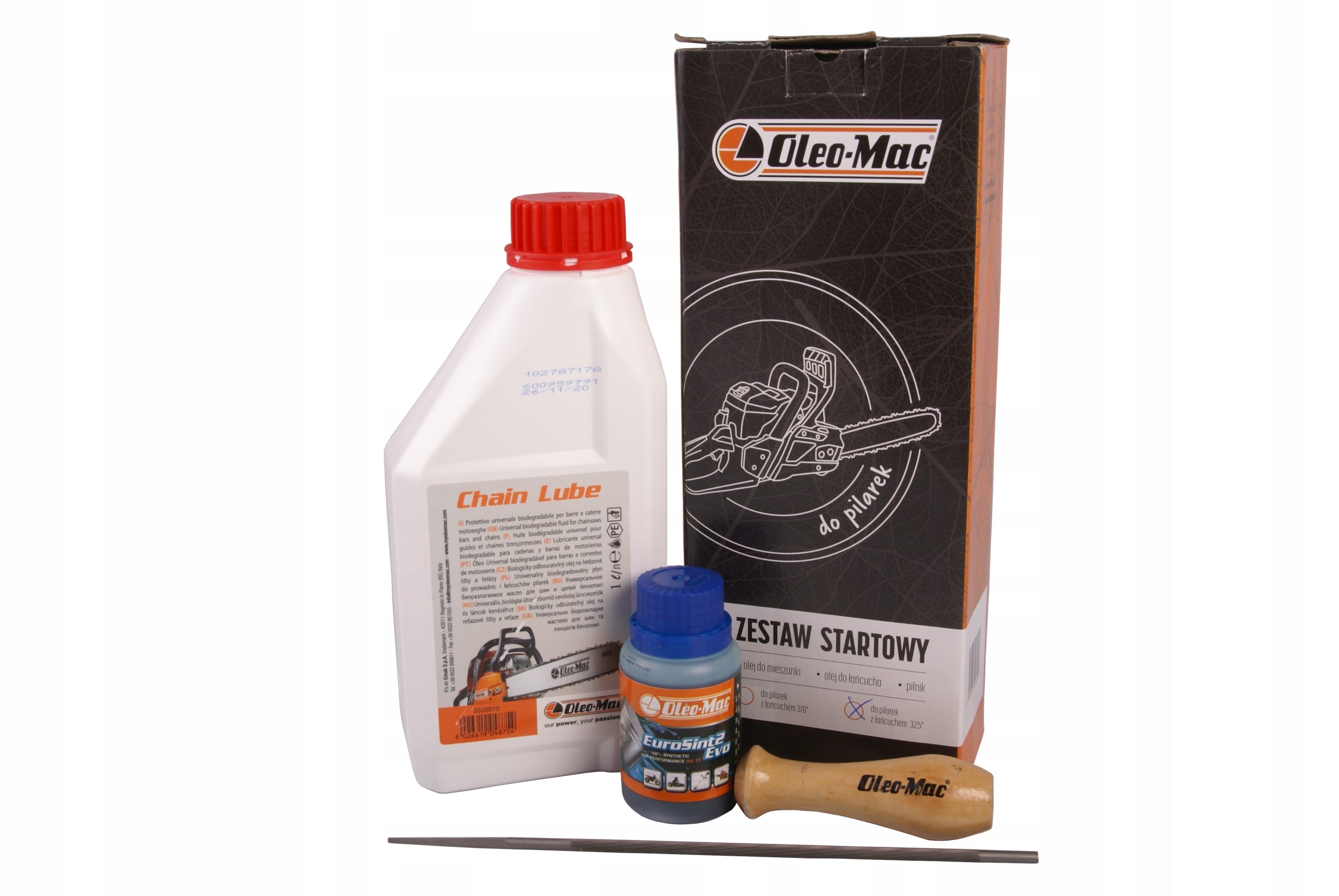

• STARTER KIT, which includes:
• oil for mixture Oleo-Mac Eurosint 2 Evo 100ml
• oil for chain Oleo-Mac 1L
• file
• wooden file holder

The Oleo-Mac GSH 560 Home Class Diesel Saw (GSH) is the optimal configuration of operating parameters for backyard use, as well as occasional and heavier farm-type work. Slightly higher weight than in the case of Oleo-Mac premium (GS) chainsaws compensates for a large power reserve, which increases the speed of work. Equipped with an aluminum adjustable oil pump, which facilitates work by allowing you to adjust the oil expenditure depending on the type of work performed and the cutting system used.

• Wheel magnet large diameter (Ø 100 mm) with a new geometry of fan blades designed to guarantee smooth operation of the engine and ensure proper cooling of the engine even in inclement weather (high temperatures).
• The anti-vibration system with 1 spring and 5 rubber shock absorbers is effective protection against vibrations of the working machine.
• Side chain tensioner greatly simplifies the tension procedure of the chain.
• Two-ring piston, nickel cylinder and forged crankshaft and connecting rod ensure proper performance for all service life.
• Weight 5,2kg*

* - (without fuel, guide, cutting chain)

• Magnesium alloy crankcase,
• Three-piece forged crankshaft,
• Plunger with 2 rings,
• Nickeled cylinder,
• Aluminum adjustable oil pump,
• WALBRO carburetor,
• Side chain tensioner.

EasyStart System - offers the same amenities as the EasyOn system additionally reducing the risk of rebound during start-up, thanks to the use of double starter spring.

Start pump - brings the mixture directly to the carburetor facilitating start-up of the cold machine and after replenishing the fuel tank or prolonged inactivity.

Reinforced silencer - is designed to significantly reduce noise emissions, even at maximum crankshaft speed.

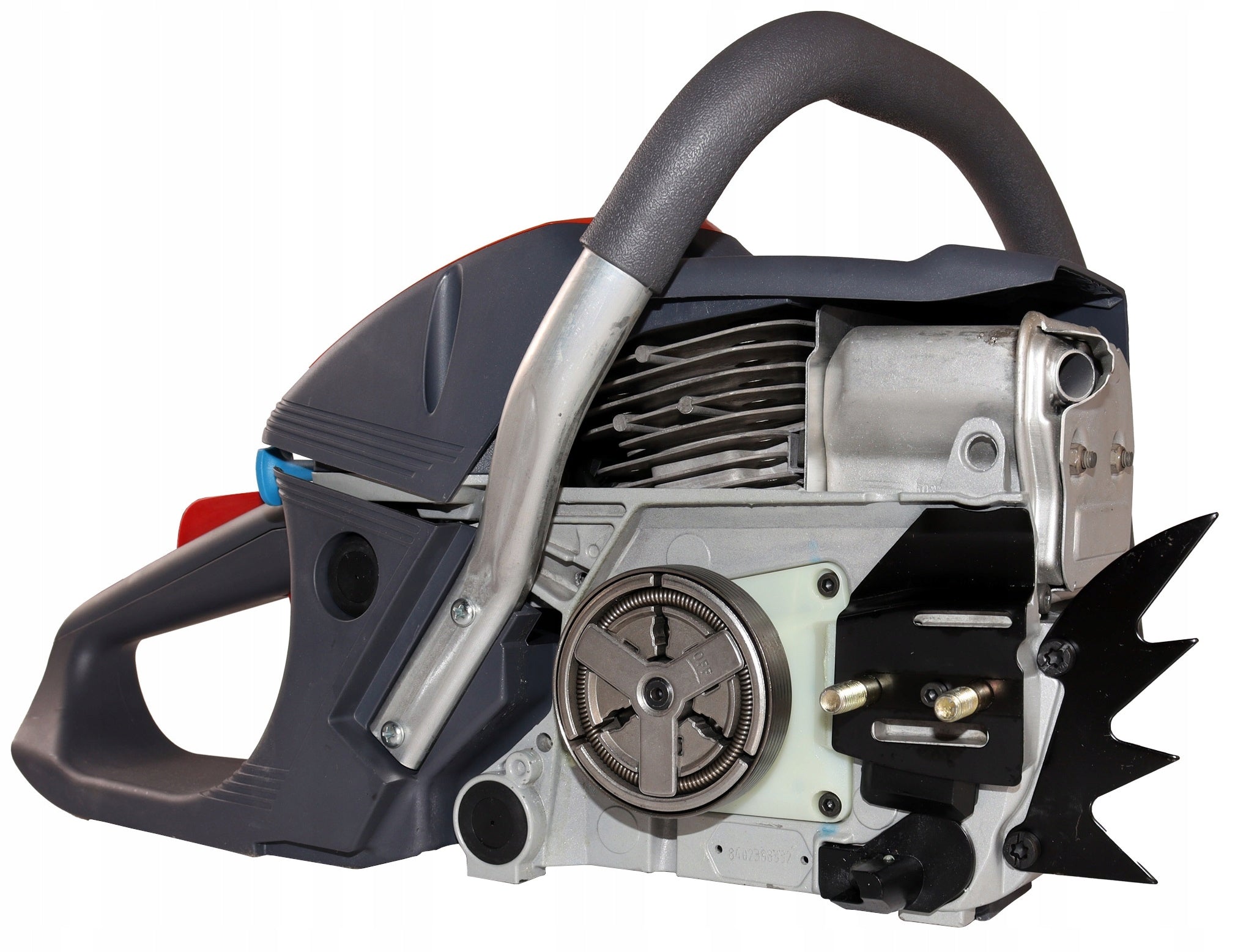

Clutch - centrifugal with three counterweights and drive sprocket with 7 teeth.

The profile of the cutting tooth is also important. The cutting teeth of the .325" chain are characterized by a half-length profile, thanks to which they are relatively resistant to natural blunting, and the narrow top plate does not put too much strain on the transmission system, allowing smooth operation.

GSH 560 with a cutting system with a pitch of .325". The advantage of this system compared to the previously used 3/8" hobby is higher efficiency. The number of cutting teeth of the .325" chain is greater compared to the 3/8" hobby chain, with the same chain working length.

GSH 510 and GSH 560 saws are efficient saws with a capacity of 50,9 cm3 and 54,5 cm3. These are machines designed mainly for private user, ideal for domestic work and small agriculture, such as pruning and cutting wood for a fireplace or stove.

• Condition - new
• Manufacturer - Oleo-Mac
• Model - GSH 560
• Product code - 50329051E2A
• Engine capacity - 54,5 cm³
• Engine type - two stroke
• Engine power - 3,8 hp (2,8 kW)
• Usable power of the device - 3,5 hp (2,6 kW)
• Chain (division x width) - .325" x 0.50"
• Length of guide - 46 cm / 18"
• Capacity of oil/fuel tank - 0,26 L / 0,55 L
• Start pump - yes
• Oil pump - automatic (adjustable) / does not idle oil
• Anti-vibration system - 1 spring + 5 rubber shock absorbers
• Weight (without cutting system) - 5,2 kg

MIX RATIO - (1:50)*

*We recommend using Oleo-Mac 2% (1:50) two-stroke engine oil specially developed for air-cooled two-stroke engines. The stated oil/petrol ratios are appropriate if you use oil for Oleo-Mac PROSINT 2 and EUROSINT 2 Evo engines or equivalent high-quality engine oil (compliant with JASO FD or ISO L-EGD).

• guide guard
• service key
• runner
• chain
• guarantee card

• The pictures show the saw folded and ready for use. The device is delivered by mail order, so it requires prior assembly, flooding with liquids and running on our own, which may take us 10-15 minutes.
