Grandininis pjūklo grandinės galąstuvas, indukcinis variklis, 230 W

Trumpai apie prekę

Prekė: Grandininis pjūklo grandinės galąstuvas, indukcinis variklis, 230 W. Kategorija: Įrankių galąstuvai.

• Gamintojas: no brand
• Modelis: 40062
• Galia: 230 W

• Type of sharpener - stationary
• Purpose - for sharpening cutting chains
• Engine power - 230 W
• Engine type - induction
• Power supply - 230 V
• Sharpening angle adjustment - 35 degrees right/left
• Engine speed - 3000 rpm
• Diameter of sharpening disc - 145 mm
• Mounting hole diameter - 22,3 mm
• Sharpening disc thickness - 3,2 mm
• Type of shield - corundum
• Weight of the device - 6 kg.
• Service in the system - "door to door"

• Ability to sharpen chains with different graduations
• Adjustable and rotating chain fixing vise
• Sharpening angle adjustment
• Transparent safety guard
• Comfortable main handle
• Equipped with a trouble-free induction motor
• Tilt angle adjustment with graduated knobs
• Precise marking of scales and angles
• It has a grinding depth limiter
• Base adapted for mounting on a fixed stationary surface

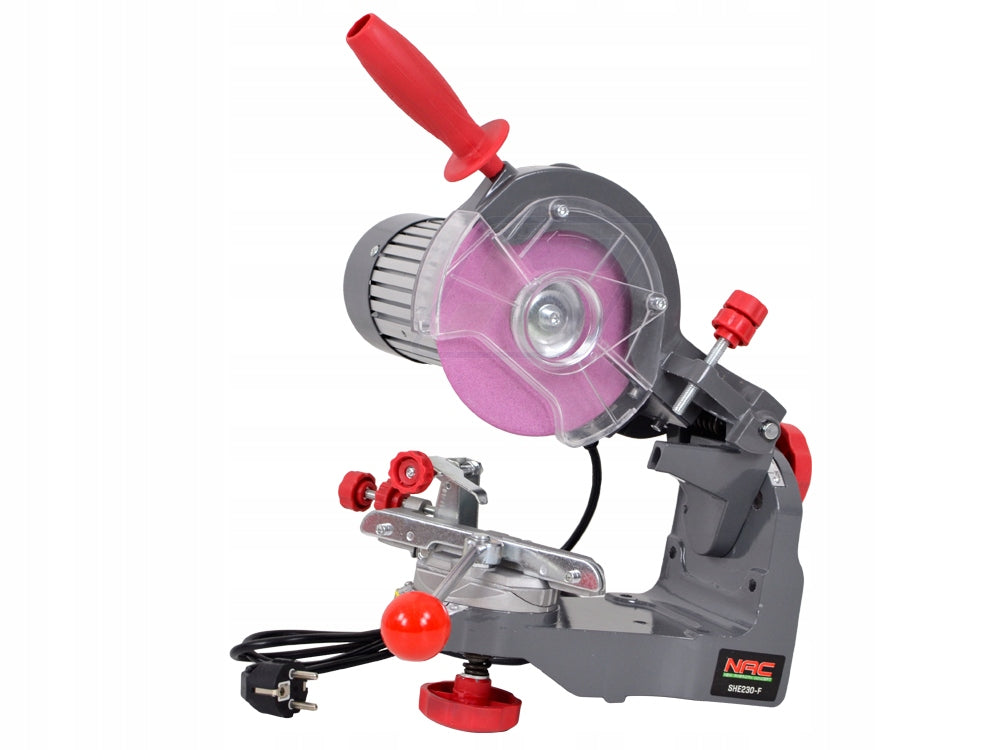

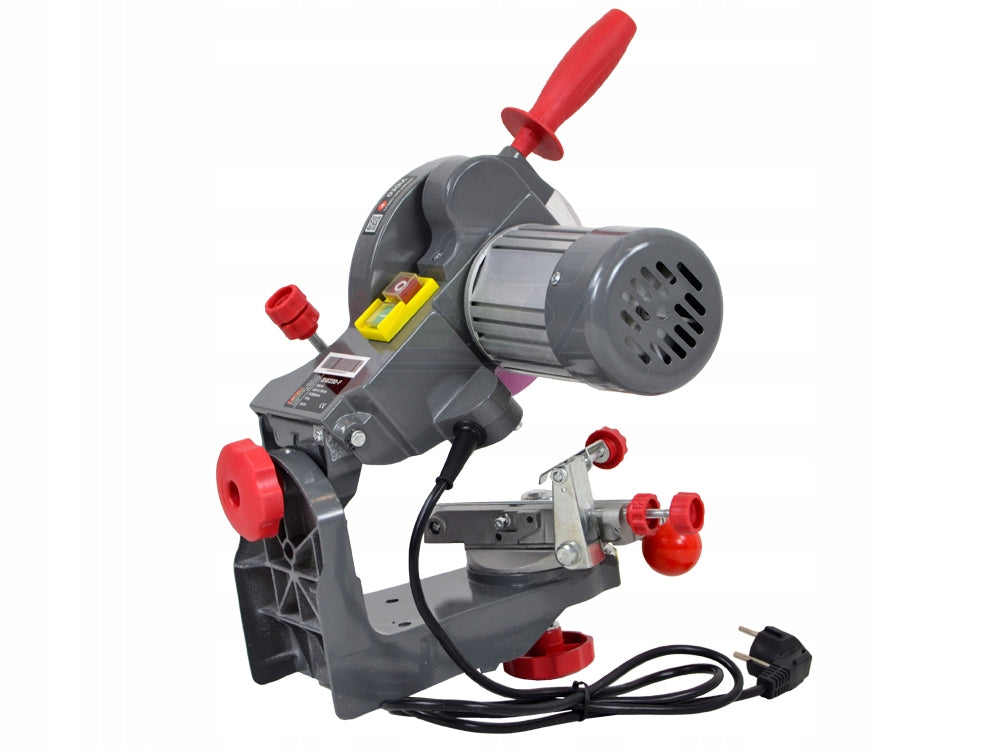

Electric sharpener designed for sharpening all types of cutting chains used in combustion and electric saws. It is equipped with a induction electric motor with a power of 230 W, allowing to achieve a grinding wheel rotation speed of 3000 rpm.

The grinding disc with dimensions of 145 x 3.2 x 22.3 mm has a specially selected granulation so that it does not overheat the sharpened material. The use of such a device allows for very accurate and precise sharpening of the chain, while maintaining the same parameters for each cutting cell. Such a sharpened chain has no "rebounds", works evenly and "does not pull" to the sides when cutting.

The sharpener features chain tension adjustment and a precise scale that allows you to sharpen each link in a repeatable manner. It is equipped with a tilting and rotating vise with adjustable sharpening angle (35 degree rotation angle) and a grinding depth limiter.

The motor power, rotational speed and abrasive granulation of the disc have been selected so that during sharpening, the chain links do not heat up too much, which could lead to their hardening and thus loss of their hardness and sharpness.

The metal base of the device is adapted to fix it on a fixed stationary surface. In the upper part of the housing, a handle is mounted, with which we control the sharpening head.

• Model of device - SHE 230-F
• Power supply - mains
• Type of motor - electric
• Engine type - inductive
• Supply voltage - 230 V
• Engine power - 230 W
• Purpose - sharpening cutting chains
• Disc rotation speed - 3000 rpm
• Dimensions of the disc - 145 x 3.2 x 22.3 mm
• Sharpening angle adjustment - 35 degrees right/left
• Fixing - to a stationary ground
• Sharpener Vice Type - Rotary
• Sharpening depth limiter - yes
• Sharpener weight - 6 kg
• Housing - light metal alloy
• Manufacturer - NAC

1. Adjustable tilt angles
2. All packed in original carton
3. Equipped with a modern induction motor
4. Adjustable and rotating chain mounting vise
5. Cutting disc in transparent safety guard
6. Precise scales and graduations
7. Switch in hermetic cover protected against dust and filings
8. Comfortable handle for controlling the sharpening head
9. Includes in Polish instruction manual and necessary equipment

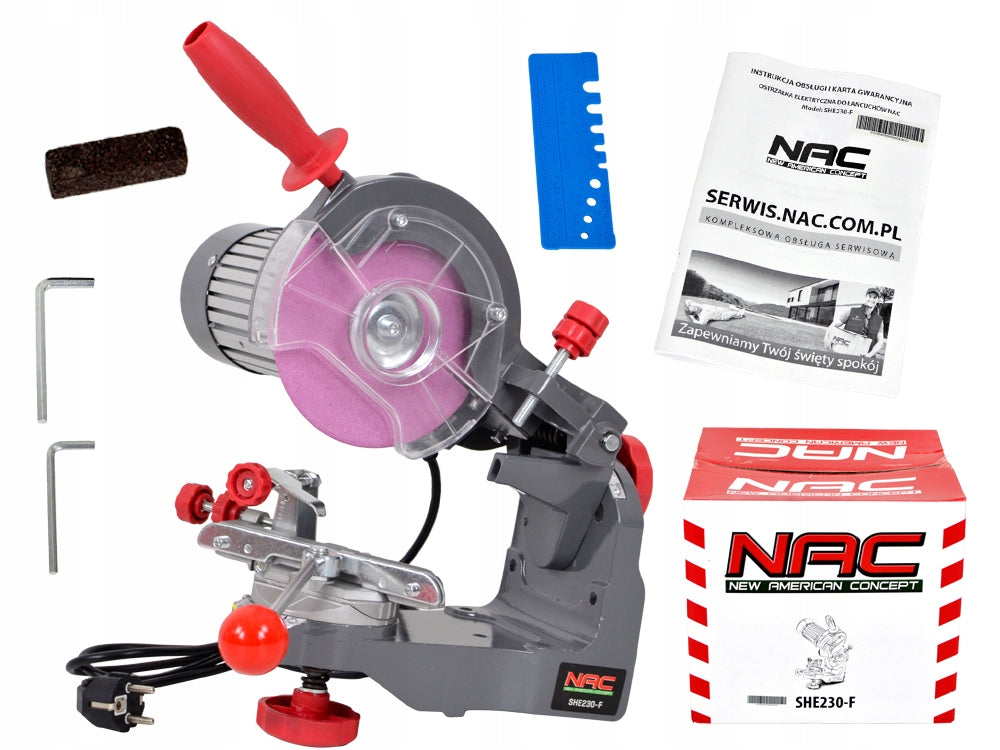

• Electric Sharpener
• Grinding disc
• Shield guard
• Vise
• Ampule wrenches
• Screws and mounting hardware
• Warranty card
• EC declaration of conformity
• Instruction in Polish
• Original packaging
