Grandininis žemės kasimo įrenginys HDM 15KM LONCIN, kasti iki 60 cm gylio

Trumpai apie prekę

Prekė: Grandininis žemės kasimo įrenginys HDM 15KM LONCIN, kasti iki 60 cm gylio. Kategorija: Grunto grąžtai.

• Gamintojas: HDM
• Modelis: 23598
• Svoris: 195 kg

The HDM combustion chain excavator is a professional tool designed for making precise excavations for water, electrical and irrigation systems.

With a powerful four-stroke engine with a capacity of 420 cm³ and a power of 15 HP, it ensures high performance and reliability.

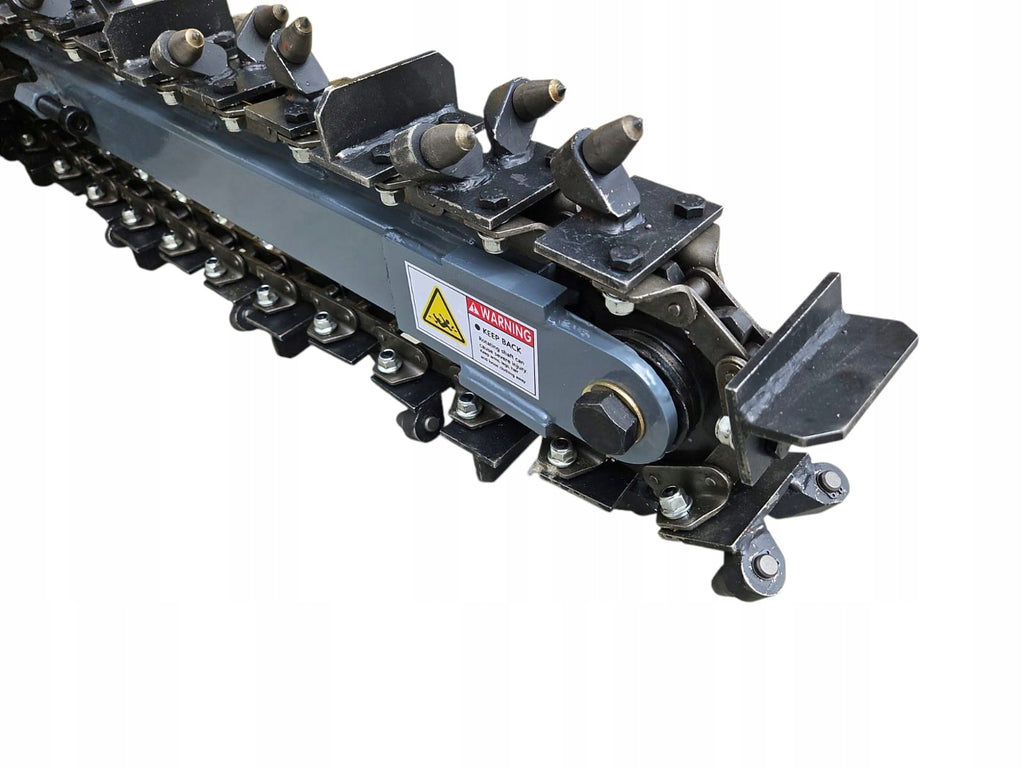

The excavator is equipped with a chain digging mechanism with a width of 100 mm, which allows you to work up to a maximum depth of 600 mm.

Robust construction and optimally selected operating parameters make the machine fast, very efficient and easy to operate.

It is perfect for construction, gardening and installation works related to laying cables, pipes, drainage systems and foundations for fences.

Thanks to its compact dimensions, the excavator allows you to make precise excavations even in places with limited space.

Engine LONCIN G420F

• combustion, four-stroke
• Power: 11 kW - 15 HP
• Capacity: 420 cm³
• max. Torque: 3600 rpm /min
• start: ELECTRIC + manual
• fuel type: unleaded petrol E10
• Type of oil: SAE 15W-40
• Fuel tank capacity: 6,5 l
• oil tank capacity: 1,1 l

• Number of Teeth: 27
• Digging width: 100 mm
• Maximum digging depth: 600 mm adjustable

Equipped with pneumatic tires for proper traction and cushioning.

Parameters

• Power: 11 kW, 15 HP
• Engine capacity: 420 cm³
• Rotation: 3600 min⁻¹
• Digging width: 100 mm
• Max. depth of digging: 600 mm
• Fuel type: unleaded petrol E10
• Capacity of fuel tank: 6.5 l
• Oil type: SAE 15W-40
• Start type: ELECTRIC + manual
• Cooling: air
• Functions: emergency stop
• Engine type: Loncin G420F
• Housing material: metal
• Dimensions: 2100x720x1100 mm
• Number of teeth: 27
• Wheels: yes
• Number of wheels: 3
• Type of wheel: pneumatic
• Number of bars in the engine: 4
• Number of cylinders in engine: 1
• Working temperature range: 5~30 ˚C
• Storage temperature: 5~30 ˚C
• Acoustic pressure: 88.6 ± 2.5 dB(A)
• Acoustic power: 109.28 ± 1.61 dB(A)
• Twisting: 9.99 ± 1.5 m/s²
• Mass: 195 kg
• Application: for precise excavations for water, electrical and irrigation systems

Specifications
