Graviravimo staklės CNC 3018, 3 ašys

Trumpai apie prekę

Prekė: Graviravimo staklės CNC 3018, 3 ašys. Kategorija: Frezavimo staklės.

• Gamintojas: no brand
• Modelis: V142

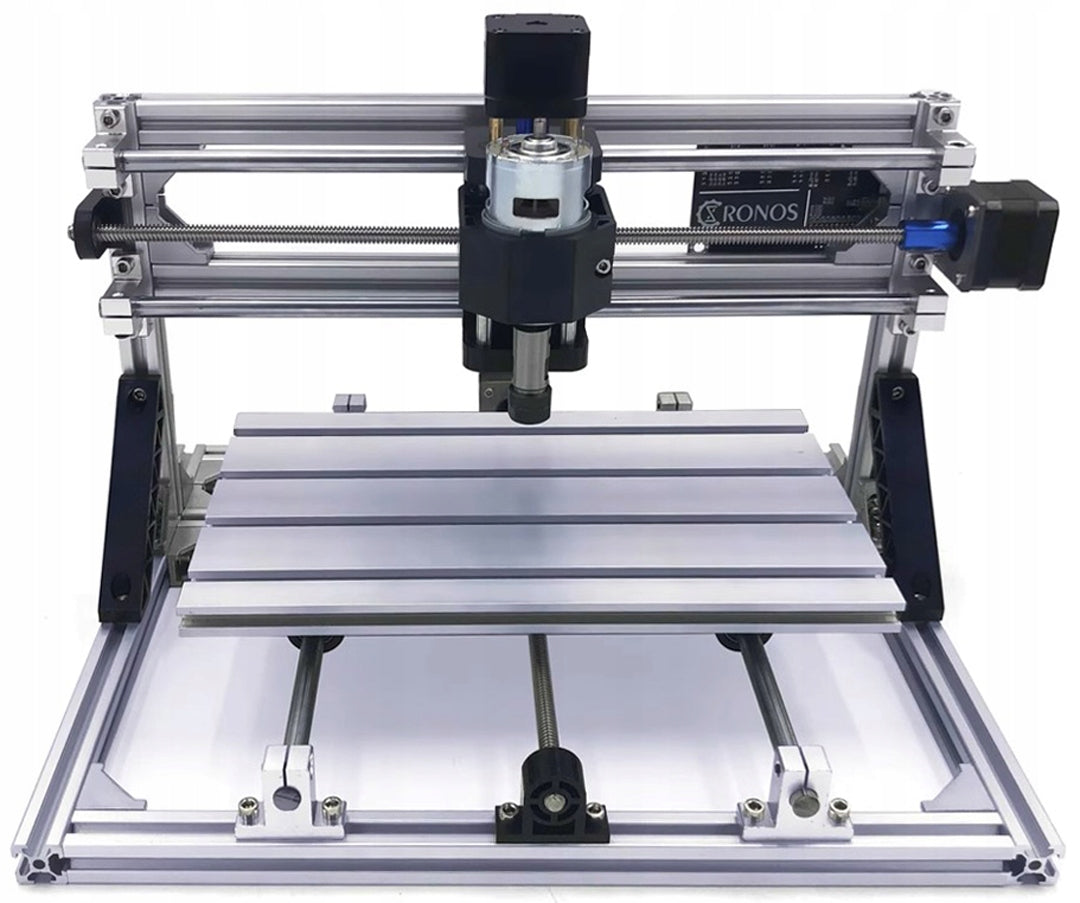

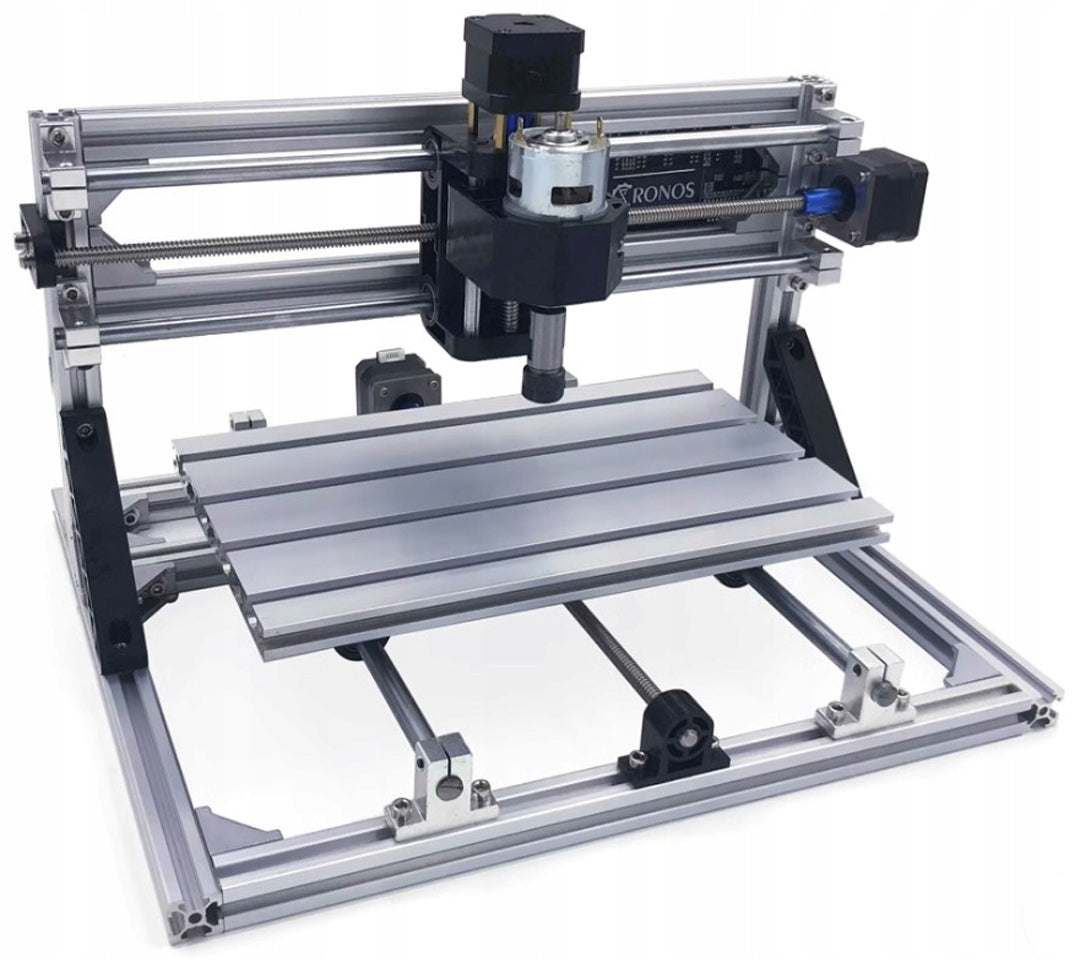

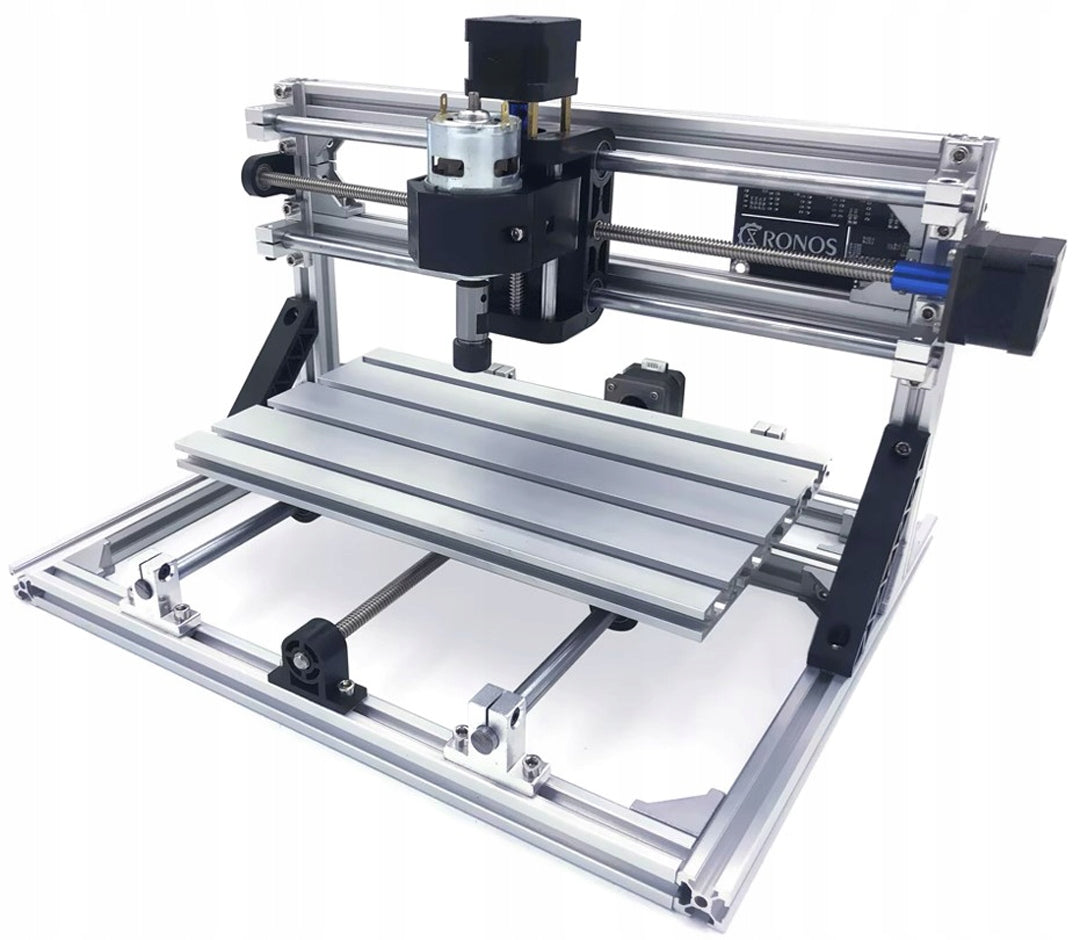

CNC device

SEVICO - MODEL V142

✅ CNC milling and engraving machine ideal for self-study

✅ Large working area of 300 x 180 x 40mm

✅ It will be used for milling and engraving soft materials such as

• wood
• acrylic
• PVC
• PCBs
• carbon fibre
• soft metals

✅ Durability for years is ensured by a solid body made of aluminum profiles and bakelite elements

✅ Driving with screws that turn rotational into linear

✅ The software supports popular image file formats such as JPEG, BMP, PNG, DXF

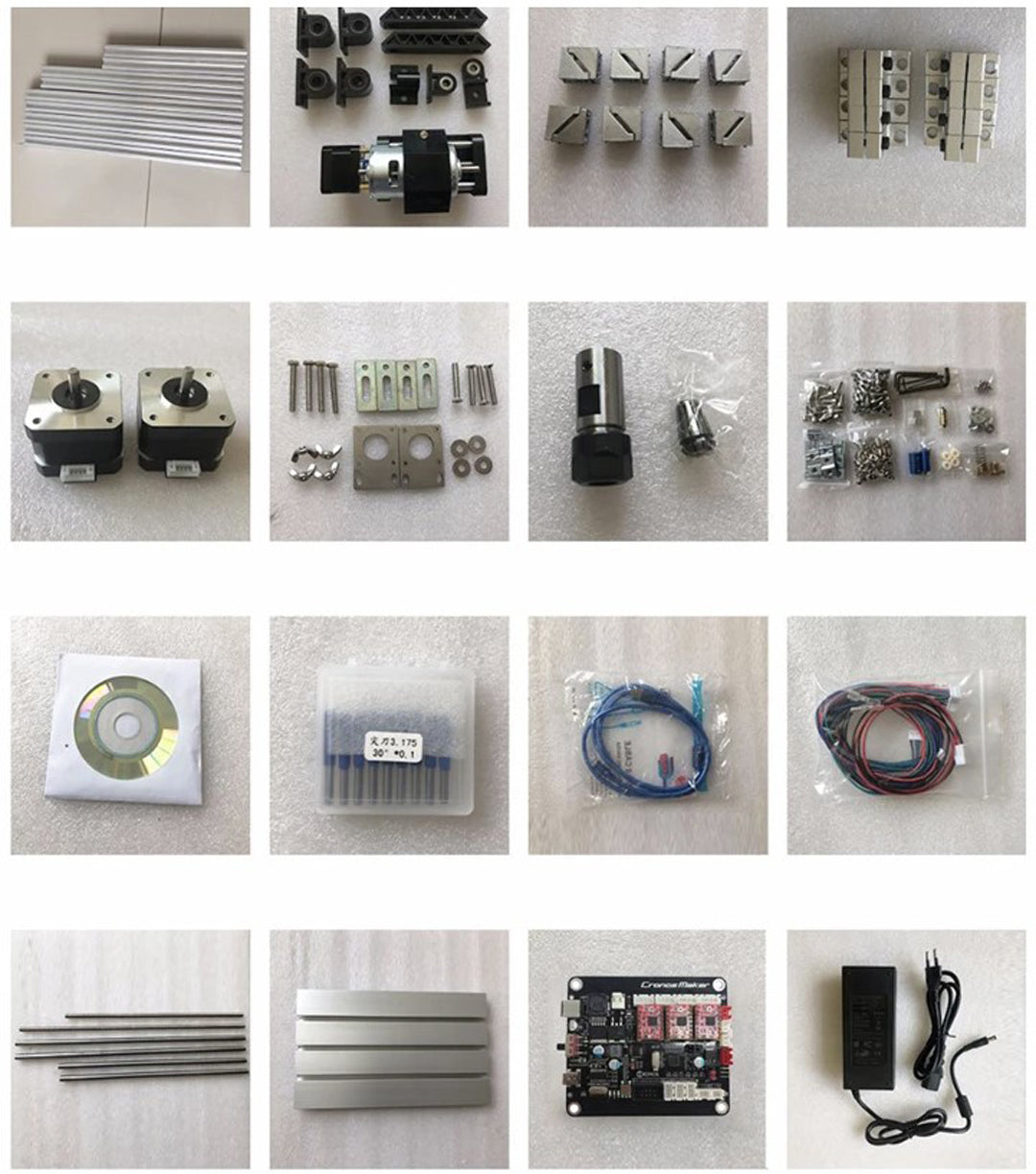

✅ Included:

• Frame with movable worktop
• Motherboard with the possibility of extension with a laser
• Milling head
• 3 stepper motors for head movement in 3 X/Y/ Z axes
• Set of milling spindles
• USB media with software
• Charger

☑ Specification

• Motherboard with GRLB controller
• Software on USB media
• System Support - Windows XP / Win 7 / Win 8/ Win 10 / Linux
• Material - aluminium profiles + Bakelite
• Working range - 300 x 180 x 40 mm
• Frame Size - 400 x 330 x 240 mm
• Leading - screw T8
• X/Y axis motor - two-wire four-phase stepper motor 1.3A0.25N.m
• Z-axis motor - two-wire four-phase stepper motor 1.3A0.25N.m + motor 775 (12-36V) for 24V - 10000r/min
• Power supply - 24 V (110 V-240 V)
• Application - soft metals and plastics of various shapes

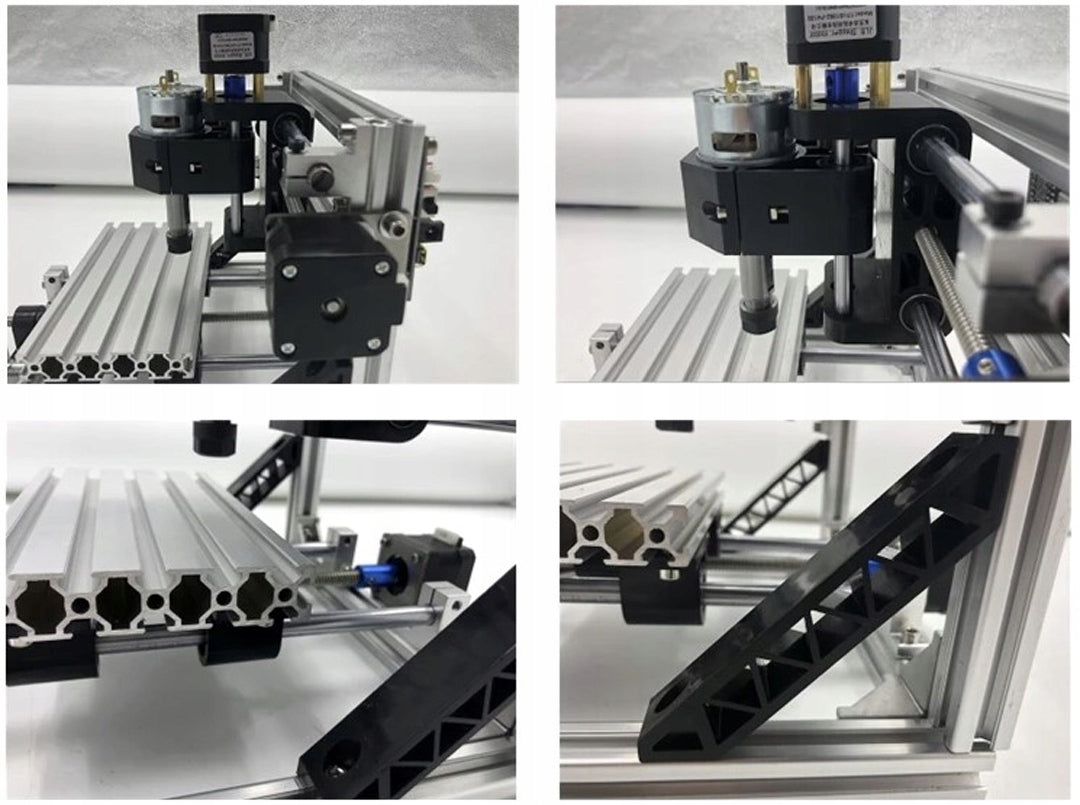

☑ Robust construction and durability for years

• Made of high quality materials such as aluminium profiles and Bakelite

☑ Variety of uses

• Suitable for working with soft materials of various types from wood to plastics to metals
• After extending the set with a laser, the device gains additional functionality

☑ Complete equipment

• The kit includes all necessary assembly parts and software

Specifications
