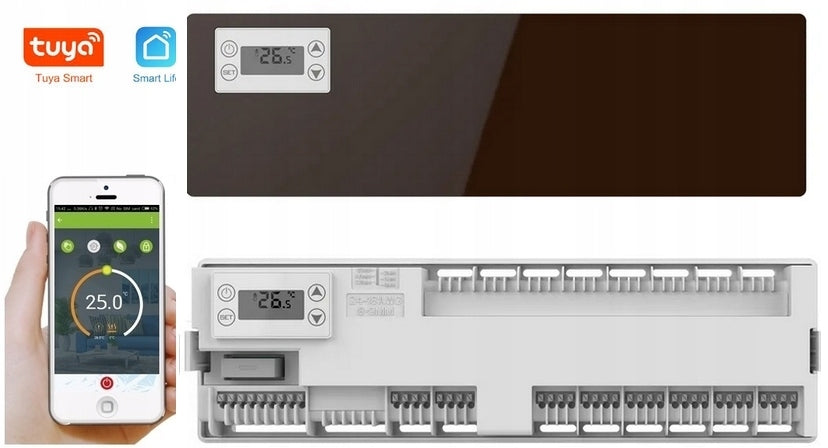

Grindinio šildymo valdymo juosta, 8 zonos, skirta ZigBee ar WiFi TUYA termostatui

Trumpai apie prekę

Prekė: Grindinio šildymo valdymo juosta, 8 zonos, skirta ZigBee ar WiFi TUYA termostatui. Kategorija: Rinkiniai.

• Gamintojas: Tuya
• Modelis: CEN2WIFI

The strip works with ZigBee and Wifi control panels (room thermostats) available in our offers.

Zones 1-8: 2 to 6 actuators can be connected to each zone, resulting in a total of up to 48 actuators (circuits) per strip

The intelligent radio underfloor heating controller is the heart of the set and controls the operation of the underfloor heating set. Thanks to wireless cooperation with ZigBee temperature sensors located in individual rooms, the controller allows separate adjustment of each heating loop. The operation of the entire system can be easily adjusted using the TUYA application on the phone. The offered solution increases the comfort of using the underfloor heating system and allows to reduce the costs of thermal energyj wireless 8 zone central controller cooperating with the thermostat TERSCZIGBEE/BL and TERSCZIGBEE/WH to control the water pump, gas boiler and valve.

The principle of operation of the ZigBee TUYA underfloor heating control system

The system allows you to automatically turn on and off the heating depending on the temperature in individual rooms thanks to additional ZigBee wall-mounted controller thermostats (available at our other auctions). The wireless temperature sensor via radio signal sends a signal to the controller, which is responsible for managing the operation of thermoelectric actuators (actuators available at our other auctions) of each heating circuit. The thermostats work with each other by radio there is no need to use a router, i.e. they are an independent set, but if we want to manage the system remotely via the phone, it is necessary to connect to the TUYA application using the Zigbee CEN1 gateway available in our offer.

Works with gas boilers.

To create a set operating in one ecosystem app TUYA you need to choose devices from our other auctions such as wall thermostat TERSC2W + actuator TER3 + control panel CEN2WIFI

Technical data

• Connection between room thermostats control panels : radio
• Power supply: 100~240VAC 50/60Hz
• Number of individually controlled heating circuits: max. 8 to 16
• MAINS POWER SUPPLY: 100~240VAC 50/60Hz 10A
• The slats can be connected in series

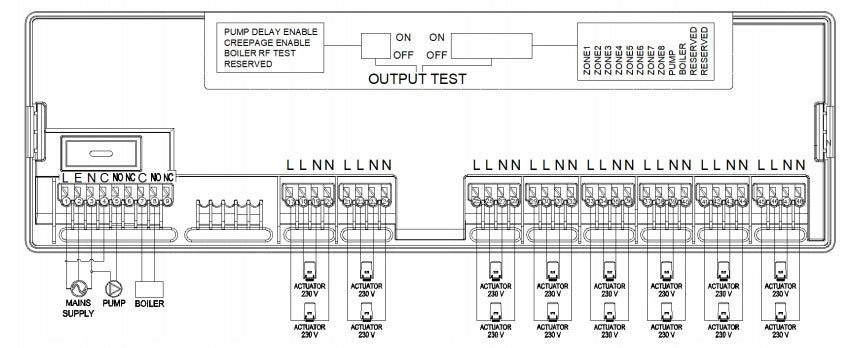

  Zone 1-8: 2 to 6 actuators can be connected to each zone, which gives a total of up to 48 actuators (circuits) per slat The subunit of the room thermostat or the subunit of the actuator

  L:Linear voltage

  N: Neutral voltage

  L1: Mains voltage or load

  PE: Grounding

  Valve:Imax 5A output

  BOILER; passive output for boiler Imax 2(1)A 250VAC OUTPUT

  Dimensions: 320mm X 95mmX38mm

• is dedicated for mounting on the rail
