GSM valdymo modulis Zamel GRM-10, 2 kanalai

Trumpai apie prekę

Prekė: GSM valdymo modulis Zamel GRM-10, 2 kanalai. Kategorija: Išoriniai moduliai.

• Gamintojas: Zamel
• Modelis: GRM-10

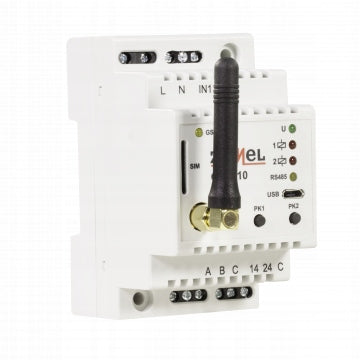

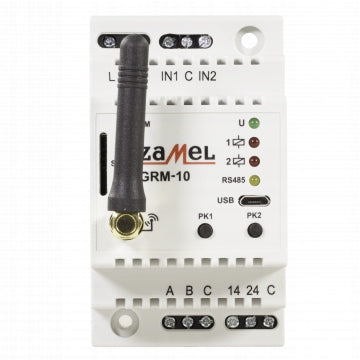

REMOTE CONTROLLER GSM MODULAR 2-CHANNEL TYPE: GRM-10

PRODUCT DESCRIPTION

The GRM-10 is used for simple control and notification operations. Operations are conducted via GSM network. The controller has two independent outputs with a maximum load capacity of 16 A / 250 V AC. Two digital inputs allow coupling with alarm control panels. The RS485 interface in combination with the RXM-01 translator gives you the ability to control EXTA FREE receivers from your mobile phone via user-defined SMS messages. The multitude of operating modes and configuration possibilities make the GRM-10 an extremely useful device in simple home and industrial automation systems. The GRM-10 is made in a 3-MOD housing and is designed for installation in switchgears on the TH-35 rail.

FUNCTIONAL FEATURES OF THE PRODUCT:

• Remote control of electrical devices via commands (incoming phone call, SMS message) sent from a mobile phone
• optical signaling of operation (power supply, relay status, GSM modem status),

• convenient control of hard-to-reach devices (ventilation, heating, others),
• low power consumption, the possibility of continuous operation.

• two relay outputs with a load capacity of 16 A,

• Rated supply voltage: 230V AC 50/60Hz
• Supply voltage tolerance: -15 ÷ +10 %
• Rated Power Consumption: 1,5 W
• GSM frequency: 900/1800/1900 MHz
• Operating range: limited by GSM network structure
• Optical signaling of supply voltage: LED (green)
• GSM status indication: LED (yellow)
• Number of Outputs: 2
• Output status indication: 2 x LED
• Output contact parameters: 2 x NO 16 A / 250 V AC AC1 4000 VA
• Number of Inputs: 2
• Input Type: Digital – +4 V potential
• Interfaces: RS485 MODBUS - terminals A,B,C; USB;
• Buttons PK1, PK2
• RS485 Transmission Signal: LED
• Position on RS485 bus: MASTER only
• Operating temperature: -10 ÷ +55 o
• C
• Working Position: Any
• Housing Mount: TH35 Rail
• Degree of enclosure protection: IP20 (PN-EN 60529)
• Protection Class: II
• Surge category: II
• Degree of contamination: 2
• Dimensions: 3 modular housing
• Weight: 163 g
