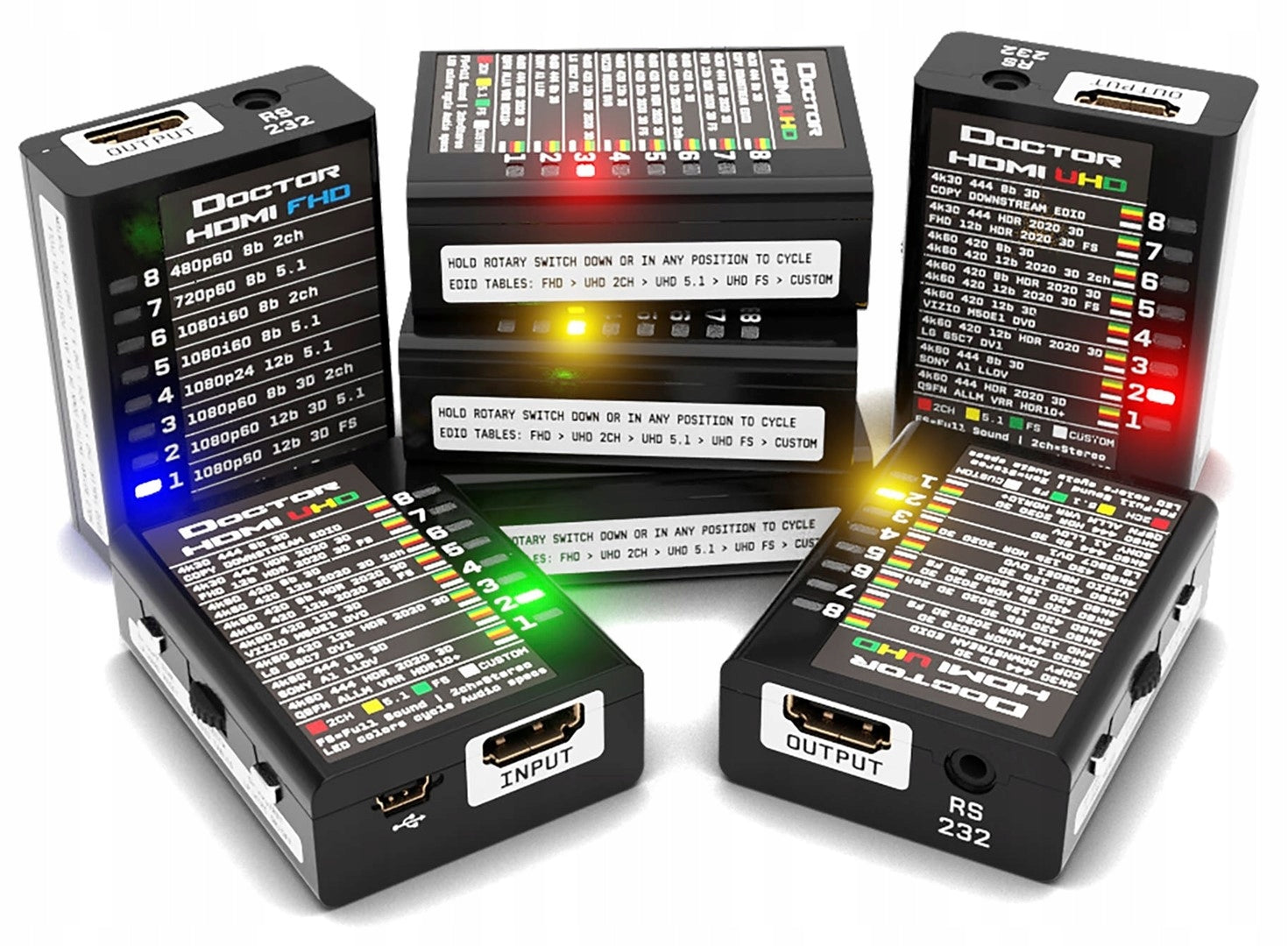

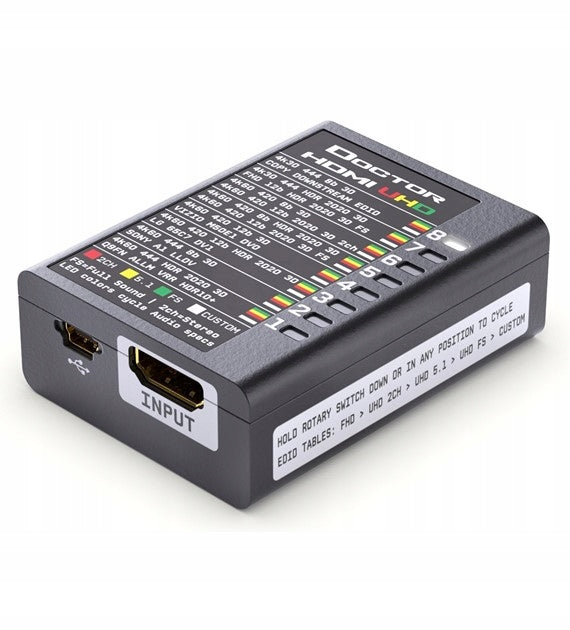

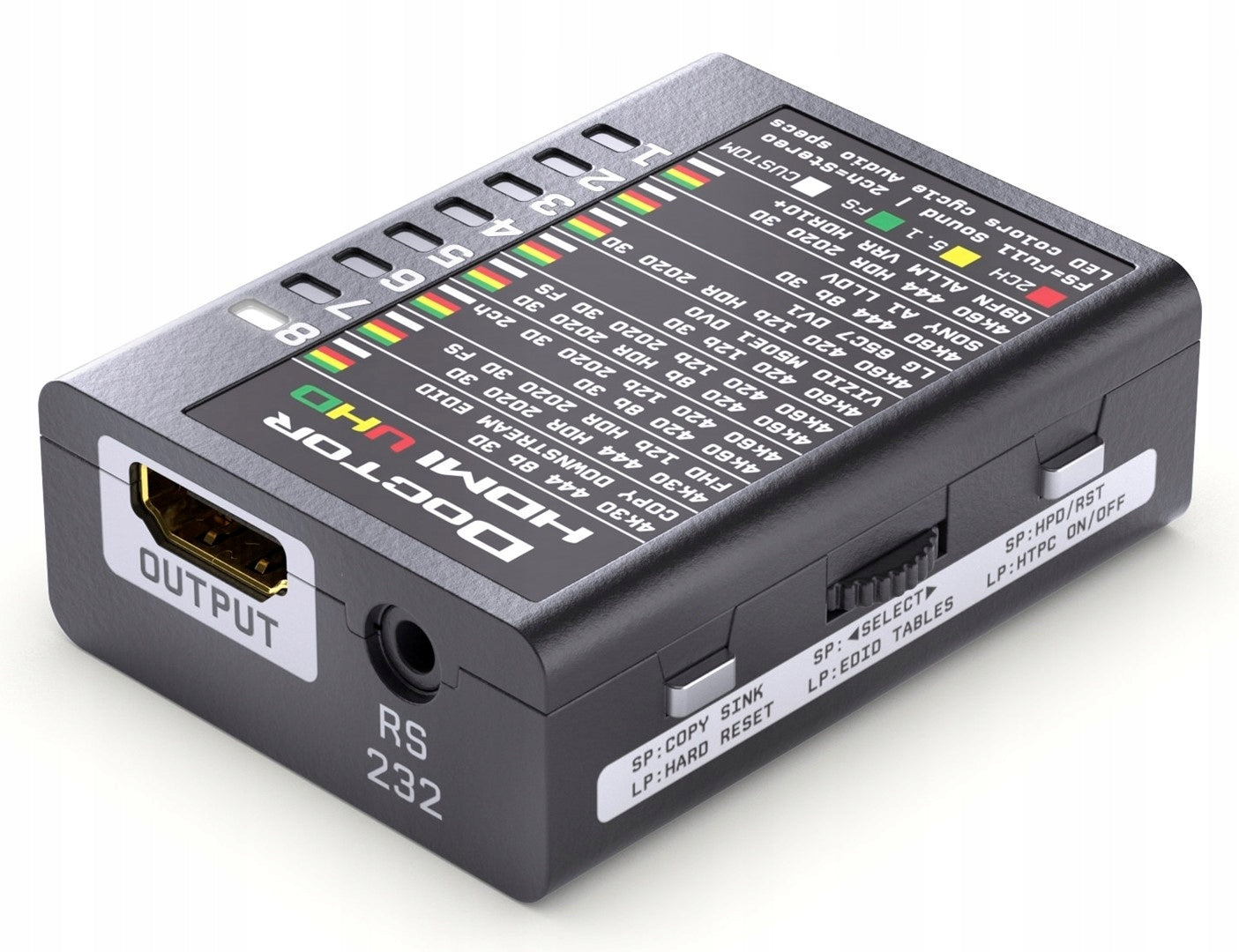

HDMI 4K EDID valdiklis HDFury HDF0130 DOCTOR

Trumpai apie prekę

Prekė: HDMI 4K EDID valdiklis HDFury HDF0130 DOCTOR. Kategorija: TV priedai.

• Gamintojas: no brand
• Modelis: HDF0130

It can help solve most HDMI-related issues, such as handshake between devices, compatibility issues, and/or any EDID-related issues.

It helps keep the source always ON or informs the connected receiver of the active source state, which is especially useful for system integrators.

Dr. HDMI 4K can also increase signal integrity and extend the +5V signal over the HDMI/DVI-D chain.

For example, it can work with HDfury products to extend compatibility. It can also be used to limit the output resolution of the source.

Dr. HDMI 4K works as an EDID manager, HDMI/DVI-D emulator, and repeater that comes with predefined presets, user-programmed banks, Sink EDID sniffing bank, HTPC mode, and more!

Connectors:

• 1x HDMI-A inputs
• 1x HDMI-A Outputs

Functions

• Support 18Gbps/600MHz with 0ms latency
• Fixes most HDMI issues
• Fixes HDMI reconciliation issues
• EDID Manager and "Detective" feature
• Simple manipulation of the EDID table via USB connection
• HDMI/DVI-D emulator and repeater
• Maintain 4K movies, 3840×2160, 2160p without losing sync
• 40 predefined EDID banks (4K HDR, 4K DV, 4K HLG, 4K HDR10+, FullHD 3D, FullHD, 1080i, 720p, etc. )
• 7 user-programmable EDID banks
• Supported all DV modes including DV 0 mode, Mode 1, Mode 2 and LLDV
• EDID Sink Reading Function - Reads the exact EDID of the connected display device and adjusts the assigned input signal accordingly

• Excellent signal integrity up to 50 meters away
• HTPC mode to avoid detecting the operating mode of the connected display device
• +5V injector function to power active HDMI cables
• RS232 remote management and configuration control, for integrators
• HDMI 2.0b standards
• Digital video formats max. 4K@60Hz
• Digital audio formats up to Atmos®, DD+®, Dolby® 7.1, DTS®:X, LPCM
• HDCP yes
• CEC Yes
• EDID Yes
• Mini USB power supply
• plastic housing
• External dimensions 60x40x20 mm
• Supported standards HDMI 2.0b, HDCP 2.2,
• Pass-Through transmission types, EDID conversion
• Supported 4K HDR, 4K DV, 4K HLG, 4K HDR10+ color spaces, etc.
• Supported audio standards For Atmos®, DD+®, Dolby® 7.1, DTS:X®, LPCM
• Maximum resolution 4K60, 4:4:4
• other CEC standards, HDCP and Lip-Sync Pass-through, EDID banks
• Safety CE, FCC
• Colour black

Specifications
