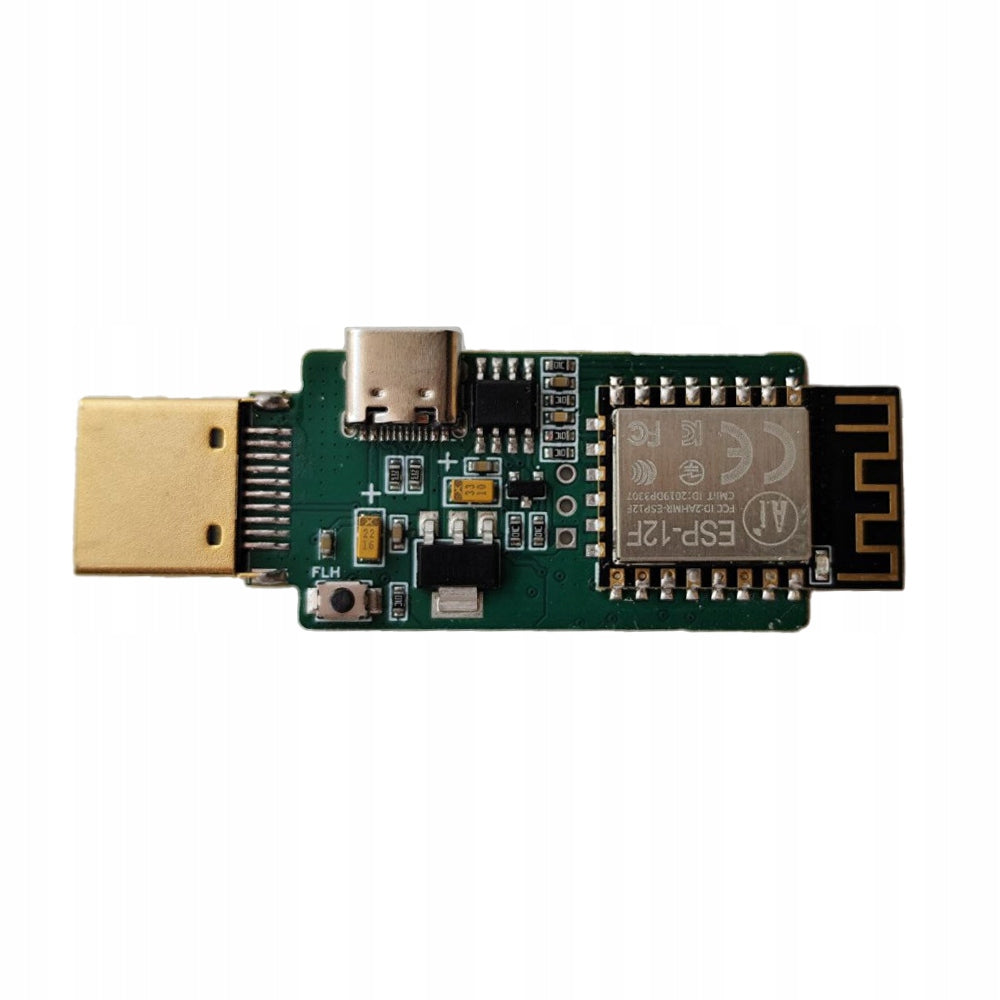

HDMI-CEC valdiklis SLWF-08, suderinamas su ESPHome ir Home Assistant

Trumpai apie prekę

Prekė: HDMI-CEC valdiklis SLWF-08, suderinamas su ESPHome ir Home Assistant. Kategorija: Išoriniai moduliai.

• Gamintojas: no brand
• Modelis: Sterownik HDMI-CEC do Home Assistant ESP EASY

Ideal choice for Home Assistant and ESPHome

Discover the power of intelligent control of HDMI-CEC devices with the SLWF-08 HDMI-CEC controller. This advanced controller enables full integration with smart home systems such as Home Assistant or ESP Home, providing convenience and versatility in media management.

Key features of the SLWF-08:

• HDMI-CEC device control: Send commands such as on/off, volume control, switching signal sources, or changing device status.
• Receive information from HDMI-CEC devices: Monitor the status of connected devices in real time.
• Support for additional CEC features: Full compatibility with a wide range of HDMI-CEC commands.

Bonus: Lighting control WS2812B

SLWF-08 offers an additional function of controlling addressable LED strips (e.g. WS2812B). This allows you to create eye-catching ambient backlighting behind your TV or screen. Integration is possible in both ESPHome and Tasmota.

1. Before purchasing, make sure your device supports HDMI-CEC (most models from the last 5 to 10 years).
2. ESPHome or Tasmota: The controller requires you to upload ESPHome or Tasmota software. The default settings include the CEC pin on GPIO14, but it is recommended to customize the YAML configuration to your individual needs.
3. Firmware update:

   OTA (Over-the-Air): Wireless updates via ESPHome.

   USB: Uploading via USB-C port using flashing tools (e.g. ESPHome Web Flasher).

• USB-C port for upgrades and power.
• Built-in CH9102 USB/UART controller (drivers required).

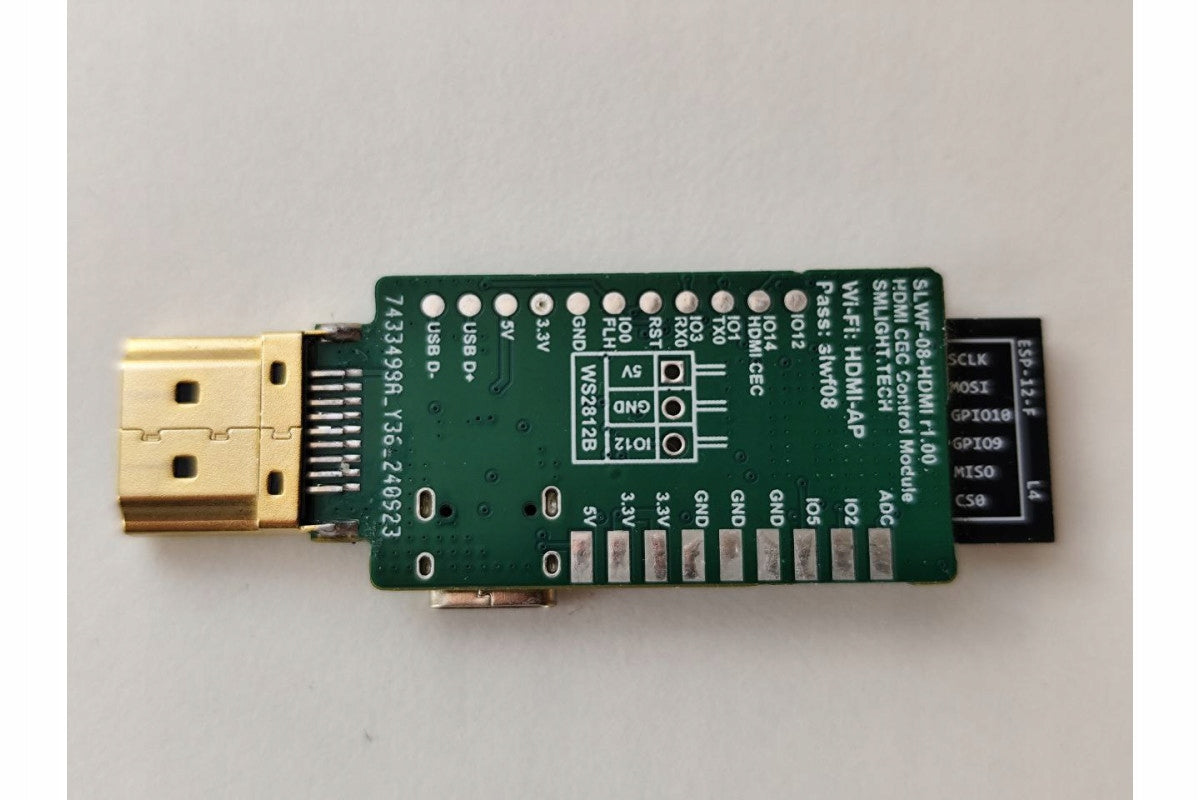

• Support GPIO14 for HDMI-CEC and GPIO12 for WS2812B LED strips.

The SLWF-08 HDMI-CEC controller allows you to control devices that support HDMI-CEC protocol. These are devices that support Consumer Electronics Control (CEC). With this controller, you can send commands such as on/off, volume control, switching signal sources, or changing other settings.

Examples of HDMI-CEC compatible devices:

• Televisions (e.g. LG with SimpLink, Samsung with Anynet+, Sony with BRAVIA Sync, Panasonic with VIERA Link, etc. )
• Blu-ray and DVD players.
• Game consoles (e.g. PlayStation, Xbox).
• TV set-top boxes and tuners.
• Soundbars and audio systems that support HDMI-CEC.
• Streaming devices

Conditions of compatibility:

For the device to be controlled by SLWF-08, it must support HDMI-CEC. Most modern models of devices manufactured in the last 5 to 10 years are compatible with this standard, however, before buying it is recommended to check the specifications of a specific model.

With the SLWF-08, you can integrate control of multiple devices into a single smart home system (e.g. Home Assistant), which allows you to easily manage media at home.

Examples of compatible Home Assistant installations:

1. Home Assistant OS:

   Can be installed on devices such as Raspberry Pi (e.g. RPi 4) or other computers with HDMI-CEC support.

   It is recommended to use the CEC Scanner add-on to check if the hardware supports HDMI-CEC and what devices are connected

2. Home Assistant Supervised:

   Installation on Linux systems that allow access to HDMI ports and support for CEC.

3. Home Assistant Container:

   Requires Docker container configuration with adequate access to HDMI-CEC devices.

4. Home Assistant Core:

   Installation on operating systems such as Debian, with proper hdmi_cec integration configuration.

Comments on installation:

• The SLWF-08 requires you to upload ESPHome firmware, which is compatible with Home Assistant. Firmware can be customized with YAML files
• Before installation, make sure that the hardware supports HDMI-CEC, as not all devices are compatible

Instructions for installing firmware via USB

Installation steps:

1. Introduce the device into bootable mode:

   Press the FLH button on the device to switch it to bootable mode.

2. Connect your device to your computer:

   Connect the USB cable to the Type-C port on the SLWF-08 and to your computer.

3. Flashing firmware:

   Use any flashing tool, e.g. ESPHome Web Flasher (available here: web.esphome.io) to upload the software.

4. Driver installation:

   Make sure you have the drivers installed for the CH9102 USB/UART controller.
