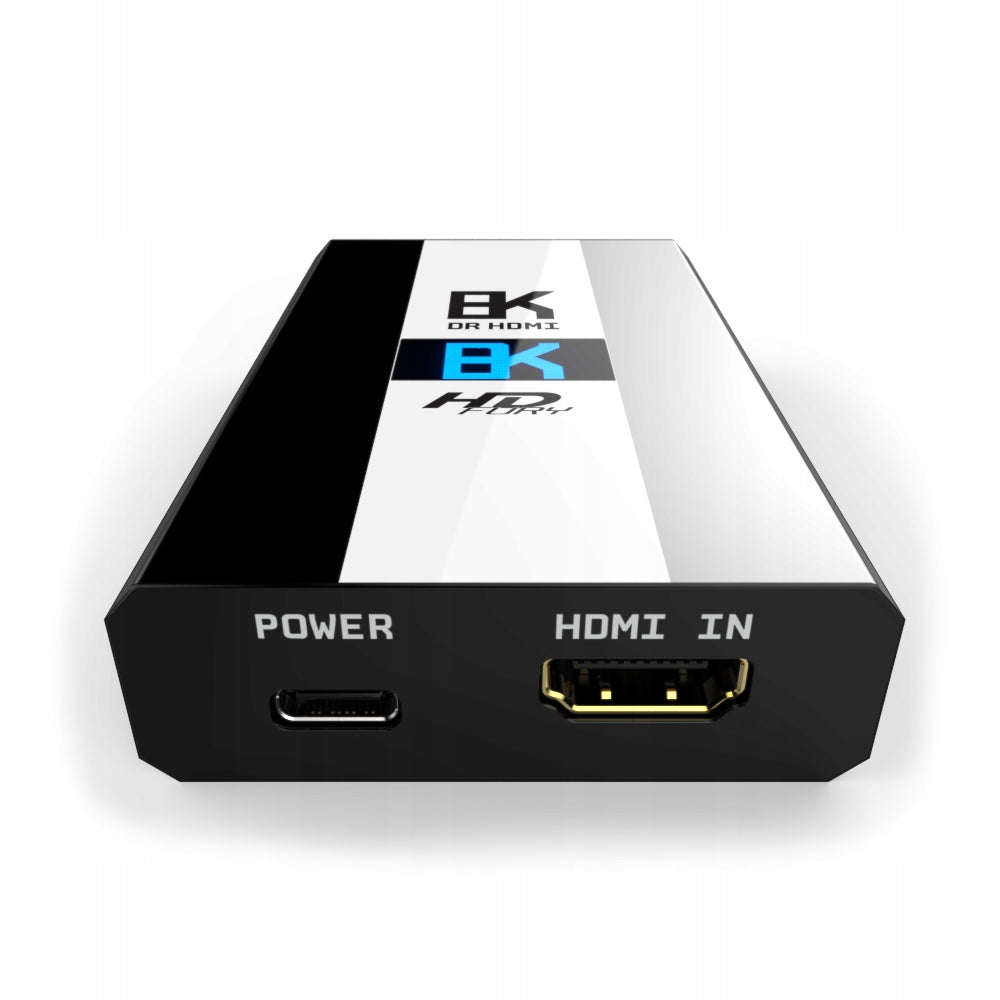

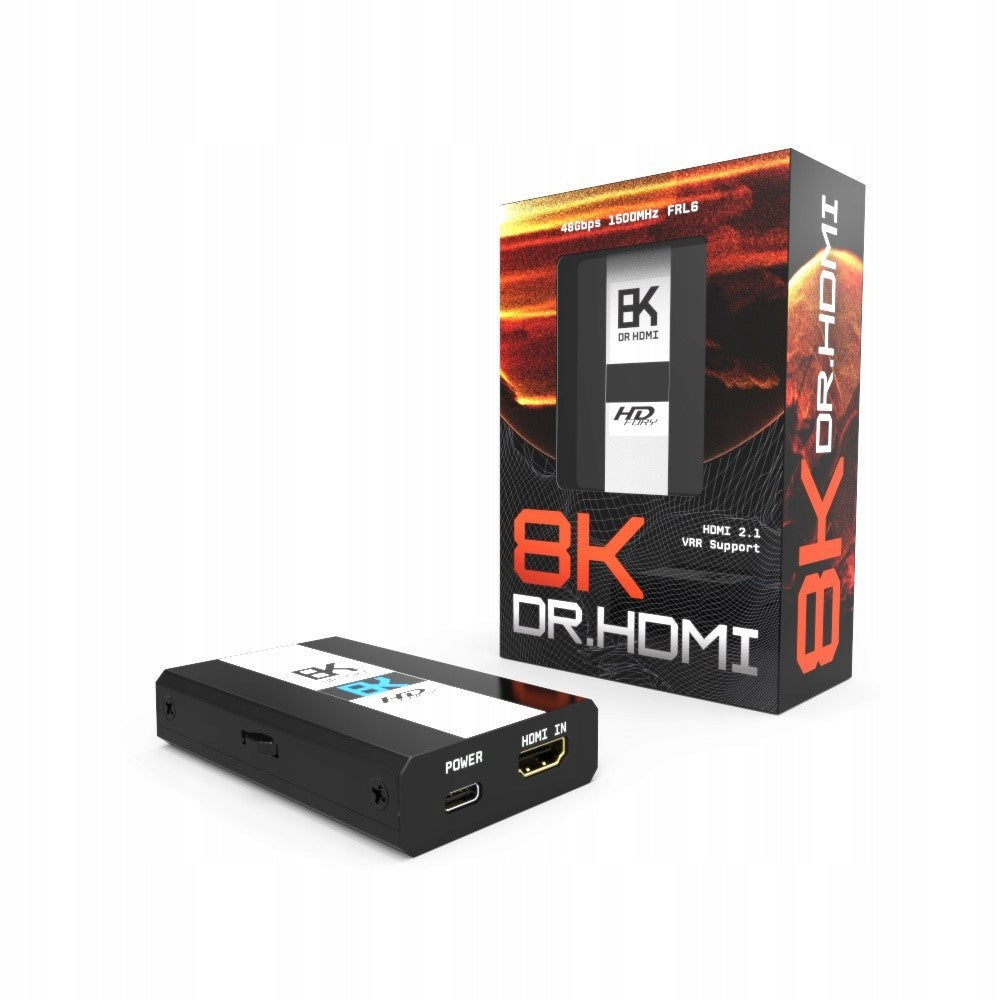

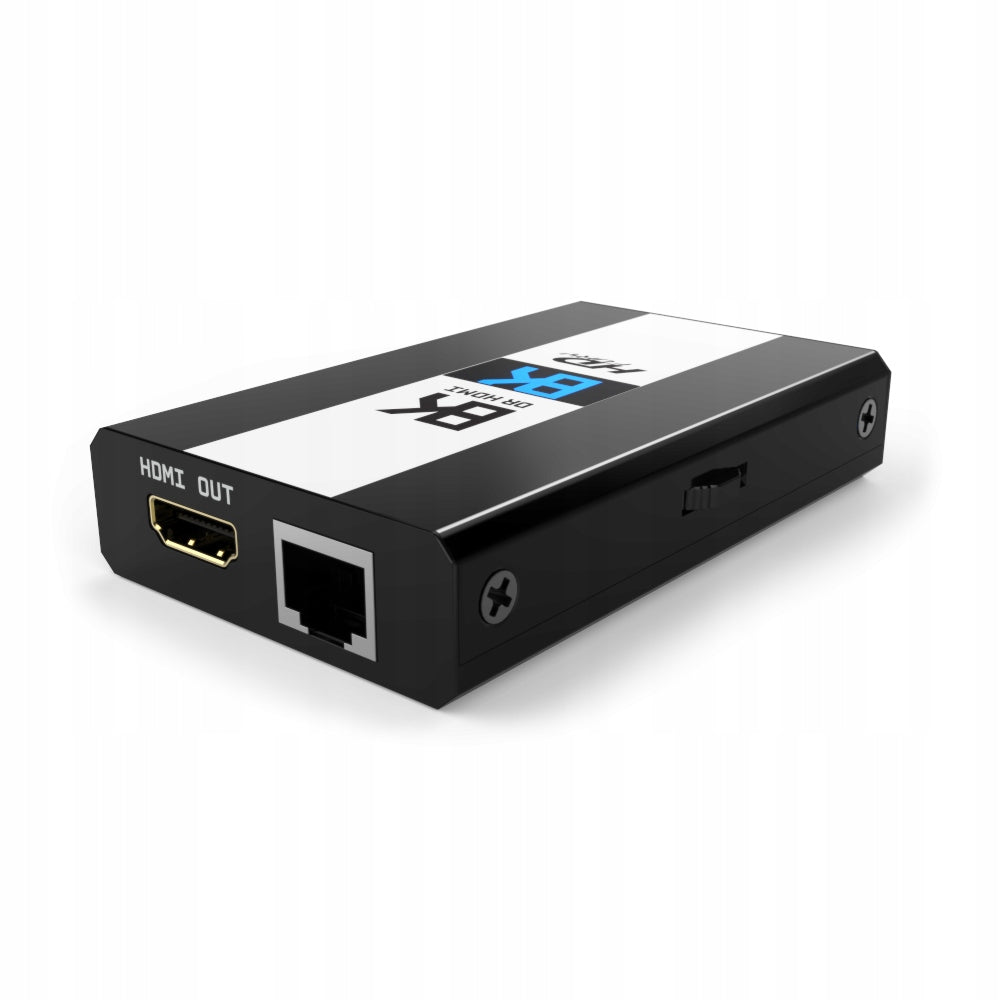

HDMI EDID valdiklis-emuliatorius HDFury HDF0170, 8K

Trumpai apie prekę

Prekė: HDMI EDID valdiklis-emuliatorius HDFury HDF0170, 8K. Kategorija: TV priedai.

• Gamintojas: no brand
• Modelis: HDF0170

Characteristics:

• Unique FRL6/48Gbps/1500MHz support with 0ms latency
• Built-in HDfury web server for remote control from any computer/tablet/phone on the same network
• Solving most HDMI problems!
• EDID and Detection Manager Function
• 100 predefined banks (8K VRR, 4K HDR, 4K LLDV, 4K HLG, 4K HDR10+, FullHD 3D, FullHD, 1080i, 720p, etc. )
• Support: VRR, HDR, HDR10+, HLG, DV and LLDV, ALLM, IMAX

With support for FRL6/48 Gbps/1500 MHz and HDfury’s built-in web server, Dr.HDMI 8K is the world’s most advanced EDID manager ever created!

Dr. HDMI 8K can help you troubleshoot most HDMI issues, such as a reconciliation issue, compatibility issue, and/or any EDID related issue. It helps keep the source always on or cheated to a certain state, which is especially useful for system integrators.

Dr. HDMI 8K can also increase signal integrity and extend the signal +5V through HDMI/DVI-D chain. For example, it can work with HDfury products to extend the compatibility range. It can also be used to limit the source output resolution.

Dr. HDMI 8K acts as an EDID manager, HDMI/DVI-D emulator and amplifier,which is equipped with predefined presets,banks programmable by the user, bank sniffing Sink EDID,HTPC mode and much more!Thanks to such solutions, Dr HDMI 8K is such a tool,which solves our problems and is a great help where the situation seems hopeless,and where we do not have the possibility to replace devices cooperating directly with each other.

Technical specification

• HDMI version: HDMI 2.1 – FRL6/1500Mcsc/48Gbps
• Support Dr.8K:: FRL6/1500MHz/48Gbps HDR, HDR10+, HLG, DV & LLDV, eARC, ALLM, VRR, IMAX
• Maximum resolution: 8K60 4:4:4 8b, 8K60 4:2:2 12b, 4K120 4:4:4 10b or 8K60 4:2:0 10b
• Inputs/Outputs: 1 HDMI In, 1 HDMI Out, 1 RJ45/Ethernet (webserver), 1 USB-C (power)
• EDID banks: 100 EDID banks (18 FHD, 48 UHD, 24 FUHD, 10 user-programmable, 1 copy from the receiving device)
• Signal integrity: Compensation for cable losses up to 50 meters
• Working modes: EDID management, HTPC mode, +5V HDMI power supply
• Special Features: HPD Event Reset, Cable Alignment, HDCP Pass-Thru, Lip Sync Pass-Thru, CEC Protocol Pass-Thru

• EDID Modes: Custom EDID, Predefined EDID, Receiver Device Copy, EDID Connection Mode (Mixing)
• Control modes: Web server, OLED display and rotary switch with click and press buttons
• Audio support: Atmos, DTS-X, Dolby True HD & DTS Master Audio, etc..
• OLED: 1″ Diagonal, 128×64, 2 colours
• Dr.8K size: 3.9″L x 2.3″W x 0.8″H – in cm: 10 x 6 x 2.2
• Weight Dr.8K: 120g – 0.26 LBS
• Input delay: < 1ms (calculated in nanoseconds)
• Other information: Support 3D, DSD, eARC (HDMI2.1)
