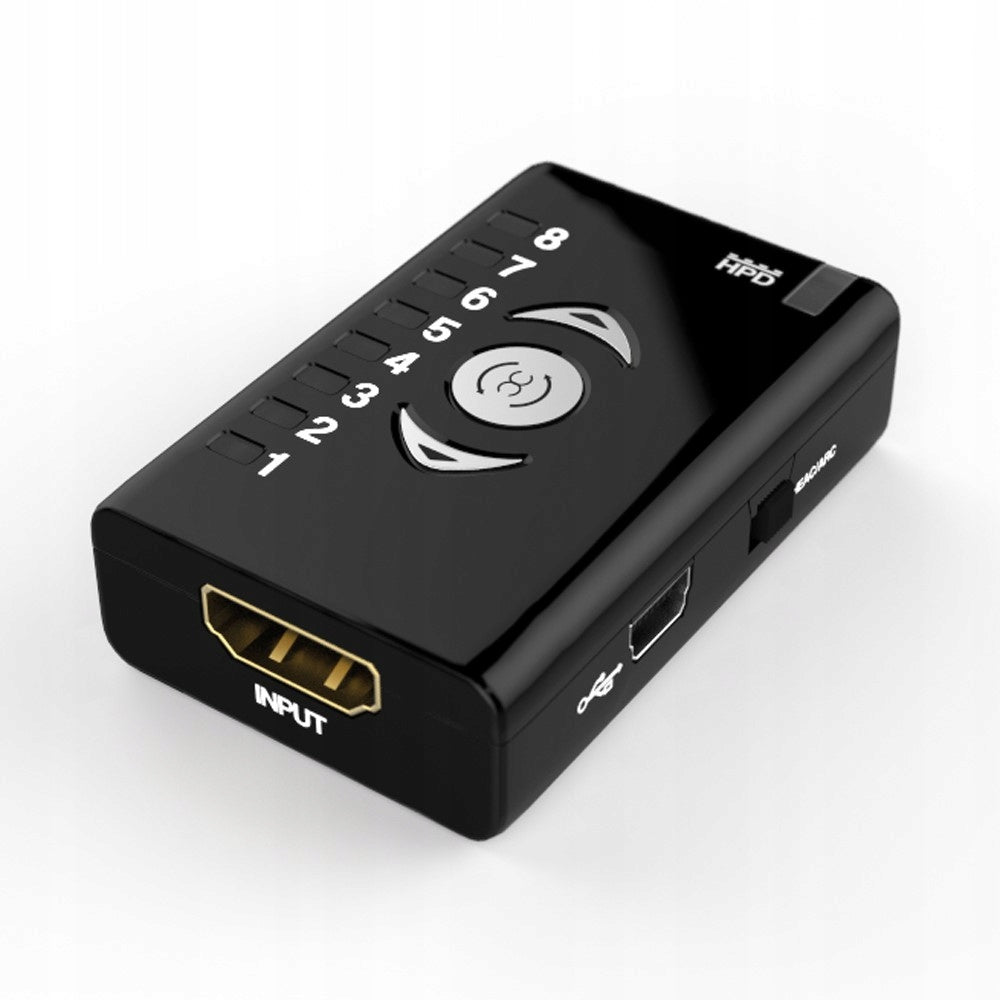

HDMI EDID valdiklis HDFury HDF0060-1

Trumpai apie prekę

Prekė: HDMI EDID valdiklis HDFury HDF0060-1. Kategorija: TV priedai.

• Gamintojas: no brand
• Modelis: HDF0060-1

• Doctor HDMI is a solution to HDCP/HDMI problems between source and display. It can be easily adapted to selected EDID and Hot plug events.
• The device has eight EDID memory areas, some of which are user-configurable.
• It is also possible to copy the display EDID to one of the areas.
• PC software allows you to edit parameters and manage EDID.
• The device can be powered from HDMI or USB port.
• Firmware can be updated automatically via file. exe.
• To solve handshake problems, you can move the switch on the side.

Technical specification of Dr. HDMI

• Compatible with HDMI 1.4a
• 8 EDID profiles (5 predefined, 2 user programmable, 1 copy from the receiving device)
• Resetting HPD events (e.g. when changing EDID settings)
• Cable loss compensation up to 50 meters
• Maintaining active HDMI/DVI-D source output
• Ability to update and update software from your computer via USB
• User Programmable EDID Profiles
• Receiver EDID detection function
• Extend signal integrity to 50 meters!
• Pin14 on/off HDMI switch for HEAC/ARC compatibility issues
• Support any resolution, including HDMI standards
• Video bandwidth: 2,25 Gbps
• Video support: Unidirectional 225 MHz, 2k, WUXGA, 1080p60/12-bit deep colors and x.v.color
• Audio Support: Dolby True HD and DTS Master Audio
• Input cable compensation
• Support extended EDID CEA861, 256 bytes
• HDCP transmission
• Transferring Lip Sync
• Transmission of the CEC protocol
• Power Supply: Universal USB Power Adapter
• Compatibility: HDCP/FCC/CE
• Dimensions: 60 mm S x 40 mm G x 20 mm W
• Net weight: 50 grams
• Input/Output Connector: Female HDMI
• USB: Mini USB-B female connector
