HDMI į IP keitiklis su USB prailginimo kabeliu, 100 m imtuvas

Trumpai apie prekę

Prekė: HDMI į IP keitiklis su USB prailginimo kabeliu, 100 m imtuvas. Kategorija: TV priedai.

• Gamintojas: Signal
• Modelis: H3613R

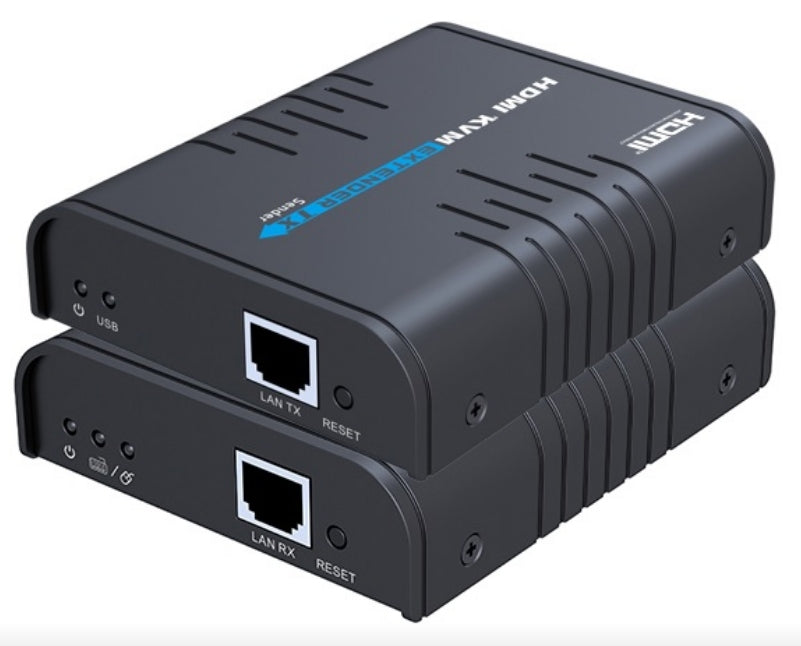

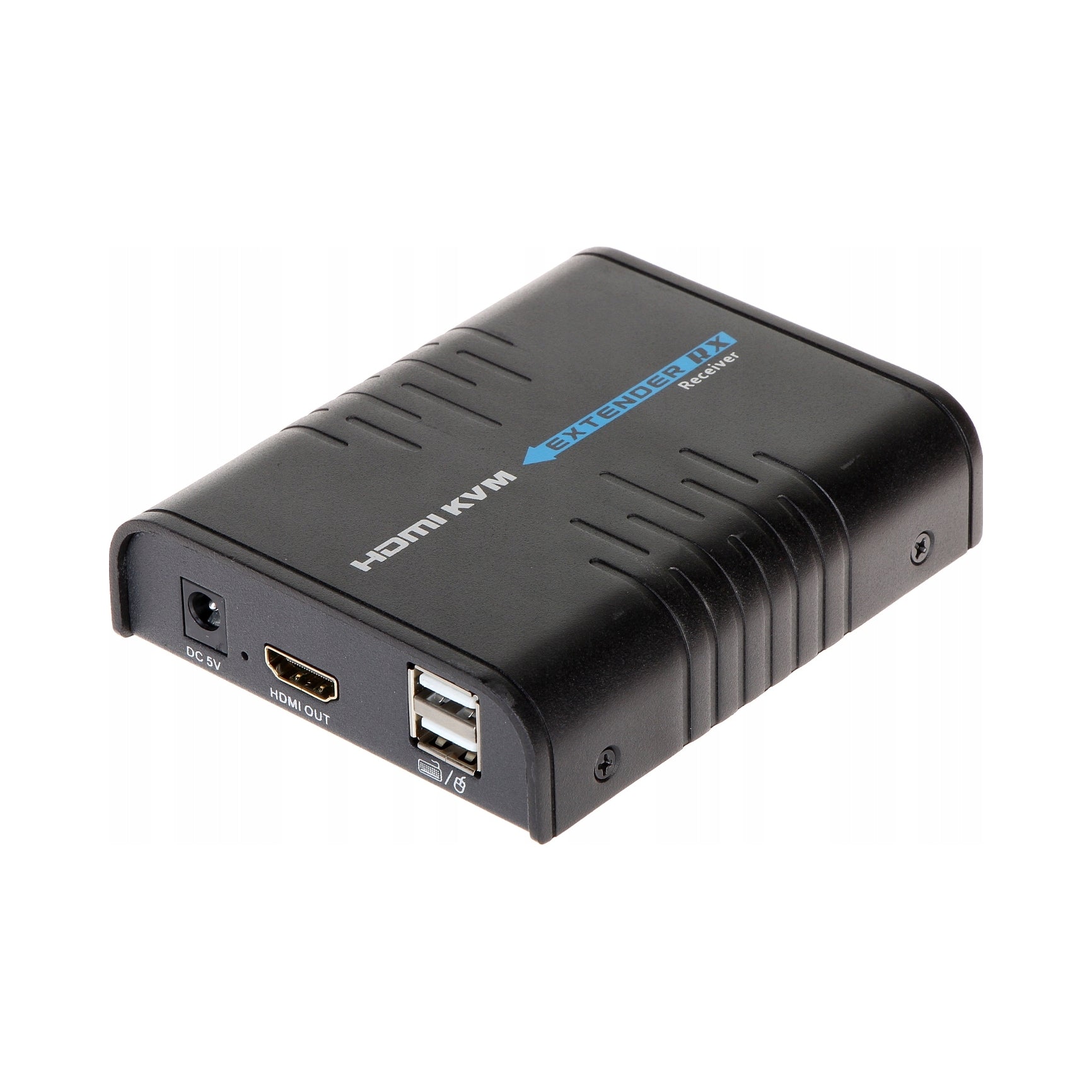

6. The transmitter and receiver are included. Additionally, it is possible to extend the USB port, e.g. to control the keyboard and mouse.

Characteristics:

• HDMI signal transmission up to 100 meters via a single network cable (twisted pair)
• Highest supported resolution up to 1080p @ 60Hz
• Indicators 3x LED indicating the status of connection, power supply and USB communication
• Support for 802.3 Ethernet 10/100/1000Mbps
• Compatible with CAT5/5e/6 STP and UTP network cables
• Construction made of aluminum - stable and durable
• Transmission by one cable cat. 5e/6
• UDP/IP transmission
• Image mode 1080p
• Maximum cable length 100 m
• USB extension cable

The bitrate of the compressed signal at the transmitter output is about 20 Mbit/s.

To properly decode the signal, a dedicated receiver is necessary - it is impossible to preview the image on a PC equipped with a network card.

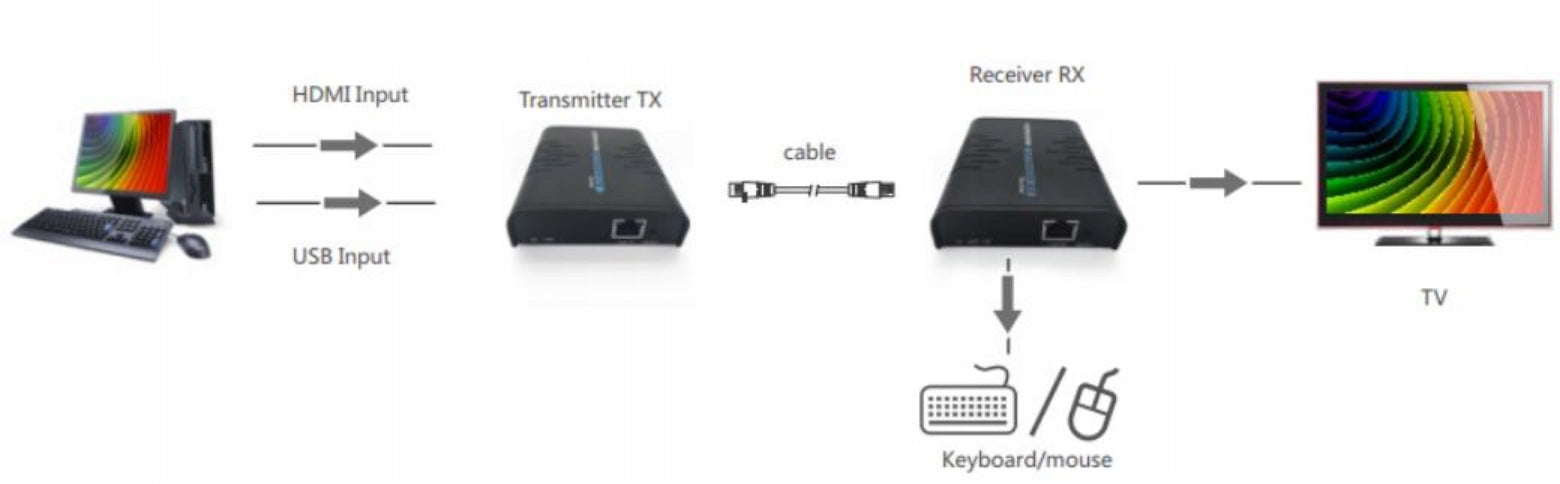

The device is perfect for connecting a recorder, computer or console to a receiver away from devices.

Technical parameters:

• Supported formats Video: DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
• Maximum length of twisted pair cat.5e: 100 m
• Operating temperature: -10...60 ºC
• Humidity: 20%-90% (non-condensing)
• USB: 2.0
• Dimensions: 138x90x26 mm
• Power Supply: AC 230V/DC 5V (included)

Examples of applications:
