Aprašymas
Trumpai apie prekę
Prekė: HDMI į IP keitiklis su USB prailginimo kabeliu, 100 m, SIGNAL. Kategorija: Televizorių priedai.
- Gamintojas: Signal
- Modelis: H3613R

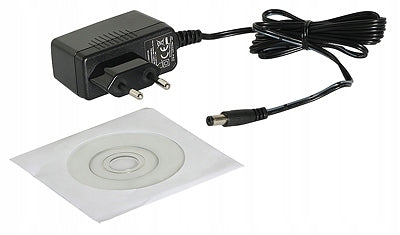

Accessories included

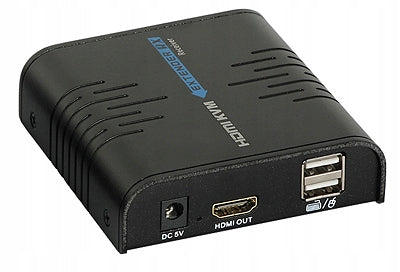

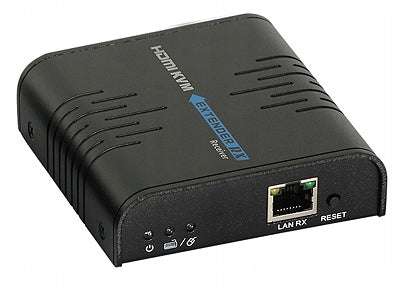

An additional receiver that allows you to send an HDMI signal over the IP network to the next receiver. The receiver has the ability to transmit a USB signal.
The IP signal coming out of the transmitter can be given to an Ethernet switch to divide into a larger number of receivers. The bitrate of the compressed signal at the transmitter output is about 15 Mbit / s. To properly decode the signal, a dedicated receiver is necessary - it is impossible to preview the image on a PC equipped with a network card.
Distinguishing features:
- Transmission by means of one cat. 5e/6,
- UDP/IP transmission,
- 1080p picture mode,
- Maximum cable length 100 m,
- USB extension cable.
Scheme of application of HDMI converter (the diagram shows a set, i.e. a transmitter and receiver)
Scheme of application of HDMI > IP converter (point-to-multipoint connection)
Technical data:
- Supported Video Formats: DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
- Maximum length of twisted pair cat.5e: 100 m
- Working temperature: -10...60ºC
- Moisture: 20%-90% (non-condensing)
- Dimensions [mm]: 130x85x24
- Power supply: 230 V AC/ 5 V DC
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | H3613R |
| Parametry | Model | H3613R |
| Parametry | Brand | Signal |
| Parametry | Kind | converter |
| Parametry | Product weight with unit packaging | 0.398 kg |
| Parametry | Certificates of conformity | CE |
