HDMI matricos jungiklis-skirstytuvas 4x2, 8K 60Hz / 4K 120Hz

Trumpai apie prekę

Prekė: HDMI matricos jungiklis-skirstytuvas 4x2, 8K 60Hz / 4K 120Hz. Kategorija: TV priedai.

• Gamintojas: XOLORSpace
• Modelis: 43420A

Output A and B HDR HDCP 2.3 Video and Sound

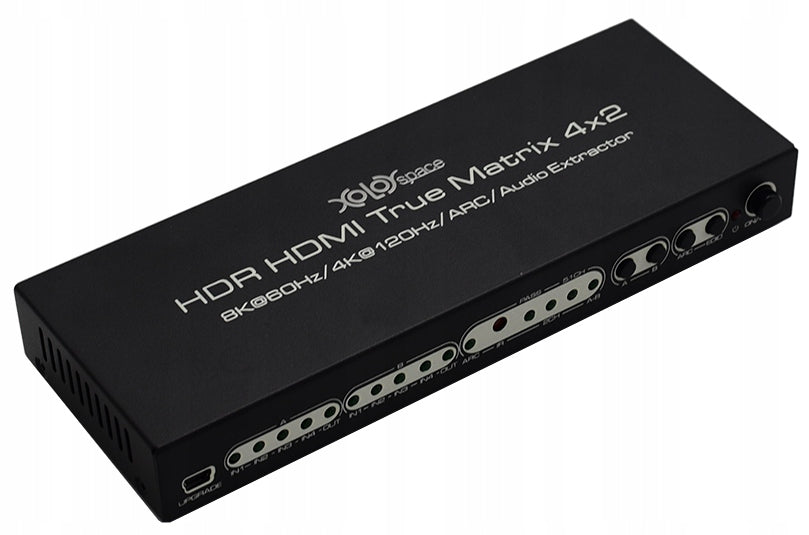

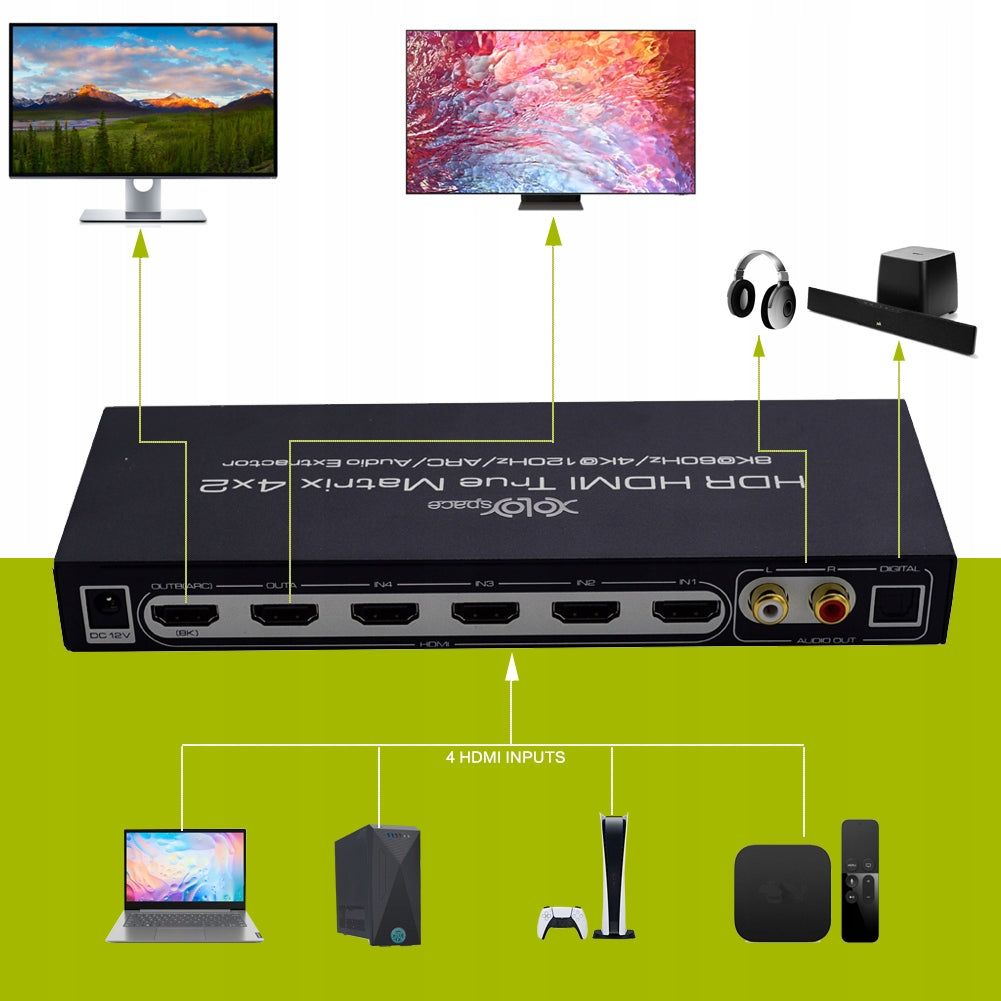

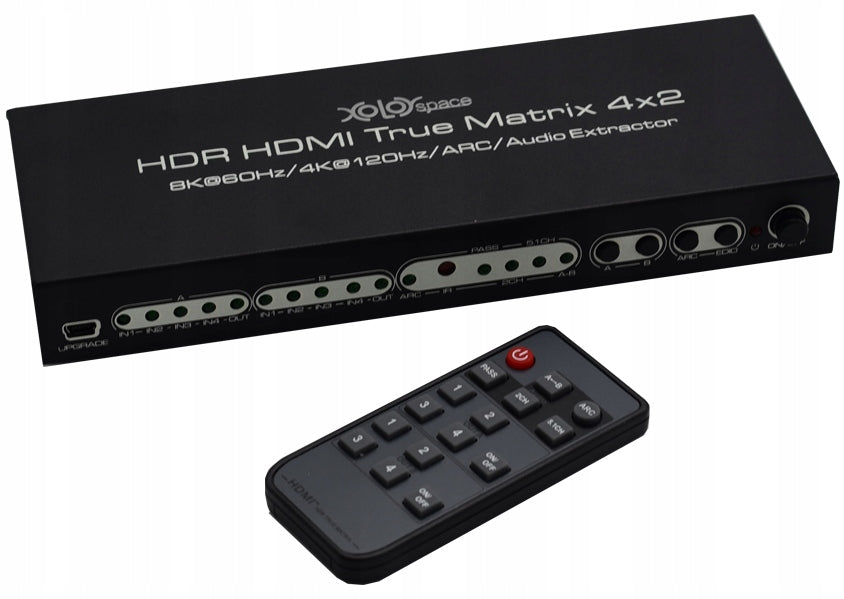

The XOLORSpace® HDMI 4x2 array can route four inputs to two different outputs (e.g. TV, projector, monitor). It works in asynchronous mode. Both outputs of the device support HDR HDMI 2.1 and HDCP 2.3. Switching input signals on the outputs is done using the remote control or buttons on the device. The current status is shown by subtle LEDs. The integrated amplifier provides a breathtaking picture.

The latest XOLORSpace ® chipset provides HDMI 2.1 and HDCP 2.3 support and full HDR support. The device transmits the signal in 8K 60Hz and 4K in 120Hz.

In addition, the audio signal can be played in parallel on the digital optical Toslink and 3.5mm minijack. The built-in EDID audio controller allows you to specify the audio output format for the SPDIF connector. You can set the sound to 2.0 or 5.1. The device supports ARC

General features:

- XOLORSpace HDMI 4x2 UHD 8K 60Hz and 4K 120Hz matrix with HDR HDCP 2.3

- distribution of 4 signals to 2 devices

- output A (audio and video), output B (audio and video)

- audio signal separation to SPDIF and remote control

Specification:

- high-quality, lightweight aluminum housing

- input: 4x HDMI (eg. from receiver, game console, TV, player) with HDR

- output: 2x HDMI (eg. to TV, projector) with HDR

- output: 1x SPDIF Toslink, 1x 3.5mm

- all connectors on the back of the device

Technical data:

- support for HDMI 2.1 HDR HDCP 2.3

- HDMI 2.1 chipset compatible with HDMI <2.0, HDMI 2.0/A/B

- support 8/10/12/16Bit@2160P 8/10bit@4320P

- support 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz; Max 4320P@50/60Hz

- support all popular audio formats like Dolby Vision, Dolby Atmos, DTS, LPCM: X 7.1 DTHD, DD+, Dolby True HD etc

- Compatible with all current HDR formats such as Samsung SUHD HDR + HDR-1000, LG Super Ultra HD HDR 10, Sony 4K HDR Etended Dynamic Range Pro Panasonic 4K UHD Pro and others

- HDR BT.2020, compatible with 4K YCbCr / 60 4: 2: 2 12 bit, 4K / 24 4: 4: 4/4: 2: 2 12bit RGB 4K / 24 12 bit

- SDR BT.709, compatible with 4K YCbCr / 30 4: 4: 4 12 bit, 4K / 30/60 4: 4: 4 8bit, 4K / 60 4: 2: 2 12bit; RGB 4K / 30/60 8bit

- integrated signal amplification

- maximum bandwitdth 1200MHz, 48Gbps.

- maximum possible cable lengths at the output for: 8K approx. 3m / 8K 60Hz / 4K 120Hz HDR 5m (for AWG 24 HDMI cables)

- maximum possible cable lengths at the input for: 8K 5m / 8K 60Hz / 4K 120Hz HDR 5m (for AWG 24 HDMI cables)

- 100-240V 5V2A power adapter

Contents of the package

- XOLORSpace HDMI 4x2 4K UHD HDR 8K 60Hz and 4K 120Hz HDCP 2.3

- remote control

- charger

- instruction

Dimensions:

Weight: 0.80 kg

Length : 18cm

Width: 9cm

Height : 4cm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	43420A
Parametry	Model	43420A
Parametry	Brand	XOLORSpace
Parametry	Kind	converter,Switch
