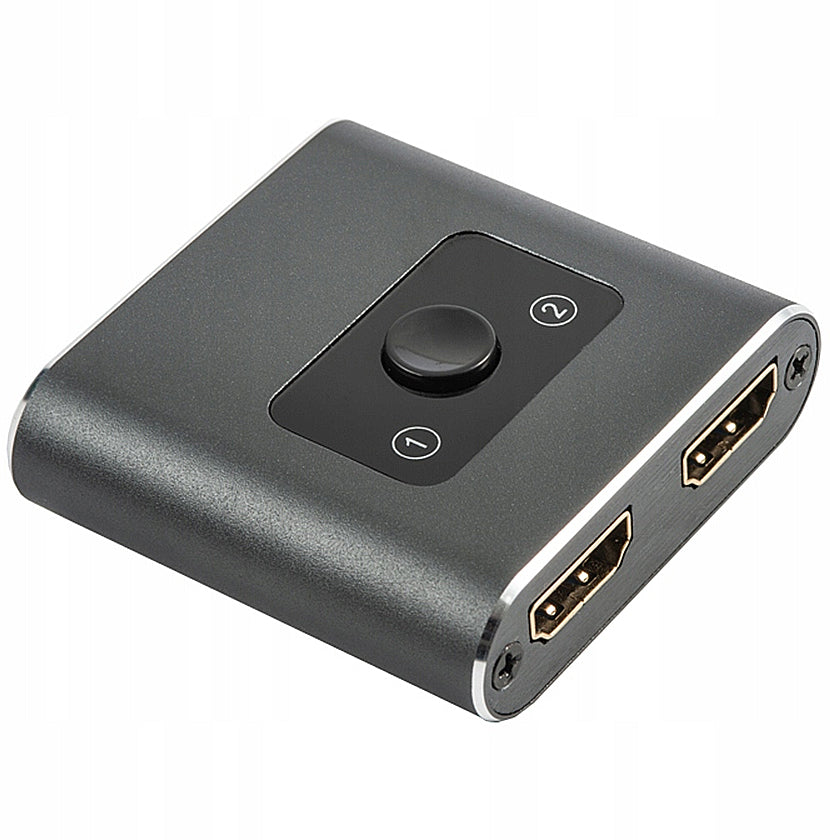

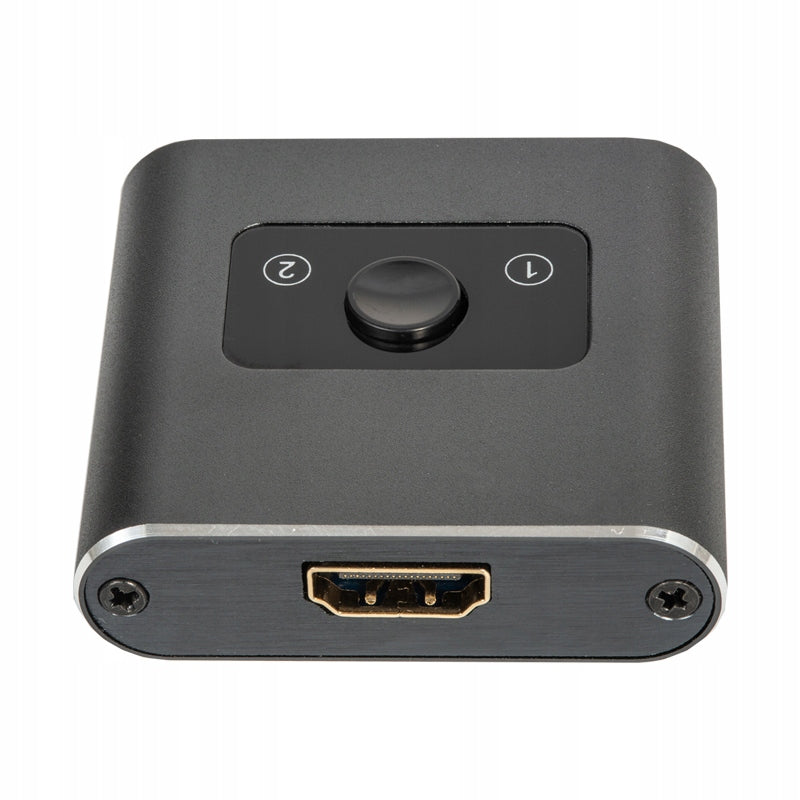

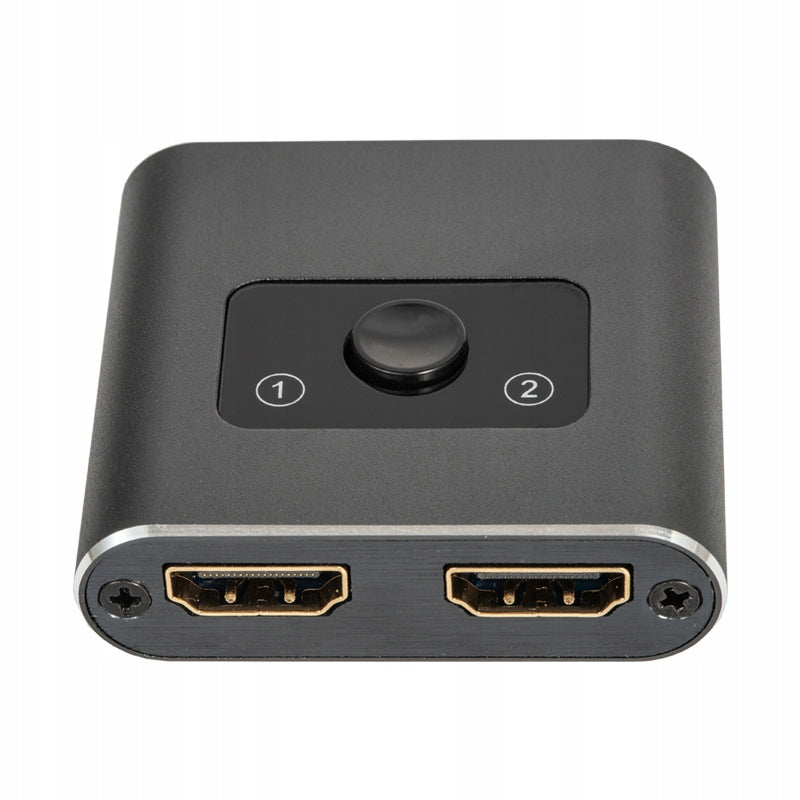

HDMI perjungiklis, dvikryptis, 2 į 1 / 1 į 2, 4K UHD, 3D

Trumpai apie prekę

Prekė: HDMI perjungiklis, dvikryptis, 2 į 1 / 1 į 2, 4K UHD, 3D. Kategorija: Skirstytuvai.

• Gamintojas: Novaza Tech
• Modelis: Dwukierunkowy rozdzielacz HDMI 2x1/1x2 UHD 3D 4K

It allows you to sum the signal from two HDMI inputs to one output, or act quite the opposite and from one input divide the image into two receivers. The device displays only one image (to be selected using the button on the housing), does not require external power supply.

SPECIFICATION:

• 3 HDMI ports
• Support 4k x 2k, 3D, 1080P resolution
• Support standard 26AWG HDMI cable (lossless operation on wires up to 5 meters on each side)
• LPCM 7.1CH, Dolby True HD and DTS-HD Master Audio
• HDR and 18Gb/s signal speed
• Support high resolution VESA video format up to QSXGA @ 60Hz
• Support for sequential 3D video format up to 1080p @ 60
• Support video format up to 4k2k@60Hz with 24-bit RGB/YcbCR 4:4:4/YCBCR4:4, and up to 4k2k@60Hz with 12-bit YCBCR 4:4:4
• Compatible with DVI using HDMI to DVI adapter
• Compatible with HDMI2.0, HDCP2.2 and DVI 1.0
• Power supply: no power required
• Simple installation / no additional drivers required

The set includes:

• Converter
• User manual
• Box

PRODUCT CODE: 154

1. Connection 1x Input / 2x Output

- We can connect one transmitter to the device, e.g. decoder, laptop, apple TV, console or other

- We connect two receivers to the device, e.g. Two monitors (note! The image can only be displayed on one receiver - selectable with the push of a button)

2. Connection 2x Input / 1x Output

- We can connect two transmitters to the device, e.g. decoder, laptop, apple TV, console or other

- We connect one receiver to the device, e.g. monitor (Note! We can display only one image on the receiver - selectable with the push of a button)

Specifications
