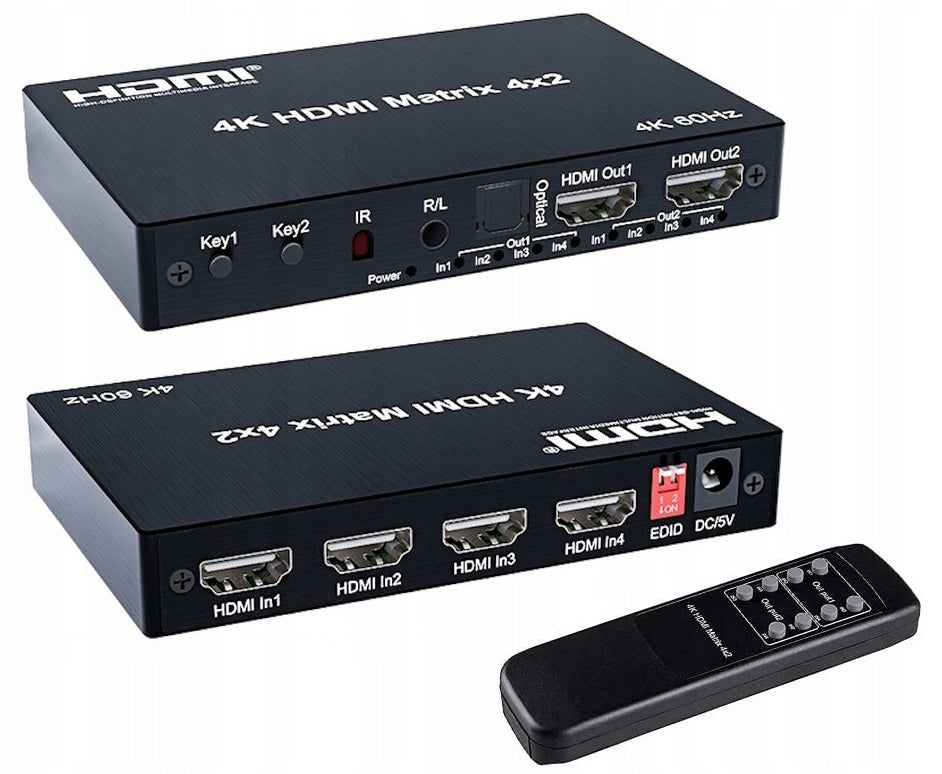

HDMI perjungiklis-skaidiklis 4x2, 4K, su Toslink, jack jungtimi ir IR pultu

Trumpai apie prekę

Prekė: HDMI perjungiklis-skaidiklis 4x2, 4K, su Toslink, jack jungtimi ir IR pultu. Kategorija: TV priedai.

• Gamintojas: no brand
• Modelis: Anytech 4x2

Multi-Functional HDMI Switching Center

Connect 4 Devices and View

on 2 Monitors

Matrix HDMI 4x2 is a modern and advanced device that allows you to connect up to four different HDMI source devices and display the image on two independent screens. This allows you to switch the signal between monitors or present the same image on both outputs at the same time. Ideal for gamers, offices, surveillance centers, shops, conference rooms and home entertainment.

With support for 4K 60Hz Ultra HD resolution and wide compatibility with HDMI and HDCP standards, Matrix HDMI 4x2 delivers superior picture quality without sacrificing detail. The built-in Toslink SPDIF audio extractor and 3,5mm analog Jack output allow for separate audio transmission, making the device even more versatile.

Main Features and Advantages

• 4 HDMI inputs, 2 HDMI outputs – the ability to connect four source devices (consoles, decoders, laptops, PCs, Blu-ray players) and display the image on two screens.
• Support 4K@60Hz Ultra HD – high image quality, HDR and 3D compatibility, ensuring color depth and sharpness of details.
• Audio Extractor SPDIF + Jack 3,5 mm – extracting digital sound 5.1 (Dolby/DTS) and analog stereo 2.0.
• HDMI ARC – enables two-way audio transmission between the TV and the audio system.
• Easy Operation – control via IR remote control and buttons on the housing.
• Support HDCP and HDMI 2.0 – full compatibility with modern devices.
• Splitter & Switcher mode – the ability to display different signals on two screens or the same image on both monitors at the same time.
• Long Cable Support – Supports HDMI cables up to 15m (4K/30Hz) and up to 5m (4K/60Hz).

Technical data

• HDMI inputs: 4x HDMI (female)
• HDMI outputs: 2x HDMI (female), 1x SPDIF Toslink, 1xJack 3,5
• Video format support: 4K UHD 3840x2160 @ 60Hz, 30Hz, 24Hz | Full HD 1080p | 720p | 576p | 480p
• HDR support: Yes
• 3D support: Yes
• Supported audio formats: LPCM, Dolby-AC3, DTS 5.1, Dolby TrueHD, DTS-HD
• HDCP: 2.2 / 1.4
• Transmission band: 18 Gbps
• Cable range HDMI:
• 4K/30Hz – up to 15m (AWG26)
• 4K/60Hz – up to 5m (HDMI 2.0)
• Control: IR remote control, buttons on the device
• Power supply: DC 5V / 1.5A
• Dimensions: 122 x 80 x 19 mm
• Weight: 180g

Application of Matrix HDMI 4x2

Matrix HDMI 4x2 is the perfect solution for a variety of applications:

• Players – Connect your PlayStation, Xbox, and PC consoles and conveniently switch between monitors.
• Offices and Conference Rooms – ideal for presenting and separating images into several screens.
• Monitoring and CCTV Systems – easy connection of cameras to displays.
• Home Entertainment – Connect your TV set-top box, Blu-ray player or laptop to your TV and home theater system.
• Shops and Shopping Centres – the perfect solution for displaying advertisements and marketing content on multiple screens.

Contents of the Anytech Set

• Matrix HDMI 4x2
• IR remote control
• 5V/1.5A power supply + cable
• User manual

Completely packed in an elegant box

Convenient remote control

Remote control has never been so easy! HDMI Matrix 4x2 is equipped with an intuitive IR remote control that allows you to quickly and conveniently switch between signal sources and HDMI outputs. With it, you can:

• Select active HDMI input – no need to approach the device
• Control HDMI outputs – deciding which screen to display the selected source
• Adjust settings in real time – the perfect solution for home theater, presentation or office

With the Matrix HDMI 4x2 remote control, it becomes an even more functional and convenient tool for managing your audio-video equipment!

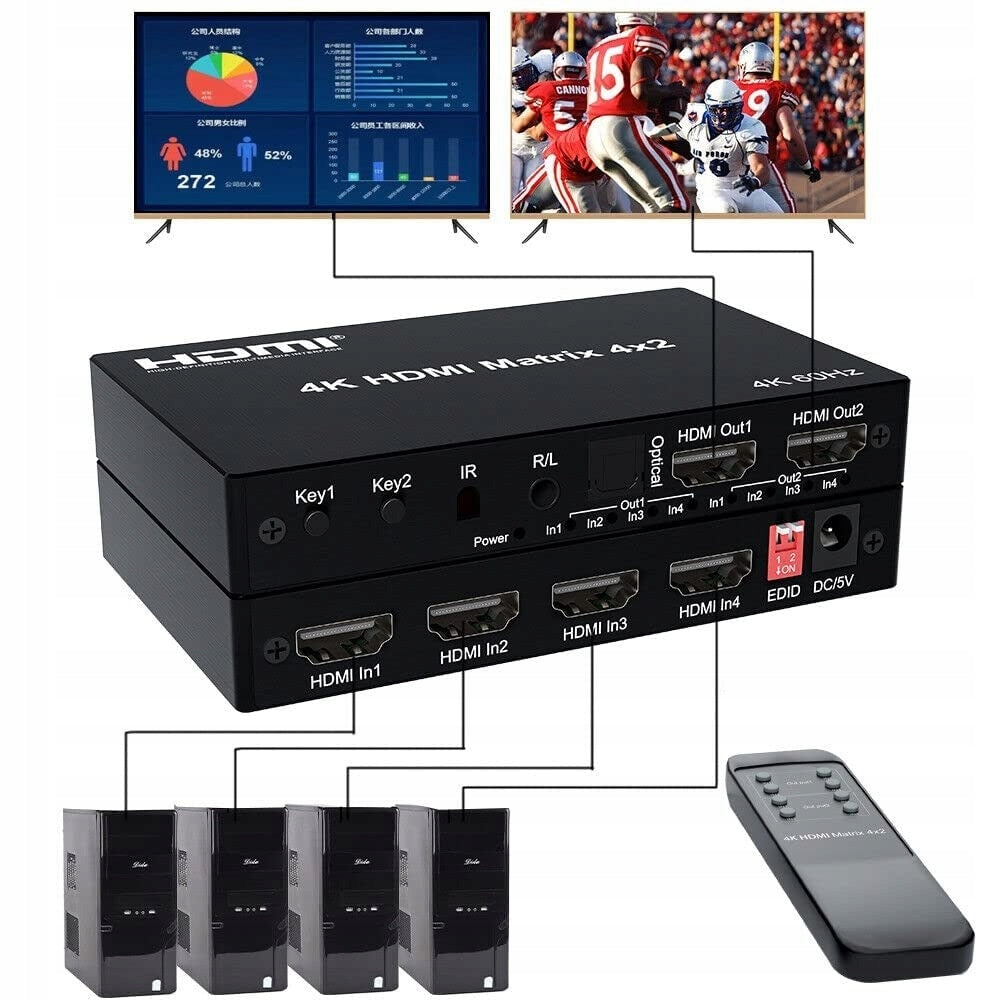

Connection diagram

Matrix HDMI 4x2 is a device that allows you to connect up to four HDMI signal sources and display the image on two independent displays. The device can act as a switch and splitter, allowing you to display the same or different images on connected monitors, TVs or projectors.

HDMI inputs (INPUT) You can connect up to four different devices that transmit an HDMI signal, e.g.:

• PC, Laptop – ideal for offices and conference rooms
• Game consoles (PS4, Xbox, Nintendo Switch) – smooth 4K gameplay
• TV set-top box, DVD/Blu-ray player – comfortable watching movies
• Set-top Box (TV Box, Chromecast) – easy media transfer
• Connect devices to HDMI IN 1-4 ports on the front panel.

HDMI outputs (OUTPUT) The HDMI signal can be transmitted to two independent screens, e.g.:

• TV (TV) – watch movies and shows in 4K
• Computer monitor – ideal for presentation and office work
• Designer – the perfect solution for conference rooms and home theater

Audio Outputs

Sound on separate speakers

Matrix HDMI 4x2 also offers the ability to extract audio from HDMI, so you can connect:

• Speakers / soundbar via Jack port 3,5mm – stereo sound 2.0
• Audio system via Toslink SPDIF – digital audio 5.1 Dolby/DTS

Connect audio devices to Audio (R/L) and Optical SPDIF ports.

Matrix HDMI 4x2 Operating Modes

• Switch mode – switch between four HDMI signal sources and select which output to receive the image.
• Splitter mode – duplicate the image from one HDMI source to two screens at the same time.
• Sound extraction – the ability to transmit the audio signal to separate speakers.
• With Matrix HDMI 4x2, you have complete control over your video and audio signal!

High image quality in 4K

Watch movies, presentations and gameplay in the highest quality! Matrix HDMI 4x2 supports 4K Ultra HD @60Hz (3840x2160) resolution, providing sharp details, vibrant colors and smooth image refresh. Perfect solution for home theater, gaming, and professional use

Immerse yourself in amazing 3D quality

Take your experience to a new level! Matrix HDMI 4x2 supports 3D formats and 8/10/12-bit color depth for realistic and immersive visuals. Perfect choice for movie, gaming, and multimedia presentation enthusiasts

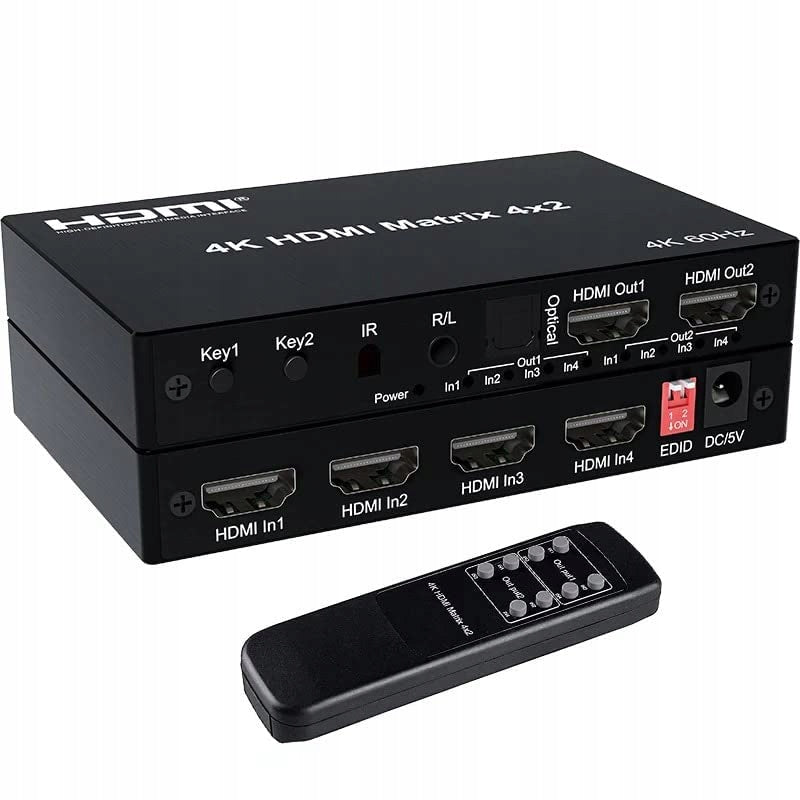

Ops sockets in Matrix HDMI

• 4 HDMI inputs (HDMI IN1 - HDMI IN4) – allow you to connect four different devices, such as a computer, laptop, game console, TV set-top box, Blu-ray player.
• 2 HDMI outputs (HDMI OUT1, HDMI OUT2) – allow you to display the image on two different screens at the same time, e.g. TVs, monitors or projectors. It is possible to display the same or different sources on both screens.
• Optical Out – for connecting an external audio system, e.g. soundbar or home theater, for high-quality digital sound.
• Analog output R/L (Jack 3,5 mm) – allows you to connect classic headphones or stereo speakers.
• IR infrared port – is used to operate the device using a remote control.
• Control buttons (Key1, Key2) – manually change signal sources on HDMI outputs.
• Power supply (DC 5V) – port for connecting the power supply of the device.
• EDID switch – allows you to adjust the compatibility of the device to different HDMI standards and audio-video formats.

Matrix supports EDID

EDID (Extended Display Identification Data) is a technology that allows you to automatically adjust the audio-video signal to the capabilities of connected devices.

EDID modes on HDMI Matrix 4x2:

• 0 0 – Copying EDID from the first HDMI output (OUT1)
• 0 1 – 3D, 4K 60Hz, HDR, 5.1CH audio
• 1 0 – 3D, 4K 30Hz, 2.0CH LPCM sound
• 1 1 – 1080P, 2.0CH LPCM sound

Application of EDID:

• EDID copy mode – allows you to automatically adjust the signal to the display with the highest compatibility.
• 4K 60Hz HDR mode – ideal for modern TVs and monitors that support the highest standards of picture and sound.
• 4K 30Hz mode with stereo sound – ensures high image quality and compatibility with stereo systems.
• 1080P 2.0CH mode – suitable for older displays and sound systems that support stereo sound.

Why Choose HDMI Matrix 4x2 4K

If you are looking for a versatile and professional HDMI switch that will allow you to manage the image from several devices and split it into two monitors in 4K UHD quality – Matrix HDMI 4x2 is the perfect choice! With additional features such as an audio extractor, compatibility with 5.1 sound systems and HDMI ARC, it will give you full control over the picture and sound in your media system.

• Easy operation, wide compatibility, remote control included!
• Perfect for office, home, conferences, stores and gaming!
• 4K 60Hz picture without loss of quality!
• Bet on professionalism – choose HDMI Matrix 4x2 4K

With its EDID feature, the HDMI Matrix 4x2 ensures maximum compatibility and flexibility. You can adjust the picture and sound quality to suit the capabilities of your TV, monitor or projector. Support for 4K 60Hz, HDR, 3D and 5.1CH audio makes this device ideal for home theater, multimedia presentations or offices

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	5904310261159
Parametry	Model	Anytech 4x2
Parametry	Brand	no brand
Parametry	Kind	converter
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
