HDMI šakotuvas LogiLink 1x2, 4K 60Hz, HDMI 2.0, 0,13 m

Trumpai apie prekę

Prekė: HDMI šakotuvas LogiLink 1x2, 4K 60Hz, HDMI 2.0, 0,13 m. Kategorija: TV priedai.

• Gamintojas: Logilink
• Modelis: HD0061

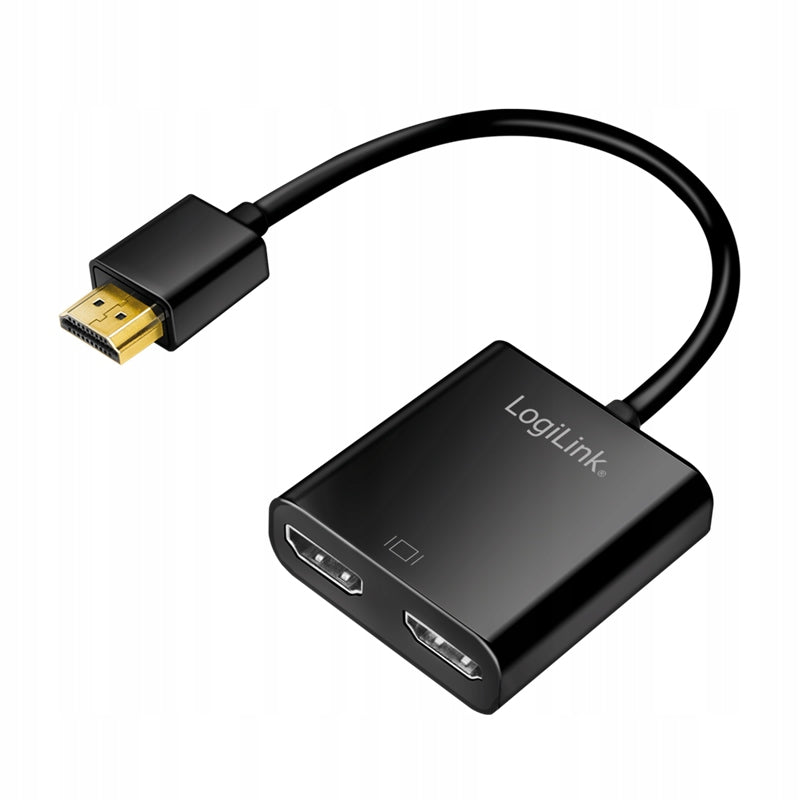

HDMI Splitter LogiLink 1x2 4K 60Hz HDMI 2.0 HDCP HDR CEC IR EDID 0,13m

LOGILINK

The HDMI 1x2 splitter by LogiLink is a practical device that allows you to transfer signal from one HDMI source to two displays at the same time – without loss of quality and with full UHD 4K resolution at 60 Hz. Ideal for both business, commercial and home applications. Supports HDR, HDCP 2.2, CEC, EDID, Full 3D and enables downscaling and remote IR control.

The most important features of the product

• HDMI signal duplication: 1 HDMI input → 2 HDMI outputs
• Support UHD 4K/60 Hz (3840x2160) with 36-bit color depth (12 bits per channel)
• Compatibility with HDMI 2.0, HDCP 2.2, HDR, CEC, EDID, DDC
• Downscaler function: automatic adjustment of the signal to older screens
• Remote control IR – optional remote control
• Full 3D – ideal for home theater
• High throughput: 6,0 Gbit/s per line (total 18 Gbit/s)
• Power supply via USB (5V/1A) – convenience and mobility
• Plug & Play – no need to install drivers
• Light and compact design – housing made of durable plastic
• Color: black

Applications of HDMI splitter

• Multimedia presentations in companies and conference rooms
• Digital advertising on screens on websites and service premises
• Information systems in restaurants, hotels, waiting rooms
• Home applications – home cinema, image division from console or computer

Why choose the LogiLink splitter?

• Stream the same HDMI signal to two screens simultaneously
• Maintain maximum picture quality – 4K/60 Hz with HDR
• Downscaler resolution scaling allows you to connect older screens without interference
• Control remotely via IR port – e.g. in hard-to-reach installations
• Plug and play – ready to go as soon as you plug it in
• Compatibility with a wide range of devices – laptops, media players, consoles (PS5, Xbox), set-top boxes, projectors and TVs

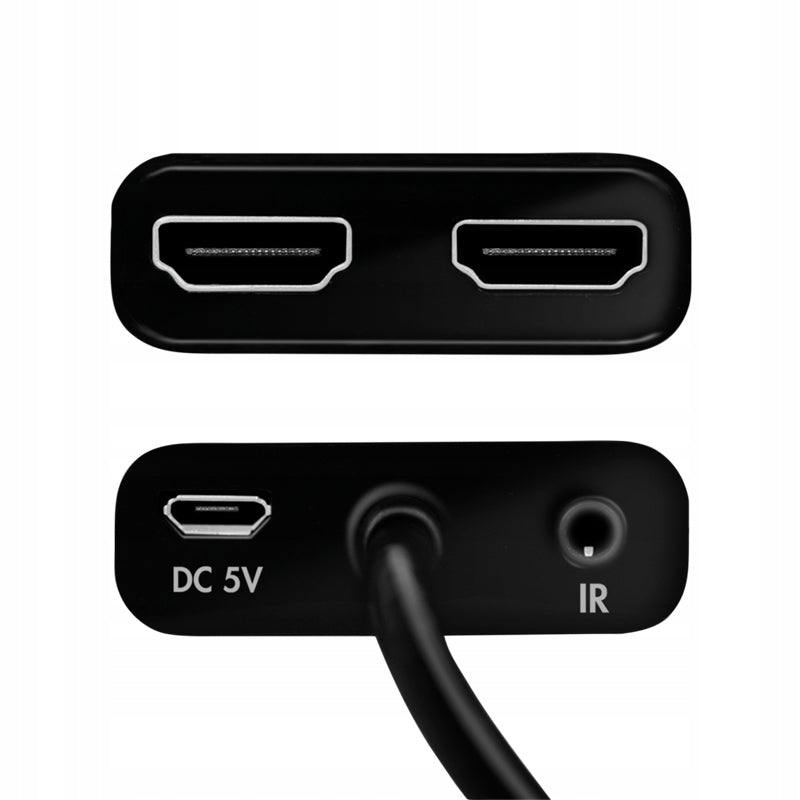

Functions

a) HDMI input

b) HDMI 1 and 2 output

c) USB DC 5 V input

d) IR output (IR adapter kit not included)

Technical specification

• Connections: 1x HDMI (input), 2x HDMI (outputs)
• Video standard: HDMI 2.0
• Maximum resolution: 4K/60 Hz (3840×2160)
• Gcolor depth: up to 36-bit (12 bits per channel)
• Support: HDCP 2.2, HDR, CEC, EDID, DDC, IR, Full 3D
• Additional features: downscaler (scaling down signal)
• Power Supply: 5 V / 1 A (USB)
• Housing: plastic
• Color: black
• Cable length: 0,13 m
• Dimensions: 18 × 4,5 × 1,5 cm
• Weight: 0,027 kg

FAQ – Frequently Asked Questions

Can I connect two different TVs to this splitter? ✅ Yes, the splitter allows you to transfer images to two displays simultaneously. Thanks to the downscaler function, they can have different resolutions.

Does the device work with PS5 or Xbox consoles? ✅ Yes, it supports next-gen consoles, offering smooth 4K/60Hz picture quality.

Can I use the remote to control the TV through this splitter? ✅ Yes – the splitter supports IR transmission, which allows remote control of devices connected to HDMI.

Does it require driver installation? ❌ No – just plug in the device, it works right away (plug & play).

Specifications
