Hibridinis inverteris saulės elektrinei, 10kW, 48V, 2xMPPT, WiFi, 11000W

Trumpai apie prekę

Prekė: Hibridinis inverteris saulės elektrinei, 10kW, 48V, 2xMPPT, WiFi, 11000W. Kategorija: Įtampos keitikliai.

• Gamintojas: no brand

Attention! If you choose cash on delivery, not only will you not pay for shipping, but we will also reduce the price by PLN 20! On delivery, you can pay the courier by credit card.

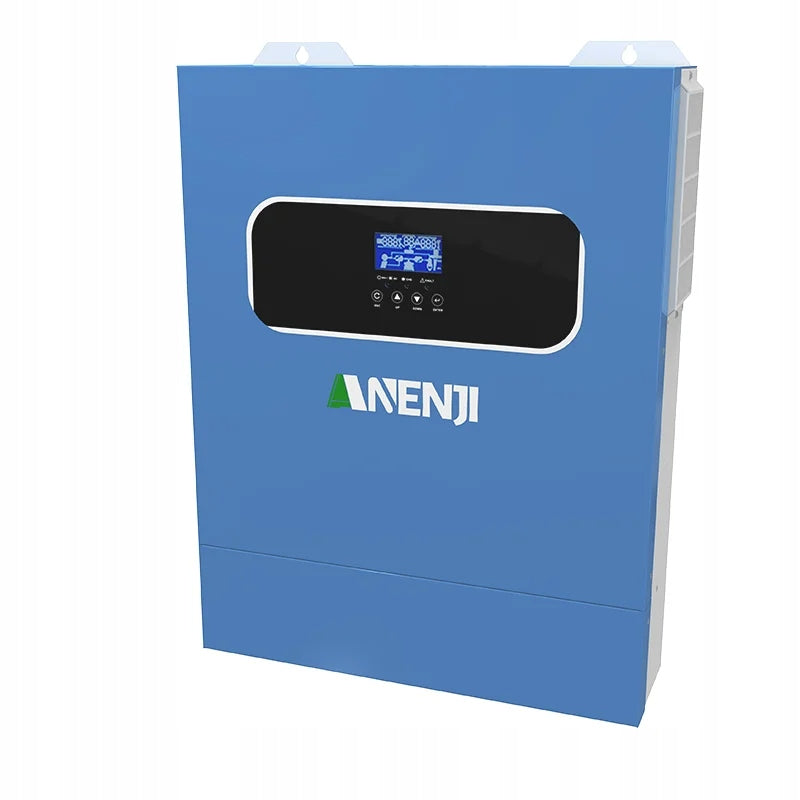

Inverter hybrid solar inverter On or Off Grid 11000W

• continuous power 11kW
• battery charging power 160A
• single phase
• Storage 48v
• DUAL 2 x MPPT (2x string)5500W + 5500W =11KW

GRATIS WIFI MODULE can be combined with boarding school and a dedicated application

The presented solar inverter is designed for the construction of independent Off-grid 230V power supply systems based on energy obtained from PV panels, power grid and batteries.

Thanks to the modern design and selected configuration, this inverter can operate in UPS mode with battery charging from PV panels and/or power grid, they can also work in buffer systems powered only from PV panels and/or supported by energy from the network without battery.

Output stable sinusoidal supply voltage 230V

It is perfect for powering any electricity receivers, and the built-in inrush overload support system allows you to power receivers with high inrush current, such as compressors in refrigerators and aggregates.

Charging of batteries takes place simultaneously with energy consumption.

Three modes of operation to choose from:

1. USB- emergency power supply (UPS) - first solar energy, then battery power will work when mains power is unavailable.
2. SUB- first power supply from PV panels - solar energy will ensure power supply to devices as a priority. If solar power is not enough to power the connected receivers, the inverter will power them from the external grid. Battery - will provide power to loads only if one condition is met: - Solar energy and power from the external network are not available or solar energy is not sufficient and the network is not available.
3. SBU- in the first place panels provide energy as a priority if the solar energy is not sufficient to power the connected devices at the same time will draw from the battery to the set warning level. The network will power the receivers at the end as there is no power in the battery.

Intuitive display with main operating indications.

Comprehensive screen design indicators dynamically display system data and inverter operating status.

1. Performance parameters
2. Inverter parameters
3. Load parameters
4. Parameters of solar panels
5. Battery parameters
6. Error code parameters
7. AC Input
8. Dual AC Output
9. Function buttons
10. Circuit Breaker
11. Battery Input
12. Entrance of panels for 2 thongs

PARAMETERS

Efficiency

• Maximum solar energy conversion efficiency DC/AC 98%

Input from PV panels (DC)

• Maximum input power PV 5500W + 5500W = 11000W
• Nominal voltage 360V DC
• Max current 18A x 2 channels (strings)
• 2 x MPTT
• Maximum voltage with open circuit 500V DC
• Min. start-up voltage/ initial operating voltage 90VDC/120 VDC
• Operating voltage range MPPT: 90VDC-450VDC
• Maximum charging current from solar panels 160A

PERFECT OUTPUT SINE OF 230V AC

• Output voltage 230V AC
• Voltage range smoothly adjustable 195,5-253V AC
• Maximum output current 47,8A
• Full load 11000W
• Output frequency range (Hz): 49-51Hz ± 1Hz / 59-61Hz ± 1Hz

BATTERIES AND CHARGING

• Nominal DC voltage 48VDC
• Maximum charge of 60V batteries
• Maximum charging current from solar panels 160A
• max battery current 220A
• Maximum charging current 140 A
• Min. Main load cut-off voltage 40VDC
• Min. Switching voltage to AC 44VDC
• Supports a wide range of battery technologies: Lithium, GEL, AGM, Acid and battery own settings
• Wide range of battery voltage setting and charging control mode

WAC input

• Voltage range 90-280VAC or 170-280VAC
• Maximum input current AC 50A
• Frequency 50/60 Hz

DIMENSIONS

• net weight 15KG
• 540*415*122mm

For the inverter we recommend using a photovoltaic switchgear / connection box from the offer: 620458105913
