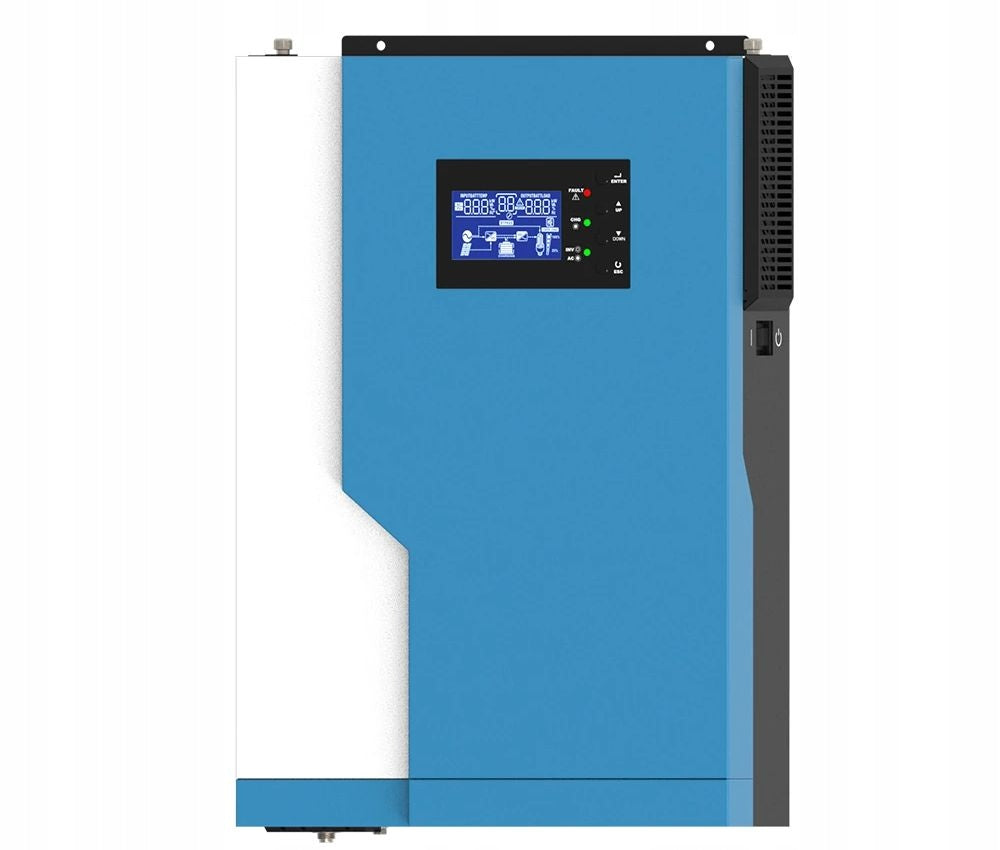

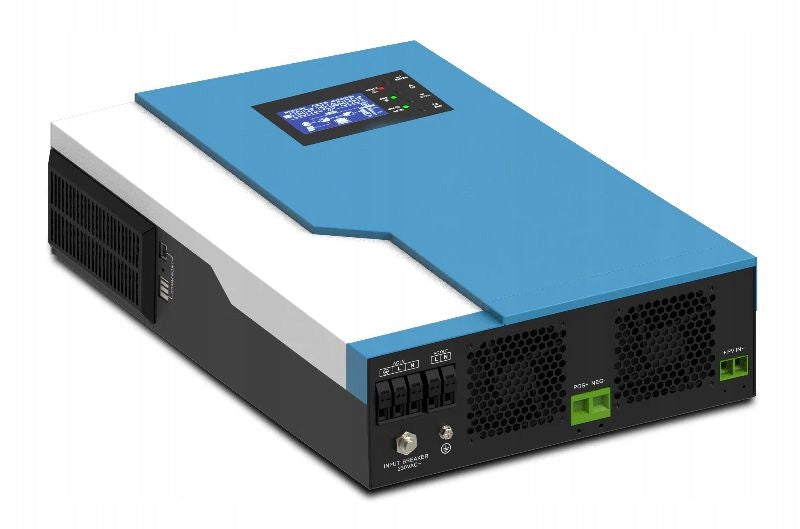

Hibridinis saulės inverteris 5,5 kW, 230V, 48V, iki 6000W akumuliatoriams

Trumpai apie prekę

Prekė: Hibridinis saulės inverteris 5,5 kW, 230V, 48V, iki 6000W akumuliatoriams. Kategorija: Įtampos keitikliai.

• Gamintojas: no brand

5500W hybrid inverter (5,5kW) with MPPT 100A charging controller with the possibility of working without batteries!

A little cheaper you will get an inverter with virtually identical parameters now in the promotion, in this Allegro offer: 15523381886

The latest product for working with panels with voltage up to 500V DC with pure sine wave AC 230V.

The inverter powers connected receivers by drawing energy from the 230V grid or connected batteries or connected photovoltaic panels.

At the same time, using the connected panels, it allows you to charge the batteries with solar energy or using the built-in charger. It works with or without PV panels, with or without 230V network and as one of the few (absolute novelty) also with or without batteries.

For this price, you will often only get the MPPT controller itself. We offer here a real combine harvester with an extremely wide range of applications.

Wifi communication module included!

The available power of 5,5kW is enough to power most "normal" single-phase 230V receivers.

A particularly interesting solution is the ability to work with batteries but also without batteries.

The inverter supports the operation of receivers even without batteries

Max. voltage input of PV 500 V DC panels

Possibility of connection and communication via Wifi module

MPPT Max 100A Solar Charger, Max PV Panel Power 6000W (6kWp)

Built-in 60A battery charging (rectifier) with voltage stabilization function.

Maximum charging current of the whole system: 100A

Supported AC 90~280VAC Input Voltage

Supports 50Hz or 60Hz with LCD program

Transformerless inverter, lightweight design

Built-in alarms and protections including fuse protection against reverse DC polarity

Only three types of photovoltaic modules are allowed: monocrystalline, polycrystalline with class A modules and CIGS modules.

To avoid malfunction, do not connect any photovoltaic modules with possible current leakage to the inverter. For example, grounded photovoltaic modules will cause current to flow into the inverter. Therefore, when using CIGS modules, please make sure that they are not grounded. Classic monocrystalline and polycrystalline modules will work without any problems.

Before connecting to an alternating current source (230V network), a separate alternating current switch should be placed between the inverter and the AC power source. This will ensure safe disconnection of the inverter during maintenance and full overload protection at the AC input. Recommended 25A fuse specification.

We offer a solar inverter with a maximum power. 5,5kW for 48V DC systems.

The WiFi interface allows remote communication with the device via a smartphone application.

MODEL SNT 5,5kW - Plus

Rated Power 5500W

Entry

Voltage 230 VAC

Supports voltage range from 170-280 VAC (for home appliances)

Frequency range 50 Hz

Exit

AC voltage regulation (for battery power mode) 230VAC ± 5%

Peak power 11000VA

Efficiency (maximum) 94%~ 97%

Switching time powered: 10 ms (for personal computers) 20 ms (for home appliances)

Waveform: Pure sine wave

Battery

Battery Voltage 48 VDC

Variable charging voltage 54 VDC

Overcharge protection 66 VDC

Solar charger and rectifier AC/DC

MPPT Solar Charger Type

Maximum open circuit voltage of photovoltaic panels: 500 VDC

Maximum power PV 6000W

MPPT Range Operating Voltage 120~450VDC

Maximum charging current of solar panels 100A

Maximum charging current of 60A rectifier alternating current

Total maximum charging current 100A

Dimensions

head. x W x H (mm): 115 x 300 x 400

Net Weight (kg): 12

Optional communication interfaces: USB / RS232 / RS485 / Bluetooth, WiFi or GPRS module can be included

Working environment

Relative humidity: 5% to 95% (non-condensing)

Operating temperature -10 °C - 50 °C

Storage temperature -15 °C - 60 °C

Hybrid inverters work best in a place where we have solar panels and we want to use them to send receivers saving energy from the grid. Such an inverter also acts as a battery charger (here with efficient MPPT function). It can also be used as a regular UPS (a device that maintains power in the event of a power outage in the network). The inverter switches power between network operation and operation from connected panels or batteries automatically, imperceptibly for powered receivers.

So e.g. In the house, we can use solar energy, and when it runs out, the inverter will draw electricity from connected, charged batteries or switch to mains power.

In another configuration, it can still operate by drawing electricity from the mains, and when it stops feeding 230V it will switch to power from connected panels and/or batteries, maintaining the power supply to the receivers. When flooding from the mains is restored, the charger (built-in rectifier) will recharge the batteries.

When there are no batteries, the inverter simply converts the current directly from the panels to the receivers or if the current from the panels is too little switches to power the receivers from the mains.

Attention! Offer addressed only to natural persons.

If you want to purchase a product for a company, please contact us before the transaction.

This offer applies to the commercial intermediation service in which the buyer commissions and the seller accepts the performance of the service consisting in acting on behalf of the customer, in order to purchase products from the relevant supplier. The buyer is not able to withdraw from the contract after its completion.

For the inverter we recommend using a photovoltaic switchgear / connection box from the offer: 620458105913
