Hidraforas su siurbliu Mhi1300 ir 100 l talpos baku, našumas 6000 l/h

Trumpai apie prekę

Prekė: Hidraforas su siurbliu Mhi1300 ir 100 l talpos baku, našumas 6000 l/h. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: Einbach
• Modelis: HYDROFOR MHI1300 MH1300 ZESTAW DO WODY 100L

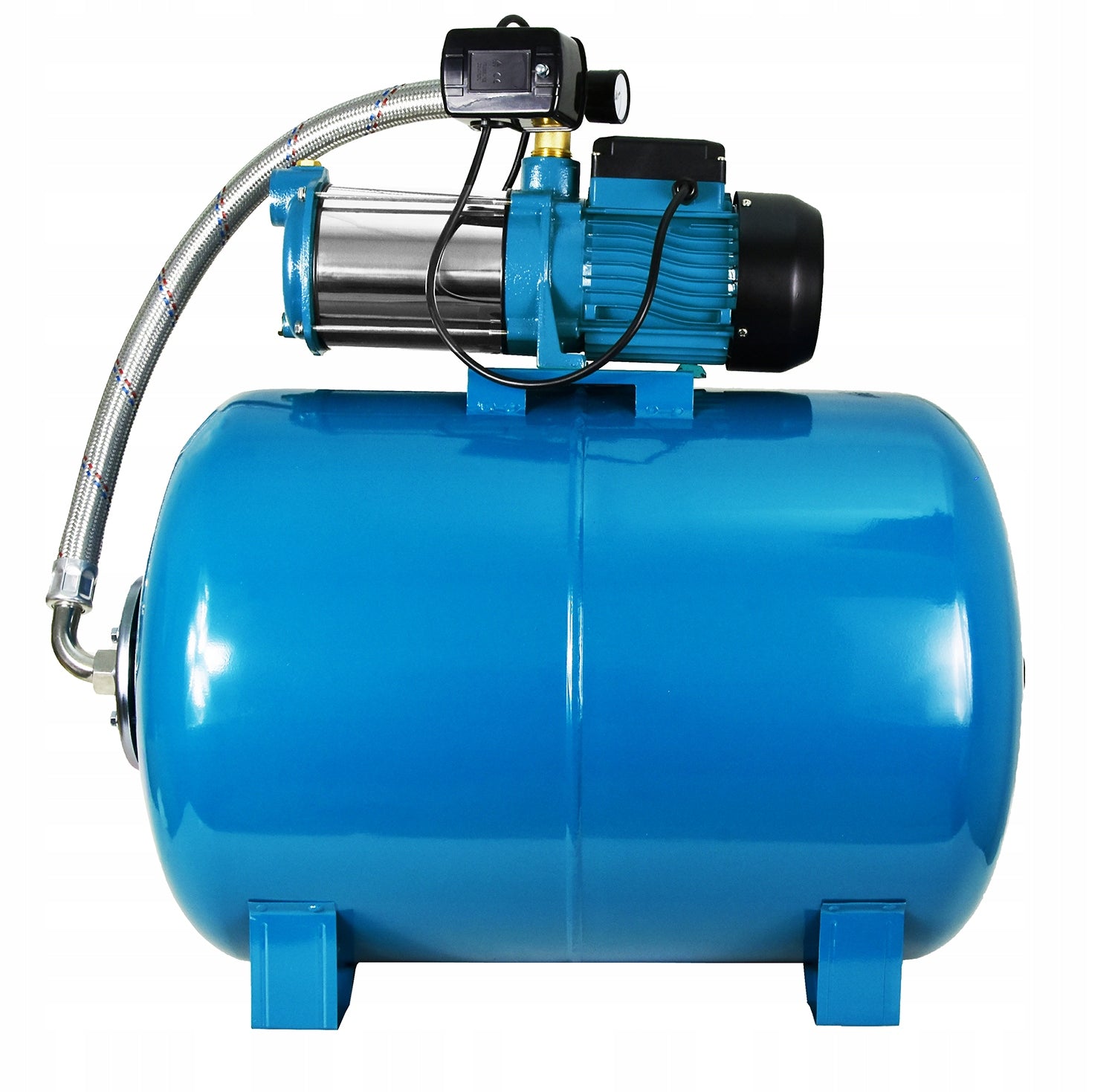

✅WE PRESENT TO YOU A HYDROPHORE SET 100L

✅ WE MEET THE EXPECTATIONS OF CUSTOMERS WHO DO NOT WANT TO WASTE TIME BUYING, SELECTING AND ASSEMBLING INDIVIDUAL ELEMENTS THEMSELVES

✅INCLUDED:

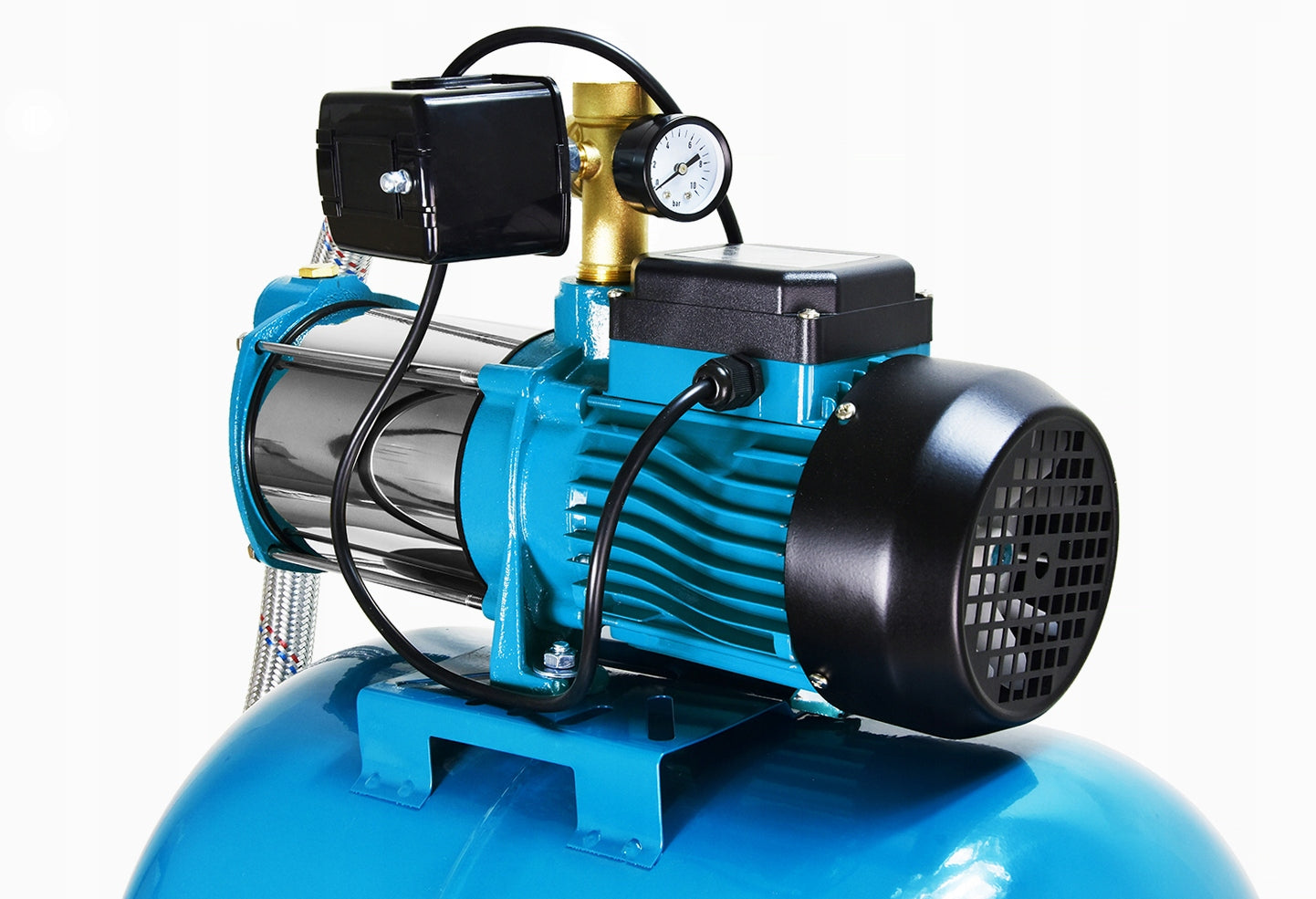

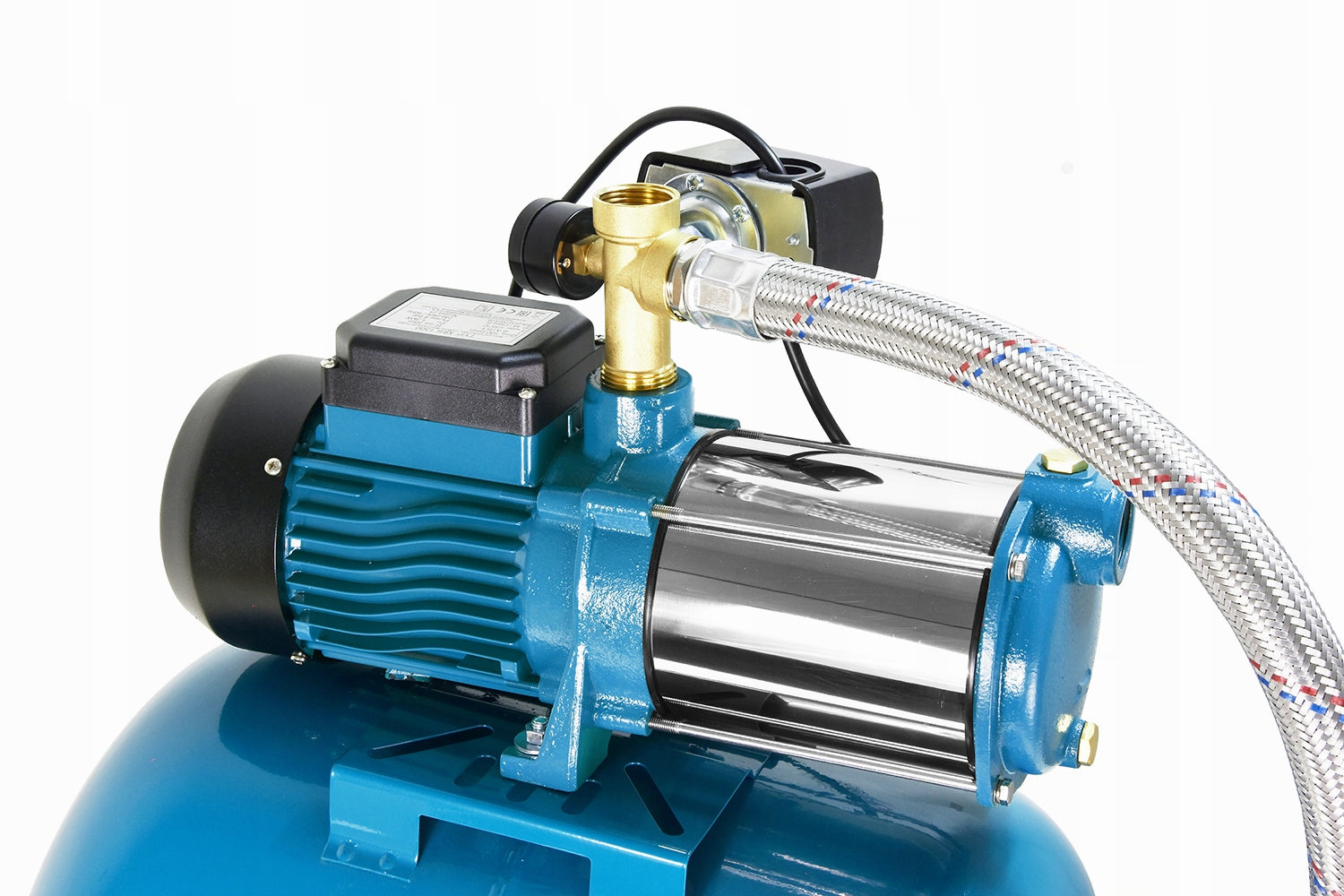

SURFACE PUMP 1300W + DIAPHRAGM TANK 100L + PRESSURE SWITCH + ANTI-VIBRATION HOSE + PRESSURE GAUGE

⭐Our pump is a unique combination of innovative technologies, durable construction and versatile application. Quiet operation and the possibility of continuous operation make it a solution that will meet even the most demanding needs of users. Discover the new efficiency standard for hydrophore pumps with our innovative kit.

⭐TECHNICAL DATA:

• Maximum capacity (l/min) 100
• Maximum lifting height (m) 55
• Maximum pressure (bar) 5,5
• Maximum suction depth (m) 8
• Voltage (V) 230
• Current (A) 7
• Rated motor power (kW) 1,3
• Suction nozzle DN25 (1")
• Piston connector DN25 (1")
• Number of rotors 5
• Height (cm) 15
• Width (cm) 19
• Length (cm) 42
• Weight (kg) 13,5

✔ The use of impressive ⭐5 rotors⭐ in the pump translates into achieving significant efficiency, meeting the most demanding expectations.

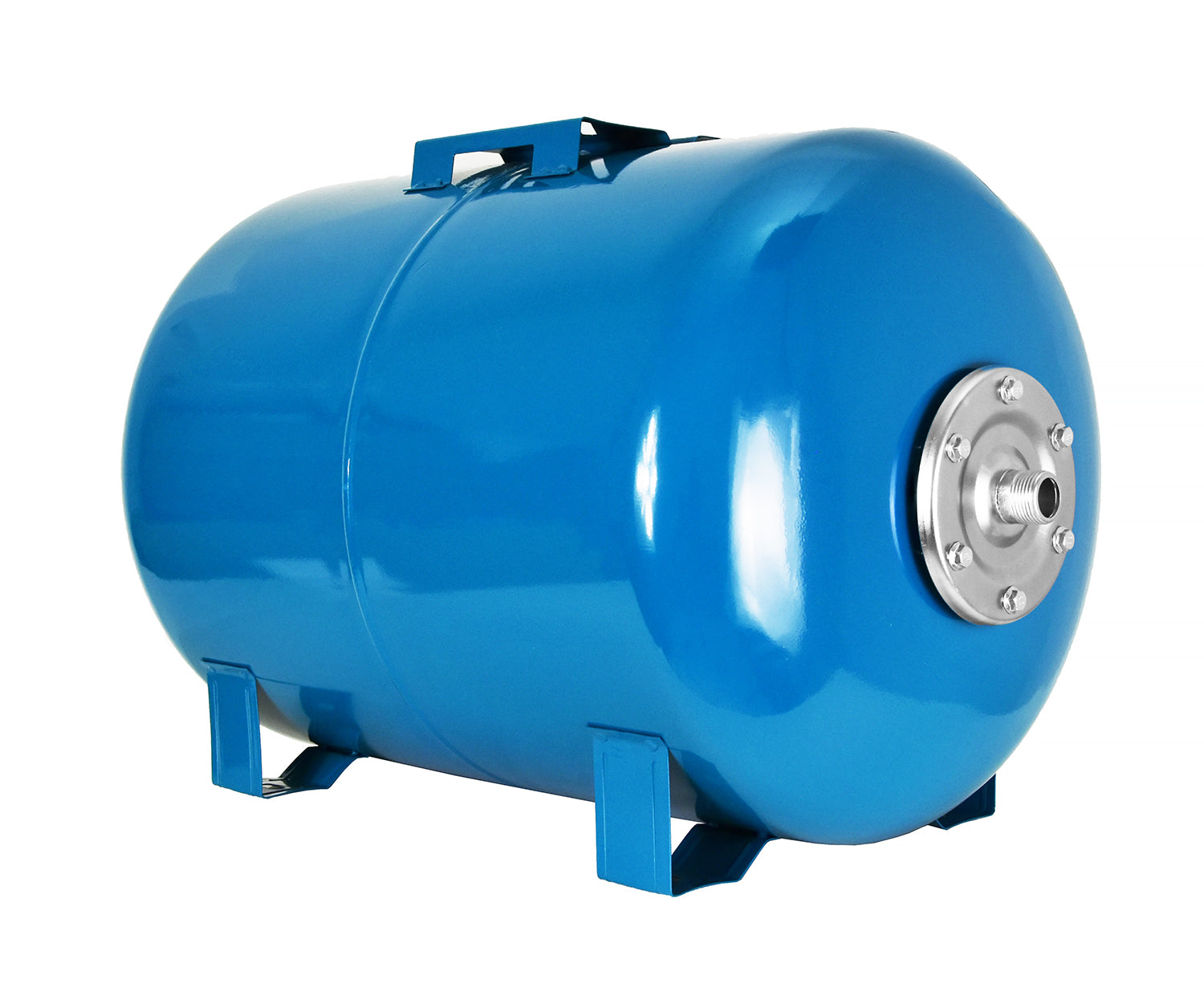

✅100L Horizontal Diaphragm Pressure Tank

Our tanks are ideally suited for a variety of plumbing systems.

The use of carbon steel combined with a corrosion-resistant coating meets the needs of consumers tired of replacing tanks every season.

Inside the tank is a rubber EPDM diaphragm.

It is important to remember that tanks, when used with a pump to create a pressure booster system, not only make operation easier but also significantly contribute to the longer lifespan of the pump, which will not have to be started at short intervals.

✅SET COMPOSITION:

• Surface pump 1300W
• Diaphragm tank 100L
• On/Off switch
• Pressure gauge
• Anti-vibration hose
• instruction in Polish
• Certificate of compliance with EU standards

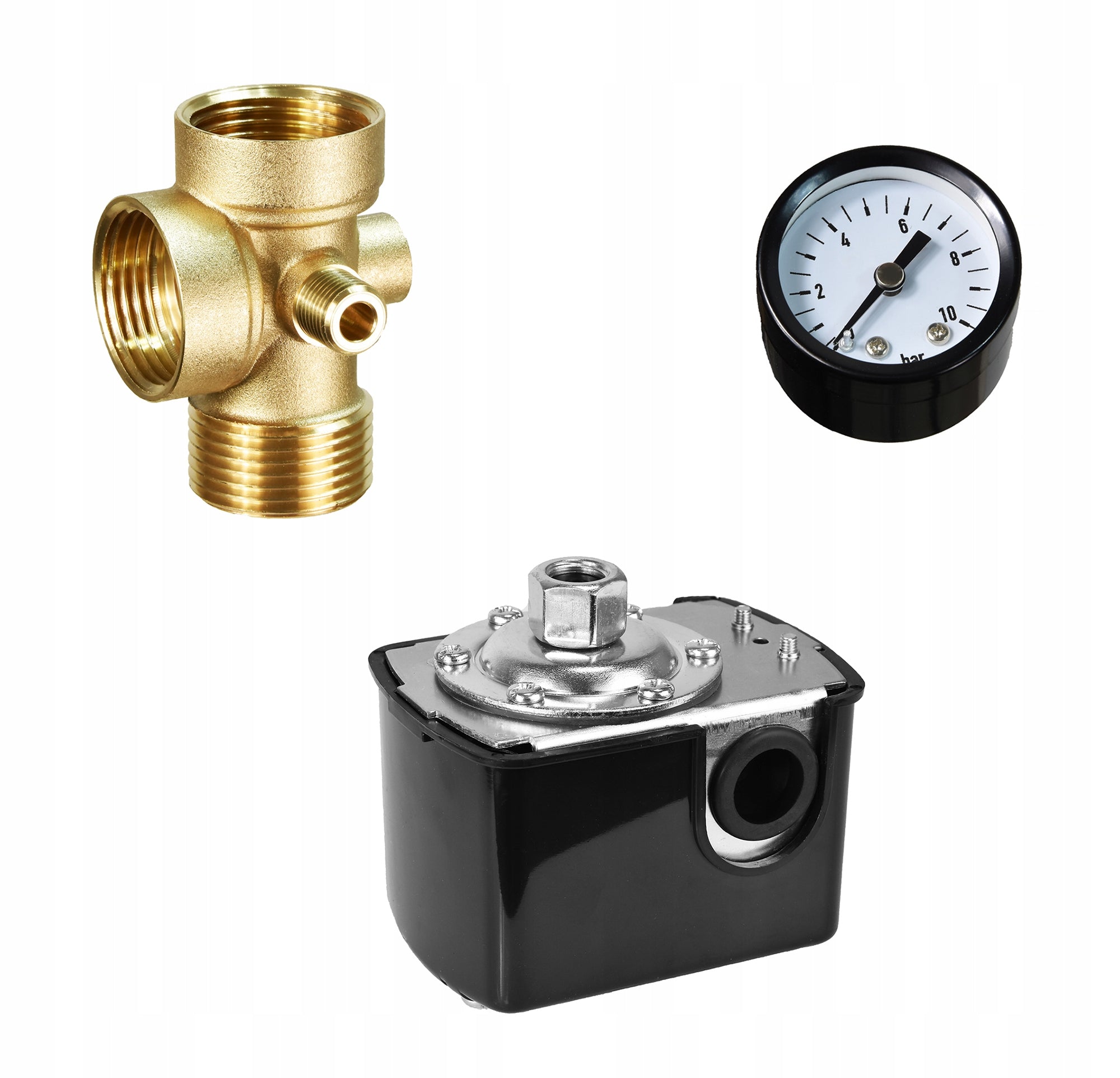

✅PRESSURE SWITCH/SWITCH

Made of solid plastic, it has copper or silver contacts.

The pressure of both switching on and off can be adjusted with the help of mounted adjustment screws.

TECHNICAL PARAMETERS:

• Pressure Range: 1,6 - 4,6
• Maximum current: 12A
• Voltage: 230/400 V
• Stub Diameter: 1/4 INCH
• Thread Type: Internal Thread

✅MANOMETER

allowing to measure the pressure in a given hydrophore set. The range in our pressure gauge is 1-10 bar while the thread has a diameter of ¼

✅ ANTI-VIBRATION HOSE WITH KNEE:

In the set we used flexible hoses made of EPDM rubber, which is also suitable for contact with drinking water. The whole wire is surrounded by a metal weave.

We finished the ends of the hose with a brass nipple, and on the other hand with a rotating elbow in which there is a gasket. This design allows the hose to work without the risk of damage at water temperature, up to 90 C!

Anti-vibration hoses are the best variant of the connection of the water circulation between the tank and the surface pump itself.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Einbach
Parametry	Pump type	hydrophore set
Parametry	Engine power	1300 W
Parametry	Hydrophore capacity	100 l
Parametry	Product weight with unit packaging	24.8 kg
Parametry	Manufacturer code	HYDROFOR MHI1300 MH1300 ZESTAW DO WODY 100L
Parametry	EAN (GTIN)	5906112620776
Parametry	Batteries included	no
Parametry	Maximum pump output	6000 l/h
Parametry	Certificates of conformity	CE,WEEE
