Hidraulinės presavimo replės SD-1632Y

Trumpai apie prekę

Prekė: Hidraulinės presavimo replės SD-1632Y. Kategorija: Gnybtų spaudikliai.

• Gamintojas: no brand
• Modelis: 62957312

Description

Mainly made of high-strength aluminum alloy, these tools are sturdy and durable. The pressing plier, pipe cutter, and expanding plier can incredibly improve your work performance, and allow you to install and repair underfloor heating pipes easily. The plastic case makes it easy to carry them to your workplace with less effort.

Key Features

Build to Last: Made of aluminum alloy, this product is corrosion-resistant and high-strength, ensuring your long-term use.

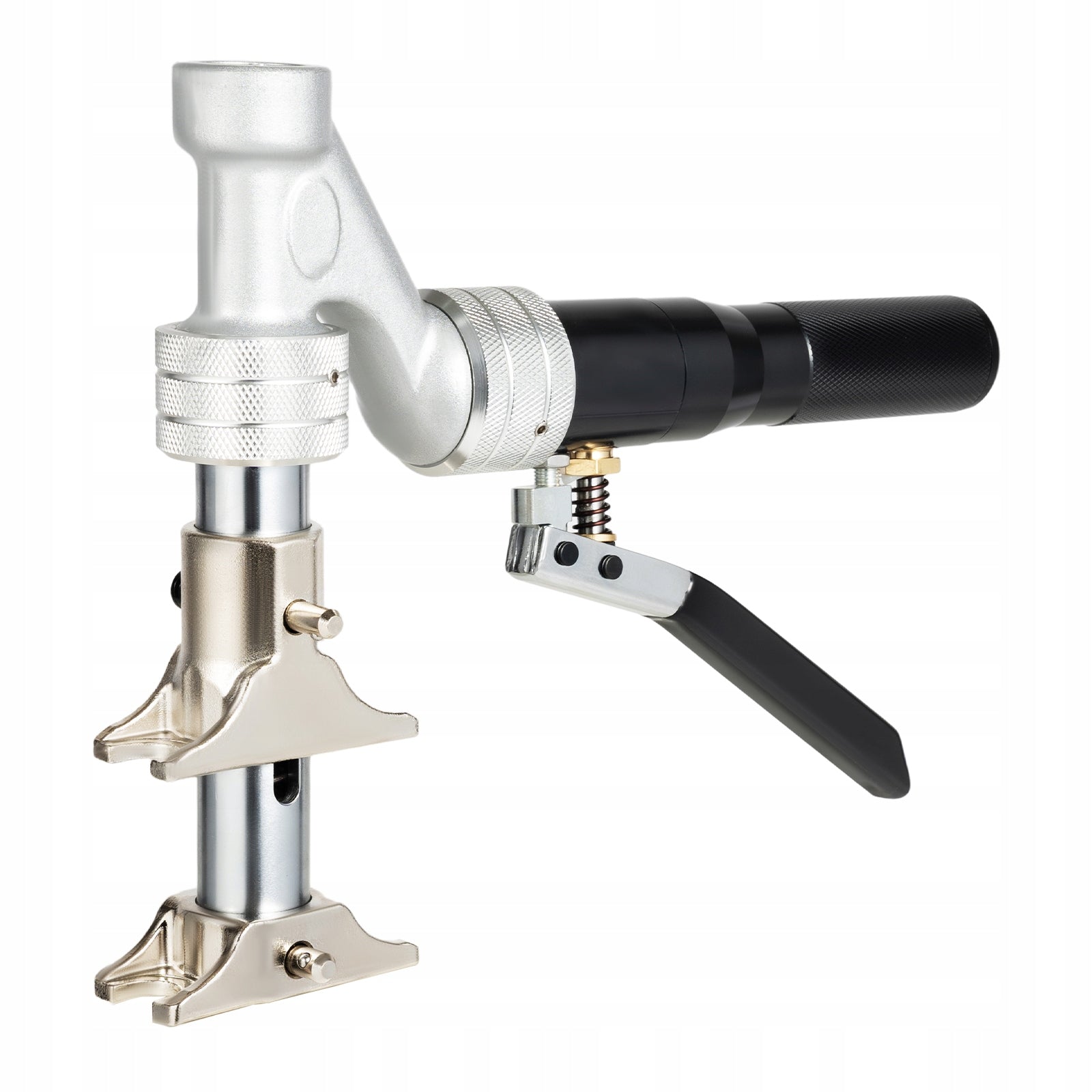

User-friendly Design: The pressing plier has a 360° rotatable head for easy access and operation, together with its compact size, making it ideal for narrow spaces.

Excellent Performance: The thickened oil cylinder and 3T pressure allow for easy crimping. The expanding pliers with 4 different sizes of molds facilitate pipe expansion and the pipe cutter can cut most PEX pipes easily.

Replaceable Expanding Heads: The expanding heads can be replaced, allowing you to choose the appropriate expanding heads(Φ 0.63", 0.78", 0.98", 1.25") according to your actual needs.

Easy to Carry: The plastic case with groove and buckle designs can store these tools orderly and safe, making it easy for you to carry them to your workplace with less effort.

Easy to Clean: The smooth surface and simple structure allow you to wipe the dust or residue with a towel after use.

Ideal Gift: This practical product will be a wonderful surprise for your family or friends whose job is to install and repair underfloor heating pipes, bringing convenience to their work.

Details

Long Handles: The ergonomic handles of the pressing plier and expanding plier have a suitable length for a comfortable grip and labor-saving operation. Moreover, the point pressure switch on the pressing plier allows for convenient operation.

Return Valve: This allows the pressure inside the hydraulic system to be released, avoiding equipment damage.

Application

This product is used to install and repair underfloor heating pipes.

How to Use

1. Cut the PEX tubing square, leaving a clean, even edge.

2. Pass a pipe through the copper ring.

3. Expand the nozzle with an expanding plier.

4. Insert the connector.

5. Use the pressing plier to push the copper ring to the specified position.

6. Till the copper ring reaches the specified position, press the oil return.

Specifications

Model: SD-1632Y

Type: Hydraulic

Grip Type: Ergonomic

Material:  Aluminum Alloy

Color: Silver, Black

Assembly Required: Yes

Pressure: 3T

Stroke: 28mm/1.1in

Pressing Plier Molds: φ16-20mm/0.63-0.78in, φ25-32mm/0.98-1.25in

Pressing Range: φ16-32mm/0.63-1.26in

Expansion Range: Φ16, 20, 25, 32mm( Φ 0.63", 0.78", 0.98", 1.25" )

Expanding Heads: Φ16*2.2, 20*2.8, 25*3.5, 32*4.4mm( Φ 0.63", 0.78", 0.98", 1.25" )

Expanding Plier Size(D*L*H): 8*12*37cm/3.15*4.72*14.57in

Pressing Plier Size(D*L*H): 3*23*27cm/1.18*9.06*10.63in

Pressing Plier Weight: 2.5kg/5.5lbs

Expanding Plier Weight: 1kg/2.2lbs

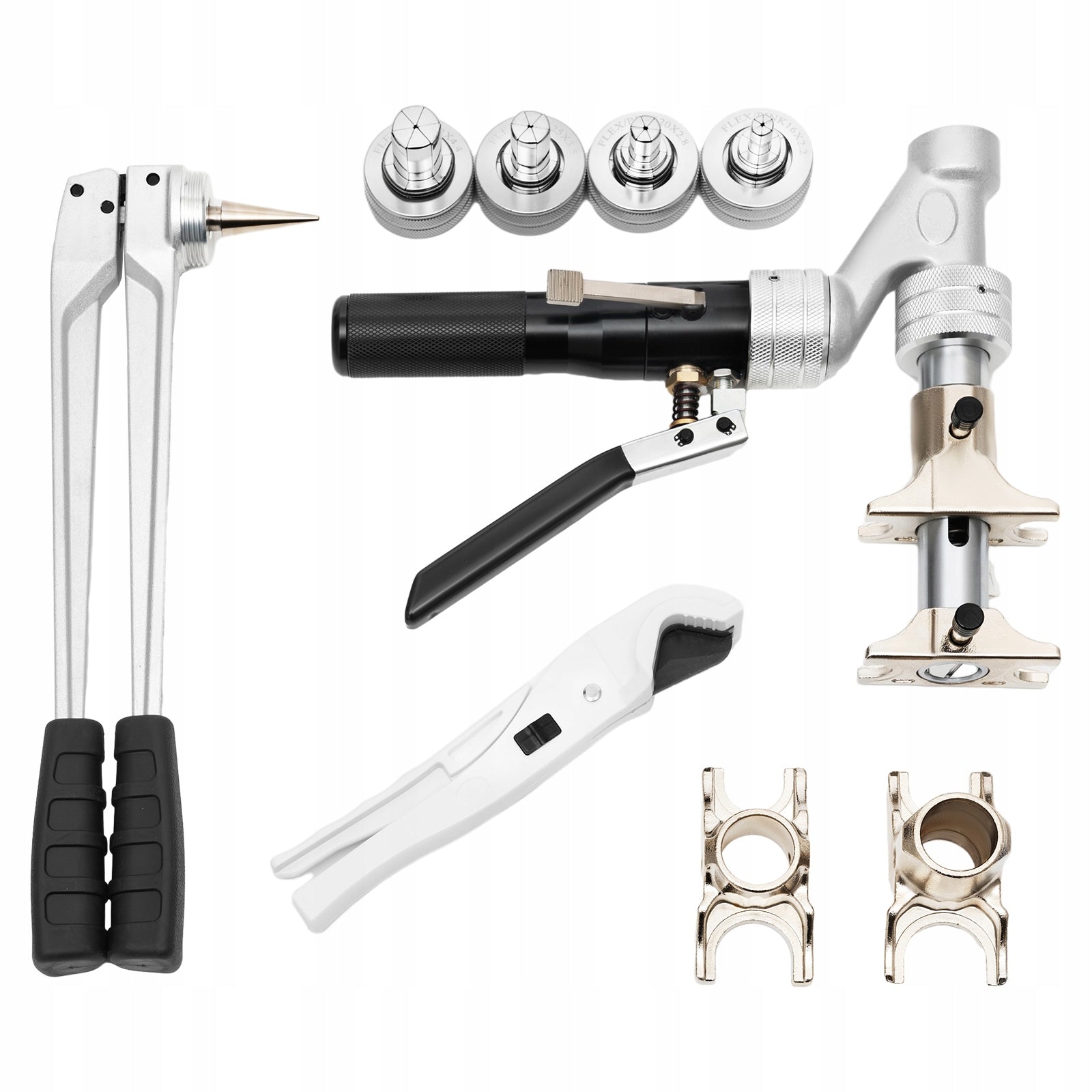

Package Included

1* Expanding Plier

1* Pressing Plier

1* Pipe Cutter

2* Pressing Forks(For 0.63" and 0.78",0.98" and 1.25")

4* Expanding Heads

1* Plastic Case

Notes

Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
