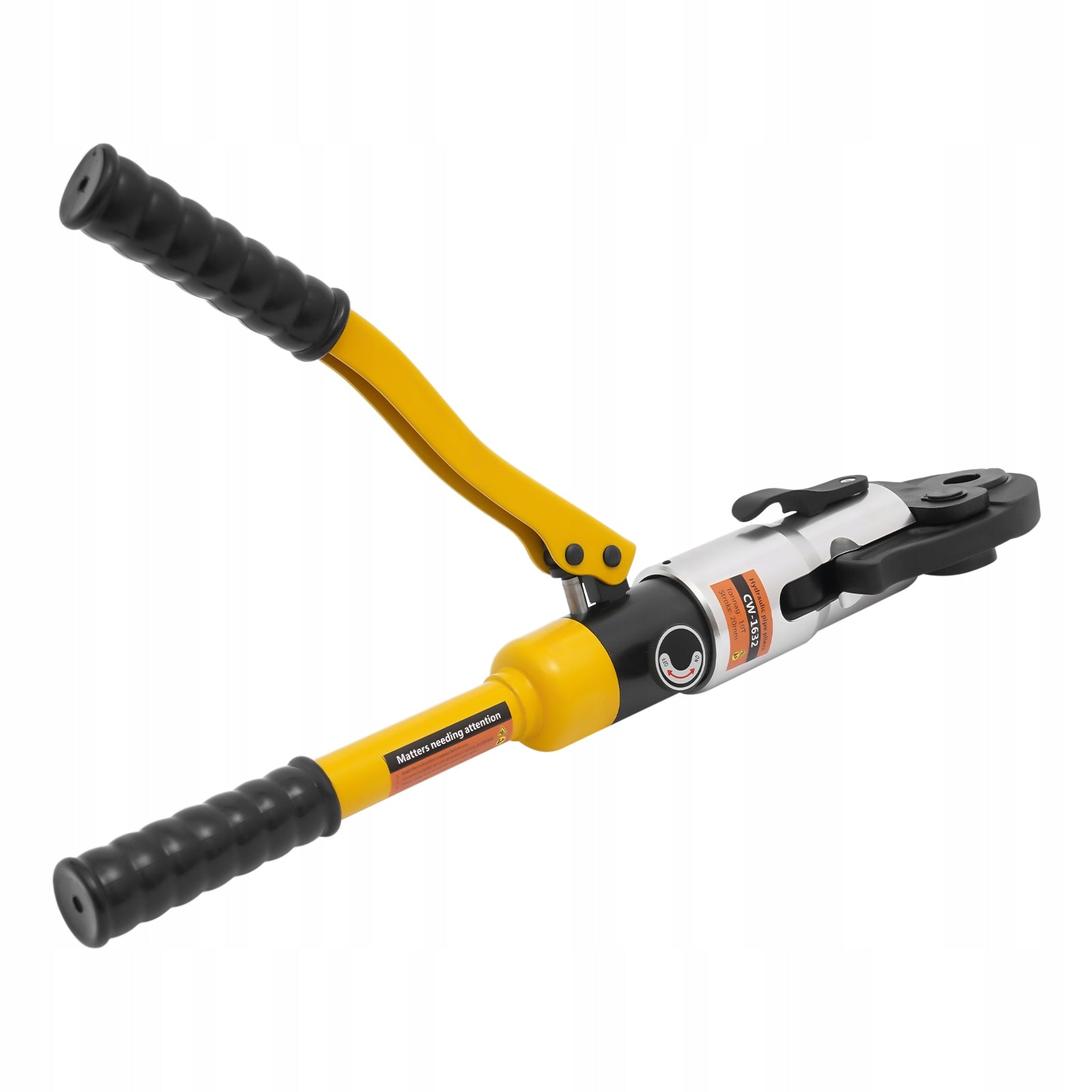

Hidraulinės presavimo replės, tinka V ir M tipo vamzdžiams 12/15/18/22/28 mm

Trumpai apie prekę

Prekė: Hidraulinės presavimo replės, tinka V ir M tipo vamzdžiams 12/15/18/22/28 mm. Kategorija: Spaudimo replės.

• Gamintojas: no brand
• Modelis: JZONN2-003300

✅Application

Depending on the type of die, it can be used for aluminum pipes, plastic pipes, PEX pipes, multilayer pipes, cable ends, bare terminals, and hexagonal crimping. It is suitable for electric power, transportation, construction, shipbuilding industry, metallurgy industry, petrochemical industry, agriculture, and other fields.

✅Specifications

• Model: CW-1632
• Material: Aluminum, Steel, Rubber
• Process: Oxidation, Blackening, Spray Molding
• Color: Yellow, Black
• Crimping Form: Hexagonal Surrounding Crimping
• Operation Type: Manual
• Maximum Output Force: 10T/22,046  lbs
• Crimping Range: Copper Pipe 12-28mm/ 0.47-1.1 in
• Crimping Die Size: V12/15/18/22/28mm+M12/15/18/22/28mm
• Stroke: 20mm/0.79in
• Gross Weight: 5.5kg/12.13 lbs
• Net Weight: 5.22kg/11.51 lbs
• Toolbox Size: 50*10*24cm/19.69*3.94*9.45in
• Package Size: 45*22*11cm/17.72*8.66*4.33 in

✅Package Included

• 1* Hydraulic Pipe Plier
• 10 Pairs* Dies(One Pair Already Installed)
• 1* Toolbox
• 1* English Manual

✅Notes

1. Please read the manual and product labels carefully before using the product and pay special attention to the safety matters therein.

2. Please note that this product does not have a safety valve, so constant pressure will result in overpressure.

3. Please do not use the tool without dies.

4. Please do not crimp on live cables or conductors.

5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

✅Details

Ergonomic Handle: The non-slip rubber handle provides a comfortable and easy grip.

Hexagonal Crimping: It makes the crimping easier and tighter without falling off, achieving the ideal crimping effect.

Pressure Relief Switch: It allows you to release pressure after crimping, ensuring safety and reliability.

✅Key Features

Built to Last: It is made of high-class aluminum, steel, and rubber, and adopts oxidation, blackening, and spray molding processes, which is sturdy, not easy to deform, wear-resistant, impact-resistant, and has a long service life.

Multi-size Dies: It has 10 pairs of dies of different sizes (V12/15/18/22/28mm+M12/15/18/22/28mm), and you can choose the right crimping dies for different pipes to meet different requirements.

Great Sealing Performance: The sealing ring as well as the anti-leakage plunger can seal the cylinder well and reduce the occurrence of oil leakage.

Powerful Function: It has a crimping force of 22,046 lbs to securely clamp and crimp items to hold them in place without falling off. The 360° rotatable head allows you to easily deal with different crimping angles.

Thoughtful Design: It is ergonomically designed, utilizes the principle of leverage, and has a high resilience spring, so it can save your effort and is easy to operate.

Easy to Maintain: With a simple structure and smooth surface, you can easily wipe away surface stains using a rag (not included).

Convenient to Carry & Store: Its compact size and lightweight (11.51 lbs) with a portable toolbox makes it easy to carry and store without taking up too much space. In addition, the toolbox with slots allows you to change dies and use the product at any time.
