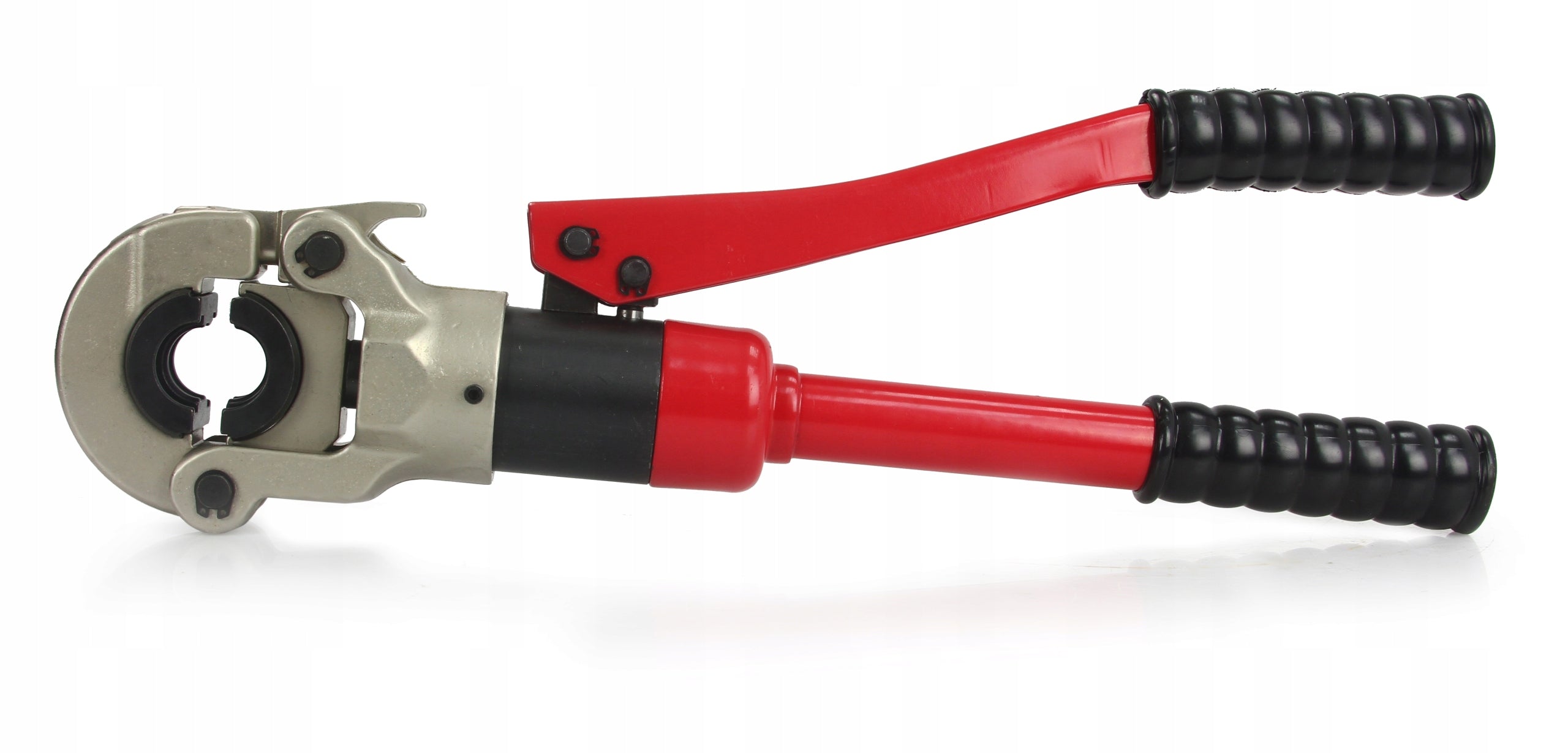

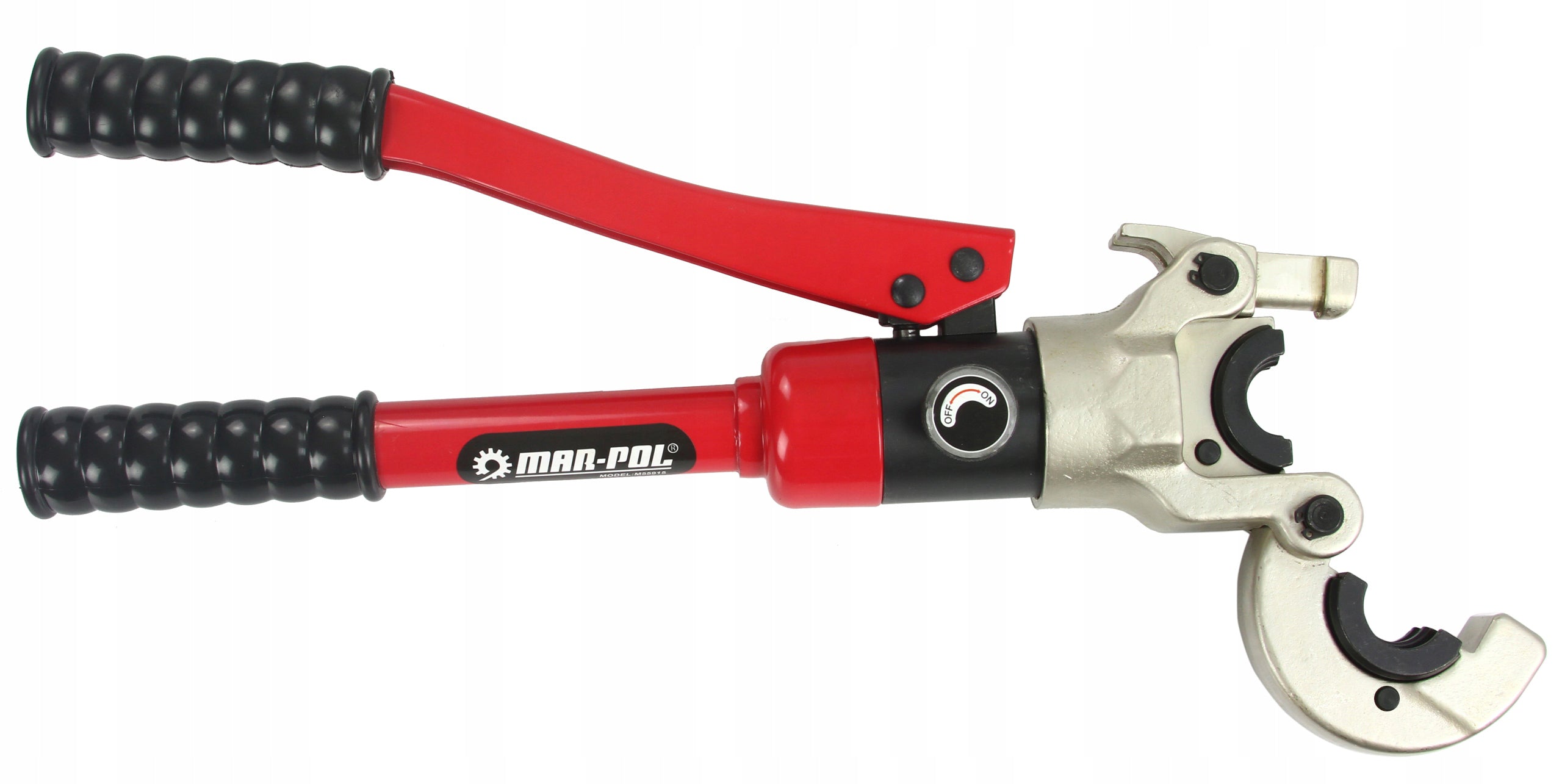

Hidraulinis presavimo įrankis PEX vamzdžiams, V+U+TH 15–32 mm antgaliai, su dėklu

Trumpai apie prekę

Prekė: Hidraulinis presavimo įrankis PEX vamzdžiams, V+U+TH 15–32 mm antgaliai, su dėklu. Kategorija: Gnybtų spaudikliai.

• Gamintojas: Mar-Pol
• Modelis: M55915
• Svoris: 3.3 kg

☑ Rotary head - facilitates work in hard-to-reach places

☑ U, V, TH matrix sets

☑ High-precision connection of PEX pipes and tubes

☑ All packed in a sturdy suitcase

☑ U head sizes: 16, 20, 25, 32mm, V: 15, 18, 22, 28mm, TH: 16, 20, 26, 32mm

PROFESSIONAL crimping machine used for PEX U V TH connections using press connectors. Crimping dies fit most commonly used systems. The crimping machine is characterized by high quality and repeatability of crimped connections. The presses are equipped with a rotating and opening clamping head with a fast matrix change system which allows for precise work even in hard-to-reach places. The crimper uses a hydraulic cylinder with clamp force up to 12 tons, which allows for precision and tight clamp of the fitting.

• Hydraulic cylinder 12T
• Piston stroke 17 mm
• Mechanical lower jaw lock
• Mechanical upper jaw lock
• Interchangeable jaws 16-32 mm
• Profiles: U, V, TH

☑ Hydraulic crimping machine has a 360° rotating head

Openable rotating head with a rotation of up to 360°. It will make it easier and more efficient to work even in hard-to-reach places.

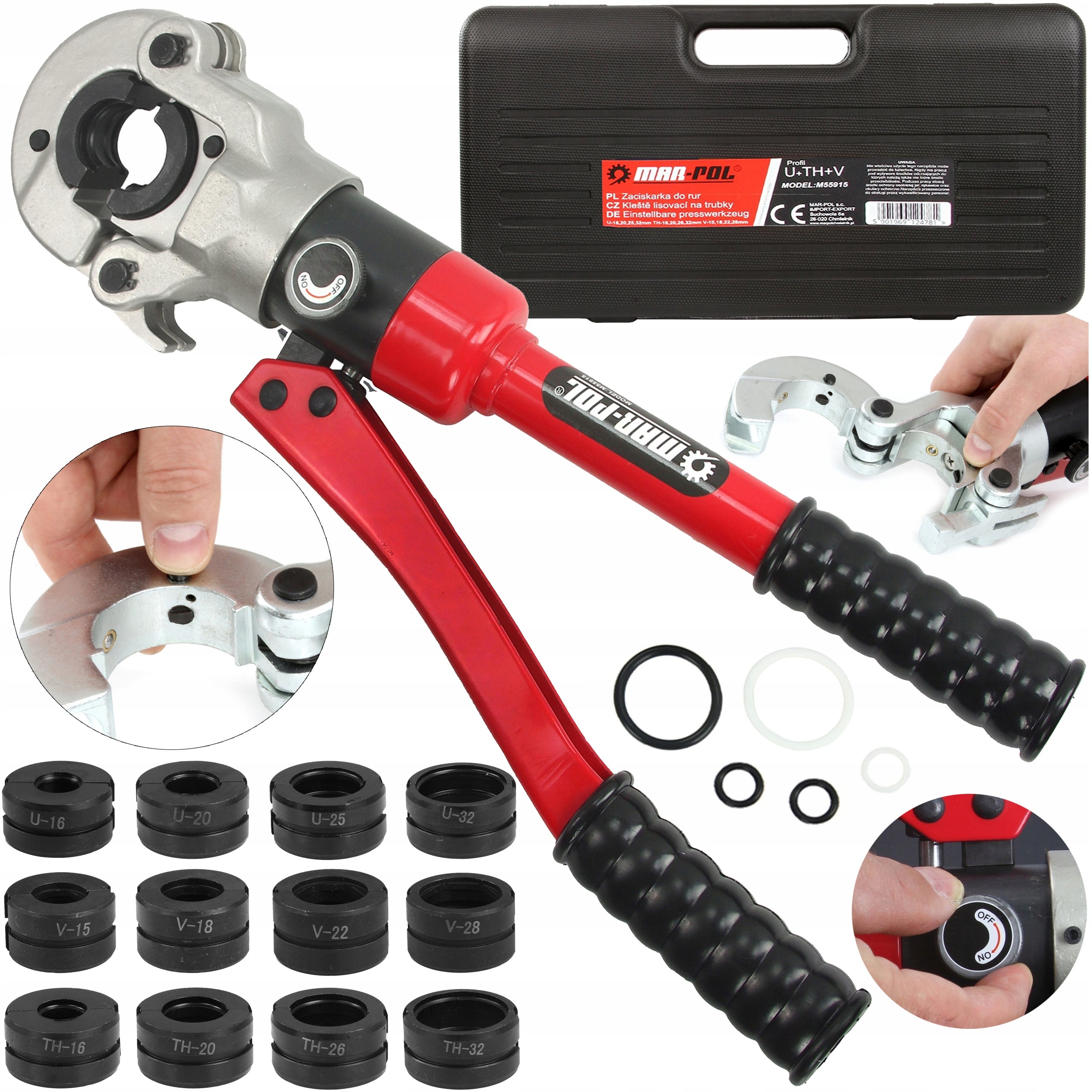

Composition of the set:

• Handy plastic packaging.
• Hydraulic clamp
• Fittings included:
• TH16, TH20, TH26, TH32
• U16, U20, U25, U32
• V15, V18, V22, V28

Technology of connecting pipes with quick-connectors leads to a reduction in the cost of installation. Connections are made in a much shorter time than using traditional technologies such as soldering, welding or gluing.

🟠The head has two mechanical locks of the upper and lower jaw, which guarantees a strong grip on the profiles.
