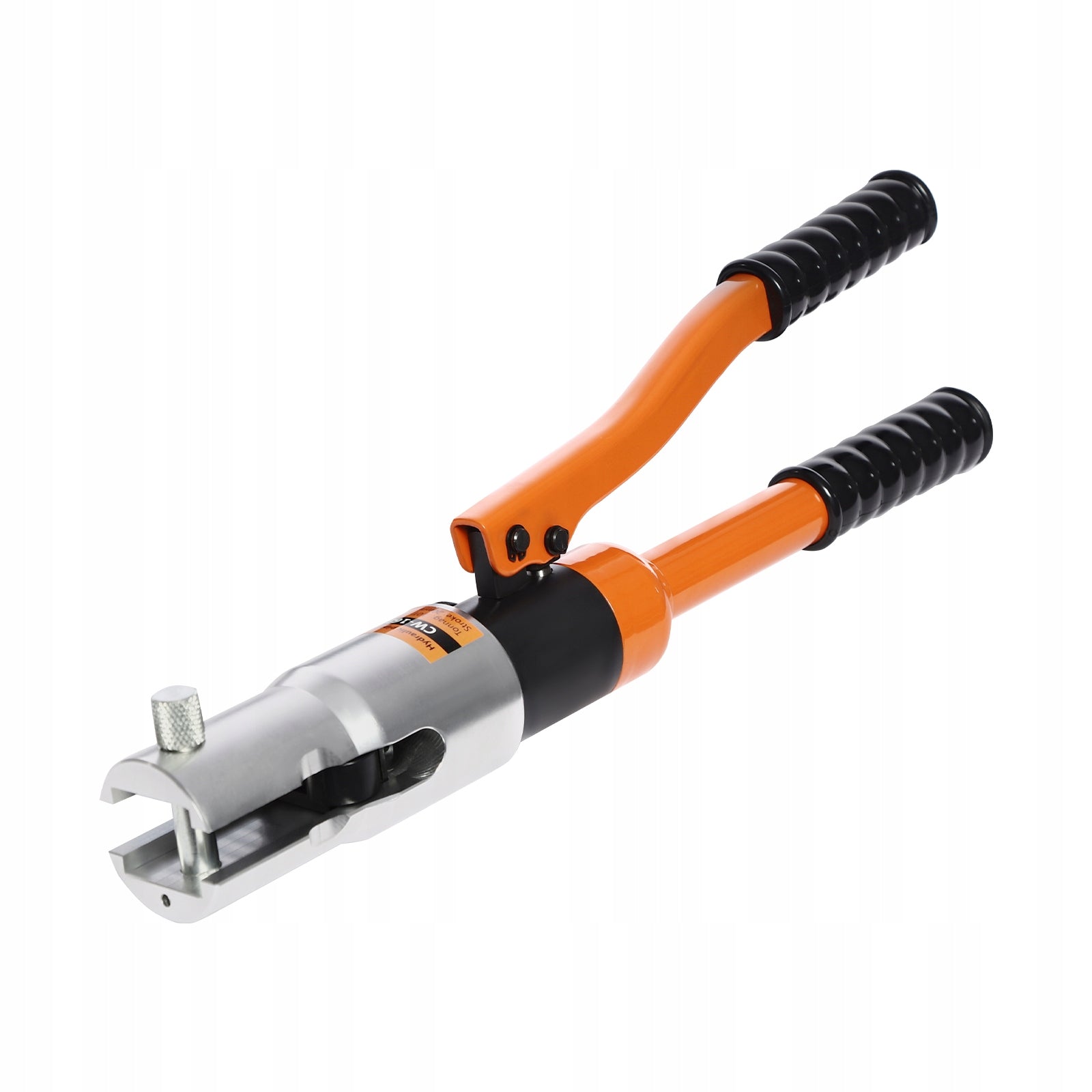

Hidraulinis presavimo įrankių rinkinys 10T, CW-1632 su M12/15/18/22/28 formomis

Trumpai apie prekę

Prekė: Hidraulinis presavimo įrankių rinkinys 10T, CW-1632 su M12/15/18/22/28 formomis. Kategorija: Gnybtų spaudikliai.

• Gamintojas: no brand
• Modelis: 4069749079797
• Svoris: 5 kg

Description

Are you still searching for professional crimping pliers that deliver efficiency and reduce physical strain? Discover a tool designed to handle most pipes with ease. Built from high-hardness materials and shaped through precise craftsmanship, it offers lasting robustness. Multiple mold specifications are included to suit a range of crimping requirements—making it a reliable companion for your work.

Details

Ergonomic Wave-shaped Handle: The insulated handle features a wave-shaped design that ensures a secure, comfortable hold while reducing hand fatigue.

Safety Pressure-Release Switch: Designed to enhance safety and reliability during post-crimping pressure release, it supports smooth and controlled use.

Locating Pin: It can be easily removed for mold replacement. Moreover, it prevents the loaded molds from falling off.

Application

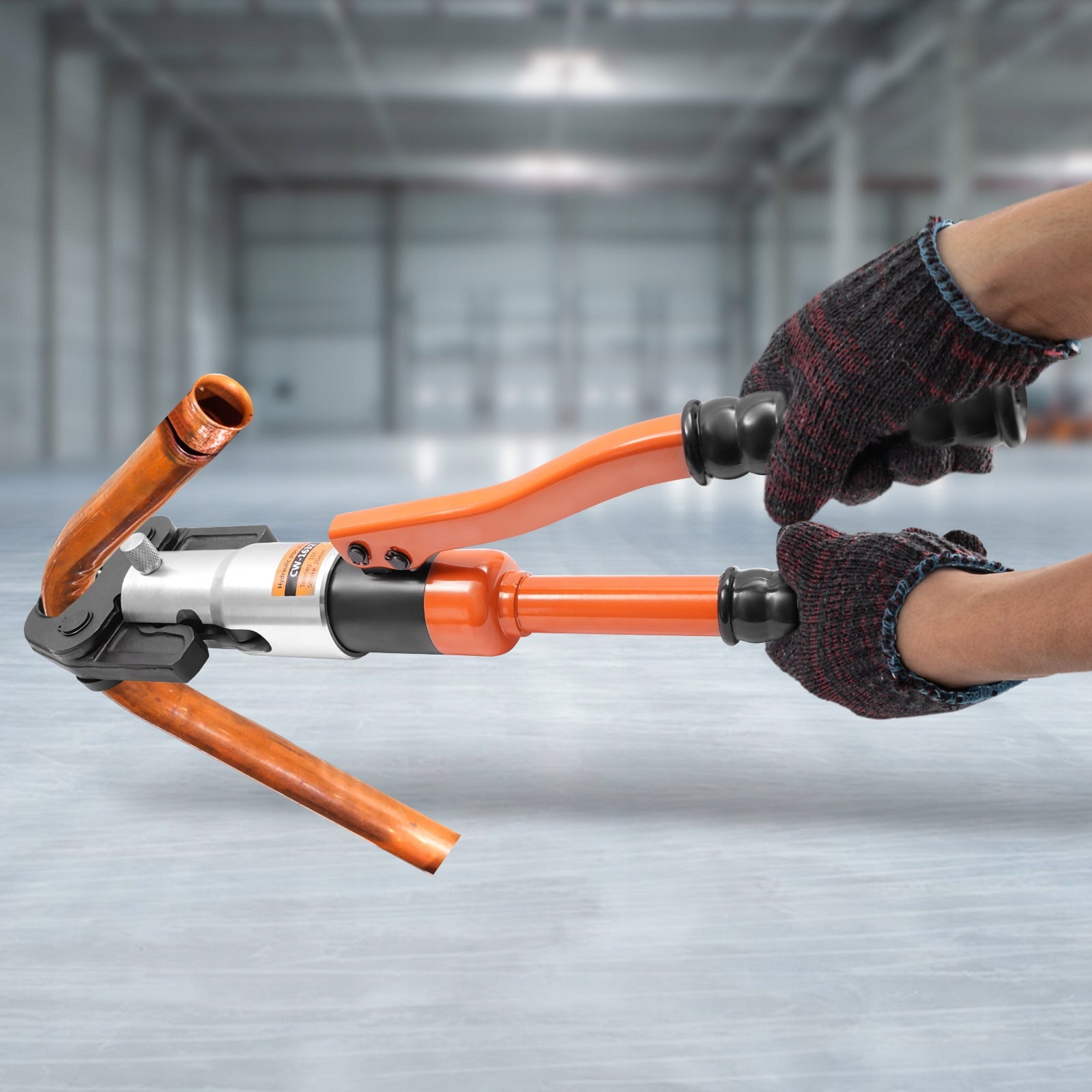

It can be used to crimp copper pipes. It is widely used in the fields of electric power, communication, transportation, petroleum, chemical industry, mining, metallurgy, shipbuilding, and so on.

How to Use

1. Check that the specifications of the mold and the pipe are matched.

2. Select the matching mold.

3. Load the mold.

4. Turn the oil return switch clockwise and crank the handle repeatedly.

5. When the upper and lower molds touch one place, crimping is complete.

6. Then loosen the oil return switch.

Key Features

Engineered for Endurance: The high-class Cr40 steel cylinder, aluminum plier head, and 42Crmo molds undergo oxidizing, quenching, and blackening processes to endure abrasion and rust, delivering lasting performance.

Practical Functionality: With a hydraulic design, this product delivers up to 10T of crimping force, reducing the effort needed for use. Interchangeable molds(M12, M15, M18, M22, M28 ) offer flexibility to suit a range of applications.

Thoughtfully Engineered: Featuring a head secured with a small screw, the pliers offer 360° rotational flexibility for adaptable positioning. During use, the pliers securely grip and crimp items with reliable stability.

High Portability: The toolbox features a built-in handle and a compact, lightweight design (11.02 lbs), offering easy storage and portability to the job sites while keeping tools organized and protected.

Outstanding Sealing Performance: The sealing ring and anti-leakage plunger can seal the cylinder well and reduce the occurrence of oil leakage.

Easy to Use: It is ergonomically designed, utilizing the principle of leverage and a high rebound spring for effortless handling.

Simple Maintenance: It has a smooth surface and simple structure, so you can wipe the surface clean of stains with a damp rag.

Ideal Gift: Thanks to its practicality and cost-effectiveness, you can give it as a Christmas, Thanksgiving, or housewarming gift to your worker friends or hobby DIY friends.

Customer Service: We aim to provide quality products and services. We will reply and solve the problem for you as soon as possible.

Specification

Color: Orange

Grip Type: Ergonomic

Model: CW-1632

Stroke: 20mm/0.79in

Material: Aluminum, Cr40 Steel, 42Crmo

Process: Oxidized, Quenched, and Blackened Treatment

Maximum Crimping Force: 10T/100KN

M Molds Specifications: M12, M15, M18, M22, M28

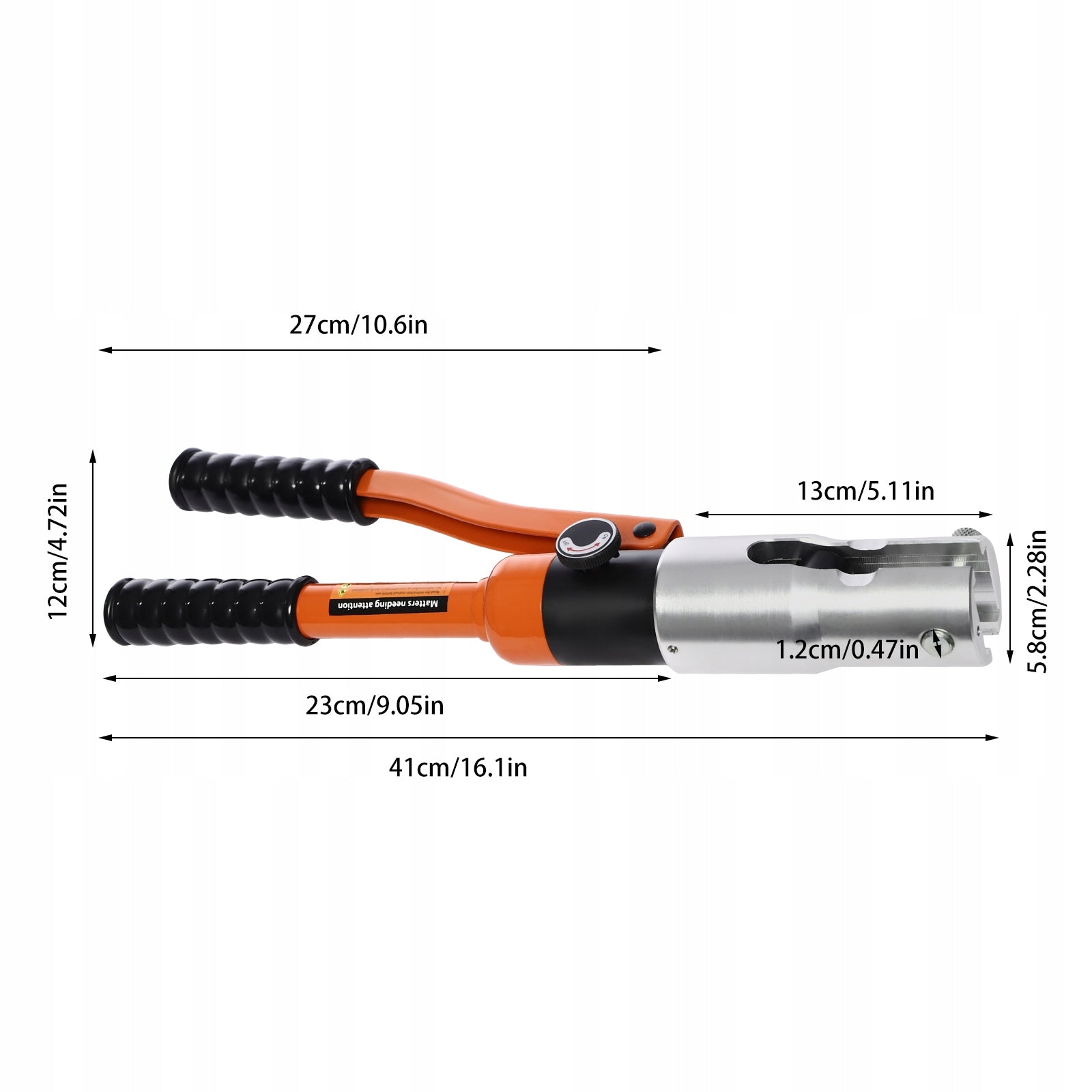

Hole Diameter: 12mm/0.47in

Tong Head Max. Width: 58mm/2.28in

Tong Head Length: 13cm/5.12 in

Handle Closed Opening: 12cm/4.72in

Handle Length: 23cm/9.06in, 27cm/10.63in

Overall Length: 41cm/16.14in

Package Size: 45*22*11cm/17.72*8.66*4.33in

Gross Weight: 5.5kg/12.13 lbs

Net Weight: 5kg/11.02 lbs

Package Included

1* Crimping Pliers

1* Butterfly Mold

5* M Molds

1* Toolbox

1* English Instruction

Notes

1. Please check the product specification before purchasing.

2. Please read the English instruction manual carefully and the product label before use and pay special attention to the safety matters therein.

3. It is strictly prohibited to use the tool without a mold. Please use the correct size mold, and do not put your fingers into the mold during use.

4. Please do not crimp energized cables or wires.

5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
