Hidraulinis vamzdžių presas PEX, 12 antgalių (TH, U, V, 15–32 mm)

Trumpai apie prekę

Prekė: Hidraulinis vamzdžių presas PEX, 12 antgalių (TH, U, V, 15–32 mm). Kategorija: Gnybtų spaudikliai.

• Gamintojas: JDS
• Modelis: 62001.00
• Svoris: 3.5 kg

⚡Professional PEX Pipe Hydraulic Crimper Strength 10 Ton

⚡Complete set with 12 dies (V + U + TH) in a sturdy case

✅Take care of the highest precision and durability of your installations. Hydraulic clamp by JDS is a professional tool with a pressure force of 10 tons, designed for professional installers who value their time and reliability of equipment.

It is a versatile tool for the PEX-AL-PEX (alupex installation) system and an ideal hydraulic press for underfloor heating, water installations and central heating installations, which guarantees tightness of each connection.

Ergonomic non-slip handles are comfortable and safe to use, even with longer work.

This solid pipe crimper, equipped with universal replaceable 15 mm - 32 mm dies and reinforced 360° head, makes the work faster, lighter and completely failure-free.

⭐Why is our crimper the best choice for professional and DIYer?

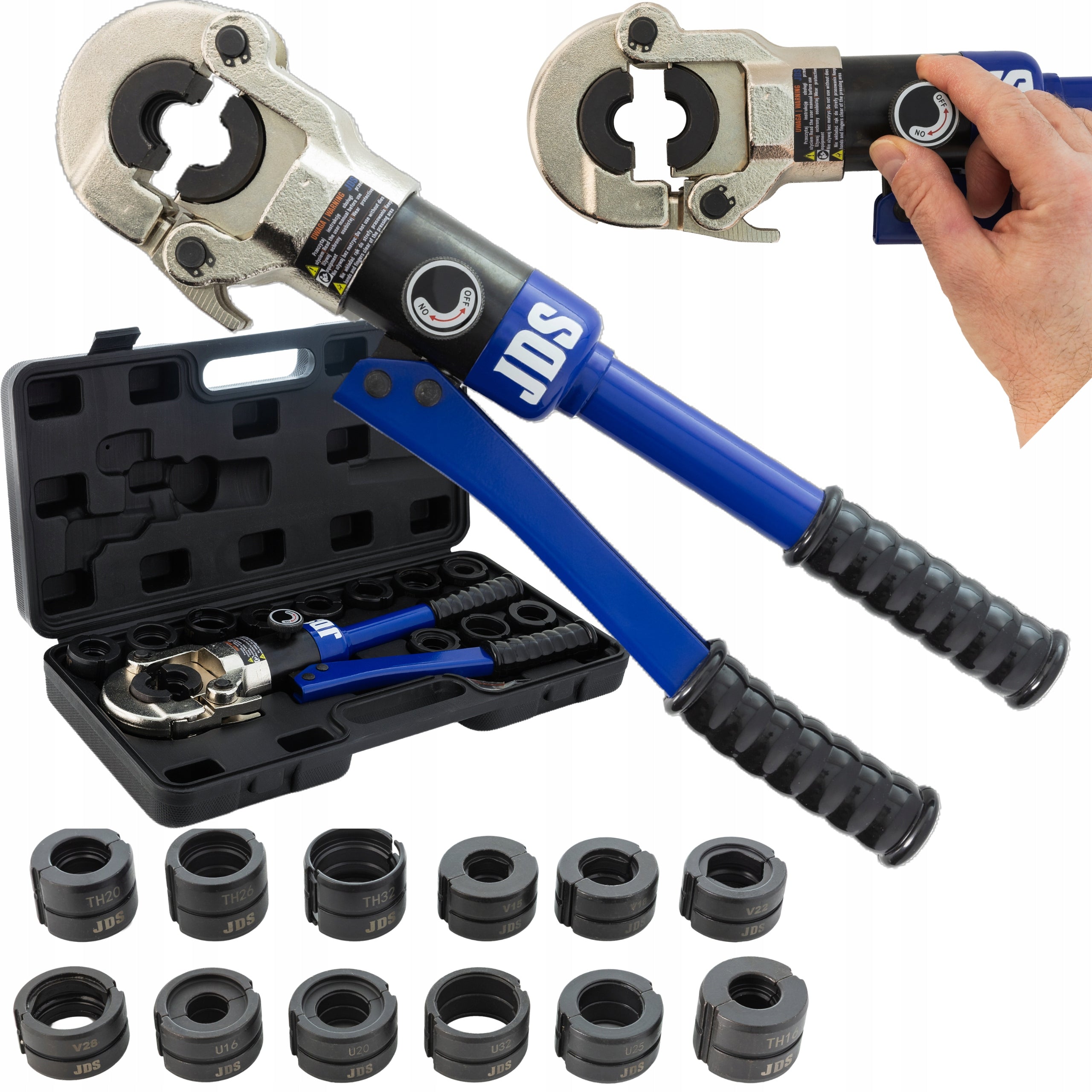

One set for all clamping systems: TH, U and V

✅Unlike standard crimpers, the JDS crimper offers full versatility. The set includes as many as 12 universal interchangeable dies, which allow you to work with almost any pipe system available on the market.

• Matrix type V stones (4 pcs. ): 15mm, 18mm, 22mm, 28mm – ideal for copper, stainless steel and carbon.
• Dies U-stones (4 pcs. ): 16mm, 20mm, 25mm, 32mm – dedicated to multilayer pipes: PEX-AL-PEX PE-RT/AL/PE-RT.
• Th stones (4 pcs. ): 16mm, 20mm, 26mm, 32mm – for specialized heating and sanitary systems.

Innovative 360° head – Quick Die Replacement

✅360° rotating head: Allows you to freely maneuver the tool in tight checkers, corners and hard-to-reach places.

✅Snap mechanism (Quick coupler): Forget about the cumbersome unscrewing of screws. You can replace the matrix with one move, which significantly speeds up the work cycle on the construction site.

✅Tidal shape: Modern head design increases resistance to operation and mechanical damage.

PEX pipe clamp technical data

• Brand: JDS
• Model: 62001.00
• Maximum pressure: 10 Ton (100 kN)
• Head: Rotating 360°, tilting
• Hydraulic actuator: Yes, with overload valve
• Scope Crimping fittings: 15 mm – 32 mm
• Material: Hardened steel
• Tool length: approx. 37 cm
• Weight of the set: approx. 6.5 kg (with suitcase)
• Handles: Non-slip, ergonomic for a secure grip.
• Die types included: TH (16, 20, 26, 32); U (16, 20, 25, 32); V (15, 18, 22, 28)

Operating Instructions – Simplicity and Security

✅The operation of the device is intuitive and does not require much physical strength:

1. Choose a matrix that matches the connector and slide it into the head (snap system).

2. Secure both halves of the matrix.

3. Set the actuator switch to "ON".

4. Pump the handle until you feel full resistance and the joint is completely ironed.

5. Set the knob to "OFF" to undo the plunger and release the finished connection.

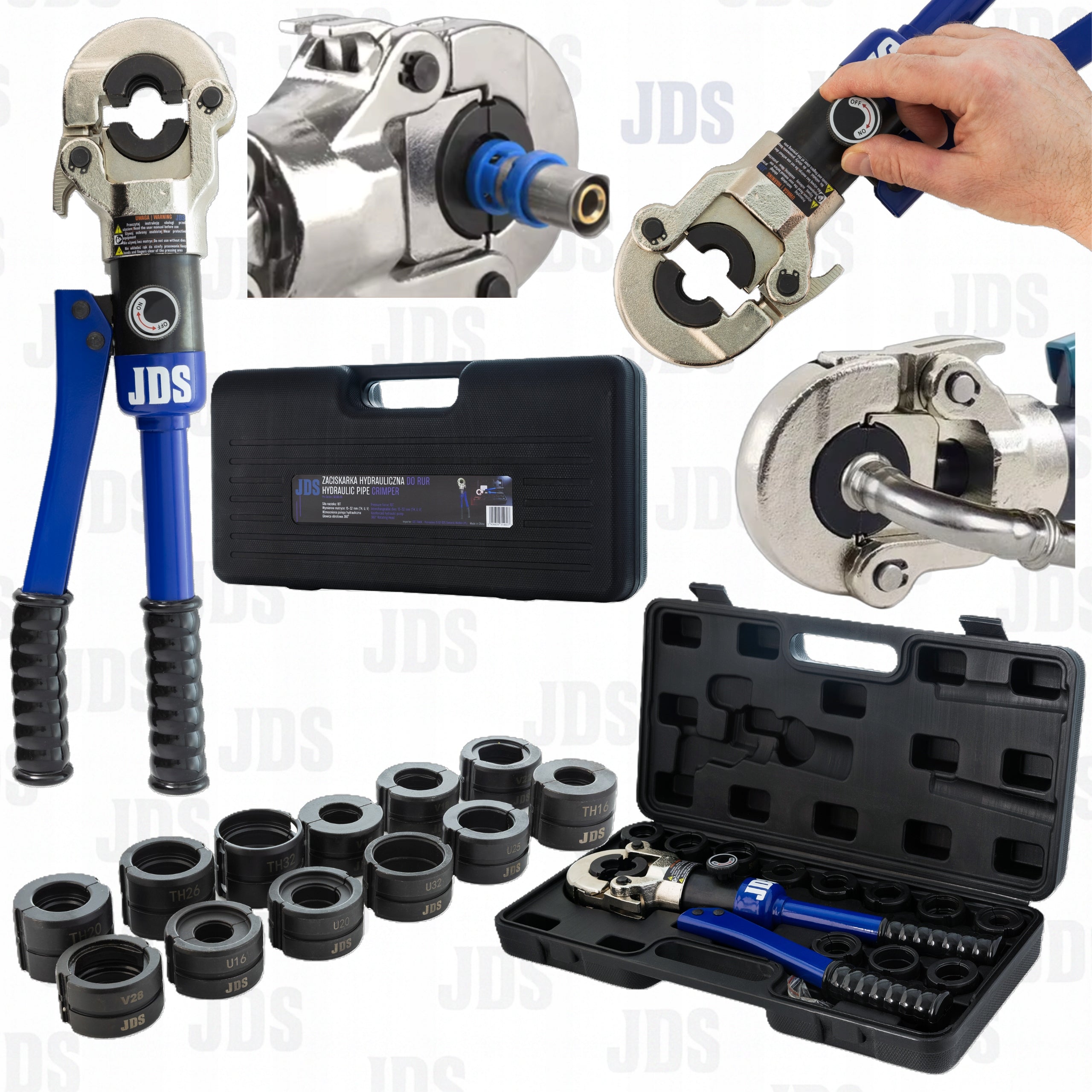

All in one place – a solid suitcase

✅The whole set – crimper and a set of 12 dies – fits in a durable plastic transport case. Thanks to this, your tools are always ordered, protected from dust and ready for immediate transport on the next order.

Bet on JDS Quality and Work Without Failure

✅Join the group of satisfied installers who have trusted the JDS brand. Use Allegro Smart delivery to receive your kit with free shipping even tomorrow. Each device undergoes rigorous quality control before shipping, giving you confidence that your first crimp pipe will be just as tight as the hundredth.
