Hidroforas 24 l, siurblys 1100 W, 3600 l/val.

Trumpai apie prekę

Prekė: Hidroforas 24 l, siurblys 1100 W, 3600 l/val.. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: BG-INVEST
• Modelis: BG-K0001-24M

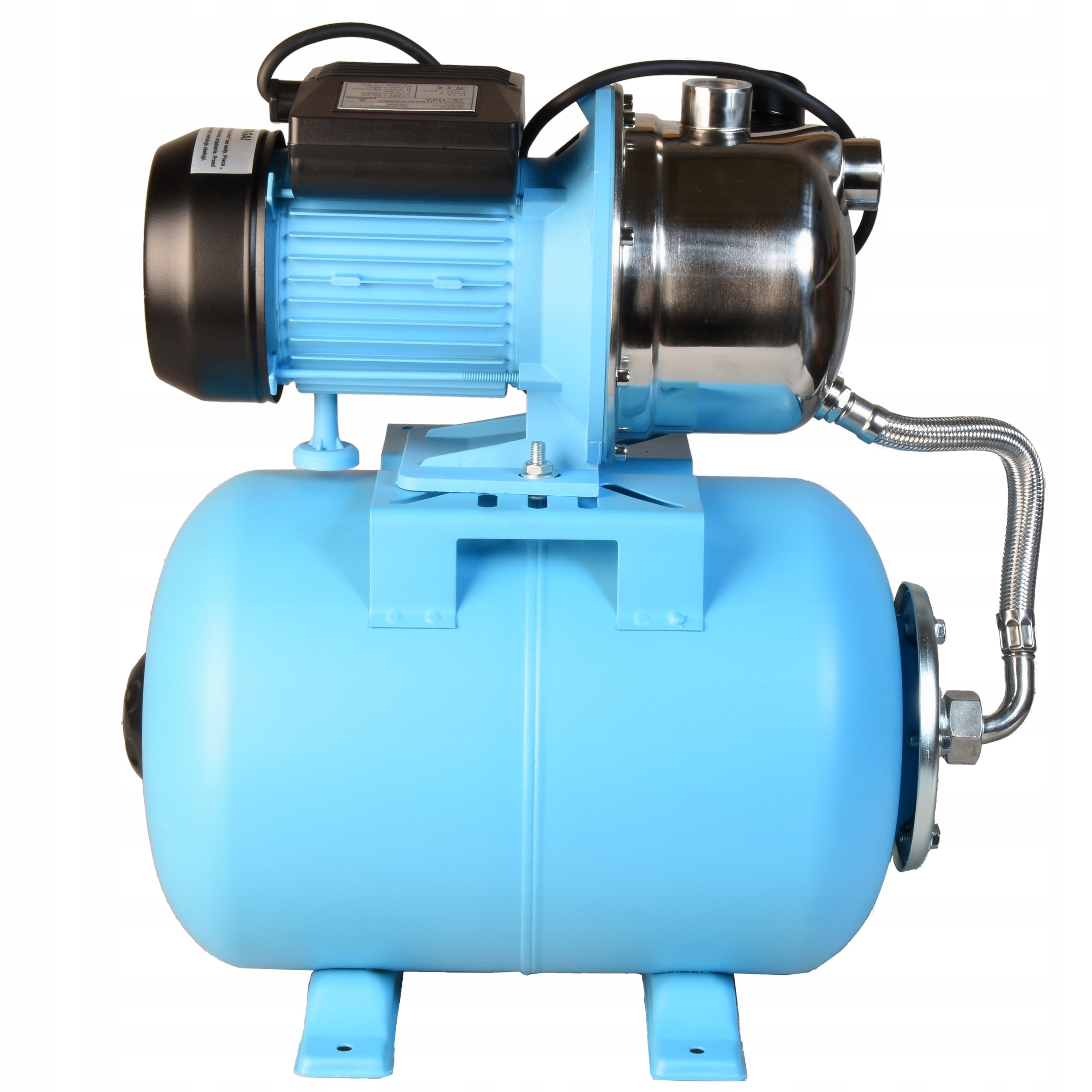

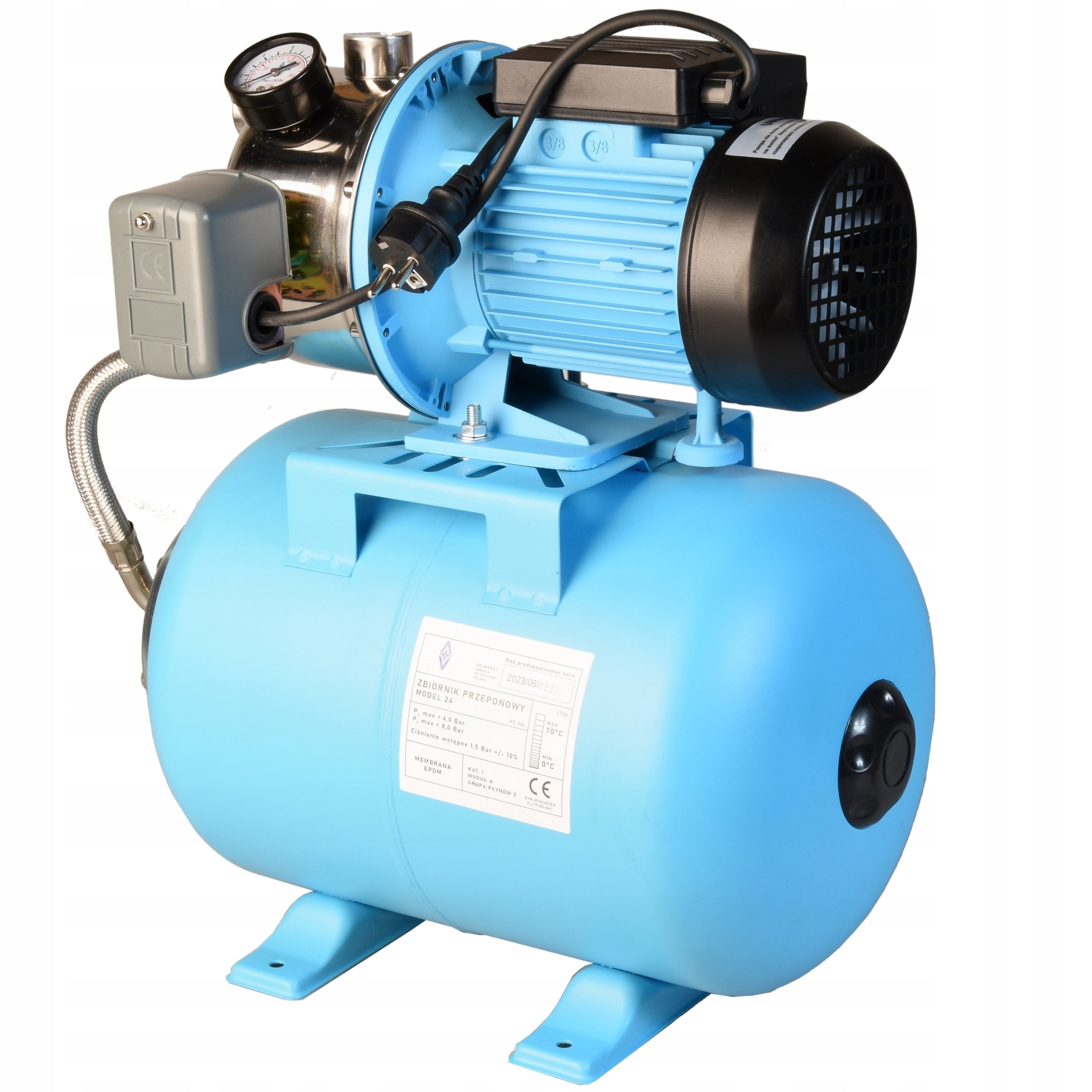

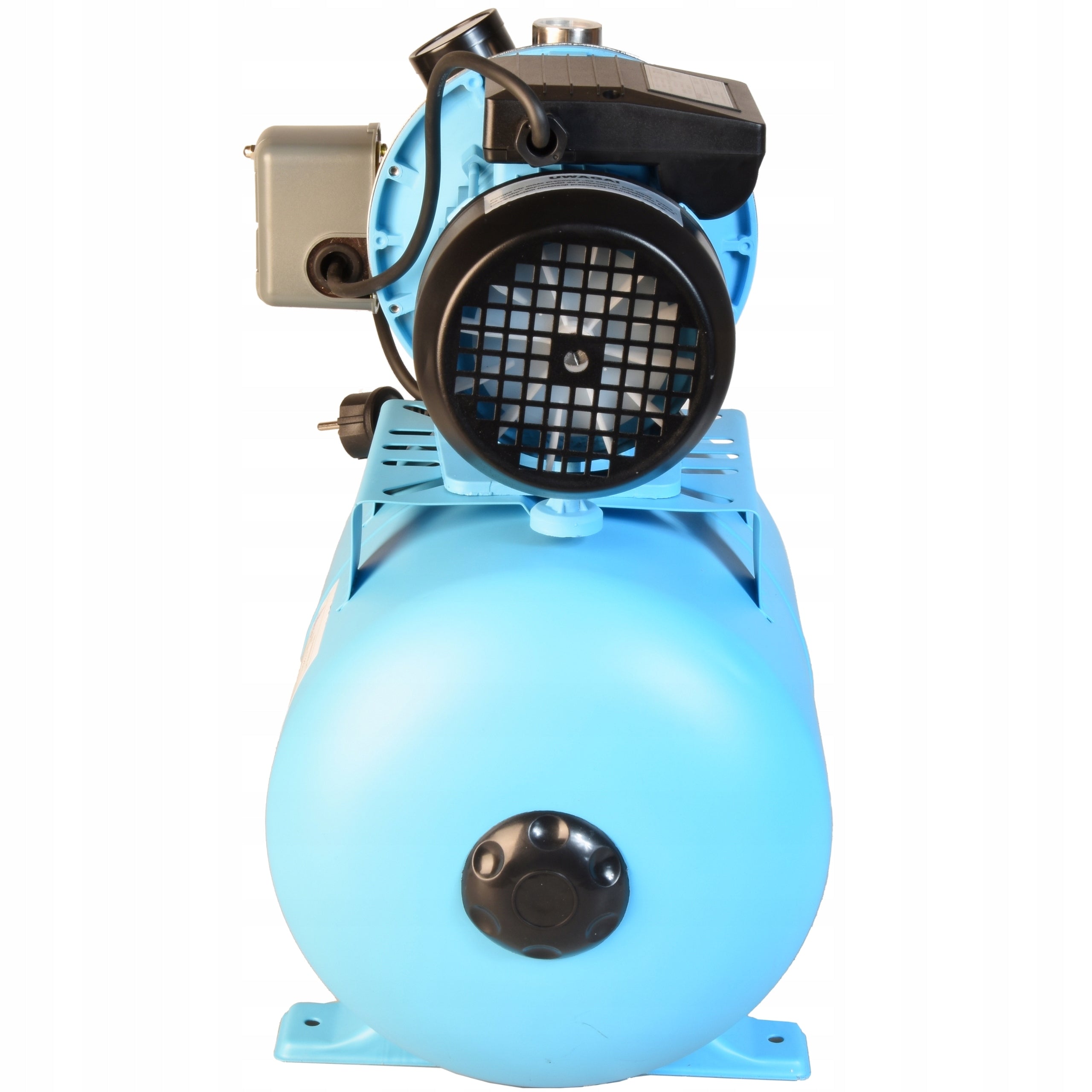

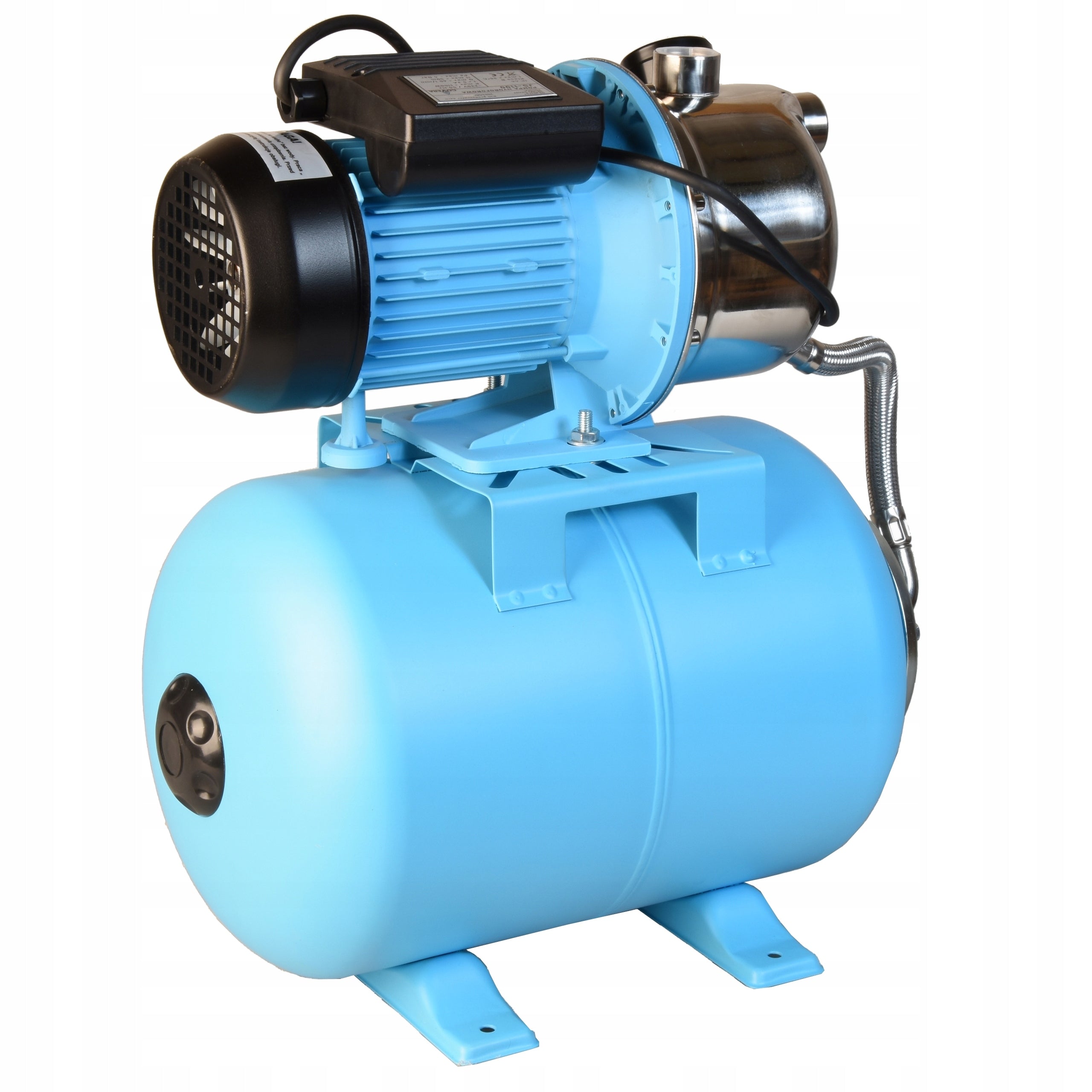

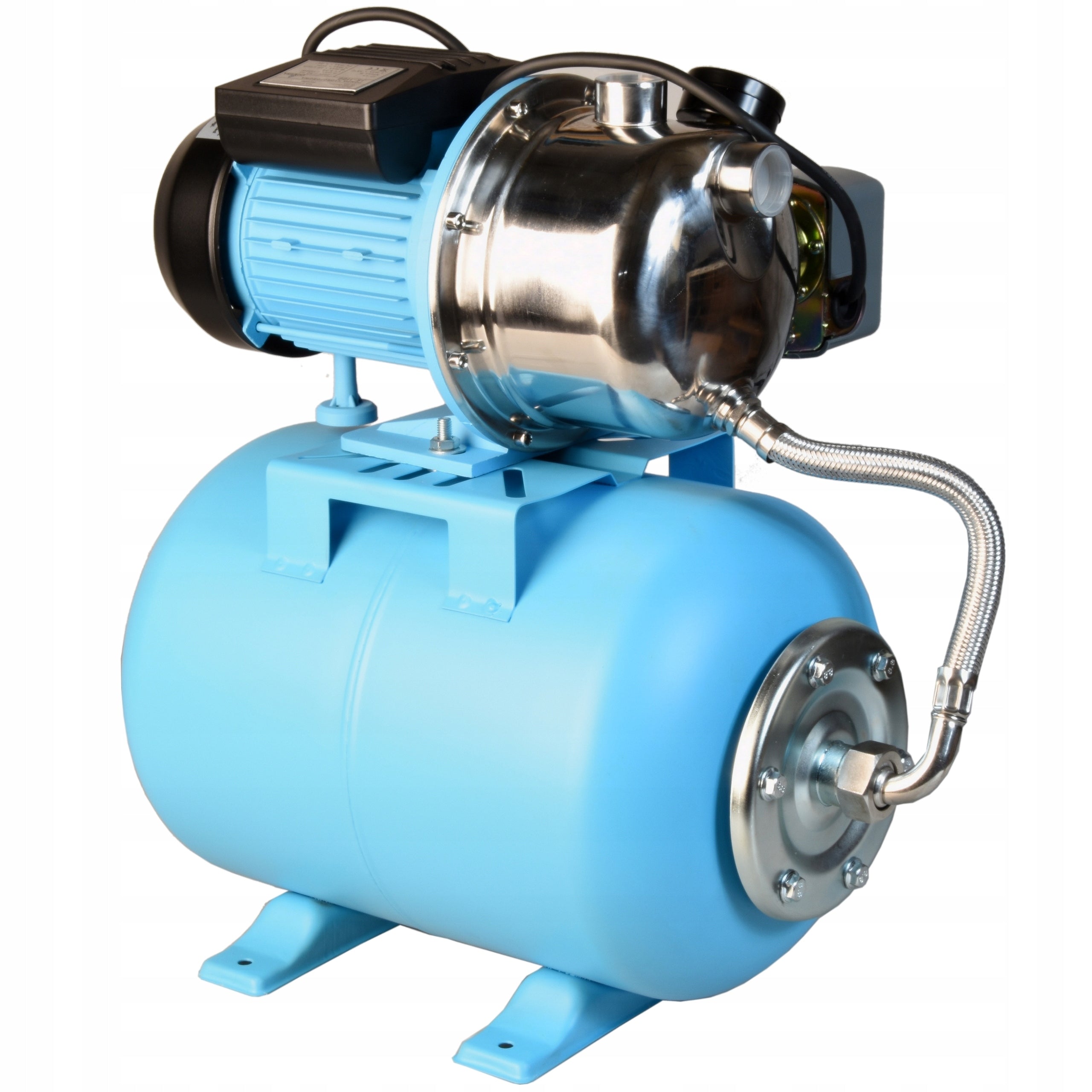

✅ HYDROPHORE SET 24L

Hydrophore pump with accessories in the body + hose + tank 24L

➡ Tank capacity: 24 L

➡ Pump capacity: 3600 l/h

➡ Maximum pressure: 5 bar

⚡ Pump power: 1100 W ⚡

➡️ 24L Hydrophore Set with a pump and accessories mounted in the body, featuring a **maximum flow rate of 60 L/min** and a **head of up to 50 m**. It is ideal for supplying **residential buildings**, **utility buildings**, **plots of land**, or for **irrigation systems**.

➡️The 24L Hydrophore is equipped with a 24-liter tank that **stores water** and maintains pressure in the water system, ensuring a **constant and trouble-free water supply** for use.

➡ The JX 1100 hydrophore pump is a device used to supply houses, farms, irrigation of the garden or small enterprises in water.

➡ Thanks to its efficiency and reliability, the pump is able to handle even the most demanding tasks. An additional advantage is quiet operation and small weight pump.

➡ The device generates significant pressure (up to 5 bar), which translates into a long stream of water, e.g. with a garden hose, which is helpful for garden work or washing the vehicle.

➡ The pump is characterized by high quality and ease of use, providing irreplaceable support in everyday needs related to access to clean water.

➡ The horizontal hydrophore tank with a capacity of 24l was constructed from durable carbon steel, covered with anti-corrosion varnish, which significantly extends its durability.

➡ Inside the tank there is a rubber diaphragm made of EPDM material. It acts as a membrane, isolating air from the water in the tank. Thanks to this barrier, the tank has no direct contact with water, which contributes to its slower consumption and no corrosion.

➡ The tank has legs that allow stable positioning or fixing on the wall, which can be additionally secured with rubber pads.

➡ The hydrophore tank operates on the principle of air compression. The water is filled into the tank, where there is an increase in pressure, and the air in the tank is compressed.

➡ Max capacity (l/min): 60

➡ Max capacity (m3/h): 3,6

➡ Lifting height (m): 50

➡ Suction capacity (m): 8

➡ Engine power (W): 1100

➡ Engine power (kW): 1,1

➡ Power supply (V): 230

➡ Stub Size(inches): 1 x 1

➡ Diaphragm tank: 24L

➡ Type of tank: diaphragm

➡ Tank orientation: horizontal

➡ Maximum water temperature: 35°C

➡ Maximum ambient temperature: 40°C

➡ Insulation class: B

➡ Operating mode: continuous

➡ Degree of protection: IP 44

➡ Engine speed: 2850 rpm

➡ Pressure switch - automatically deactivates the device when the pressure reaches a set value, factory is set in the range of about 1,7 bar to 3 bar with the possibility of additional adjustment

➡ Pressure gauge - is designed to measure pressure in the installation

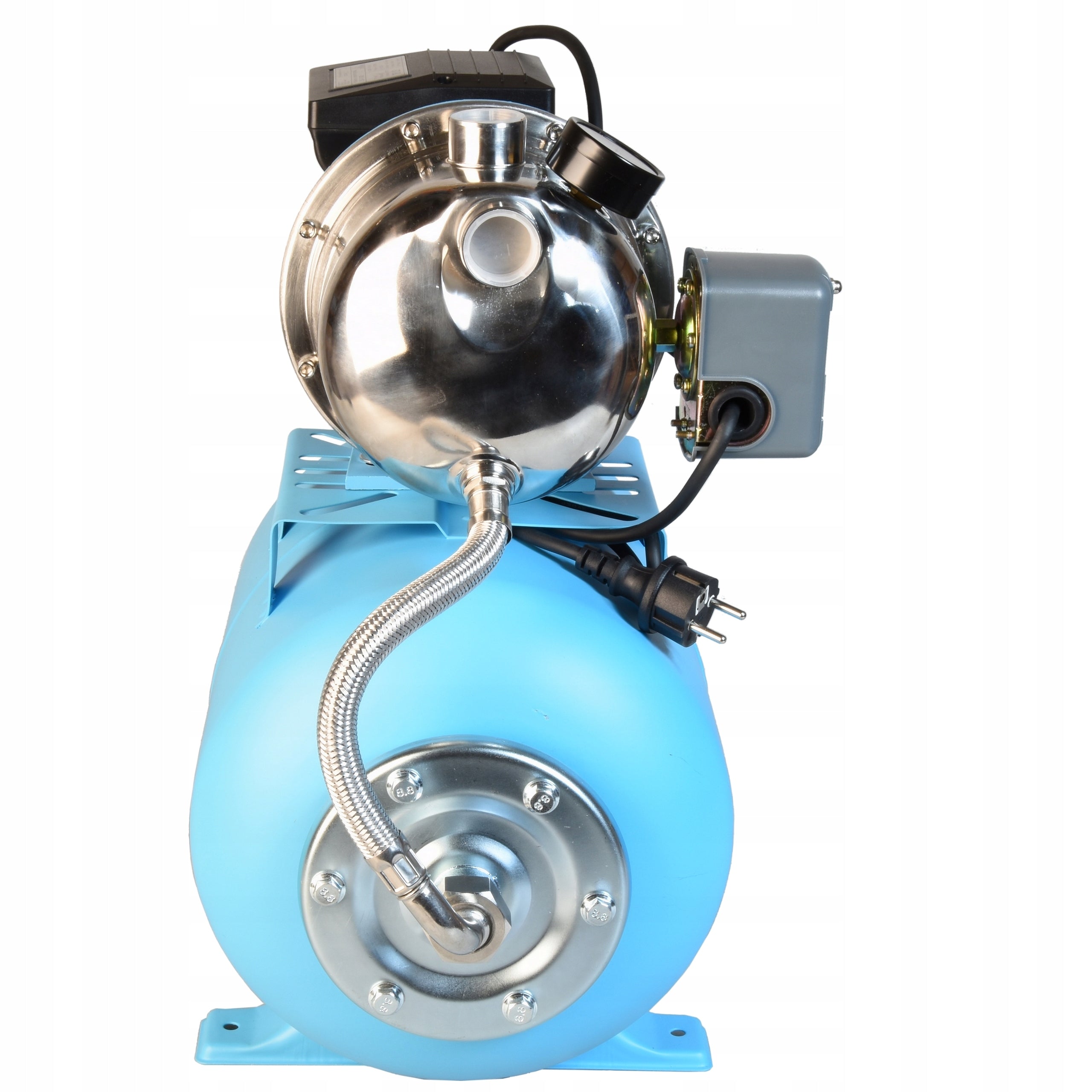

➡ Anti-vibration hose - connects the pump to the tank, is easy and quick to install, which reduces time and costs

➡ Thanks to the possibility of connecting the hydrophore equipment into the pump body (one of the options), we save at a height the whole set which in many cases can be a huge advantage and facilitation in assembly.

➡ Of course, such mounting of accessories is not mandatory. The fixture can also be installed on a water system, e.g. on a discharge pipe that goes to the mouth of the water. Such installation is possible using appropriate hydraulic components according to individual needs.

✅ JX 1100 hydrophore pump

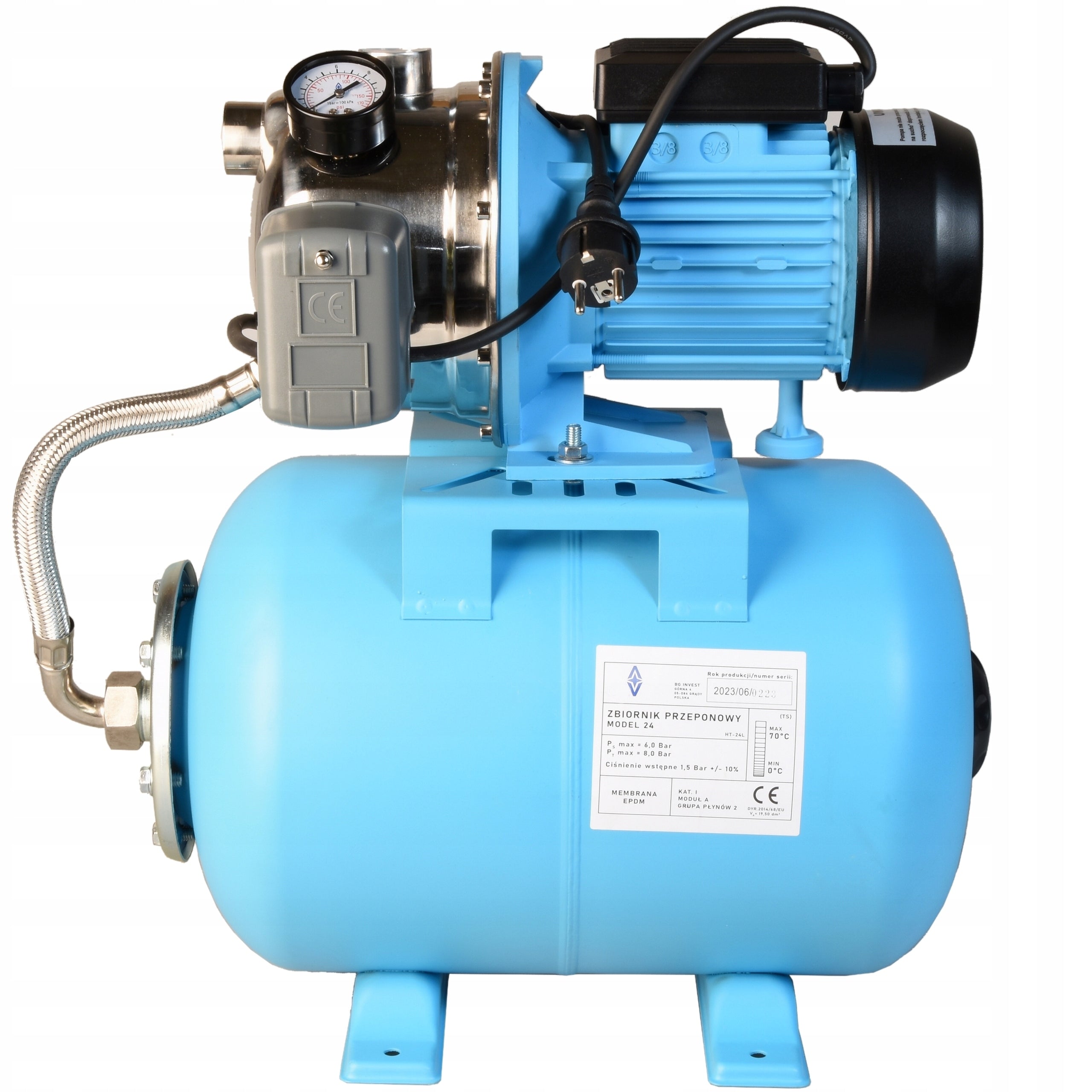

✅ Accessories in the body: pressure switch, pressure gauge

✅ Power cable with plug

✅ Anti-vibration hose with gasket

✅ Hydrophore tank 24L

✅ User Manual

Example of a hydrophore kit connection scheme

1. Hydrophore pump
2. Diaphragm tank
3. Pump accessories with pressure switch
4. Suction tube
5. Anti-sand filter
6. Anti-sand filter valve
7. Check valve
8. Butterfly Nipple Ball Valve
9. Nipple ball valve with handle
10. Protection against dry running
11. Flood tee
12. Flow water filter
13. Pressure regulator with pressure gauge
14. PE coupling
15. PE pipe
