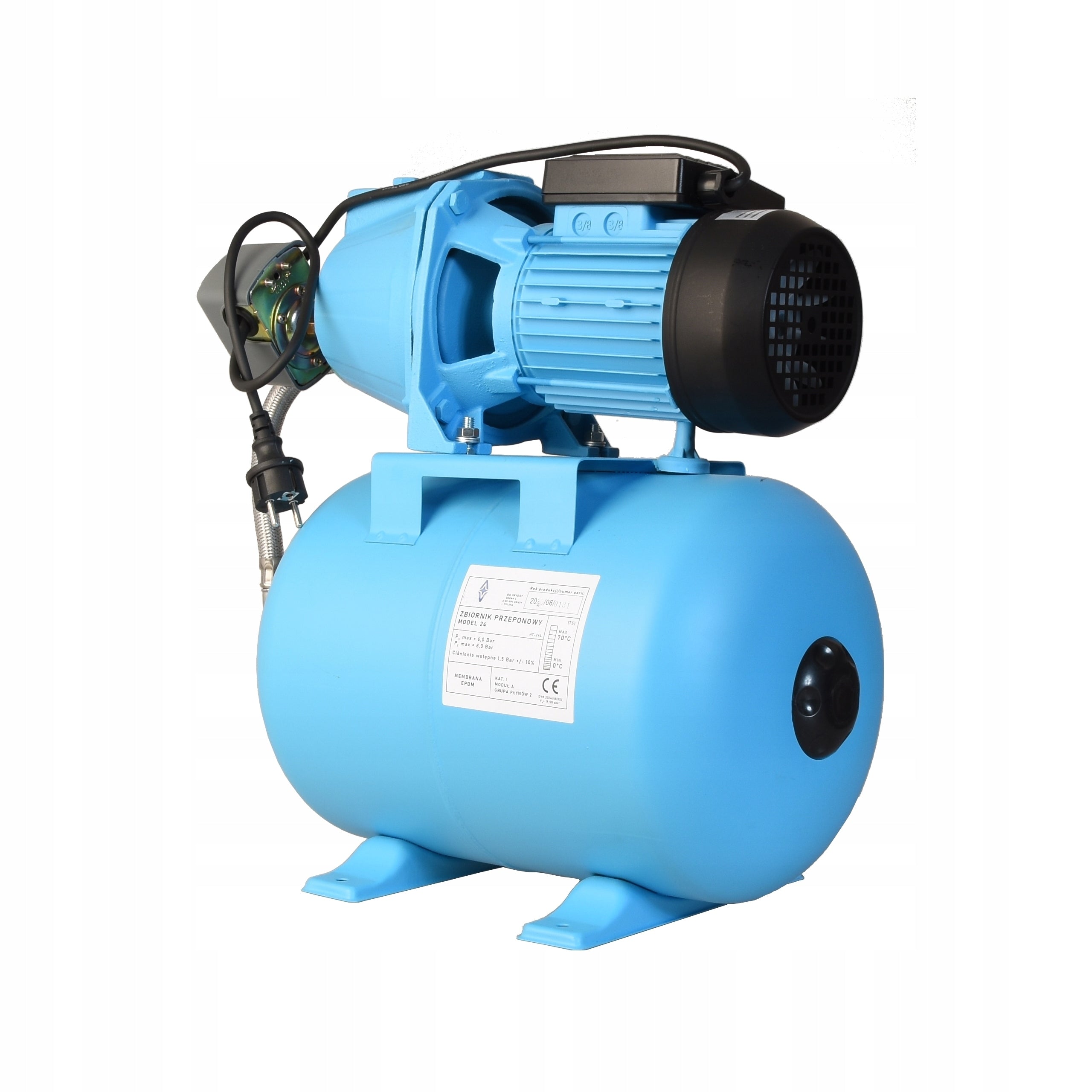

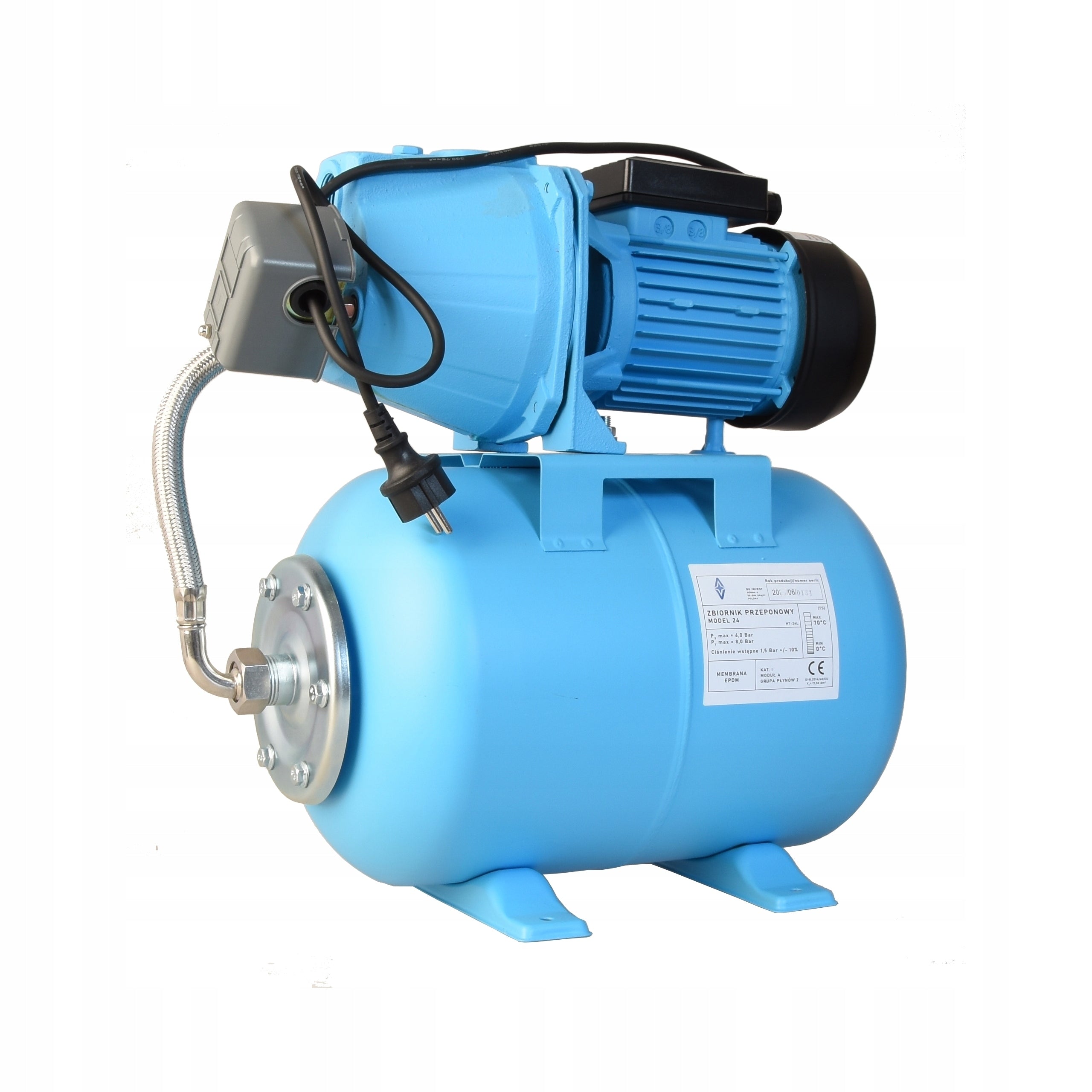

Hidroforas su 24 l baku, siurblys, našumas 3600 l/val.

Trumpai apie prekę

Prekė: Hidroforas su 24 l baku, siurblys, našumas 3600 l/val.. Kategorija: Siurbliai ir hidroforai.

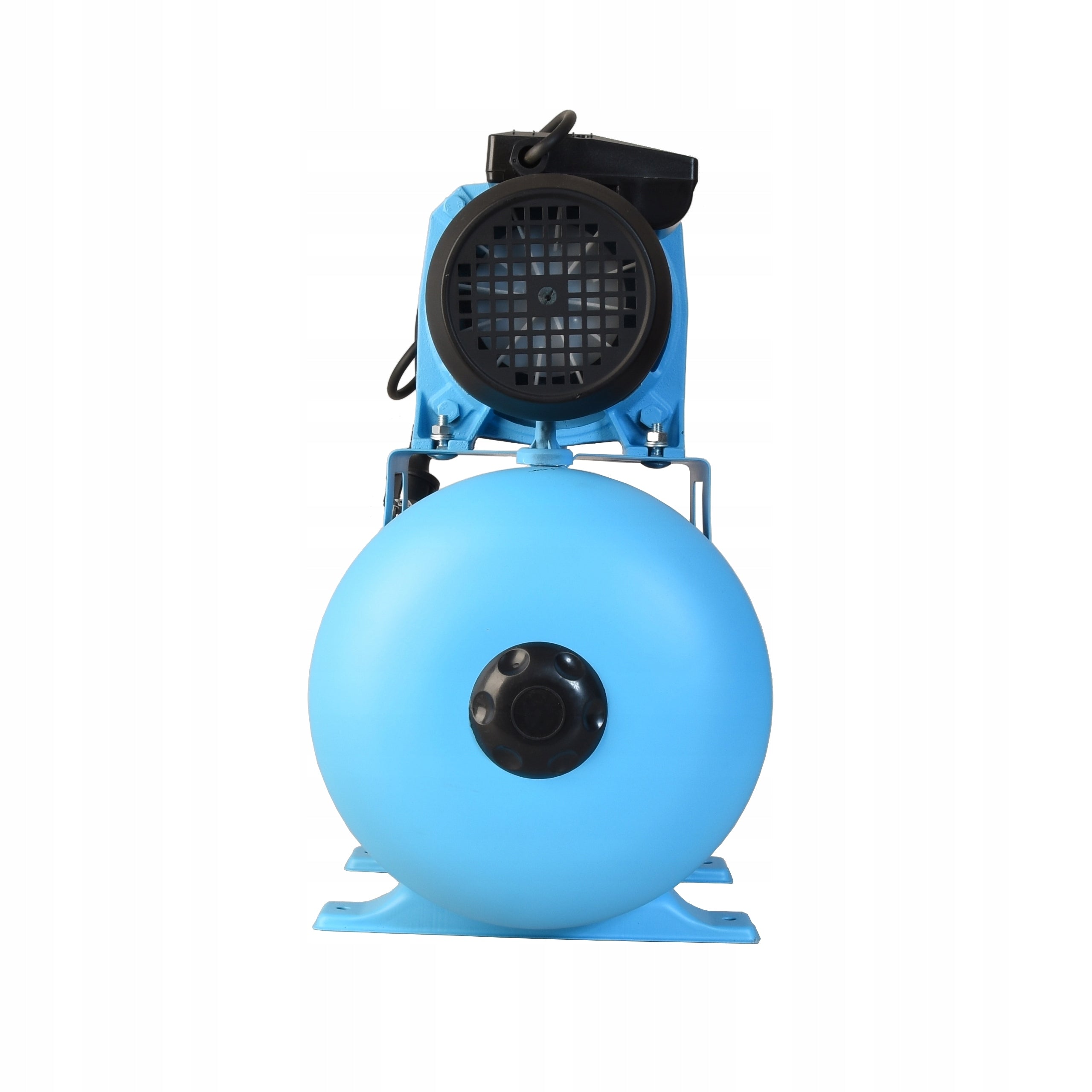

• Gamintojas: BG-INVEST

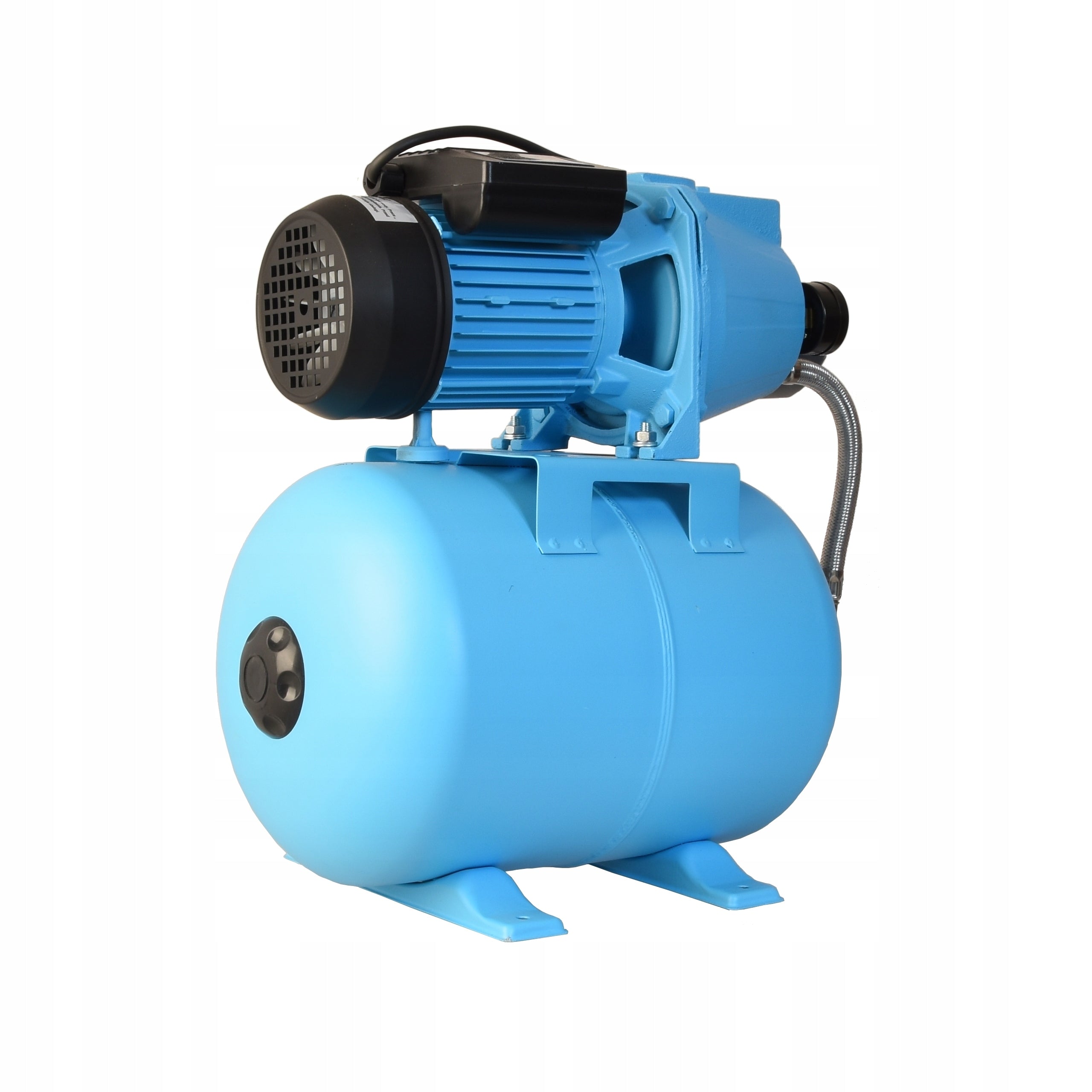

• Modelis: BG-K0002-24M

➡ HYDROPHORE SET 24 L

➡ ALUVRA SET-100S PUMP WITH ACCESSORIES + HOSE + TANK 24L

➡ CAPACITY UP TO 60l/h = 3600 l/h

➡ POWER: 1100 IN ⚡

➡ SET READY , TWISTED READY FOR ASSEMBLY

The SET 100S hydrophore pump is characterized by high efficiency and reliability. It is equipped with a 1100W motor, which is able to deliver up to 60 liters of water per minute. The maximum depth of suction is 8 meters, and the maximum working pressure is 5 bar.

In addition, the pump is equipped with thermal protection that protects the engine from overheating. The body is made of high quality iron.

The pump can effectively cooperate with tanks of different capacities, including 24, 50, 80, 100 and 150 liters.

In conclusion, the SET 100S hydrophore pump is a reliable device that will provide constant access to fresh, clean water at the right pressure. It is an ideal solution for homes, farms, plots and garden irrigation.

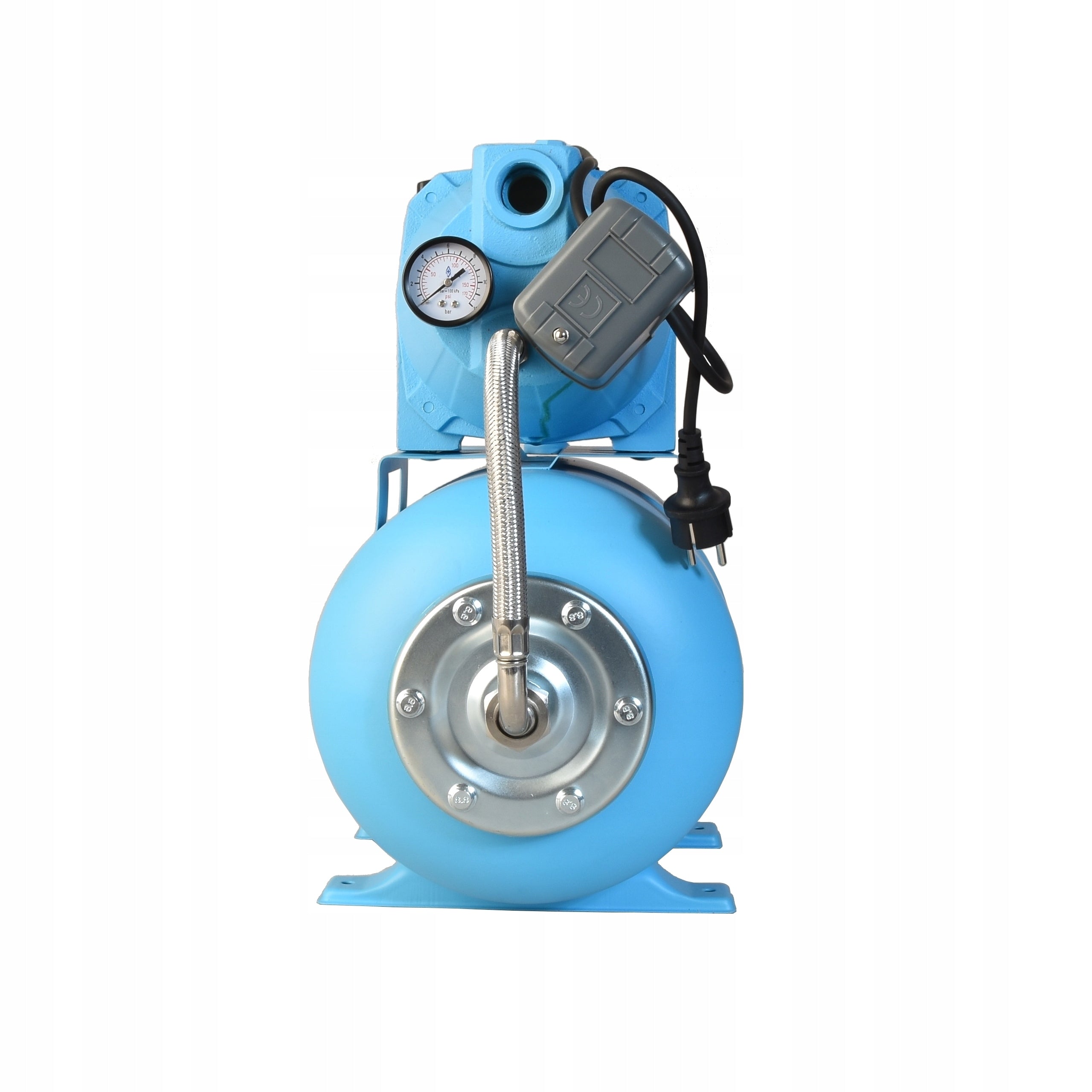

It consists of a self-priming hydrophore pump SET 100S mounted on the diaphragm tank 24L, as well as the necessary hydraulic equipment with the possibility of screwing into the suction body.

💦The set includes: 💦

🔹SET 100S hydrophore pump

🔹equipment: pressure switch, pressure gauge

🔹power cable

🔹anti-vibration hose

🔹24L tank

🔹instruction manual

⚡Technical data: ⚡

💦 Max capacity (l/min): 60

💧 Max capacity (m3/h): 3,6

⚡ Max pressure (Bar): 5

📈 Lifting height (m): 50

🧲 Suction capacity (m): 8

⚡ Engine power (W): 1100

⚡ Engine power (kW): 1.1

🔌 Power supply (V): 230

🔩 Stub Size(inches): 1 x 1

🧰 Poland mark

✅ Materials:

⚙ Body: cast iron

⚙ Impeller: noryl

⚙ Console: cast iron

⚙ Interwall: cast iron

⚙ Diffuser/Driver: noryl

⚙ Engine housing: aluminium

⚙ Mechanical angina: silicon carbide/graphite/ceramic

💦 The principle of operation of the hydrophore set: 💦

💨 The main purpose of the hydrophore is to ensure continuous and reliable water supply for various purposes, such as watering, washing, bathing or consumption. This device works by taking water from an external source, such as a well or tank, and pumping it into a hydrophore tank, where it is stored under pressure.

💨 When the user opens the tap, water is pumped from the hydrophore tank into the water supply system and flows at the appropriate pressure.

💨 Hydrofor can maintain pressure in the water system (if connected to the water supply network), even in the event of a temporary drop in water pressure supplied from an external source. Thanks to this, the user can enjoy constant access to water at the right pressure, regardless of external conditions.

🩵 Horizontal hydrophore tank with a capacity of 24 liters made of durable carbon steel and covered with anti-corrosion varnish, which significantly extends its service life.

🩵 Inside the tank there is a rubber diaphragm made of EPDM material, which acts as a membrane, separating air from water. Thanks to this barrier, the tank has no direct contact with water, which slows down its wear and prevents corrosion.

🩵 The tank is equipped with feet that provide a stable position or the possibility of mounting on a wall or floor. Additionally, the feet can be secured with rubber pads, which increases stability and reduces vibration.

🩵 The hydrophore tank operates on the principle of air compression: water flows into the tank, which causes an increase in pressure, and the air in the tank is compressed.

⚡Hydrophore Set Installation:⚡

🌊 Set includes: A pump with small accessories, a tank, an anti-vibration hose, and wiring. It is ready for connection.

🌊 Both the pump and the tank have 1-inch diameter connection threads.

🌊 The anti-vibration hose provides a flexible connection between the pump and the tank. Thanks to its movable nut, it is easy to install.

🌊 The power cable comes with a standard plug, allowing for quick and convenient connection of the pump to the power source.

🌊 The pressure switch automatically deactivates the device when the pressure reaches a set value.

🌊 The pressure gauge shows the current pressure reading in the system.

♦️After securing and sealing the pump, it is necessary to fill it with water.♦️

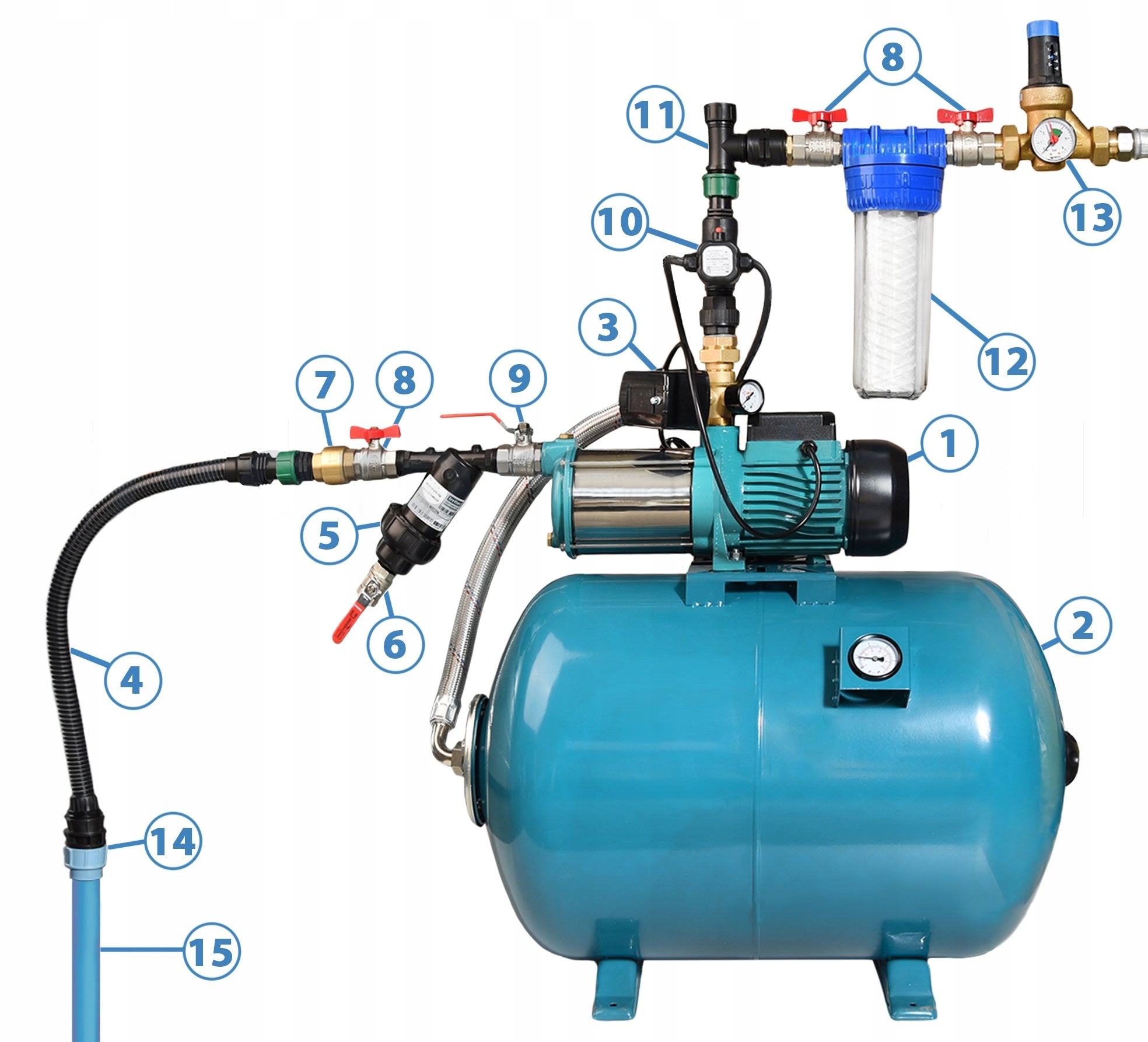

✅ SAMPLE DIAGRAM OF CONNECTING A HYDROPHORE SET

1. Hydrophore pump
2. Diaphragm tank
3. Pump accessories with pressure switch
4. Suction tube
5. Anti-sand filter
6. Anti-sand filter valve
7. Check valve
8. Butterfly Nipple Ball Valve
9. Nipple ball valve with handle
10. Protection against dry running
11. Flood tee
12. Flow water filter
13. Pressure regulator with pressure gauge
14. PE coupling
15. PE pipe
