Hidroforas su 24 l talpos baku Rohtenbach WE 250

Trumpai apie prekę

Prekė: Hidroforas su 24 l talpos baku Rohtenbach WE 250. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: Rohtenbach
• Modelis: 001677

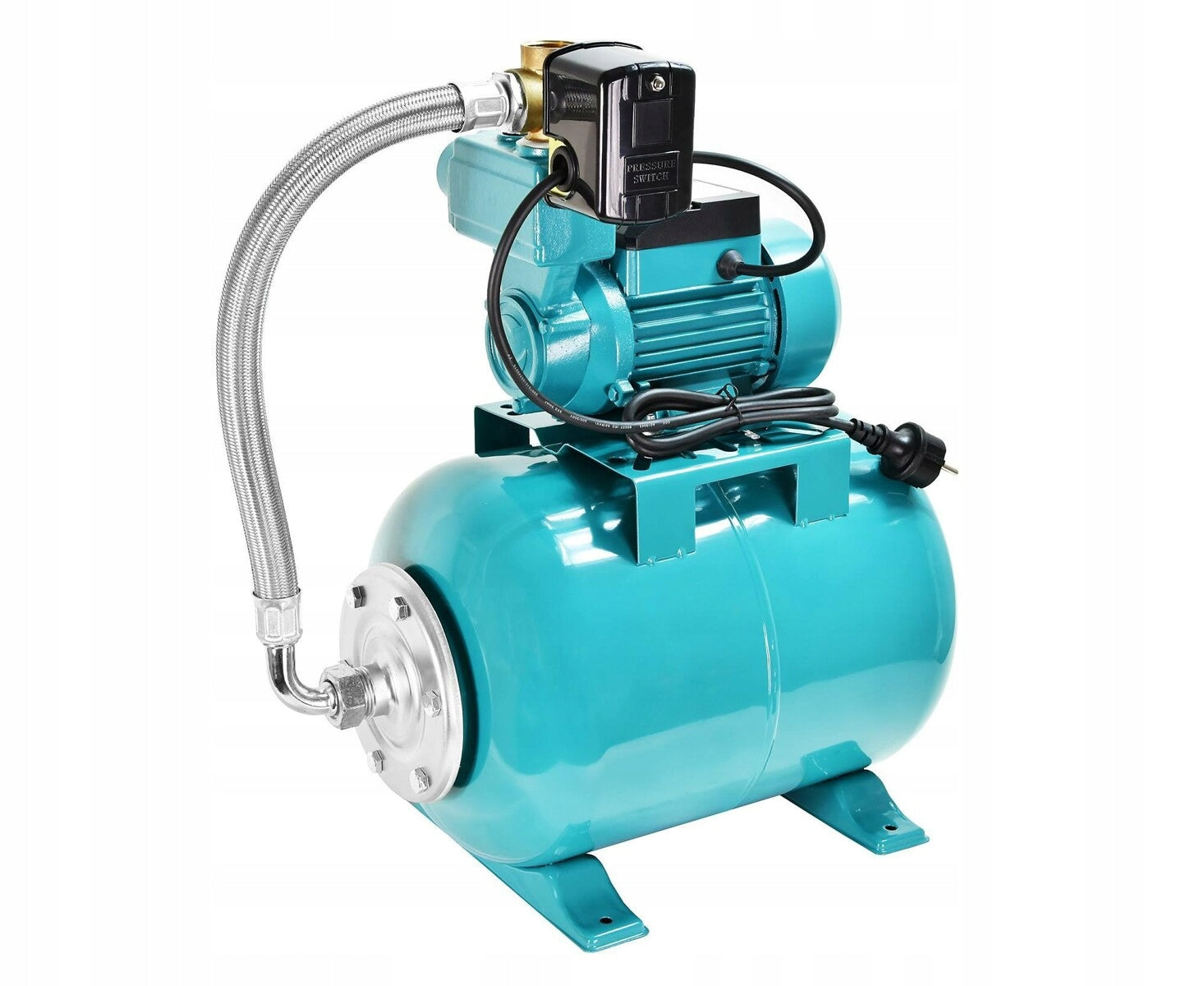

Hydrophore set Pump WE 250 + Tank 24L Rohtenbach

Single-stage, self-suction, surface peripheral pump designed for pumping clean, cold water from own intakes and for raising pressure. Pumps are used for water supply of houses, recreational plots and irrigation.

Features:

• Possibility of producing high pressure
• Built-in check valve
• Small size of the pump
• Possibility of working with a tank or hydrophore machines
• Thermal protection built into the motor winding
• Warranty and post-warranty service

Composition of the set

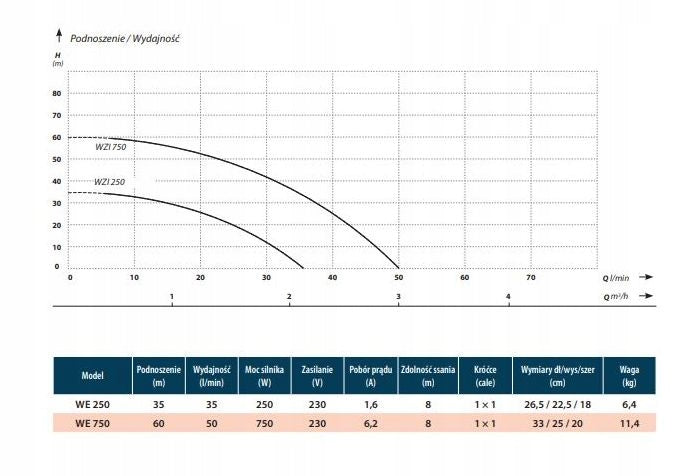

Pump - parameters:

• Engine power: 250W,
• Power supply 230V~/50Hz,
• Max. lifting: 35 m,
• Max. capacity: 35 l/min,
• Suction capacity up to 8 m,
• Connectors: 1" x 1".
• Maximum liquid temperature: 35°C
• Maximum ambient temperature: 40°C
• Insulation Class: B
• Operating Mode: Continuous
• Degree of protection: IP44
• Motor speed: 2850 RPM

Reservoir - parameters:

• Diaphragm tank Capacity: 24 l

Equipment:

• Pressure switch: 1 pc.
• Five-way output: 1 pc.
• Pressure gauge: 1 pc.
• Anti-vibration hose: 1 pc.

Materials:

• Pump body: cast iron
• Shaft: AISI 304 stainless steel
• Impeller: brass
• Mechanical gland: ceramic / graphite / NBR
