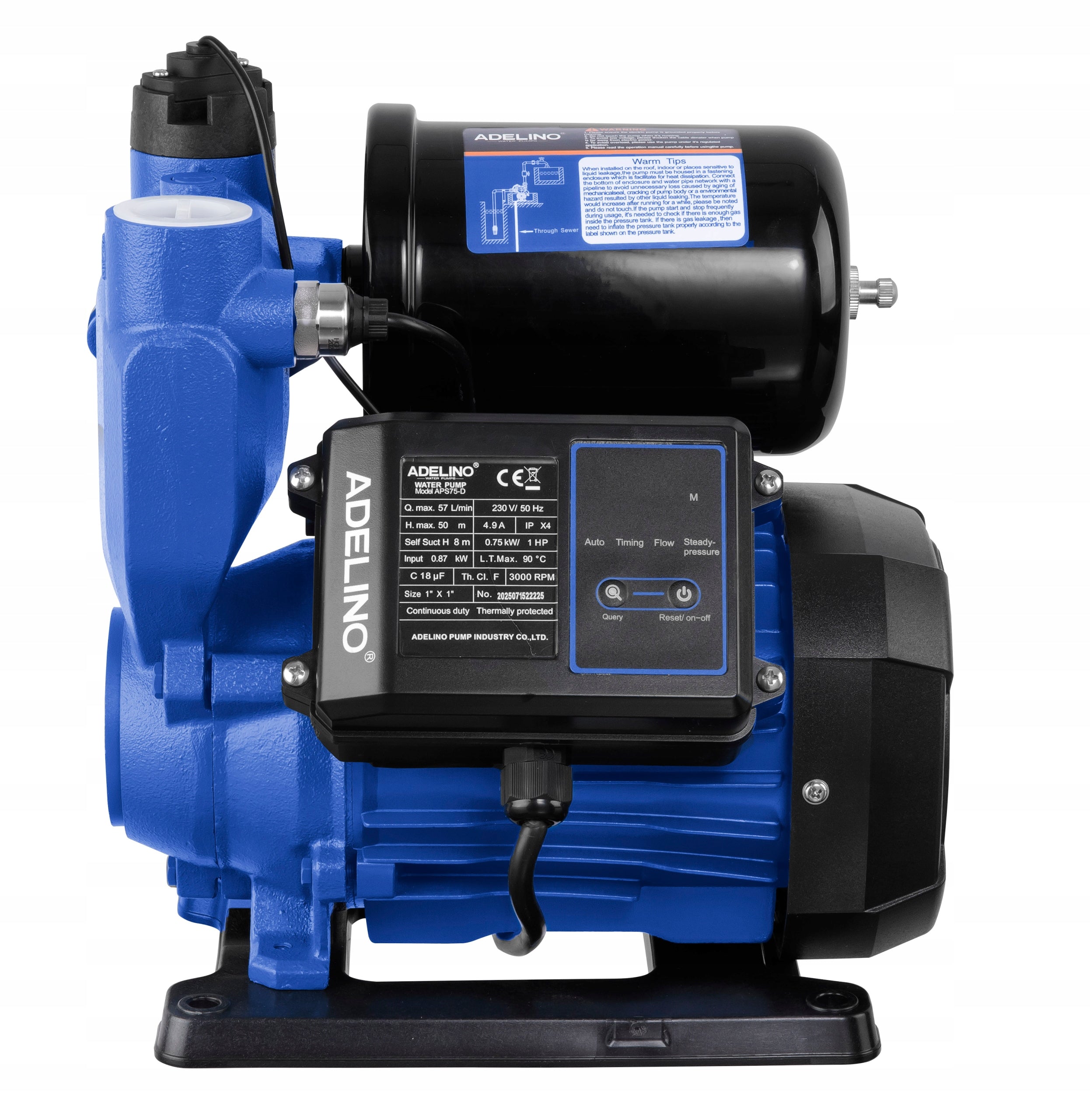

Hidroforas su inverteriu APS75D, 3400 l/val, energiją taupantis, tylus, 3 metų garantija

Trumpai apie prekę

Prekė: Hidroforas su inverteriu APS75D, 3400 l/val, energiją taupantis, tylus, 3 metų garantija. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: ADELINO
• Modelis: P OP340 7583

.

.

.

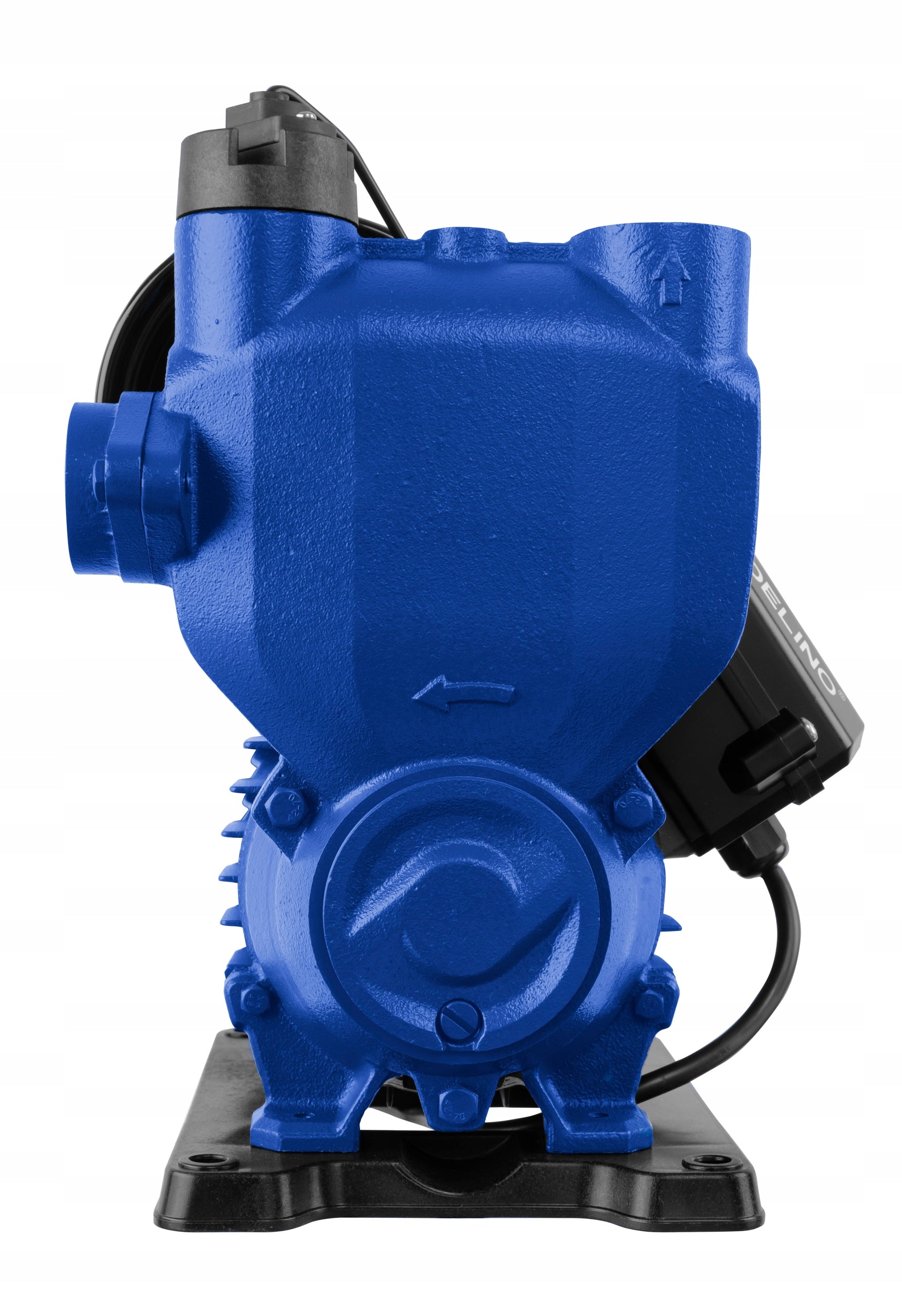

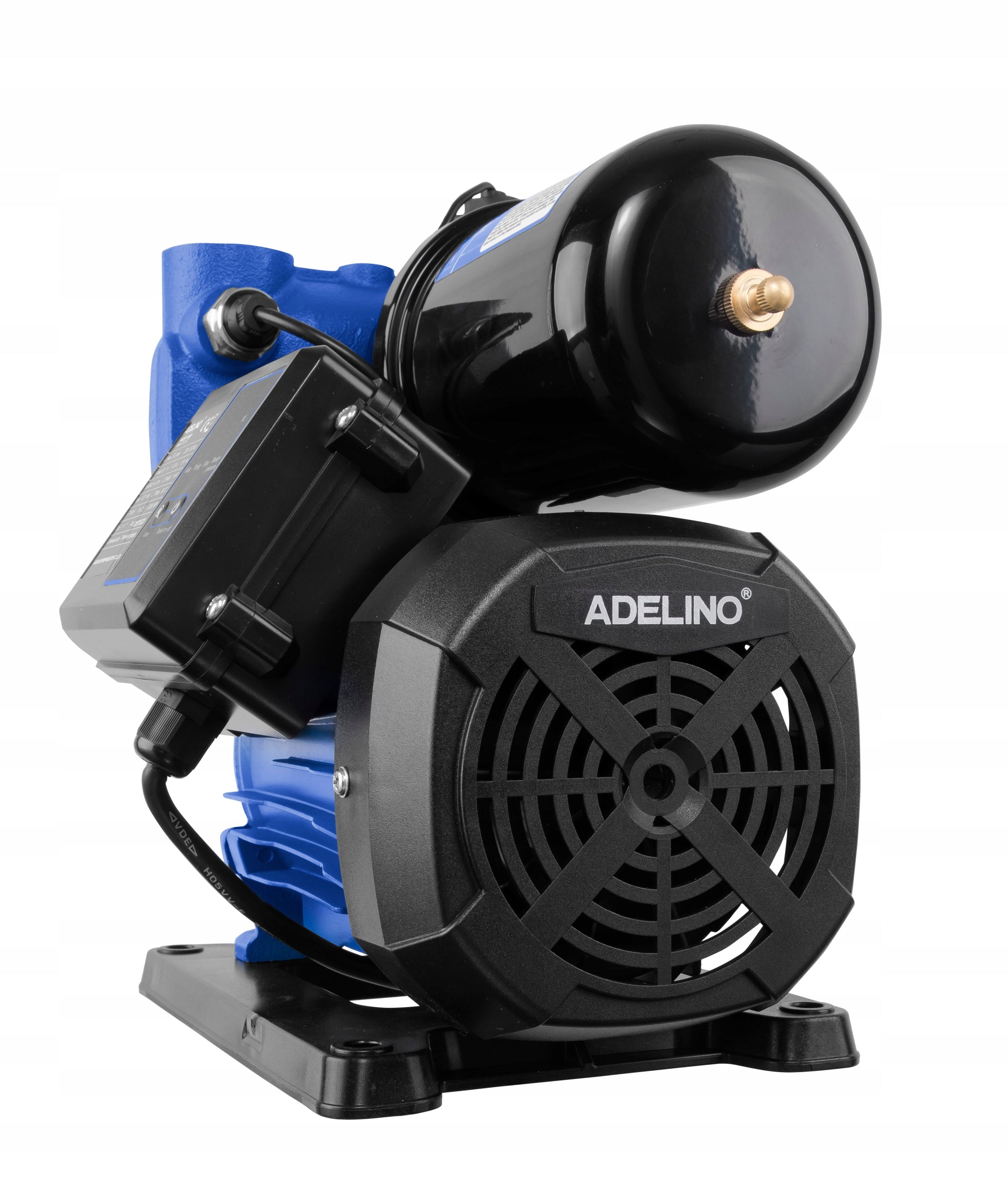

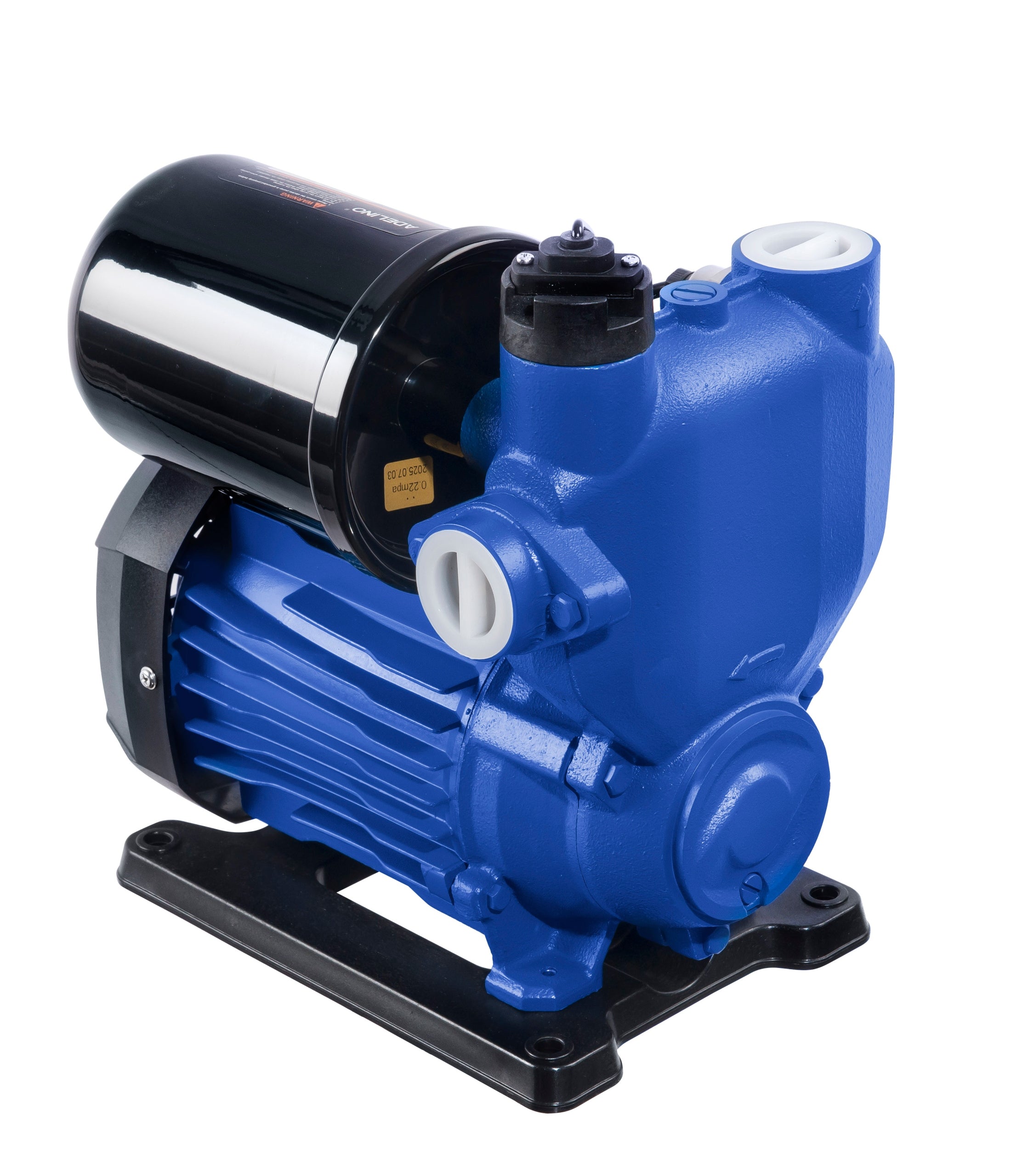

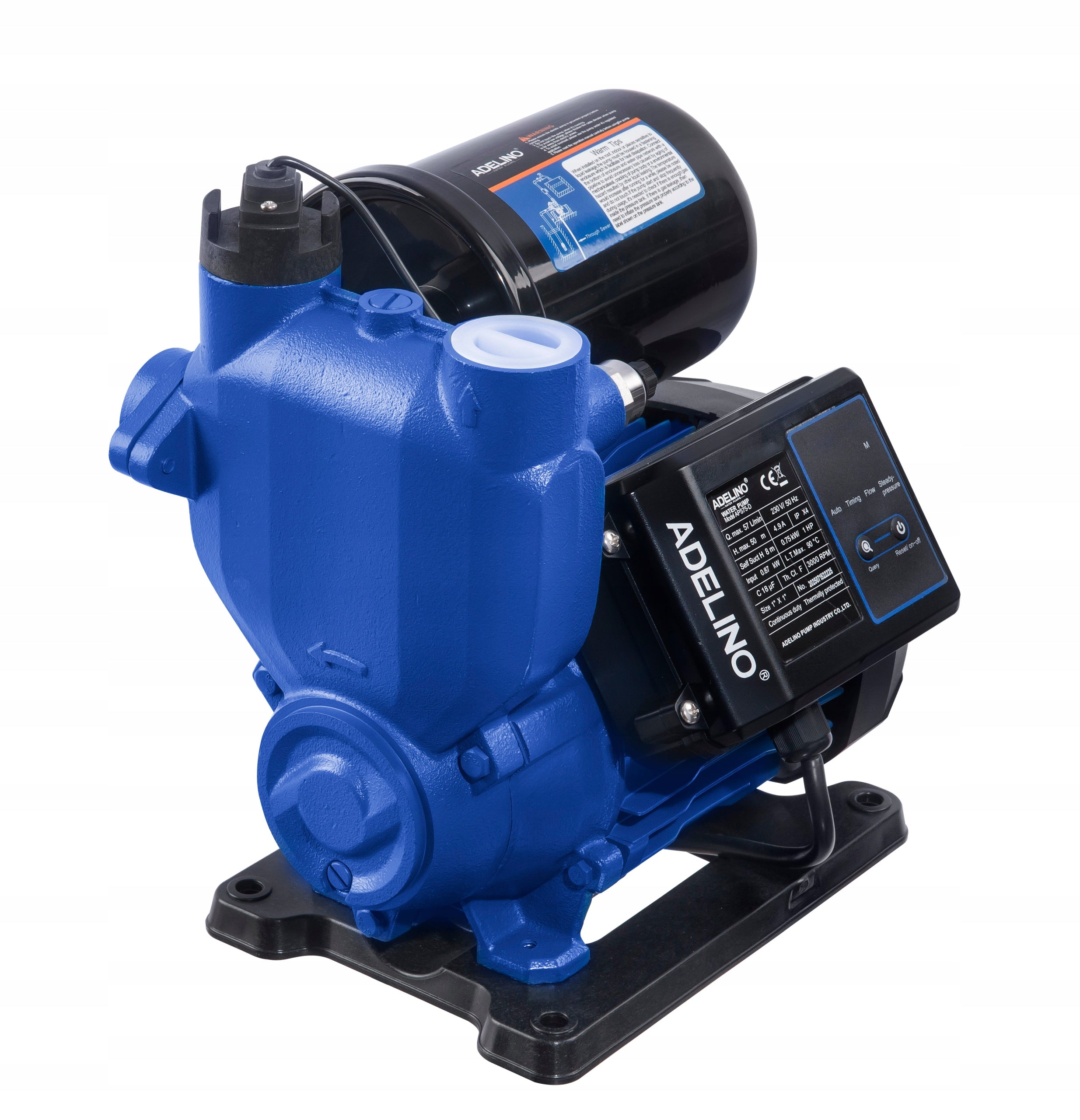

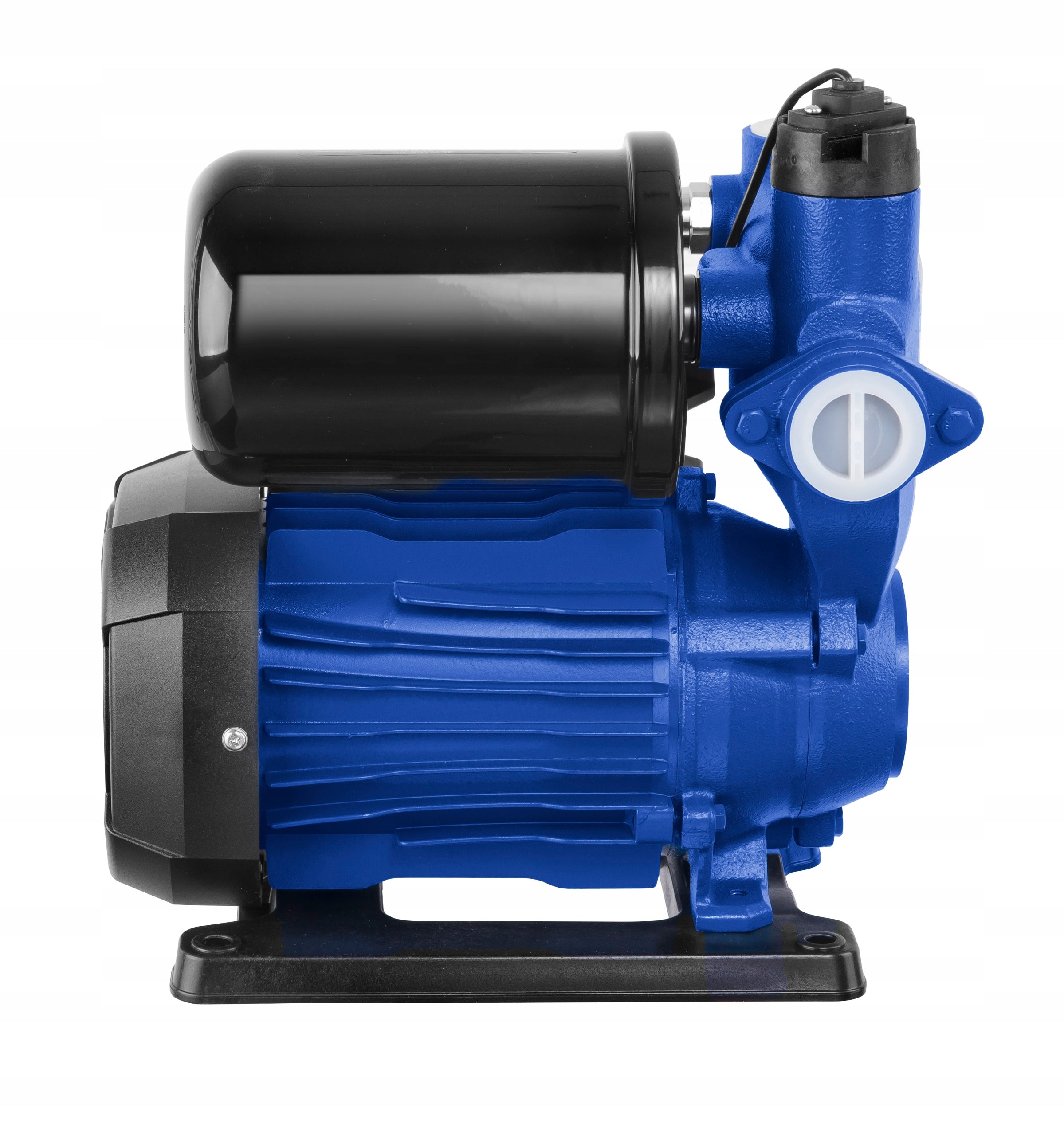

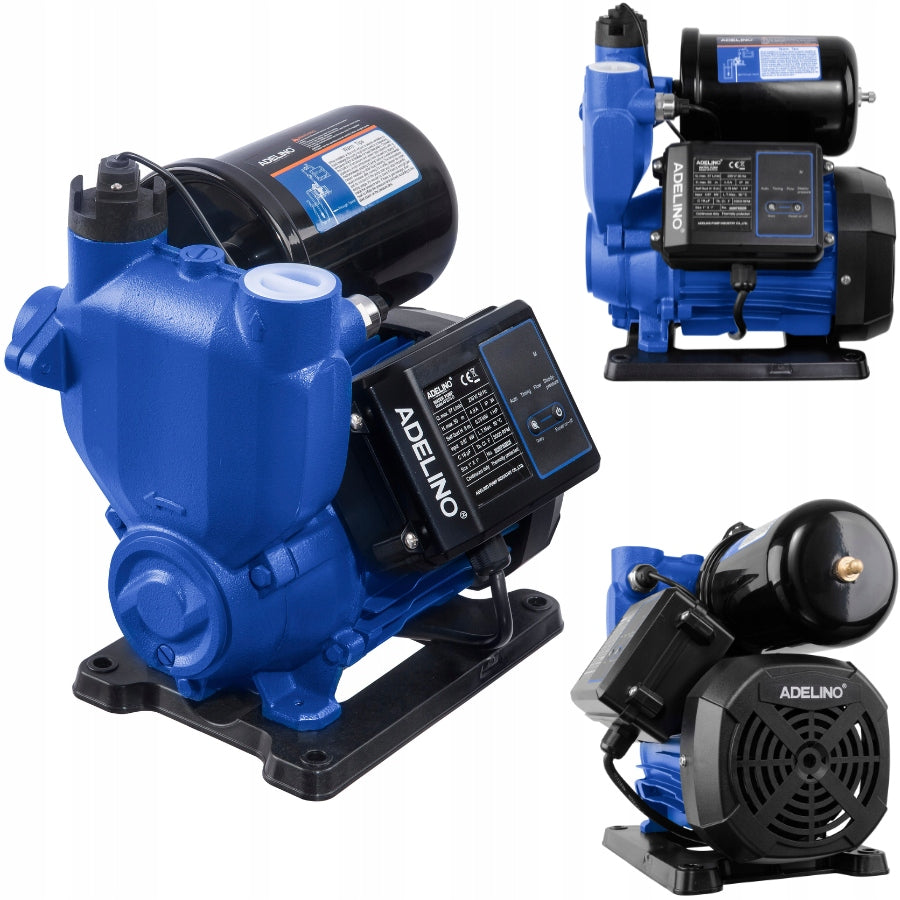

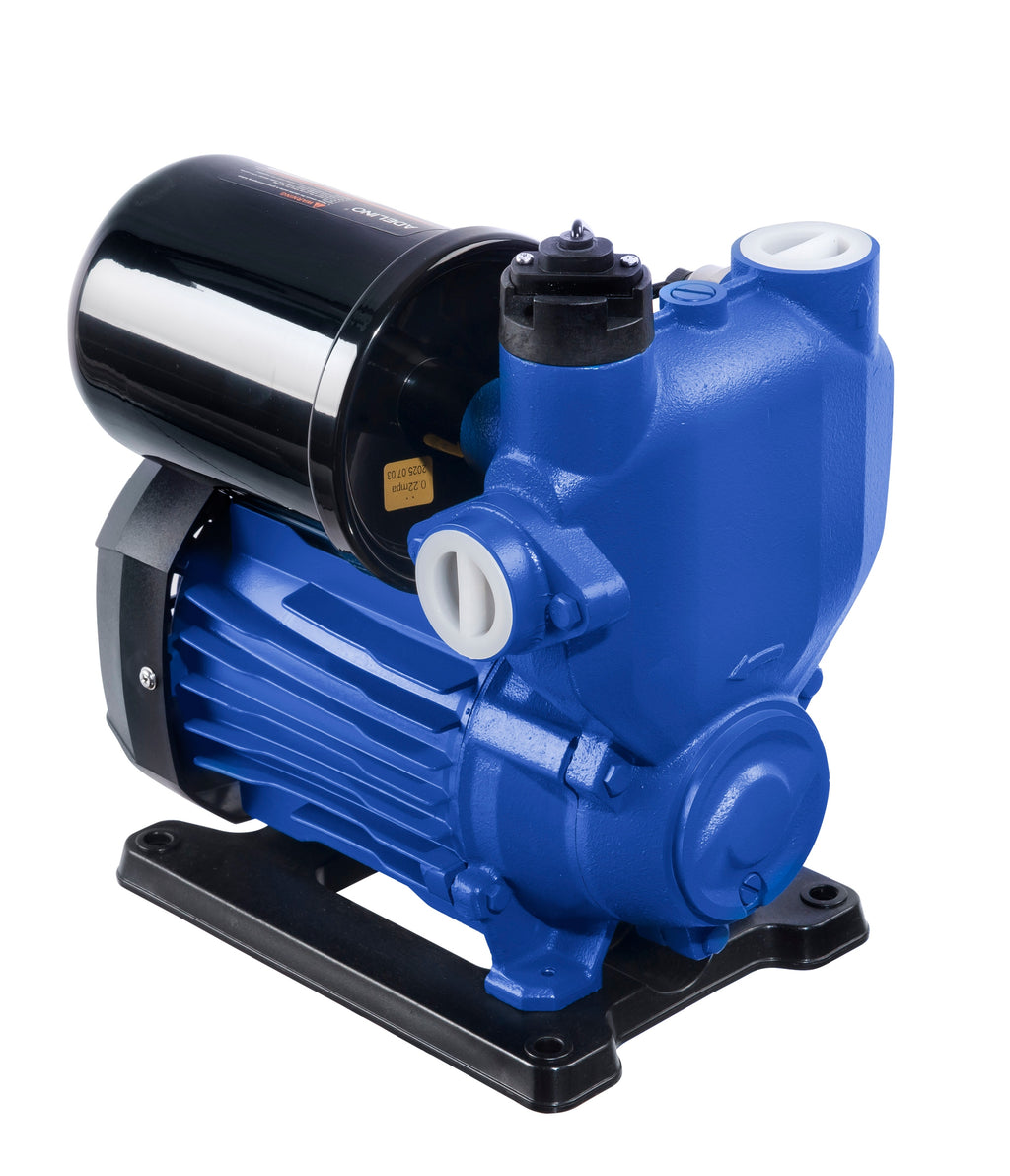

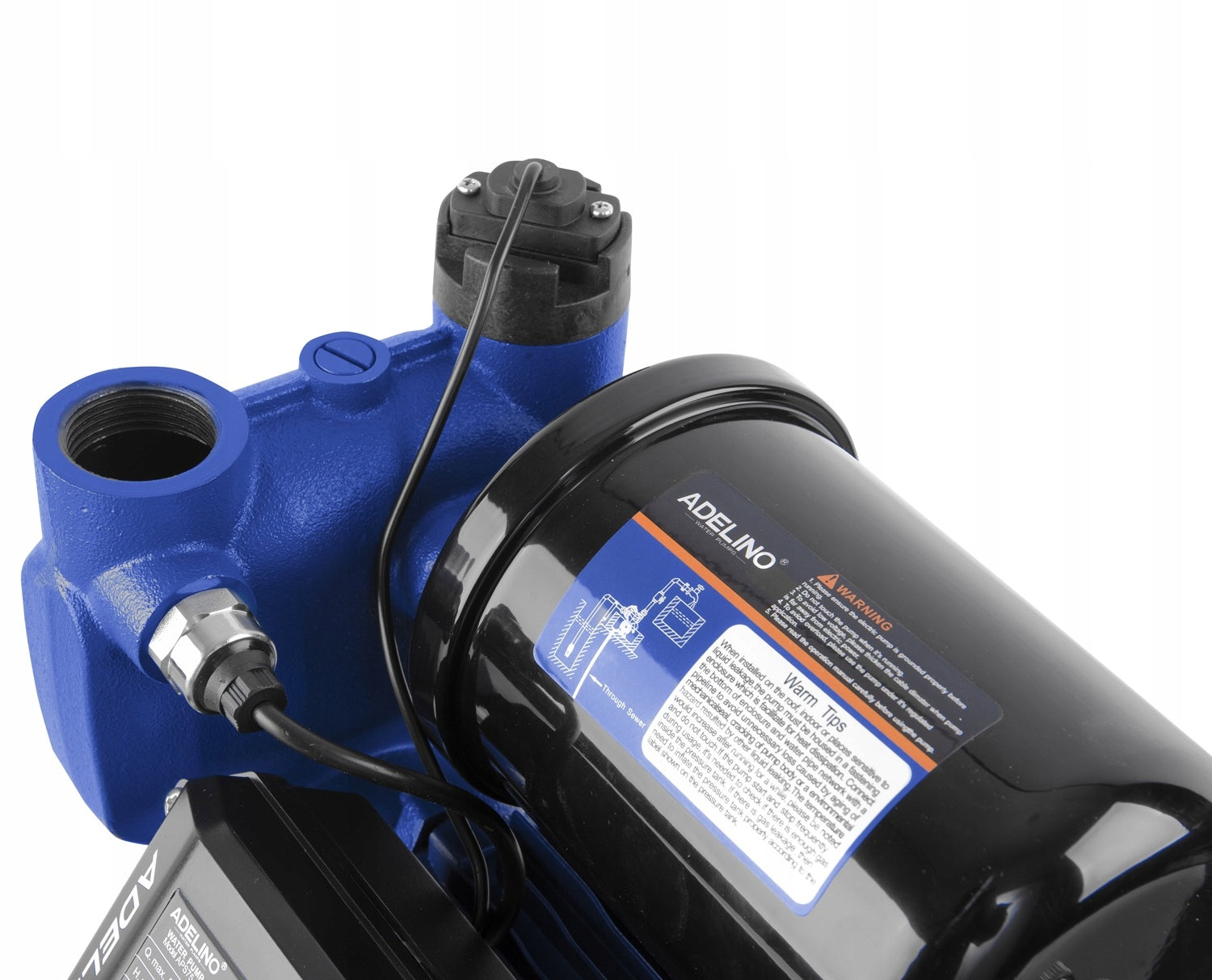

⭐MODERN HYDROPHORIC PUMP ADELINO APS-75D⭐

Adelino APS-75D hydrophoric pump is ideal for drawing water from wells, tanks, and for increasing pressure in water supply systems.

Its advanced features and high-quality materials ensure long life and reliability in all conditions.

The APS-75D Adelino pump is an excellent choice for those looking for a modern and efficient solution for their water systems.

⬆️PERFORMANCE AND MODERNITY⬆️

Adelino APS-D 75 hydrophoric pump is a symbol of modernity and advanced technology in water systems. It replaces outdated hydrophoric sets, offering better performance, lower energy consumption, and quieter operation. Its compact design allows for easy installation anywhere, and advanced control and safety features ensure comfort and peace of mind.

The use of a mild START/STOP hydrophore pump motor also eliminates hydraulic impacts in the water system. The pumps start automatically when the water intake begins (unscrewing the tap) and automatically turn off when the intake is complete (turning off the tap).

❗ ❗ ADVANTAGES OF THE APS-D 75 Adelino HYDROPHORE PUMP ❗ ❗

⭐ Energy savings: The use of advanced control allows for significant savings in electricity compared to classic hydrophors. The Adelino APS-75D pump uses modern technologies that minimize energy consumption, which is beneficial for both the user and the environment,

⭐ Constant pressure: Thanks to its advanced control system and precise sensors, the pump maintains a constant, high water pressure. This ensures stable operation of the water system, regardless of operating conditions,

⭐ Silent operation: The pump operates extremely quietly, which allows it to be installed close to the residential parts of the house. Noise reduction to a minimum makes the use of the pump comfortable and undisturbed by loud sounds,

⭐ Automatic start-up and shut-off: The Adelino APS-75D pump starts automatically when the tap is unscrewed and turns off when the water intake is complete. Automation of these processes makes the use of the pump convenient and does not require constant attention,

⭐ Safety: The pump is equipped with a number of built-in safety features that protect the device and water system from potential hazards. These protections include protection against dry running, overheating, freezing and water retention, as well as against too low and too high voltage.

WHAT DISTINGUISHES THE ADELINO APS-75D HYDROPHORE FROM CLASSIC, OLDER HYDROPHORE SETS❓

✅ Extremely quiet operation - Hydrofor is much quieter than hydrophore sets mounted as far away from the place of residence of the household members,

✅ Energy saving - Despite the maximum power of 0,75 W, the pump starts only when necessary and adapts the electricity consumption to the demand, and not as in the case of standard sets - turns on the devices immediately at full power,

✅Inverter effect - The device has a simplified version of the inverter. The pump automatically adjusts its operation to the current needs of the installation, maintaining stable parameters in various conditions.

✅ Longer service life - Thanks to optimization treatments, the APS-75D s hydrophore serves its users longer than hydrophore sets,

✅ Aesthetics and hygiene - Hydrophores are much more aesthetic and hygienic than hydrophore sets of the old type, where there are relatively many places for the accumulation of impurities, as in hydrophore tanks, moreover, thanks to its compactness it can be placed almost anywhere,

✅ High efficiency - Hydrofor can successfully replace hydrophore sets thanks to a maximum capacity of 57l/min,

The pump has a number of safety features:⛔

✔ Protection against dry work - so-called. dry - The pump turns off after 6 minutes without water flow,

✔ Protection against too low / high voltage - The pump has a delayed 3 second start, thanks to which it protects against voltage surge,

✔ Freezing protection - The pump, even when not working, starts every 3 days for 10 seconds to prevent water from freezing,

✔ Overheating protection - The pump also has a protection against engine loss, which results in its shutdown in the event of extreme efficiency and heating of the pump, which could cause deformation of the pump components,

✔ Protection against finding - The pump, even when not working, starts every 3 days for 10 seconds to prevent water from finding,

⚙ Technical Parameters ⚙

• Engine power: 0,75 kW
• Voltage: 230 V
• Current: 4,5 A
• Maximum capacity: 3400L/h
• Maximum lifting height: 50 m
• Maximum pressure: 5 bar
• Water temperature: to 90°C
• Ambient temperature: to 40°C
• Maximum suction depth: 8 m
• Protection rating: IPX4
• Insulation: Class B

⛏ Material Execution ⛏

• Pump body: Grey cast iron
• Rotor: Brass
• Pump shaft: AISI 304 stainless steel
• Mechanical angina: ceramic sealing supported by graphite,

.

✏ Technical drawing of the pump✏

• L: 268 mm
• DN1: 1"
• DN2: 1"
• A: 132 mm
• B: 160 mm
• C: 212 mm
• D: 50 mm
• E: 39 mm
• F: 41,5 mm
• G: 190 mm
• H1: 84 mm
• H2: 170 mm
• H3: 285 mm
• Net weight (N.W.): 13,1 kg
• Gross weight (G.W.): 13,8 kg

.

⬆ Pump capacity Adelino APS-75D⬆
