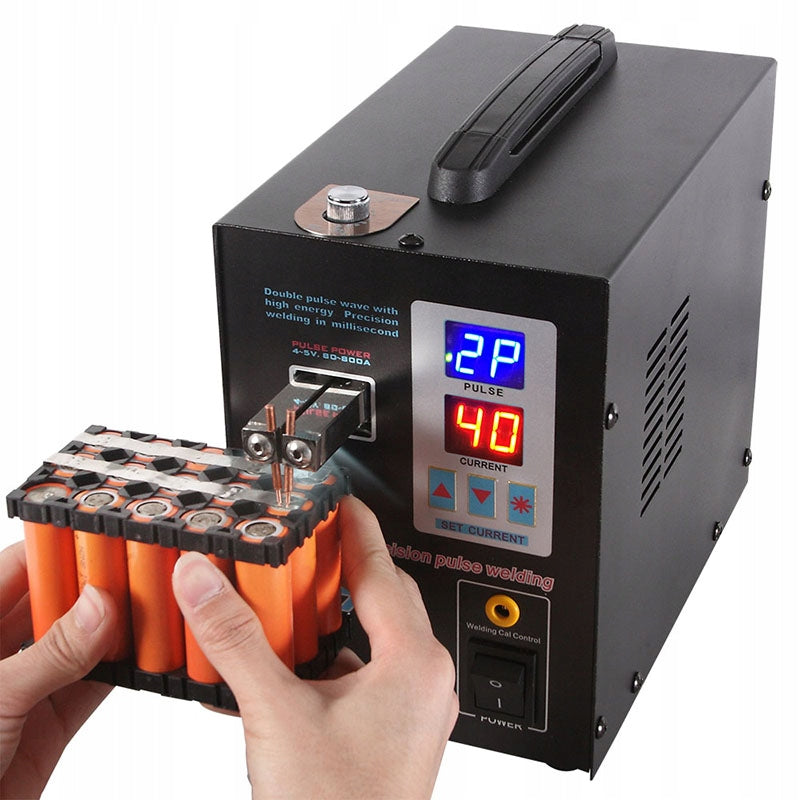

Impulsinis suvirinimo aparatas Sunkko

Trumpai apie prekę

Prekė: Impulsinis suvirinimo aparatas Sunkko. Kategorija: Sandarikliai.

• Gamintojas: no brand
• Modelis: 03C3-61363

The welding machine module is equipped with two operating modes, and the electrodes permanently attached to the device housing (current level setting 0 ~ 99) allow welding of nickel strips with a thickness of 0.03 ~ 0.2 mm (0.15 mm for pure nickel).

Notes on the use of SUNKKO 737 welding machine:

1. In order to achieve a good welding effect, the welding machine should be connected to a wall outlet to ensure stable power supply.

2. Due to the temporary large welding current, the rated operating current of the current switch should be 40-63A.

3. Set the pressure regulator to the appropriate value.

4. Keep the surface of the needles clean by cleaning them with sandpaper.

5. Keep the welding needles sharp.

6. When using the welding machine, temporary flashes of light may appear. The device uses high power and immediately discharges high intensity.

Input voltage: AC 110V/220V ± 10V

Primary Current: 2A~15A

Welding Current: 50A~800A

Welding pressure: 200g~700g

1 pulse: 0.05~0.12mm

2 pulses: 0.12~0.2mm

Size: 140x245x200mm

Weight: 4.3kg

The set contains:

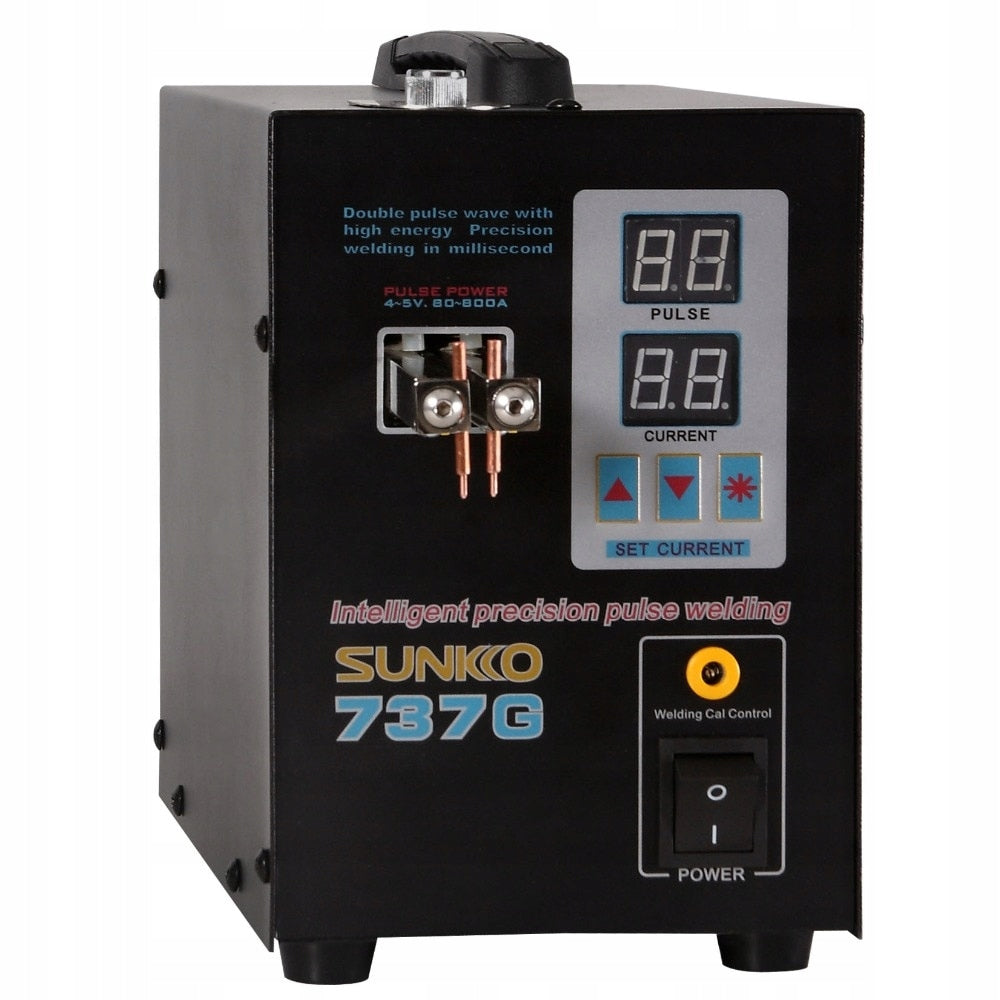

1 x SUNKKO 737G welding machine

1 x User Manual

1 x Allen Wrench

2 x fuse

4 x Welding Needle

1 x Foot Pedal

1 x Battery Operated Mold

30 x 0,1 x 4 x 100 mm nickel plate

30 x 0,15 x 5 x 100 mm nickel plate

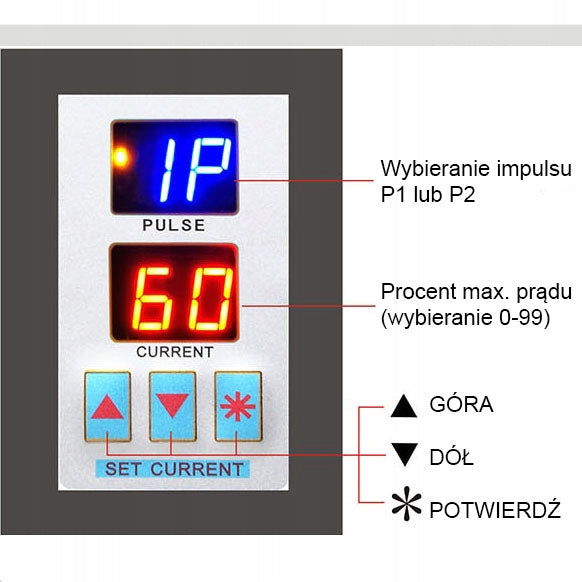

1) The first and second digits show the current percentage of maximum intensity. Press (*) when the first digit starts flashing, you can adjust its value by pressing the up or down button. Press (*) to confirm.

(2) When the second digit starts flashing, you can also adjust its value by pressing the up or down button. Press (*) to confirm.

(3) P2 or P1 will start flashing. Select a pulse with the up or down button.

(4) Press (*) to confirm. The device will start working when the number stops flashing.

(5) Set higher current for welding material thicker than 0.1mm.

(6) Read the instructions when you have any doubts.

Thickness\Type Pure Nickel Plate

0.05mm 200~220g 250~280g

0.1mm 250~300g 320~350g

0.15mm 320~350g 350~400g

0.2mm 350~420g 400~480g

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Series	SUNKKO 737G 03C3-61363
Parametry	Maximum power	4300 W
Parametry	Power supply	mains
Parametry	Device weight	4.3 kg
Parametry	Manufacturer code	03C3-61363
Parametry	EAN (GTIN)	5905902312792
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE
Parametry	Purpose	for cells
