Aprašymas
Trumpai apie prekę

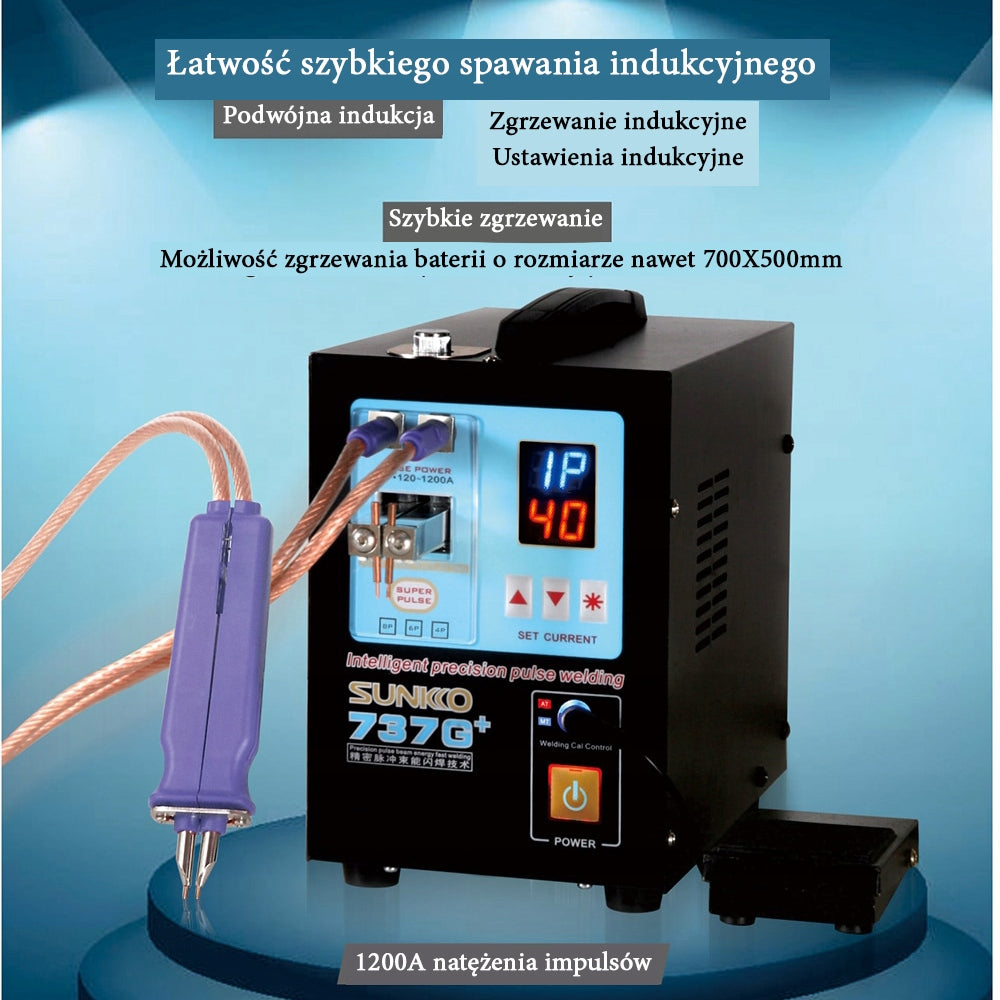

Prekė: Impulsinis suvirinimo aparatas SUNKKO 737G+ akumuliatorių taškiniam suvirinimui. Kategorija: Sandarikliai.
- Gamintojas: no brand
- Modelis: SUNKKO 737G+ 3A48-172B0
- Įtampa: 230 V
Mode 1: Manual pulse welding with the included large area welding pen
Mode 2: Spot welding at touch
Great item for welding batteries. It gives the possibility of spot welding with intelligent frequency conversion in two modes.
The welding machine has a pulse and current display, and the set includes a welding pen.
* Welder :
- Input voltage: AC 220 V ± 20 V, 50 Hz
- Power: 4,3 kW
- Welding Current: 120A-1200A
- Time 2 pulses: 1-10 ms
- 4 pulses time: 2-20 ms
- 8 pulses time: 8-80 ms
- Head thickness: 0,15-0,35 mm
- Welding Pen Thickness: 0,05-0,2mm
- Size: 140x245x200mm
- Net weight: 7kg
*Replaceable welding pen
- Adjustable tip distance: 2-7 mm
- Total length of welding pen: (approximately) 580 mm
- Welding wire surface: 16mm²
- Tip Size: Ø15mm X 7mm
Characteristics:
* Color display of parameters
* 70BN high power welding pen
* Fast impulse welding
* Fast welding of large battery area
* Manual welding/welding modes at touch
* Intelligent setting of welding pulse group
* Thickness of welding material up to 0,3mm
* Energy Saving
* Intelligent dual core digital controller
Notes on the use of SUNKKO 737G+ spot welding machine:
1. In order to achieve a good welding effect, the welding machine should be connected to a wall outlet to ensure stable power supply.
2. Due to the temporary large welding current, the rated operating current of the current switch should be 40-63A.
3. Set the pressure regulator to the appropriate value.
4. Keep the surface of the needles clean by cleaning them with sandpaper.
5. Keep the welding needles sharp.
6. When using the welding machine, temporary flashes of light may appear. The device uses high power and immediately discharges high intensity.

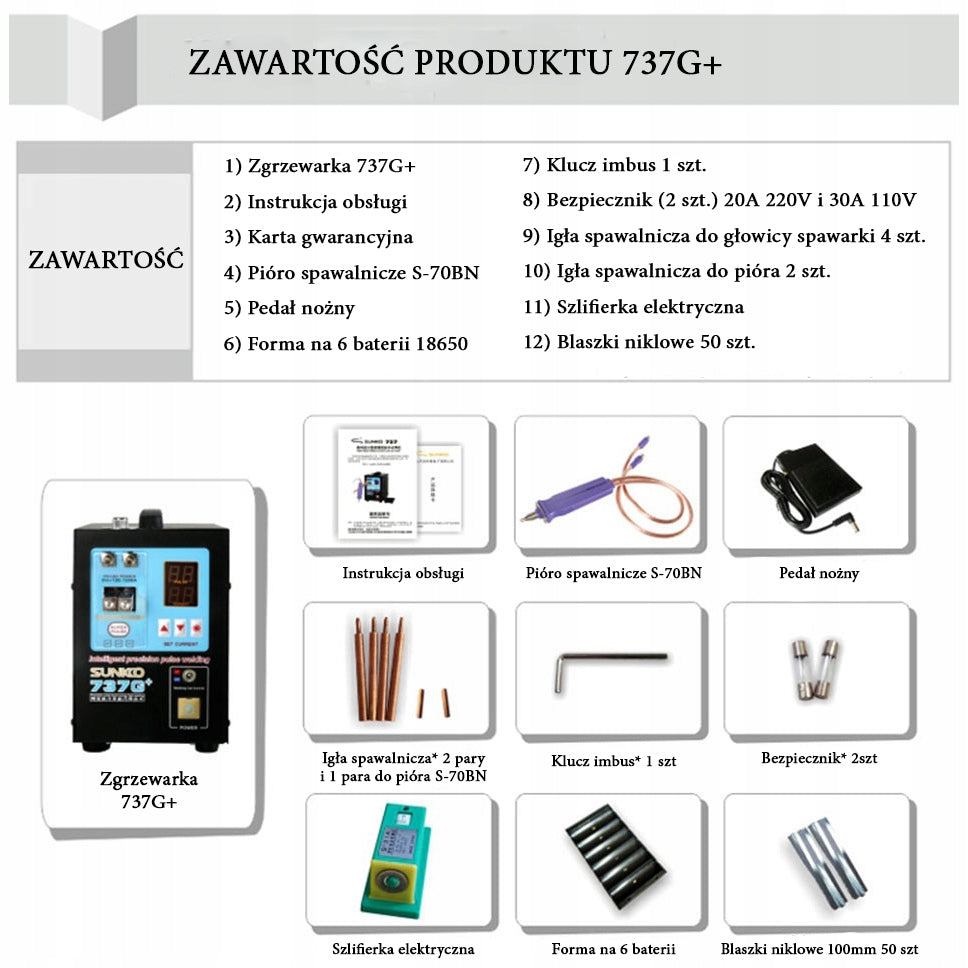

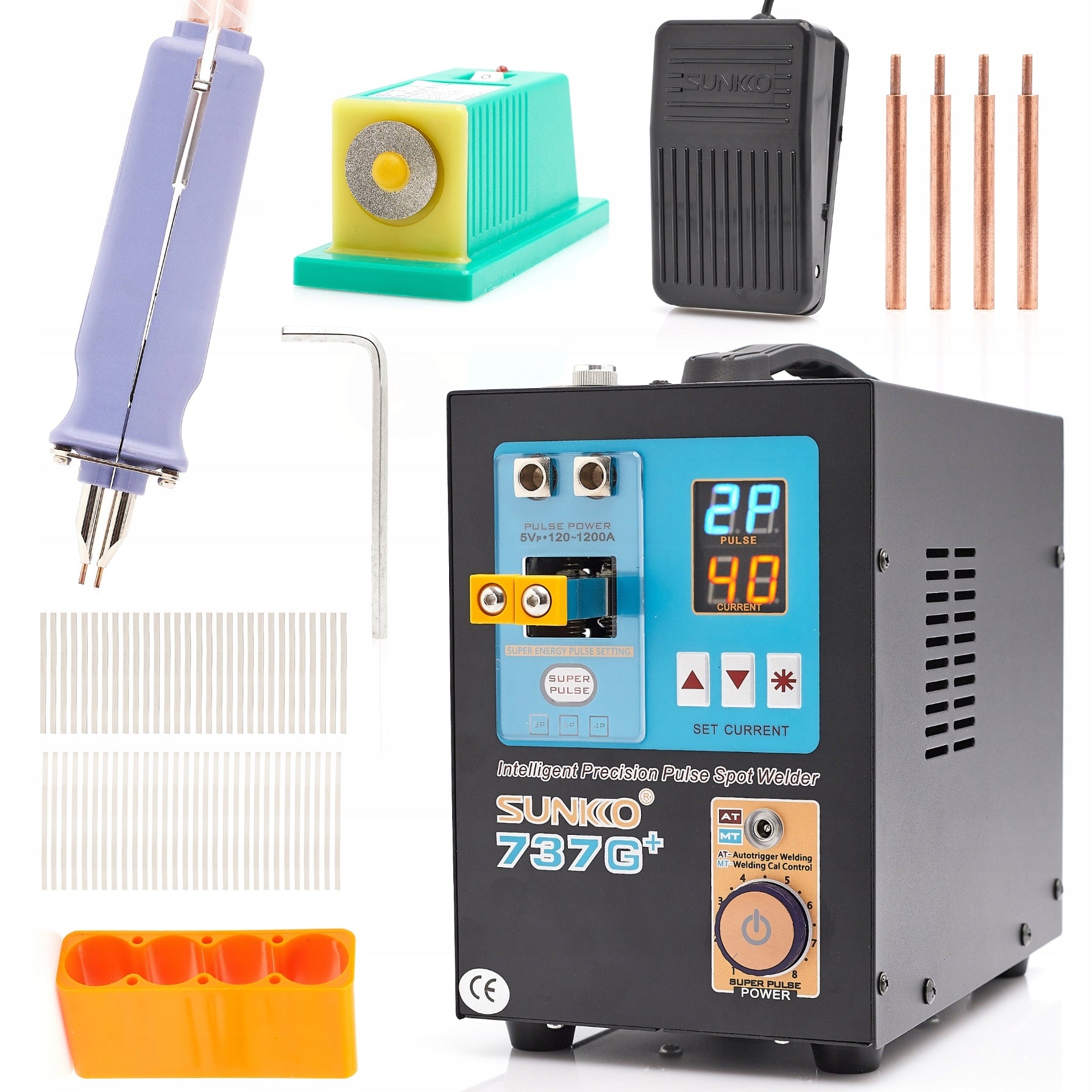

1 x SUNKKO S737G+ pulse welding machine
1 x User Manual
1 x Warranty Card
1 x S-70BN Welding Pen
1 x Foot Pedal
4 x Welding Needle for Head
2 x Welding Needle for Pen
1 x Allen Wrench
2 x fuse
1 x Electric Grinder
1 x mold for 6 pieces of batteries 18650
50 x 100mm nickel plate
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Series | SUNKKO 737G+ 3A48-172B0 |
| Parametry | Maximum power | 4300 W |
| Parametry | Power supply | mains |
| Parametry | Supply voltage | 230 V |
| Parametry | Manufacturer code | SUNKKO 737G+ 3A48-172B0 |
| Parametry | EAN (GTIN) | 5905902312808 |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
