Imtuvą 4K PULSE 4K, 2x CI+, CANAL+, POLSAT 4K

Trumpai apie prekę

Prekė: Imtuvą 4K PULSE 4K, 2x CI+, CANAL+, POLSAT 4K. Kategorija: Tiuneriai.

• Gamintojas: AB-COM
• Modelis: PULSE
• Spalva: black

The subject of sale is:

AB PULSe 4K SINGLE DVB-S2X + 1x Plug & Play

PULSe satellite tuner 4K 1x DVB-S2X + 1x Plug & Play Linux Enigma2

PULSe 4K is a receiver with UHD 4K resolution and Linux ENIGMA 2 operating system. Beautiful 4K picture is of course obvious, as is HDR/HDR10 and HLG picture standards. The performance and responsiveness will be ensured by a quad-core processor with 15 000 DMIPS, 8 GB of FLASH memory and 2 GB of DDR4 RAM. The receiver includes a built-in DVB-S2X tuner and a socket for the second, to choose from: Plug & Play DVB-S2X satellite tuner or DVB-C/T2 terrestrial/cable tuner, thanks to which it is prepared for satellite, terrestrial and cable transmissions of various operators.

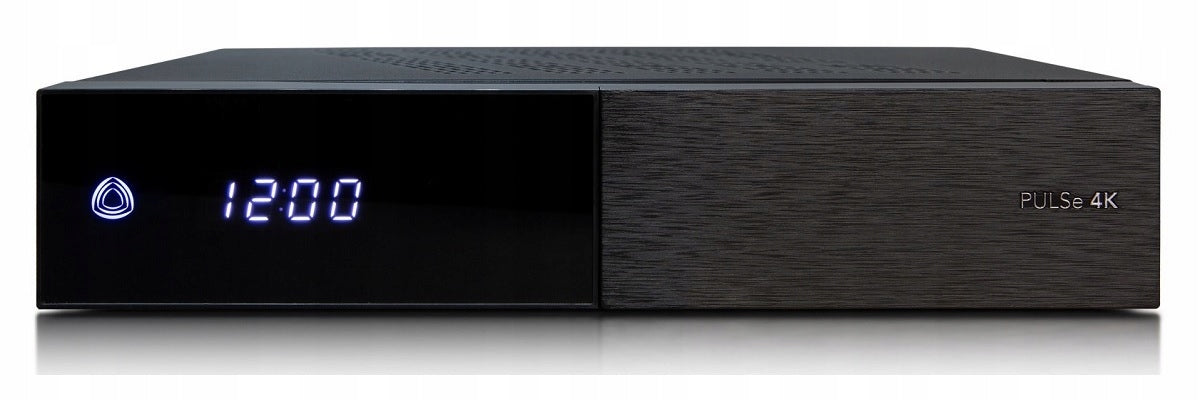

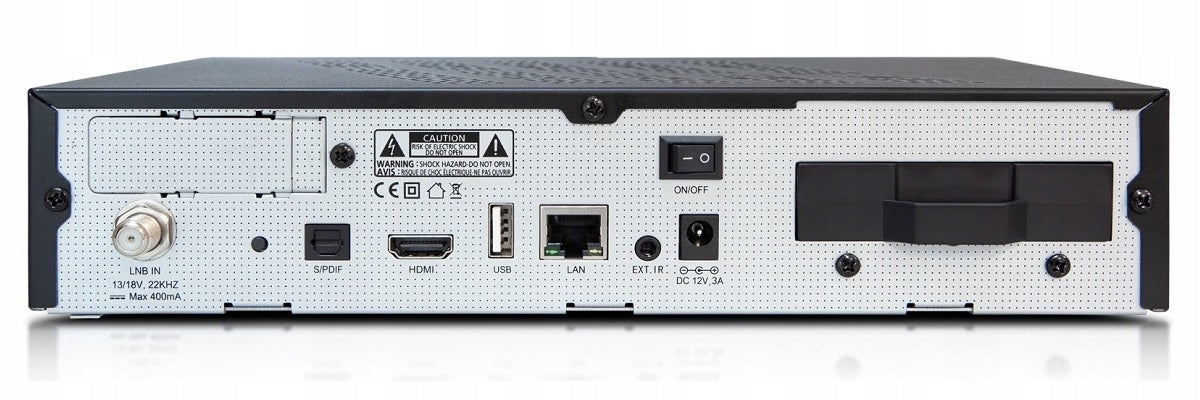

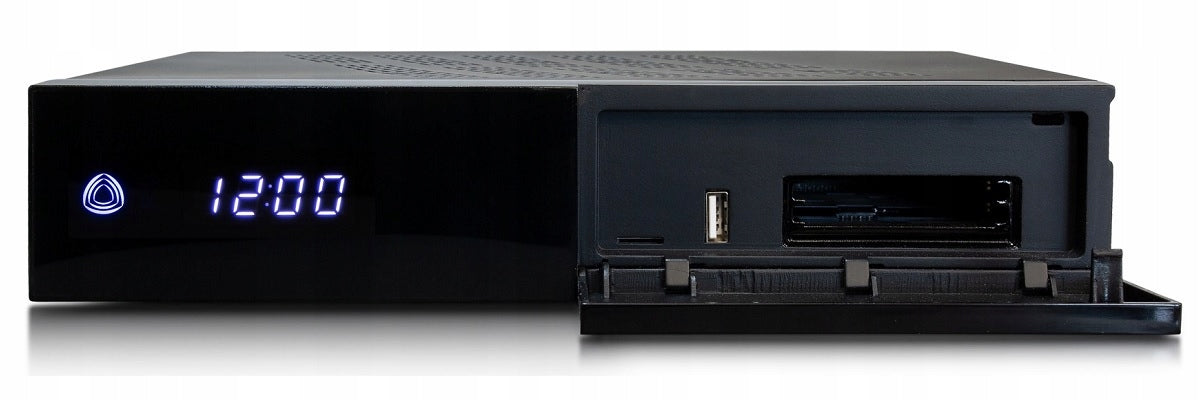

The elegant design of the receiver will fit into any living room. There is a 7-segment LED display on the front panel. Under the flap you will find 1x card reader, 2x slot for CI/CI+ module, 1x USB 2.0 and 1x slot for microSD card, which you can use as internal memory for your recordings. On the rear panel there is a built-in DVB-S2X satellite tuner and a socket for a second Plug & Play tuner, which can be equipped with a satellite or terrestrial / cable tuner. In addition to using the microSD card as internal storage, you can easily insert a 2,5" hard drive into the receiver through the HDD drawer system. On the rear panel you will also find optical digital audio output S/PDIF, USB 2.0, Ethernet RJ45 , IR extension cable socket (included with receiver), power switch and input for external DC 12V-3A power supply.

Take advantage of the possibilities offered by the Linux Enigma2 operating system with plug-ins to provide a better TV viewing experience. Customize the environment of your device to your preferences, and watching TV will take on a new dimension.

The big advantage of this decoder is the simultaneous decoding of two CI/CI+ modules, i.e. decoding two programs from the CI/CI+ module in real time, which everyone will appreciate when watching live broadcasts and recording another program at the same time.

PULSe 4K can provide content distribution for your TV. In addition, you can watch other TV broadcasts in real time on the other two mobile devices and one computer.

2 x mobile device (multiple transcoding)

1 x Personal Computer (Interface)

1 x TV (HDMI)

In addition to storing recordings on an internal 2,5-inch hard drive, you can also choose a more elegant solution, which is a microSD card. The microSD card fully replaces the functions of the internal hard drive and, above all, eliminates unwanted sounds from the standard 2,5" hard drive.

Calculation of microSD card capacity utilization:

- about 13 hours of recordings can be stored on a 32 GB microSD card

- on a microSD card with a capacity of 64 GB you can store approx. 25 hours of recording

- about 50 hours of recordings can be stored on a microSD card with a capacity of 128 GB

*Data is approximate depending on the bit rate of the program you recorded from, because each program has a different bitrate.

The PULSe 4K receiver can also be controlled via a mobile phone. You can also use your mobile phone or tablet as a remote control. You can see on your phone what is currently broadcast on TV and remotely set what your PULSE should do. Want to record a movie or your favorite TV show? With your mobile phone, you get it with just a few clicks. All recordings will be stored on 4K PULSE and you can view them on your mobile phone or tablet at any time you need them. If you have a recognized TV but need to move to another location, there is nothing easier than transferring your TV broadcast to your mobile device.

We recommend the dreamDroid application for Android devices.

We recommend e2Remote Lite for Apple devices.

An external WiFi antenna can also be connected to the receiver, which will provide a wireless connection to the Internet.

Technical specification:

- QUAD 15 000 DMIPS quad-core processor

- Flash 8 GB EMMC

- RAM 2GB DDR4

- Tuner: 1x DVB-S2X + 1x Plug & Play

- Video decoding - 4K x 2K @ 60 10-bit HDR/HDR10 and HLG decoding

- Transcoding: Multi Transcoding & Multiroom Support

- HDD slot for 2.5 hdd max. 15mm

- 7-segment LED display

- Card reader - 1x

- CI/CI+ socket - 2x

- USB - 2x

- RJ45 - 1x

- Micro SD card slot - 1x

- Infrared extension cable - 1x

- SPDIF - 1x

Tuner:

- Single: 1x DVB-S/S2/S2X

- Slot for second additional tuner: Dual DVB-S/S2/S2X or Dual DVB-C/T2

- MPEG1, MPEG2, H264, H265 HEVC, CAVS, VP8, VP9 video decoding

- Video formats: 4:3 Letter Box, 4:3 Panoramic Scanning, 16:9

- Video resolutions: 4K x 2K, 1920x1080, 1280 × 720, 720 x 480, 720 x 576

- Audio decoding: MPEG-1 I/II, downmix PCB, IEC958 SPDIF left / right / stereo / mono

- Decoding: 10 bits, HDR/HDR10, HLG

Main system:

- Processor: Hi3798MV200 (64-bit multicore) ARM

- Flash memory: 8 GB EMMC

- RAM: 2 GB DDR4

Slots:

- 1x Card Reader

- 2x CI/CI+ socket

- 1x Micro SD card reader

Video audio output:

- 1x IR

- 1x HDMI

- 1x Optical SPDIF

Input/output:

- 2 x USB 2.0

- External hard drive connected via HDD slot

- Micro SD

Internet:

- RJ-45 10/100 Mbps

- WiFi (optional)

Charger:

- DC 12V-3A input

- Power consumption max. 36W
