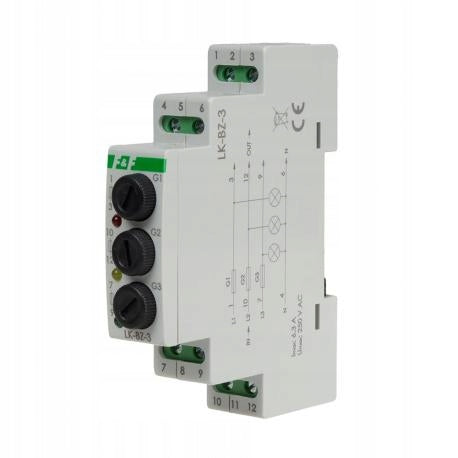

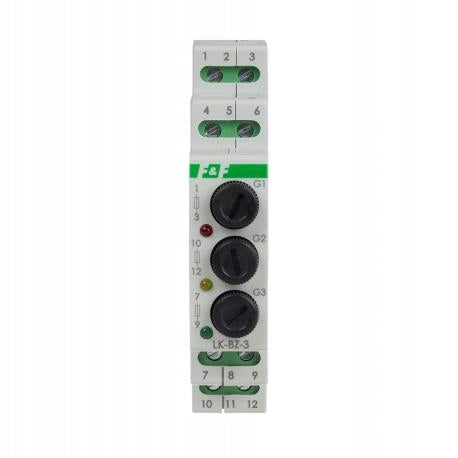

Indikacinė lemputė su saugiklio lizdu F&F LK-BZ-3K

Trumpai apie prekę

Prekė: Indikacinė lemputė su saugiklio lizdu F&F LK-BZ-3K. Kategorija: Išoriniai moduliai.

• Gamintojas: F&F
• Modelis: LK-BZ-3K

The task of indicator lights LK-BZ-3 is optical voltage signaling in individual phases of the 3-phase network.

Control lamps LK-BZ-3 -a way to make more space in the switchgear

The controls are secured with fuses connected to them in series. Therefore, we do not need to use an additional module with security. This in turn means more space in the switchgear. The other end of the fuse is output to the housing connector of the device, which also allows it to be used to protect other parts of the circuit.

Technical data:

• Power supply voltage: 3×230 V+N
• Power control: 3 × LED Ø5 mm
• Fuse: fuse insert Ø5×20 mm
• Maximum disconnection voltage: 250 V
• Maximum fuse current: 6,3 A
• LED colors: yellow-red-green
• Rated current: 1,7 mA (phase-luminous indicator light)
• Connection: screw terminals 2,5 mm²
• Tightening torque: 0,4 Nm
• Power consumption: 0,2 W/phase
• Working temperature: -25 ÷ 50 °C
• Dimensions: 1 module (18 mm)
• Assembly: on 35 mm rail
• Degree of protection: IP20

Note!!!

Wʮsʮłka takes place up to two working days/48 hours from the moment of placing the order. It is carried out depending on the time of purchase and the type of delivery, usually on the same day, but for various reasons, independent of us, it can be sent the next day. If it is given for a longer time than the stated (2 days), i.e. that the product has sold out and we expect delivery, usually up to 3-7 days.

In urgent matters, please let us know.

Pictures of products in our offers are illustrative, do not suggest the parameters placed on them. The offer description includes the full specification.

Our business is conducted on many sales channels, which may result in a possible delay in updating inventory and executing orders.

returnʈʮ!!!

Returned products should be without signs of use or assembly, and with unprogrammed functions, i.e. in the condition it was sent (new). In any case, your refund will be reduced!

The cost of returning/returningʈʋ the goods to the seller is borne by the buyer! The value will be reduced at checkout.

Electrical device, connection should be dealt with by a qualified person with electrical privileges. As a result of poor operation and installation, it can threaten electric shock or damage.
