Indukcinė kaitinimo ritė, lanksti, 80 cm, su izoliacija

Trumpai apie prekę

Prekė: Indukcinė kaitinimo ritė, lanksti, 80 cm, su izoliacija. Kategorija: Oro šildytuvai.

• Gamintojas: IDEAL
• Modelis: Cewka do podgrzewacza 80cm Flexi800+

☑ Flexible induction coil FLEXI800 800 mm with insulation

➡ FLEXI800 flexible coil in the form of a flexible cable is used for local heating of screws, pipes, suspension elements and irregularly shaped parts, around which the coil can be safely wrapped. It allows you to concentrate the temperature in the selected place.

• ⭐ The set includes flexible coil with a length of 800 mm and spare insulation braid with a length of 1 m.

☑ Principle of operation

➡ After connecting the coil to the induction heater, a variable electromagnetic field is created around the cable. It causes rapid heating of the metal element inside the coils, without the need for open flame.

• ⭐ The cable is not a traditional heater – it transfers energy to the metal element using induction.
• ⭐ Heating takes place primarily in the place around which the induction coil was wrapped.

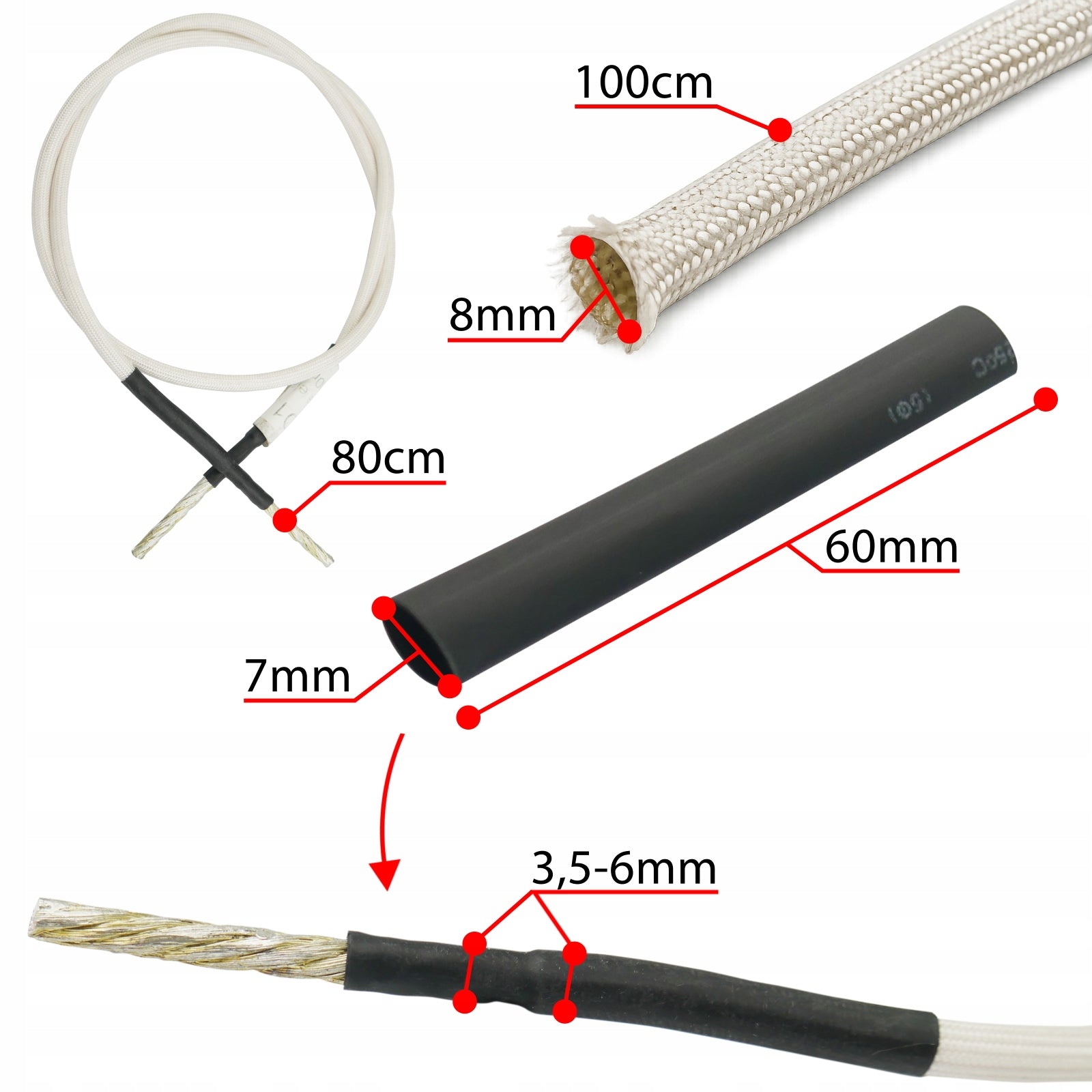

☑ Technical data

• ⭐ Product type: flexible induction coil – cable FLEXI800
• ⭐ Coil length: 800 mm / 80 cm
• ⭐ Length of insulation braid: 1000 mm / 1 m
• ⭐ Inner diameter of braid: about 8 mm
• ⭐ Length of black shrink shirt: 60 mm
• ⭐ Inner diameter of the shirt before shrinkage: 7 mm
• ⭐ Diameter of the shirt after shrinkage: about 4 mm

☑ Application

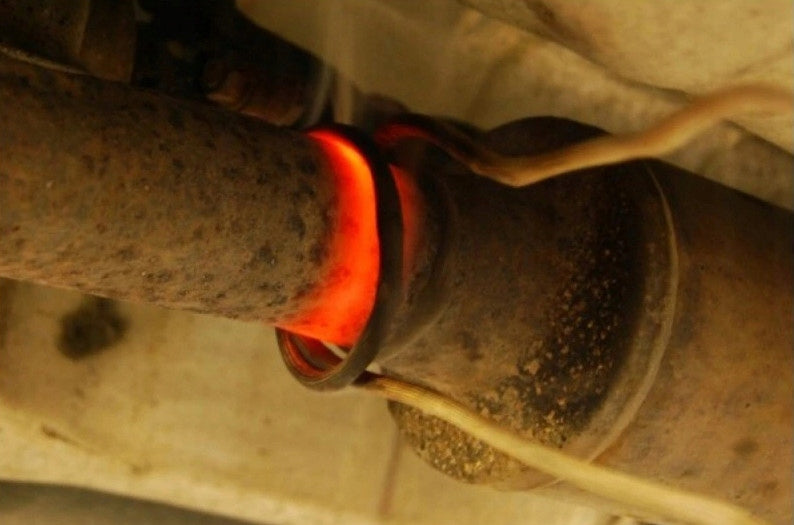

➡ Flexible coil for induction heater is designed for components that cannot be easily covered by a standard rigid coil. It works well during service, workshop, automotive and repair work.

• ⭐ Heating sealed bolts, nuts and threaded joints
• ⭐ Heating suspension elements, pins, sensors and other parts around which the coil can be safely wrapped
• ⭐ Heating pipes, profiles, rods and rollers, if their shape and access allow the correct positioning of the coil
• ⭐ Working with hinges, enclosures and irregularly shaped elements
• ⭐ The induction method does not require the use of open flame, however, elements sensitive to high temperature, such as varnish, upholstery, wires and hoses, should be properly protected.

☑ The correct way to use

➡ Before installation, turn off the heater and disconnect it from the power. The ends of the coil should be properly fixed in the holder of the device, and then wrap the cord around the heated element.

• ⭐ Wrap the cord around the item by making about 2 to 4 turns.
• ⭐ Make sure that the insulation braid thoroughly covers the conductor along the entire length of the coil.
• ⭐ Heat the element with short cycles, controlling its temperature and connection response.
• ⭐ After completing the work, leave the coil and heated element to cool completely.
• ⭐ The number of turns and the heating time should be adjusted to the instructions of the induction heater used.

☑ The role of insulation braid

➡ Insulating braid protects the coil conductor from direct contact with the metal element and reduces the risk of short circuit, spark and damage to the cable.

• ⭐ Isolates the coil conductor from heated metal.
• ⭐ Restricts direct contact of the conductor with heated metal.
• ⭐ Helps maintain proper electrical insulation between turns.
• ⭐ The braid is a consumable element and should be replaced when it is burned, rubbed, cracked or reveals the conductor.

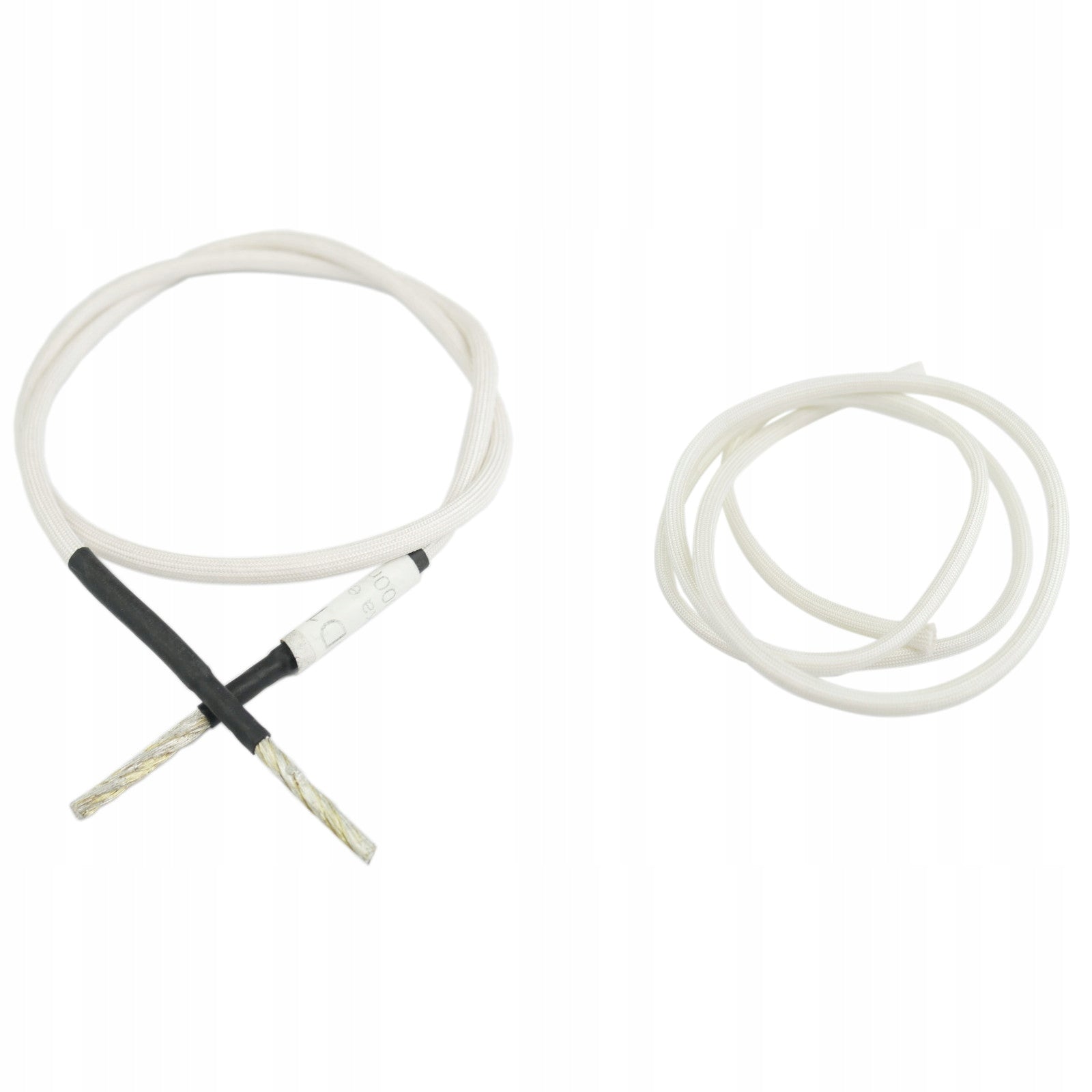

☑ The set includes:

• ⭐ Flexible cable FLEXI800, L 800mm - 1pcs
• ⭐ Insulation for coil - 1pcs

https://youtu.be/8c8v_myHYHA?t=18

Copy the link and paste into your browser window

☑ Frequently Asked Questions

➡ What is the flexible induction coil FLEXI800 used for?

• ⭐ The FLEXI800 coil is used to heat metal components that can be wrapped with a cable, such as bolts, nuts, pipes, shafts, bushings, hubs and suspension components.

➡ How should I wrap the coil around the heated element?

• ⭐ Around the element, about 2 to 4 turns should be made, and then both ends of the cable should be fixed in the heater holder. The coil shall be mounted with the device disconnected from the power supply.

➡ Does the FLEXI800 coil fit INDUCTOR 1.5 and INDUCTOR 2000?

• ⭐ The IND1.5-FLEXI800 coil is designed for IDEAL INDUCTOR 1.5 and IDEAL INDUCTOR 2000 devices, according to the manufacturer's compatibility table.

➡ What is the additional insulation braid used for?

• ⭐ Insulating braid protects the coil conductor against direct contact with the metal element, abrasion and damage caused during operation.

➡ Can a coil with damaged insulation be used?

• ⭐ Do not use a coil with a rubbed, cracked or burnt braid, as the exposed conductor may cause short circuit, spark or damage to the device.
