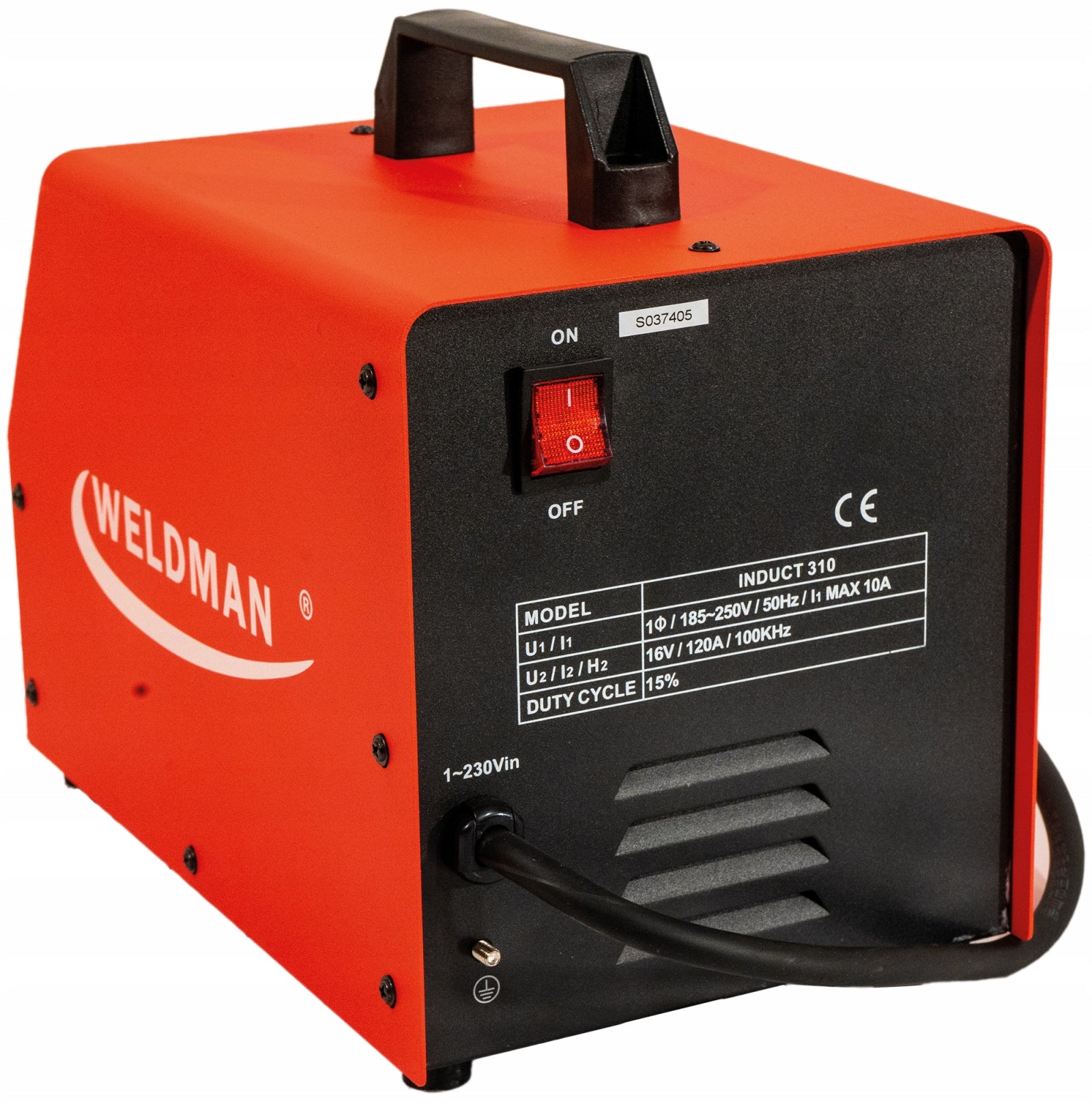

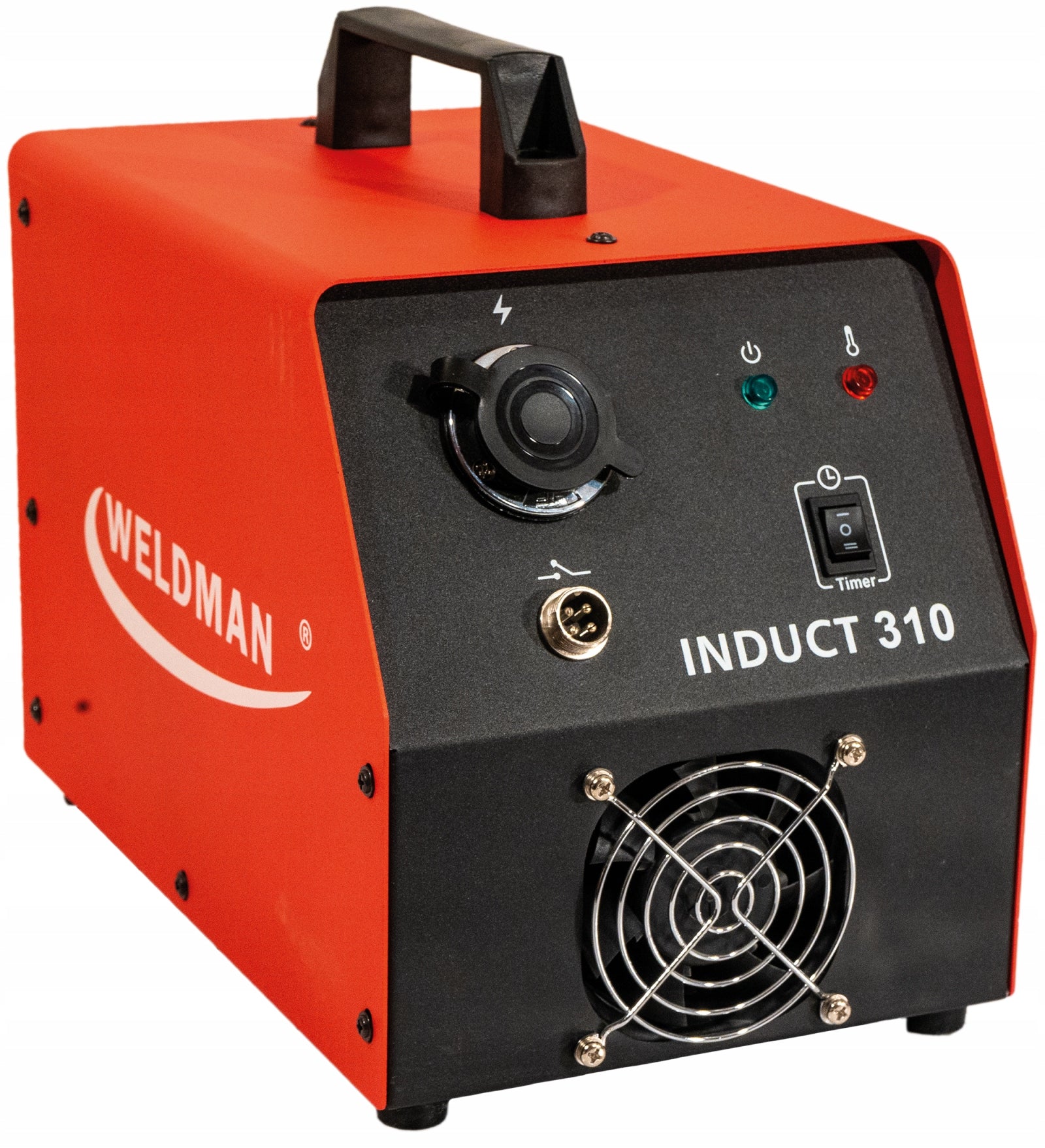

Indukcinis kaitintuvas 3 kVA WELDMAN INDUCT 310

Trumpai apie prekę

Prekė: Indukcinis kaitintuvas 3 kVA WELDMAN INDUCT 310. Kategorija: Sandarikliai.

• Gamintojas: Weldman
• Modelis: 106 213

An induction heater is a device that generates high-frequency alternating current, which, passing through an induction coil, produces a variable magnetic field, which, using the principle of electromagnetic induction, introduces electrons into the vibration inside the heated material.

Electron energy is lost in the form of heat, which warms up the metal within the coil range: the more the material is magnetized. An important element in induction heating is the lack of direct contact when transmitting magnetic field energy and placing the heated object in the center of this field. Induction heating offers a heat source that can be well adjusted and limited to partial heating zones.

The INDUCT induction heater is designed for fast heating of metal elements, perfectly replacing traditional methods of heating with combustible gases. By limiting the heating zone, it eliminates the risk of damage to the element (varnished surface, electrical harness, upholstery, rubber wire) and improves work safety.

Indispensable in the automotive industry in workshop and repair work (heating corroded bolts and nuts, hubs, bushings, bearings, exhaust system components, flat sheets, protective strips on the body, etc. ) and in the heating and sanitary industry.

Additional information:

• Work cycle - is based on a 10-minute period. The 15% duty cycle means that after 1,5 minutes of operation of the device, a 8,5-minute break is required. The 100% duty cycle means that the device can work continuously, without interruptions.
• Working environment - the device should be placed in a well-ventilated room, with free air circulation, away from flammable objects, min. distance from other objects 0,5m.
• Design - the housing of the device is made of light and durable composites, resistant to all kinds of mechanical damage.
• Mobility - low weight of the heater provides comfort when changing jobs.

Technical specification:

• Power supply voltage: 230V/50Hz
• Power supply: 3 kVA
• Power supply current max: 10 A
• Output current voltage: 16 V
• Output current: 120 A
• Induction frequency: 100 kHz
• Efficiency: 15%@120A
• Ambient temperature: -10°C to +40°C
• Security: IP21
• Security required: 16 A
• Heater dimensions (W) x L x H ): 19 x 30 x 31 cm
• Heater weight: 5,5 kg
• Weight of heater with accessories: 8 k

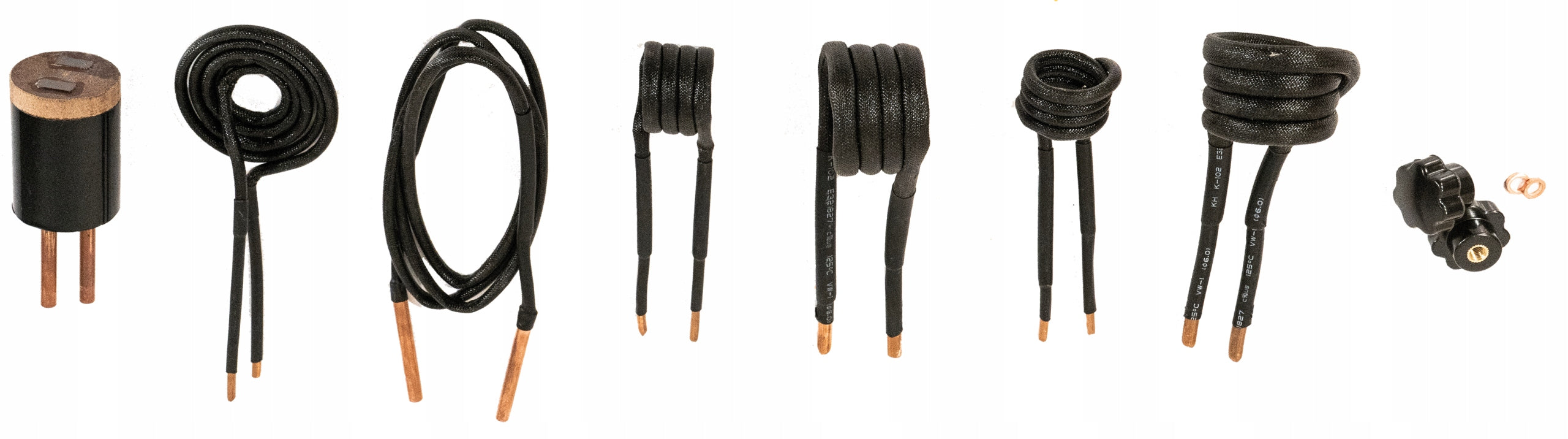

Set Contents:

• Induction heater INDUCT 310
• Multifunction holder 2,4 m
• Power cord 1,8 m
• Vertical induction coil with an inner spiral diameter of 20 mm (section 3 mm)
• Horizontal induction coil with an inner spiral diameter of 20 mm (section 3 mm)
• Vertical induction coil with an inner spiral diameter of 28 mm (section 5 mm)
• Horizontal induction coil with an inner spiral diameter of 28 mm (section 5 mm)
• Flat induction coil with a diameter of 55 mm (section 3 mm)
• Flexible induction coil with a length of 92 cm (section 3 mm)
• Induction coil for repairing dents (sheet heating)

Specifications
