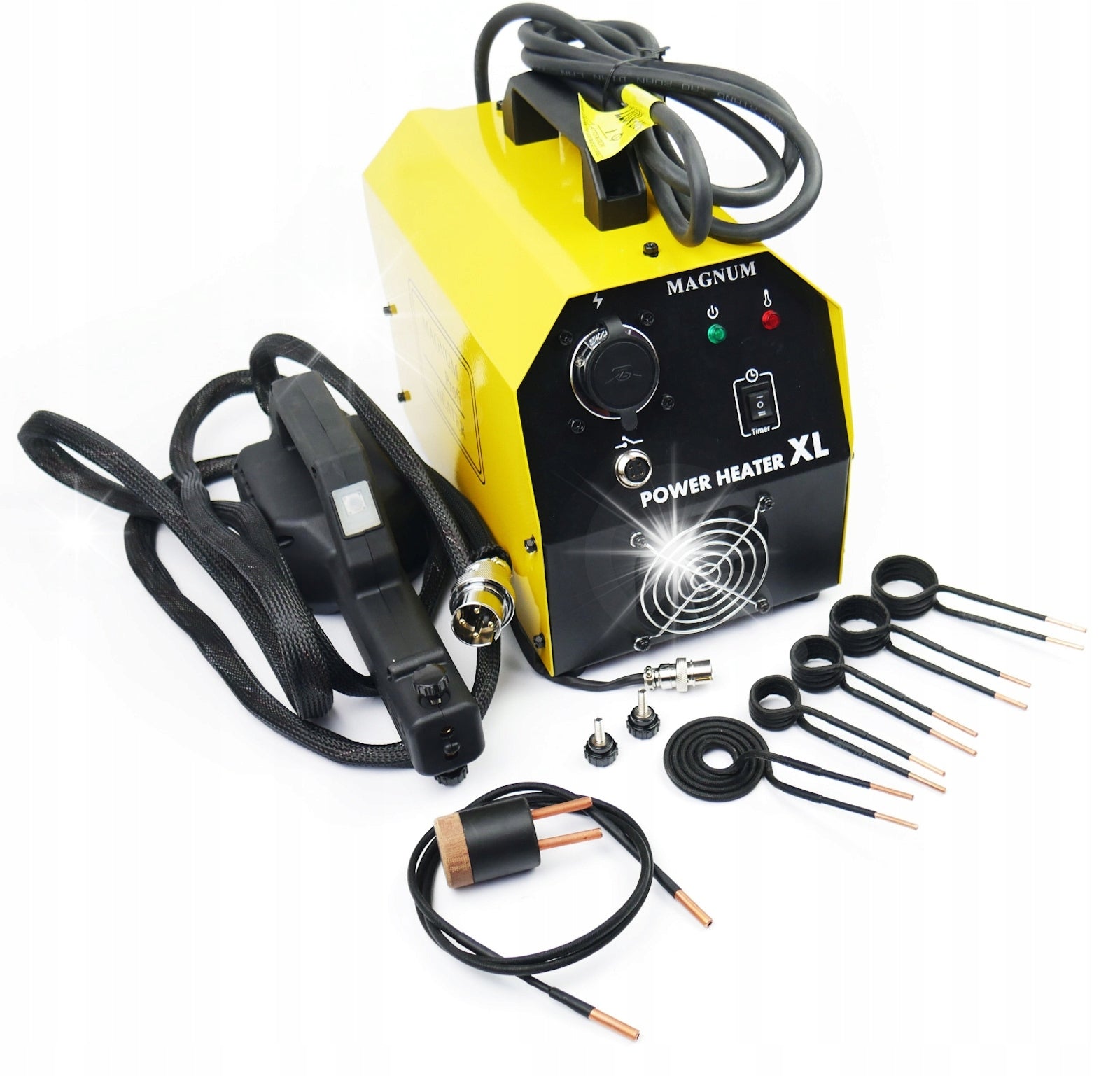

Indukcinis kaitintuvas Magnum Power Heater XL, 3 kVA varžtams

Trumpai apie prekę

Prekė: Indukcinis kaitintuvas Magnum Power Heater XL, 3 kVA varžtams. Kategorija: Sandarikliai.

• Gamintojas: no brand

Manufacturer: MAGNUM ║ Technology: IGBT ║ Induction frequency: 100kHz ║ Power: 3kVA ║ Power supply: 230V ║ Handle length: 2m

Choose the most powerful 230V inductor, which will work where smaller ones can not!

DISCOVER ALL THE BENEFITS OF A HEATER!

• EVEN AND FAST HEATING OF METAL
• UNSCREWING OF SEALED SCREW AND NUT
• REPAIR OF DENTS IN CARROT
• REMOVAL OF STICKERS
• AUTOMATIC SELECTION OF OPERATING FREQUENCY
• RESISTANCE TO VOLTAGE DROPS - PFC SYSTEM
• MADE IN IGBT INVERTER TECHNOLOGY
• SINGLE-PHASE POWER SUPPLY 230V
• HIGH POWER - 3kVA!
• SET OF COILS INCLUDED
• HIGH SAFETY OF USE - WITHOUT FLAME

POWER SUPPLY PARAMETERS

• Power Supply: 230V (PFC 185-250V)
• Number of phases: 1ph
• Frequency: 50/60 Hz

TECHNICAL PARAMETERS

• Maximum power: 3kVA
• Execution technology: IGBT
• Induction frequency: 100kHz
• U2: 16V
• I2: 120A

PHYSICAL PARAMETERS

• Handle length: 2,6m
• Protection class: IP20
• Weight: 5,6 kg
• Dimensions: 290x180x230mm

DO NOT RISK FIRE - REPLACE THE BURNER WITH AN INDUCTOR

The POWER HEATER induction heater from MAGNUM is designed for fast and precise heating of metal elements. The device replaces standard heating methods with a gas burner and will be used where there is a risk of damage to the area of the heated element. The induction method of heating details used in the device ensures that the operator is not exposed to open fire, which guarantees high work safety, easier and more precise operation.

INCREASED POWER BY 100%

MAGNUM POWER HEATER XL is a very efficient and powerful heater. Thanks to the reinforced 100kHz transformer, the device has a power of up to 3kVA. The applied solution increases the power even by 100% compared to the previous model. This efficiency makes the POWER HEATER XL the most powerful heater on the market powered by 230V.

RESISTANCE TO VOLTAGE DROPS - PFC SYSTEM

The great advantage of the heater is resistance to large voltage drops in the network, thanks to the built-in PFC function. This guarantees stable operation with large voltage drops in the network, when working on long extension cords and using a generator set. The device is able to operate at a voltage drop to 185V.

MULTI-FUNCTION CONTROL HANDLE

The device has a patented handle with a long power cable 2,6m, so it does not limit our working range. The sockets of the interchangeable tips allow for longitudinal and transverse installation of the induction tips, making it easy to access even hard-to-reach areas.

CONTROL OF HEATING TIME

The heater has intuitive control of heating time. From the control panel using the TIMER button, it allows you to easily choose one of three operating modes:

— after pressing the handle button, the heating will last 1 second, pressing again turns on the heating for another 1,5 seconds.

＝ after pressing the handle button, the heating will last 1,5 seconds, pressing again turns on the heating for another second.

O When you press the handle button, the heating will continue until it is released.

FULL SET OF COILS

The equipment includes a set of tips (coils):

• Butt 17mm - 1pcs
• Butt 20mm - 1pcs
• Butt 24mm - 1pcs
• Butt 28mm - 1pcs
• Flat 55mm - 1pcs
• Flexible (for pipes and rods) 92cm - 1pcs
• For spot heating of sheets - 1pcs.

MAGNUM POWER HEATER is indispensable in the automotive industry in workshop and repair work (heating corroded bolts and nuts, hubs, bushings, bearings, exhaust system components, flat sheets, protective strips on the body, etc. ).

THE SET INCLUDES:

• Induction heater MAGNUM POWER HEATER XL - 1pcs
• Working cable 2,6m - 1pcs

+ SET OF COILS:

• Butt 17mm - 1pcs
• Butt 20mm - 1pcs
• Butt 24mm - 1pc.
• Butt 28mm - 1pcs
• Flat 55mm - 1pcs
• Flexible (for pipes and rods) 92cm - 1pcs
• For spot heating of sheets - 1pcs.
• Operating manual and warranty card

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Maximum power	3000 W
Parametry	Power supply	mains
Parametry	Device weight	5.6 kg
Parametry	EAN (GTIN)	5908066144858
Parametry	Batteries included	no
Parametry	Customs tariff code	85144000
Parametry	Purpose	for pipes
